For sale pcb Fortuna M2/M3 and M3

[blobber]

Well done Arief!
These videos are showing the unit with your second pcb?
Did you already solved the problem with the first one?

[ripsdevala]

Yes 2nd pcb with smt, the 1st full smd pcb still make reverse sound when pin pointing, not do anything to fix yet, maybe there is cold joint or something somewhere or setup error

[blobber]

This is strange, but you should check all soldered connections and components at least around MCP 602. Maybe replacing this IC could fix the problem.

[ripsdevala]

Will try. Thanks

[ripsdevala]

After change 601, pointing work fine, sound not reversed any more

[blobber]

Good job Arief!
But you mean 602 for sure.

[ripsdevala]

Yes mcp602i

[blobber]

If someone like to make his own M2.

https://vk.com/doc3778491_445828366?...60882d8ec54cfc

[blobber]

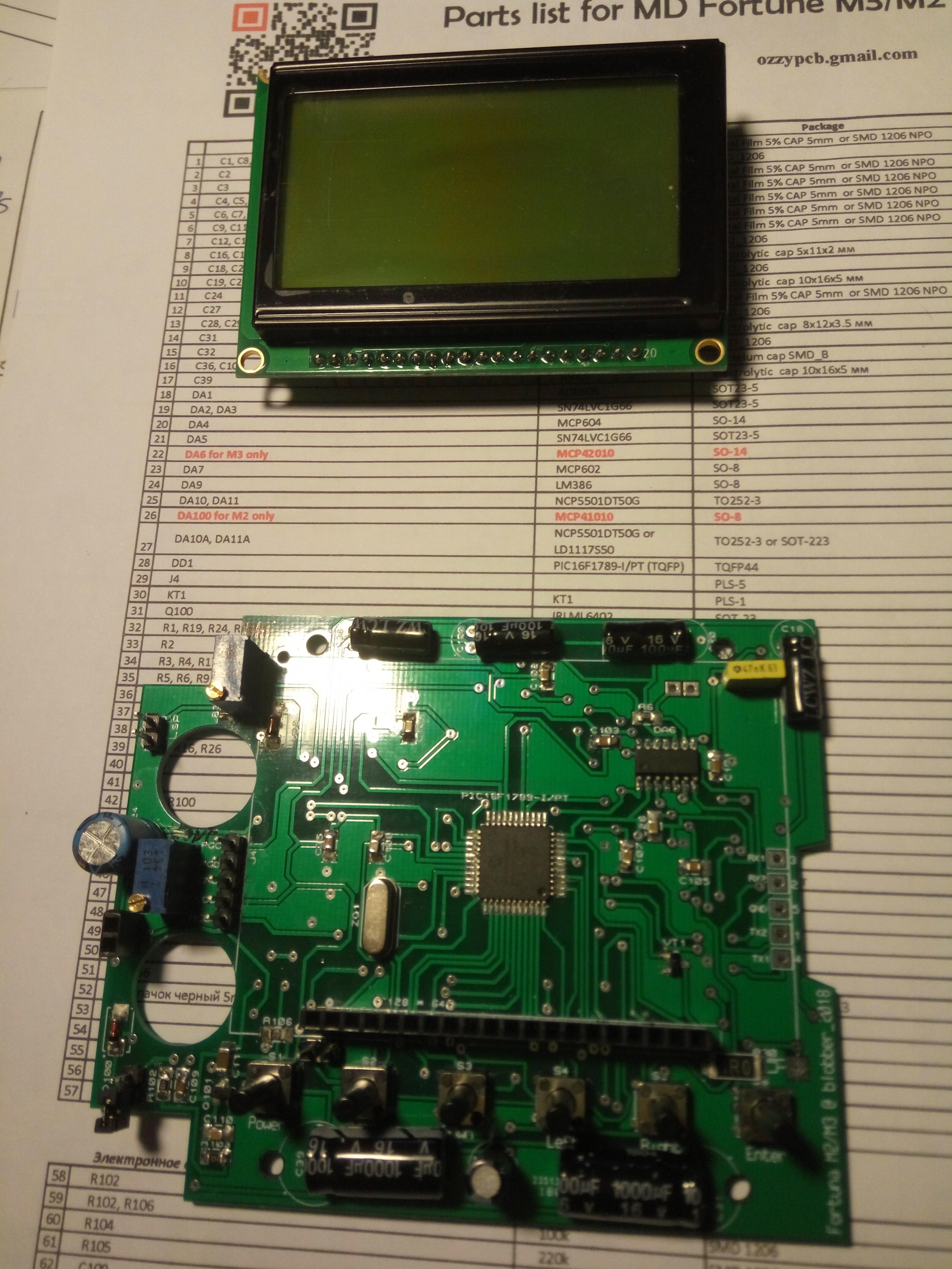

The small M2/M3 pcb still in progress. Some IC's are missing on the back side.

[bernte_one]

[blobber]

Customer pcb M3.

https://youtu.be/lbngnVe-H10

The same pcb here on my TGSL coil.

https://youtu.be/JXza_JI7zrQ

Still waiting for some IC's for the small board.

[blobber]

For order components in Germany, here you are.



BOM in Reichelt online store in Germany, for the electronic parts M3.

https://www.reichelt.de/my/1571641

Conrad online store Germany AD8605ARTZ SOT-23-5

https://www.conrad.de/de/analog-devi...5-1249341.html

and also there SN74LVC1G66 SOT-23-5

https://www.conrad.de/de/texas-instr...5-1187213.html

[Iimy]

Hi Blobber,
do you have any spare pcb for the M3?
If so could you contact me via pm as I couldn't find a way to do it (maybe forum waiting for new user delay). Thank you

[blobber]

I wrote you via pm.

[Iimy]

Thank you. Looking at it now over ebay.
