Need a manual for a Fisher Orion 121 (model) M711222 (serial) can you help me out?
Need a manual for a Fisher Orion 121 (model) M711222 (serial) can you help me out?
-
-
...Scooter....You do not need a Manual!!....I really do need for you to post a close-up of the control panel.......Ok...this is from Memory....1) Make sure that you have good batteries...2) Turn the detector on.......3) Holding the detector so that the coil is up in the air.....set the Threshold......this is the slightest sound that you can comfortably hear.....4) Lower the coil to the ground .....if the sound increases most likely you are over a metal object....if the sound decreases ...re-set the threshold this time with the coil on the ground.....make sure that you are not over any metal......unless there is something wrong with the detector this is it......This detector is Not a Discriminator....so it will react good to most of the junk like pulltabs ...foil.....bottlecaps...screwcaps ....etc........the good thing is that it will Null or go quiet over iron nails and most small iron.....Good Luck.....JoeComment
-
...UPDATE....
...I really do Not do this anymore...I found out that although I can give someone detailed step by step procedures on a detector ...most would rather have the Official Manufacturers Instruction Manual....so I refer most to the Manufacturer's website and download the official Instuction Manual....Now in the case of Vintage...Obscure detectors...I may be one of the only sources for a detailed step by step instructions....also if the Instruction Manual was written by an Engineer and looks Greek to someone then I can probably explain it in more everyday language ....Merry Christmas JoeComment
-
I used to be a new and used metal detector dealer, now retired, but I still have quite a few of the factory manuals, and I have some of the re-prints of some factory manuals for those that went out of busness. I do not have everything of course. But you can email me at [email protected], and write to me in english language, and I will answer you. And if you are seeking information regarding some old vintage metal detector, I have lots of information in my file folders...
MelbetaComment
-
I would be interested in a manual for the Compass 94B if you should happen to have it. I know how to operate it but still would be cool.Comment
-
hello my frends. hello Joe. in my case i need and vintage knowlege and tecnical , i have my frends one Dtex-RS100 with 15Khz freq. and 2 coils 1 medium + 1 big the handhadle button was reset ? i dont know and the baterie case it is out ther is no baterie case. this was my uncle m.detector, and he gave it to me, he say that the Dtex RS100 takes 4x9volts bateries, please help me my frends i will puti will put more photos from down.
Comment
-
where all this wires i have to conect and with what switces ? bateries ?? red to + black to black? of the 9v . ? i have confused very much in the handheld stick it was a push button with 3 legs my uncle did not remember , from my search i find that the detector it is the same with the Dtex RS200 conections all the same maeby rs200 haves more bateries Joe, can you help me my frend ? and from tecnical things my frends please sare your knowlege. i want to fix this bist . for work it or to fix it and sale it . i dont know yet. thankou all my frends .Comment
-
Tutanxamon, at this point you do not need a manual. You need to find a repairman. Your detector is in sad and broken shape. Not sure if it can be fixed? Looks like all of the components for the batteries are missing? Not sure what else needs to be fixed? I would contact Keith Wills www.brokendetector.com he is very good on fixing these vintage detectors. Not sure if he can help you? but it does not hurt to ask him. Good LuckComment
-
These show up on ebay from time to time. That would be the place to search for copies. Keith Wills probably sells copies contact him at www.brokendetector.comOriginally posted by homefire View PostComment
-

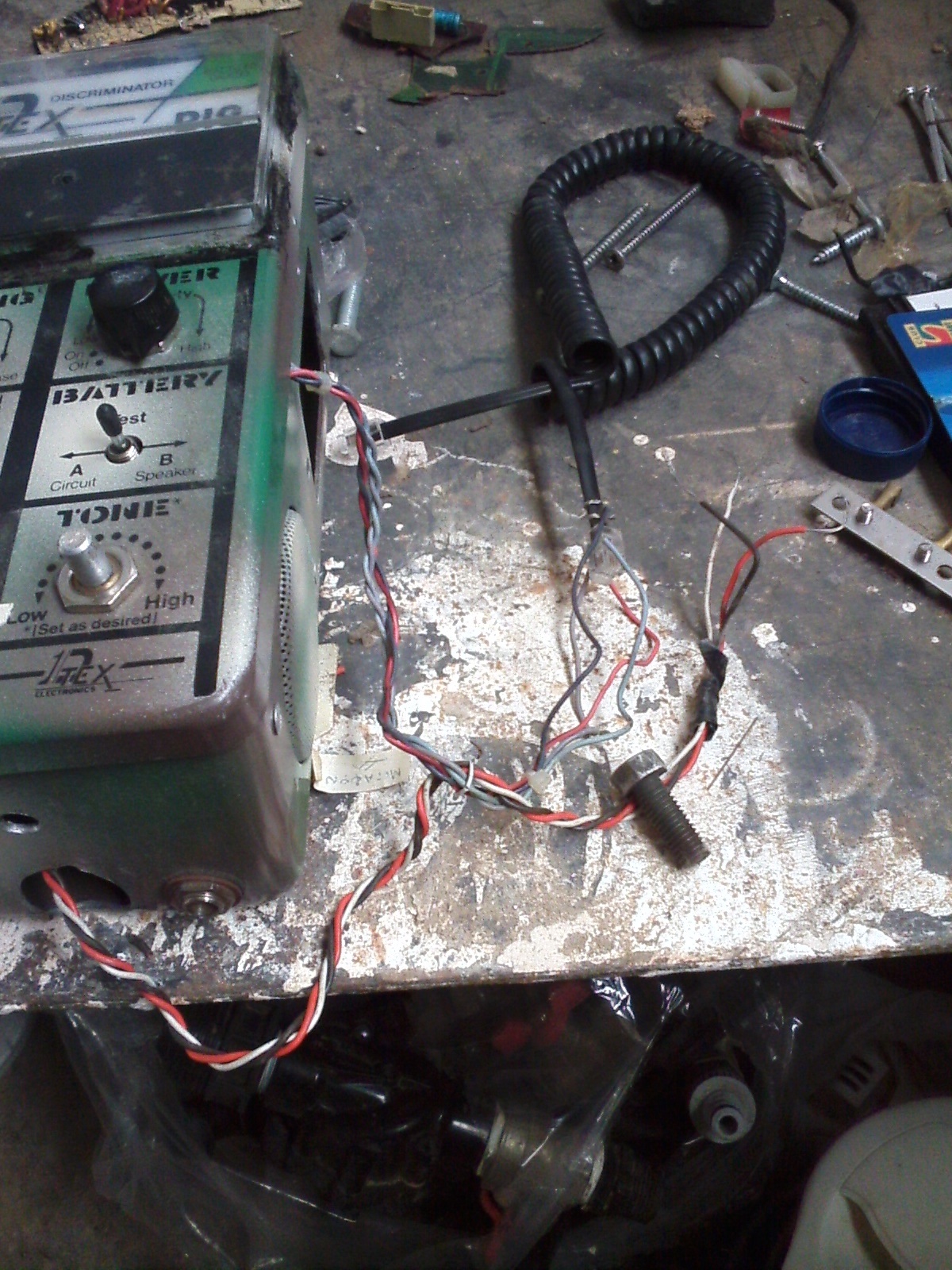

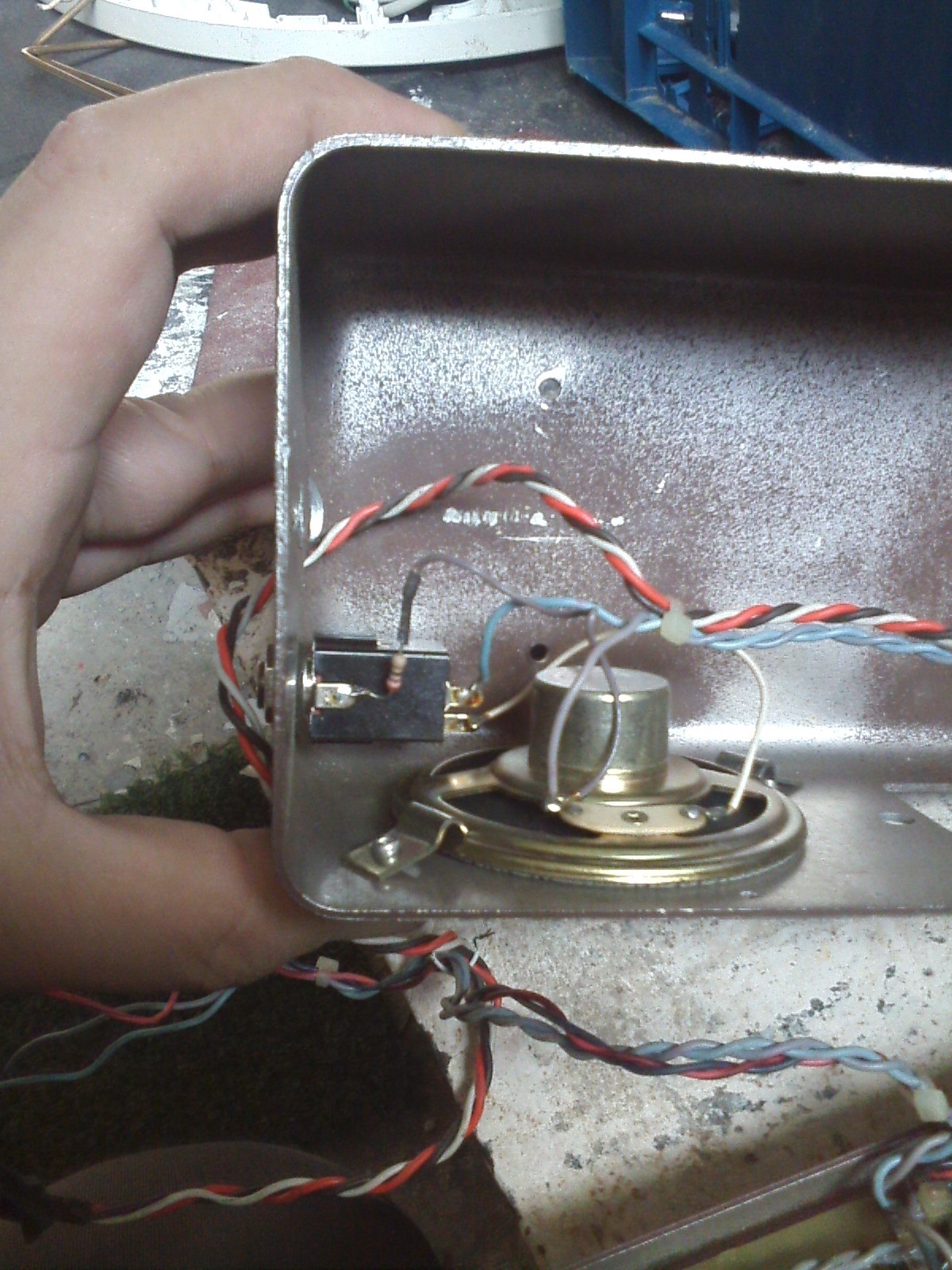

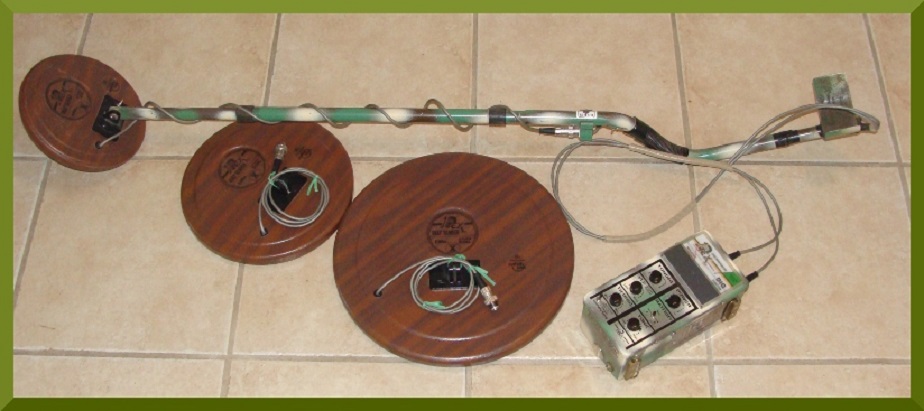

thankou Joe. the Dtex its not to mess. its only derty from the dust. the wires it is the problem brown,red ,black grey. blue and white . are conected to the speaker volume alot of them my ancle says that , he dident do nothing to the machine no spark, namely. i see the orange capacitors to be bad but i dont measure them yet .i want to find out first about tha hanneld push button. and i want to make like thisComment
-

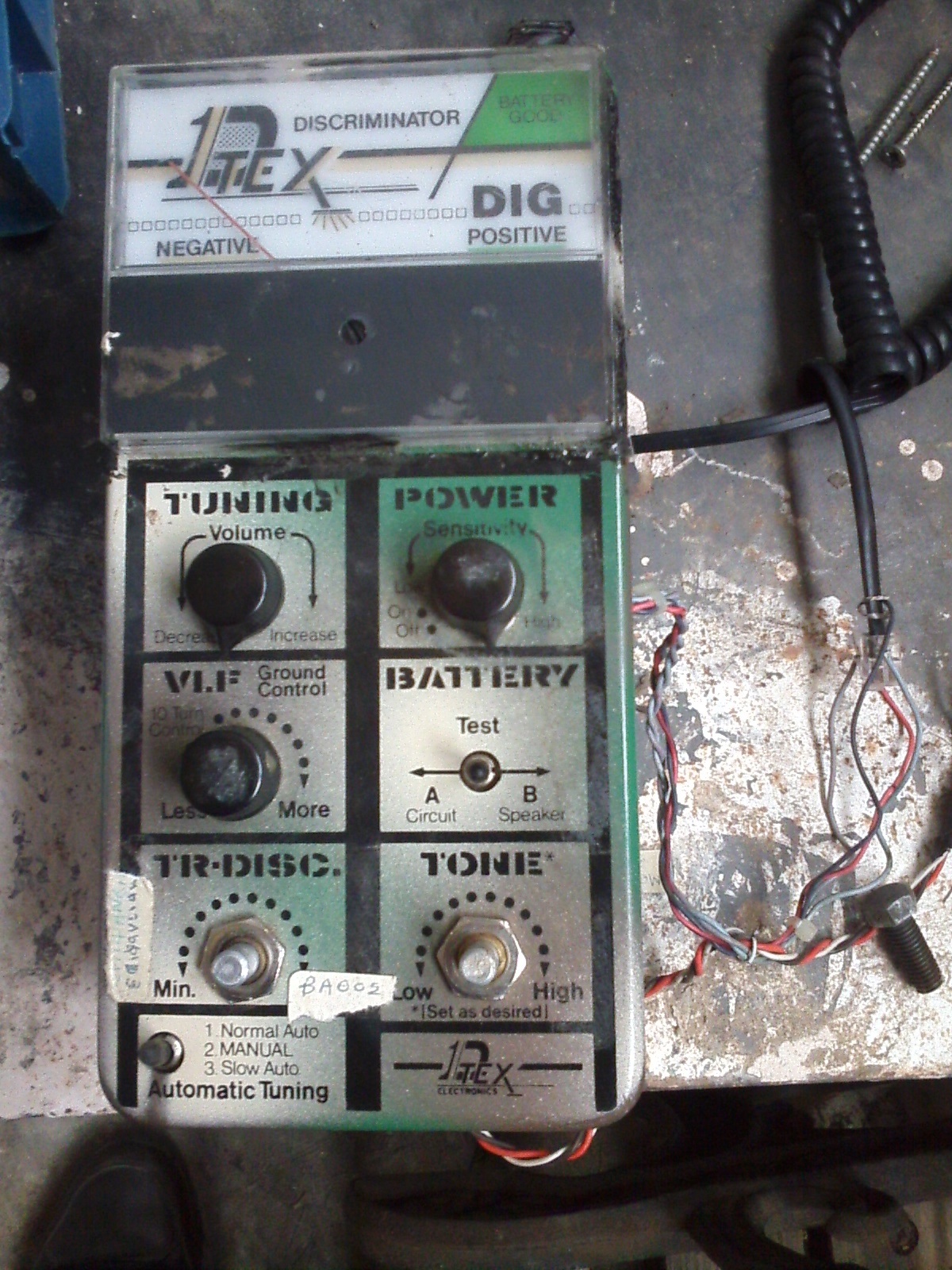

Tutanxamon, You have a big project if you want to make it like the D-Tex 200 that you have pictured. I am not an electronics guru that is why I said that you need to find a repairman. Or are you saying that you have the electronics ability to fix this yourself? You need to clean it up and take some better photos. Although your uncle says that he did not do anything to the machine, someone did, the big hole on the back end of the detector is not original plus the coiled wire set up is not original either. From what I can tell you are missing the battery holder and connections and also missing all of the hand held push button assembly and set up. That is why I asked for more photos. Where are you from? The biggest problem is parts. Your detector is at least 34 years old and parts can be a big issue. Some people buy non-working machines of the same model for the parts. Good Luck.Originally posted by tutanxamon32 View PostComment
-
not to big joe. if i know where goes where. from eletrical parts. ' Hello to all and happy and healty christmas to all the forum.Joe. it was there batterie pack he says, Joe. with a simple pcb ,to take the voltage from the 4x9volts. and send it to the pcb and the speaker plug and speaker as i see Joe. where the pins was conectend to the plus and minus of the 4x9volt bateries. no problem for this. i can make it. in the hall of the back of the rs100 was the case, 2x9volt up to the mising baterie case and another 2x9volt from upside down ,or next. i can conect 4x9volts bateries.no problem but it was conected at series ? or pararel ? as for the hand heald push button i have one very old oCoin computer metal detector the same sile, i can pul out the push button from there. but i need some help and from the electronic members with the cables i forgot that here is and one brown ,cable seem now black . but it is Brown . i will take more fotos , and i will upload Joe. and for the electronics members to help me if you want guys . and more foto , for you Joe for help me, hankou again my frend . and all the members where i becam member of the bigest forum at world it is my owner to be with you all guys . my name it is Jo.from George Joe, and i am from thessaloniki Greece. Joe/.and members. Joe where you want to foto the RS100? the fotos ? pcb ?? i have alot and clear , again thankou for your time my frend you are very nice guy . i think Joe to sale it because it is the most rare metal detector at 15KHZ working freq. of the Dtex Electronics. no one i have see to have the RS100 . only the rs 200 with 5KHZ working freq. the RS200. i want to fix it because if i want to sale it. it gana cutch 5times more money. and the trooth is that i need money . bu my passion for electronics says to me to fix it first to take it 1 week or 2. out for search and after yes i will sale it. it is very rare. detector. 80cm depth at vlf mode says uncle and to all metal ... monster . he coils Joe are only work 1 week the medium one. its new . and he big coil it is brand new only 1 time ,my uncle work him the pictures are bad . for this you see them like broken or bad. they are shining both of them . i will measure and the cm. tomorrow of the coils to inform you ,my frend -and my electronic magicians geotech tecnician electro-members. my best wishes to all from the snowing thessaloniki Greece by Jo.
Comment
-
Glad that you can do the repair job. I cannot help you. I only use the detectors. I like to play with them. No experience on fixing them. Good Luck.Comment
-
thankou. did you have any Dtex RS100?? Or Dtex rs200?? Joe ?Comment
-
