@ CARL: PLEASE repost Hammerhead SMT Board

[Naildigger]

Hello Carl,

you posted the TIFF Files of the Hammerhead SMT Board. Unfortunately the Parts Housings are visible, which is shorting some sigals !!!

So could you Please repost it. Only Top and Bottom Copper. Nothing else.

I want to build you Hammerhead in Surface Mount Technology, but without a PCB it´s almost impossible.

Thank you,

Best Regards,

Manuel; Naildigger

[KT315]

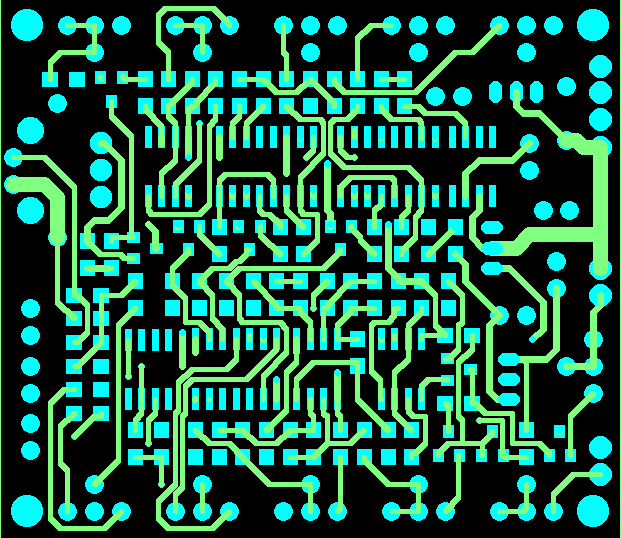

top

[KT315]

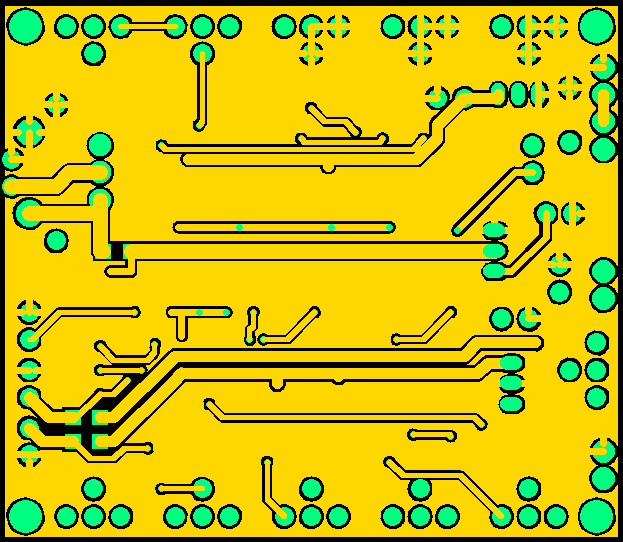

bottom




-

[KT315]

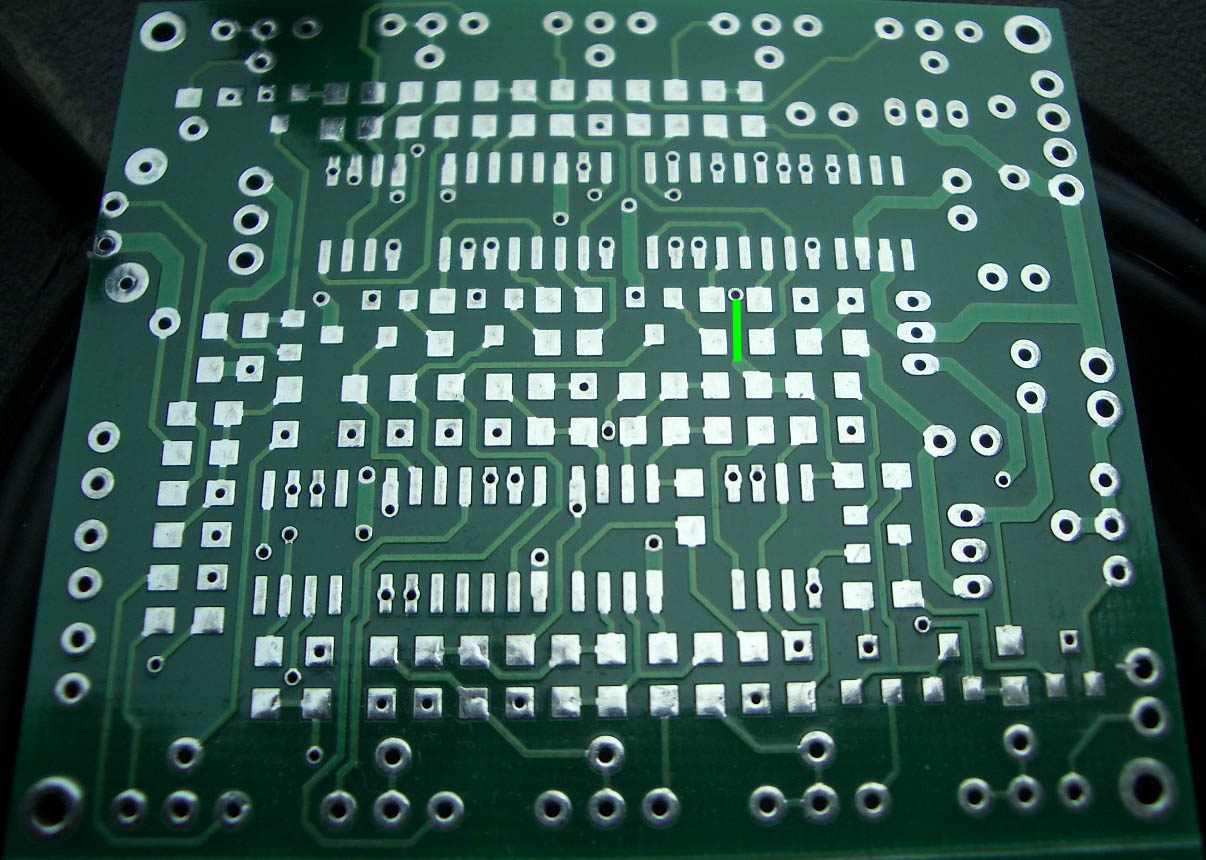

pcb shoot. 'bonus' +




-

[capela]

Re: @ CARL: PLEASE repost Hammerhead SMT Board

Is it possible to order this SMD PCB, if so how much for each ?

thanks.

capela
