    There is a video on Youtube showing how. It seems you just solder a wire on bottom of board bypassing a resistor/cap.

    Comment


    • #17
      i see tracing and the joint between line on stabilizator and line on trimmer that tuned preset voltage level.
      no magic here. i learned some listings and there are pics of the board with more better resolution.

      Comment


      • #18
        I've bought this kit:
        http://www.ebay.com/itm/DSO138-2-4-T...sAAOSwMNxXXoHJ

        but with SMD unsoldered and without case. homepage states that these are fake, not original some chinese ripping off other chinese.
        it is noisy, but usable.

        Comment


        • #19
          At BangGood the ones with the SMD soldered are cheaper then the Un Soldered. LOL The case is only like $5.00 but you would be better off coming up with something else. One Drop and it's over.

          Comment


          • #20
            yes, they are cheaper now. I bought the original couple of years ago and it was available only in usoldered version.

            Comment


            • #21
              Originally posted by kt315 View Post
              just received it LOL! a board is perfect... esspecially right silk graphics. no schematic there been put, no part list and this is bad.
              first thing i did i run by superglue on edge slits of a display. just cause i have bad experience with TFTs that its are not so good sealed at edges in layers.
              i killed two TFTs by flux and sealent.

              Comment


              • #22
                SMDs... will solder them first.
                http://ipic.su/img/img7/fs/CIMG6041.1488555736.jpg

                Comment


                • #23
                  I think you may find Schematic and Assembly on line.

                  Comment


                  • #24
                    soldered. ready to check

                    Comment


                    • #25
                      Originally posted by kt315 View Post

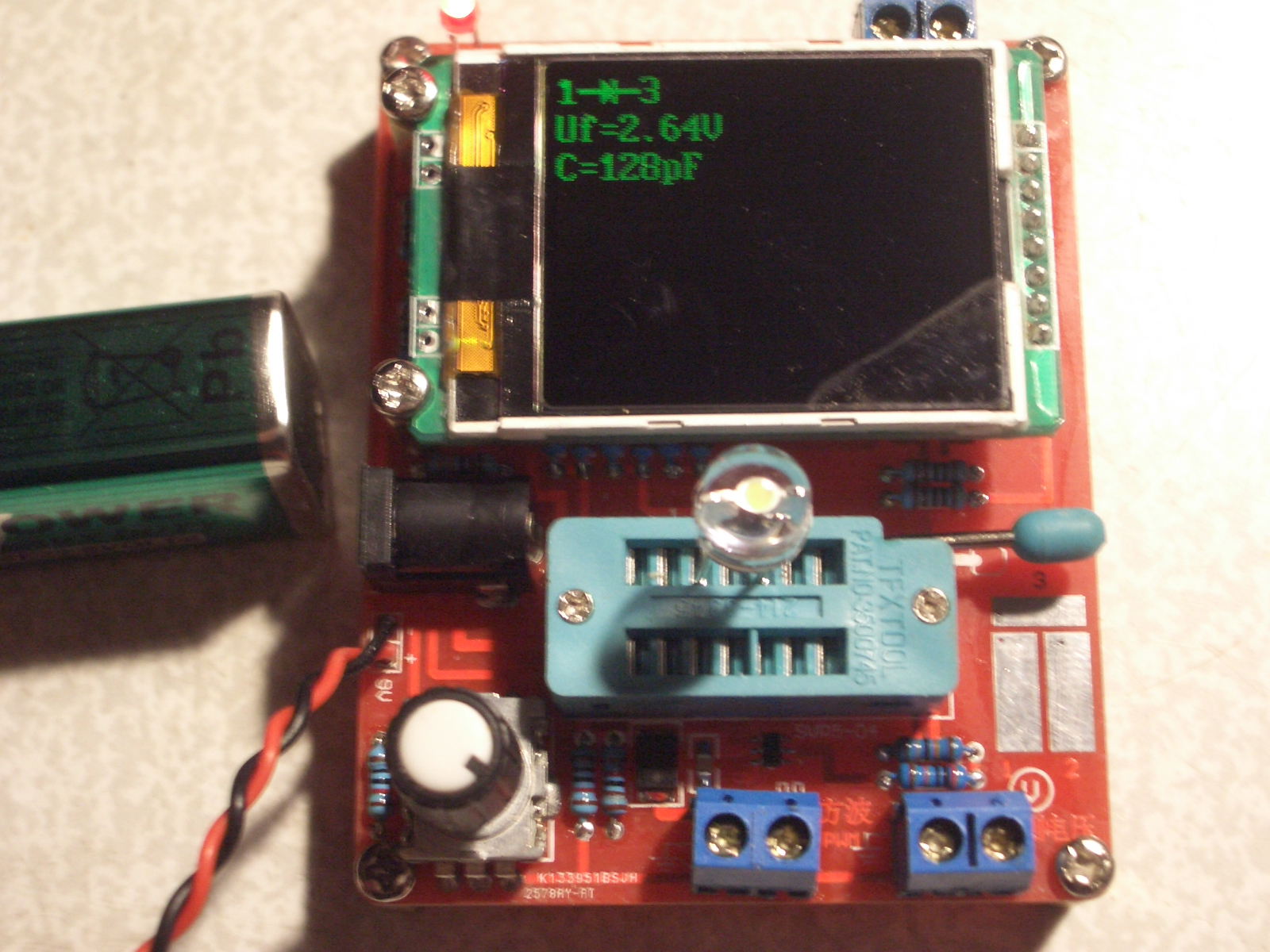

                      working nice. a 1W LED in socket.

                      Click image for larger version

Name:	CIMG6044.JPG
Views:	1
Size:	968.2 KB
ID:	347960

                      Comment


                      • #26
                        Originally posted by kt315 View Post
                        bought this kit. would like to probe how it works or no.
                        http://www.ebay.com/itm/BJT-Transist...EAAOSwstxU4XcQ

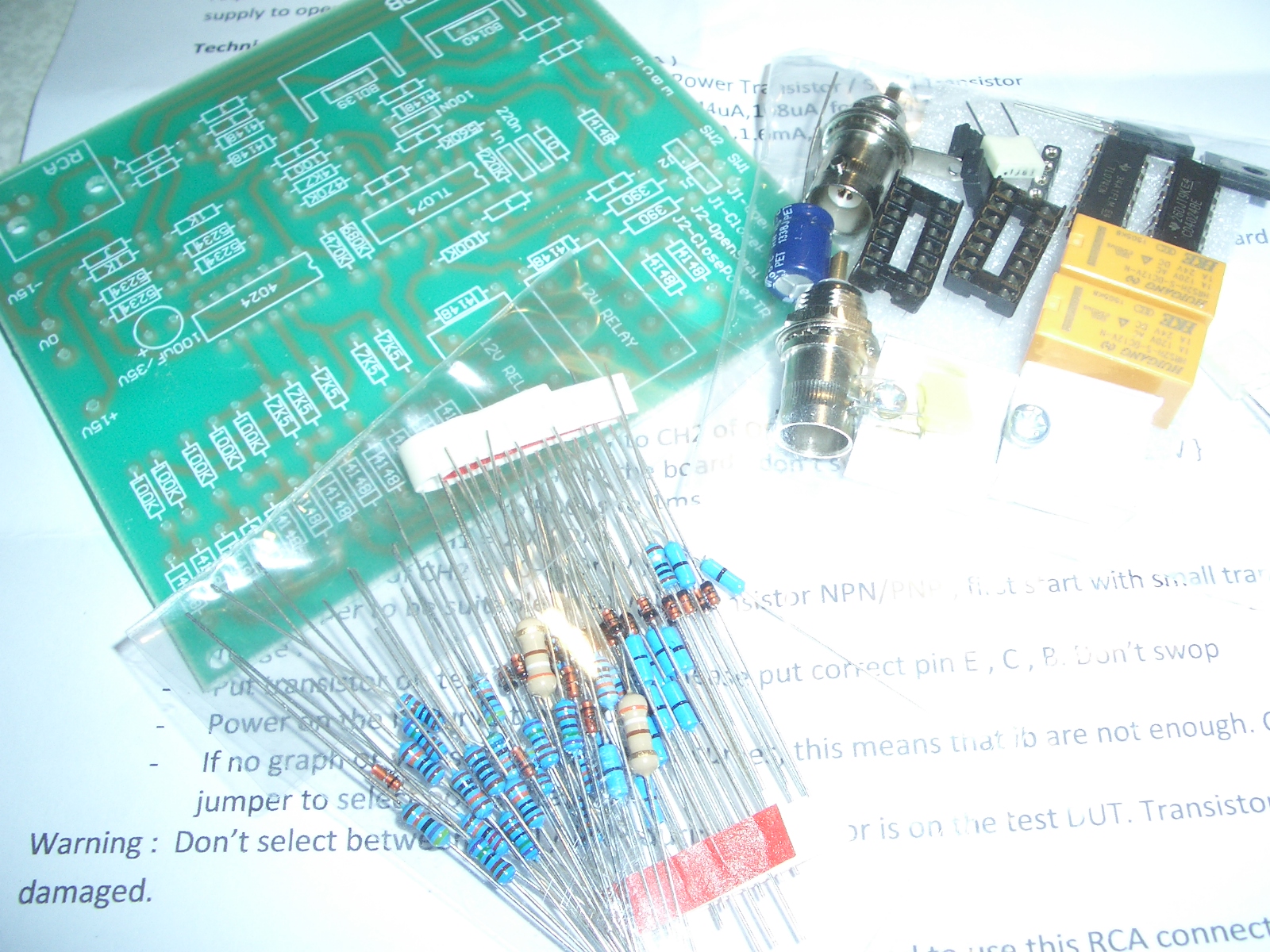

                        kit arrived. looking good.

                        Click image for larger version

Name:	CIMG6045.JPG
Views:	1
Size:	1,005.1 KB
ID:	347994

                        Comment


                        • #27
                          It's for checking Linearity of Transistors ?

                          Comment


                          • #28
                            Originally posted by homefire View Post
                            It's for checking Linearity of Transistors ?
                            yup. it's the curve tracer and i hope to get the pics on o-scope. the pcb had soldered, ended. i make a power supply, need bipolar voltage, +15V and -15V.
                            i try to fix Pro Series 9001 power audio amplifier on my job and need to select the power transistors. BTW made in USA device.

                            Comment


                            • #29
                              Received the DSO150 kit the other day. Funky you have to work on the main PCB with the TFE Flopping around. Instructions tell you as step one to power the main board up before step 2 thru 7 putting components in place. LOL. No time to mess with it . Working on the Car. .,,..Hope I didn't mess up the LCD before finding out it flops.

                              HF

                              Comment


                              • #30
                                Originally posted by Funfinder
                                Battery Tester Circuit


                                [ATTACH]38832[/ATTACH]
                                [ATTACH]38833[/ATTACH]

                                With some luck you can draw some schematic from it and built it.
                                (btw. kt315, I did not follow any of your advices for these pix
                                the pictures were taken inside a room, macro-mode & flashlight)


                                LEDs shining red -> yellow -> green

                                2,4v red weak
                                3,6v red medium
                                4,8v red medium, yellow weak
                                6v red medium, yellow bright
                                7,2v red medium, yellow bright, green weak
                                8,4v red medium, yellow bright, green medium

                                The connection through the diode was connected with the device
                                and the push-button doesn't interrupts it. This is good because
                                batteries which are providing just some mA for LEDs look "full"
                                while reality might be totally different if they have to "work"
                                (when they have to provide something like 100 or 200 mA).
                                i bought and got http://www.ebay.com/itm/201390527682
