EPE resistivity logger

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • #76
    Originally posted by wubian View Post
    Hi

    I have a look on my PIC and see that the name of it is : 16F876A but the one has been wrote on epe magazine is without end A. so could it cause any problem like what I said on my last post?

    Regards
    Read this ->
    Attached Files

    Comment


    • #77
      True.
      I had problems and was confused once when i used "wrong" pic.
      Device worked erratically and crazy, i suspected dozen things and spent 3 days to discover what was the problem.
      Not to mention headache!
      Quasazshohi i saw you gave hex here!?!?!?
      Traitor
      !

      P.S.

      Comment


      • #78
        Originally posted by rael View Post
        Hi,

        PIC16F876A, has a different programming algorithm, and hardware.
        The use of PIC16F876A instead PIC16F876 can create problems.
        During the compilation must be select the correct library <16f876.h> or <16f876A.h>.
        In the case of use a "HEX" file, you must use the correct PIC uC.

        Best Regards
        Originally posted by Qiaozhi View Post
        Read this ->
        Originally posted by ivconic View Post
        True.
        I had problems and was confused once when i used "wrong" pic.
        Device worked erratically and crazy, i suspected dozen things and spent 3 days to discover what was the problem.
        Not to mention headache!
        Quasazshohi i saw you gave hex here!?!?!?
        Traitor
        !

        P.S.

        I thank you for taking time out to answer my question. I am sure that you are really busy and I appreciate you taking the time to respond personally to me. Thank you very much for offering to help out on the project. I really appreciate your willingness to assist. It is helpful to have someone who has had experience with similar issues on previous projects to offer guidance. Thank you again.

        Comment


        • #79
          Originally posted by ivconic View Post
          True.
          I had problems and was confused once when i used "wrong" pic.
          Device worked erratically and crazy, i suspected dozen things and spent 3 days to discover what was the problem.
          Not to mention headache!
          Quasazshohi i saw you gave hex here!?!?!?
          Traitor
          !

          P.S.
          Hi Ivconic,
          I was wonder,(just in case that you happen to know), which project is best to locate buried metallic objects?
          The "Earth resistivity logger" or the "Earth resistivity meter"? ( EPE, Jan 1997 by Robert Beck)

          Comment


          • #80
            newer one, of course.

            Comment


            • #81

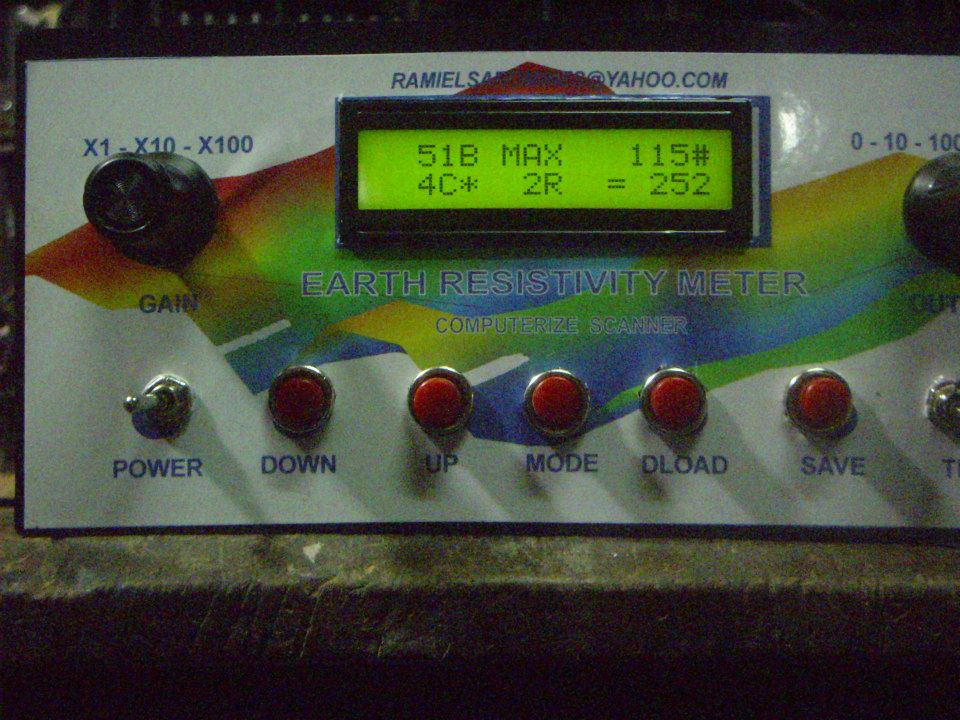

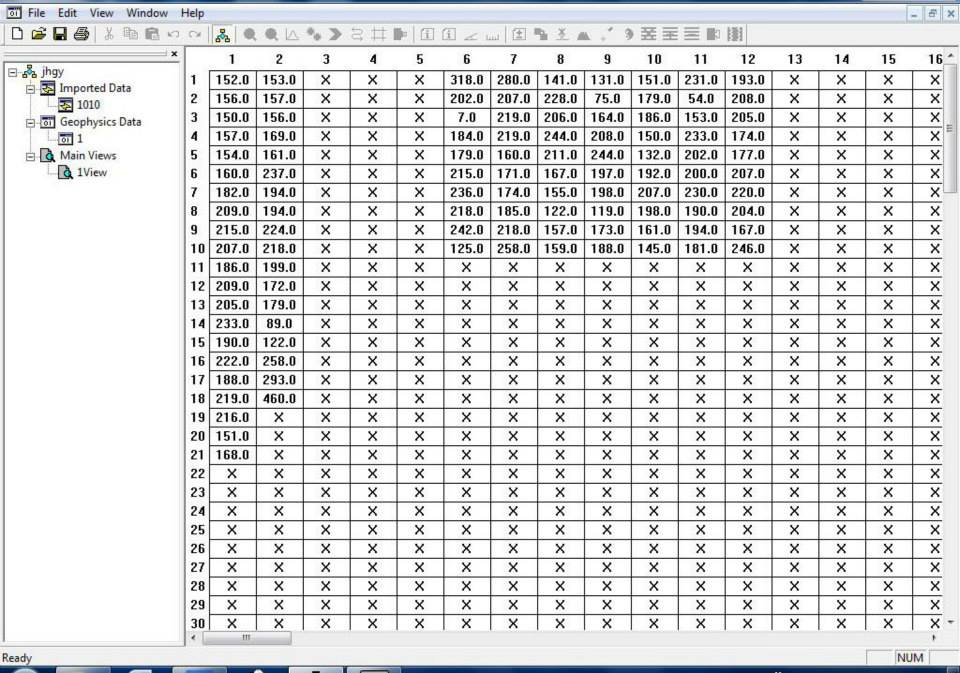

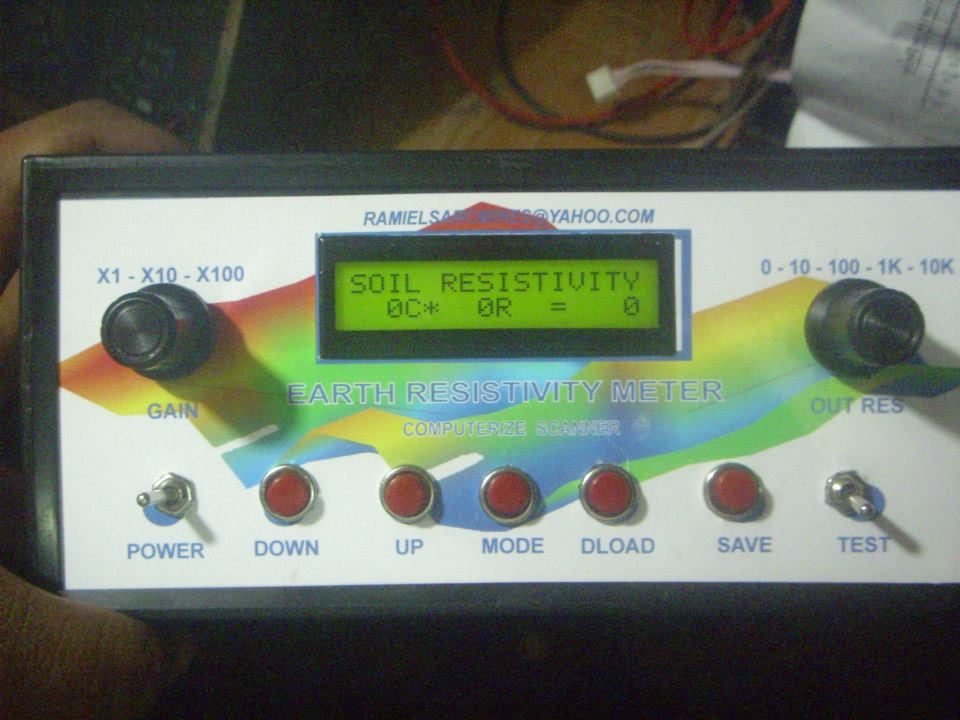

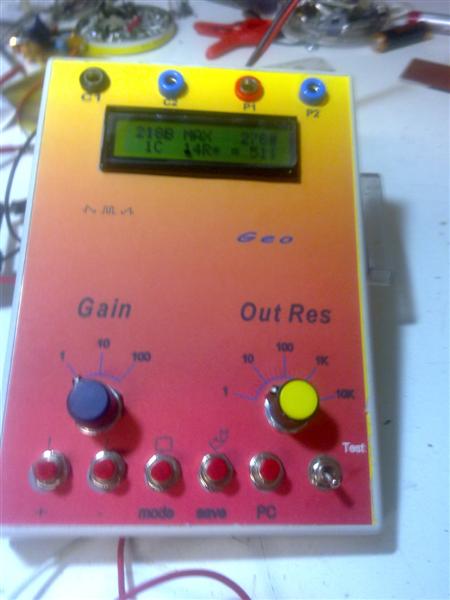

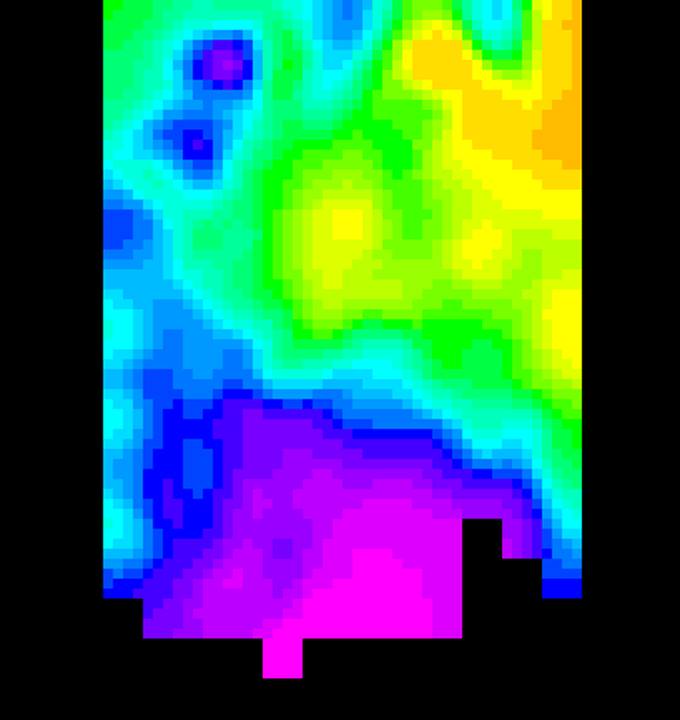

              My EPE Resistivity logerClick image for larger version

Name:	1465182_561868257231498_109982940_n.jpg
Views:	1
Size:	30.2 KB
ID:	338614Click image for larger version

Name:	02.jpg
Views:	1
Size:	97.2 KB
ID:	338615Click image for larger version

Name:	03.jpg
Views:	1
Size:	125.1 KB
ID:	338616Click image for larger version

Name:	1374171_541511725933818_1591178653_n.jpg
Views:	1
Size:	125.1 KB
ID:	338617Click image for larger version

Name:	1393764_542914055793585_1441357023_n.jpg
Views:	1
Size:	22.1 KB
ID:	338618

              Comment


              • #82
                Ang EPE Resistivity hex I use

                earthres450

                -----------------------------------------




                :020000000528D1
                :08000800052883120313850192
                :100010008601403087008316FB308500860187010A
                :10002000AE309F0004308100831241309F001122C6
                :10003000AB2882073334333432342C3406340C3456
                :1000400001340234820753344F3449344C34203461
                :100050005234453453344934533454344934563487
                :10006000493454345934820743344C344534413490
                :10007000523449344E3447342034453445345034B6
                :1000800052344F344D3420348207533445344E3487
                :10009000443449344E344734203454344F342034BB
                :1000A00050344334203420342034820753344534D0
                :1000B0004E34443449344E34473420344634493481
                :1000C0004E34493453344834453444348207203460
                :1000D0002034203420342034203420344F3446342B
                :1000E00020343334323437343634383420348207D1
                :1000F000533445345234493441344C342034503430
                :100100004F345234543420342034203420342034BA
                :100110008207533445345234493441344C3420340A
                :100120004F3443345834203454344F342034503412
                :100130004334820720345234453446342034533417
                :10014000413456344534443420342034203420346F
                :100150002034203420341122F101A3017108192028
                :10016000F921F10AF11DAE2811225D25F0010230BE
                :10017000A2000430A4008500B40181010130BA005E
                :10018000C301C201C401C5010330D800FF30D9004A
                :10019000851A1D25D6010719672502300E24D600C1
                :1001A000A1000330F92300300E247F39C200013052
                :1001B0000E247F39C30004300E24D80005300E24ED
                :1001C000D9007F30D1007F30D0006724561CEA2848
                :1001D000B425EB28EF23FE010B110B1DED28071CA6
                :1001E000F328FF24EF28871CF7280D25F32807198B
                :1001F0003924871A8123851AB5249F111F123124AF
                :100200001F151F190129051D0C291E08F200831650
                :100210001E088312F300242973085902DB007208B8
                :10022000A500031CA50A25085802DA0003181A299C
                :10023000DB01DA01DA08031D21295B08C039031943
                :1002400024293F30DB00DA019F1531241F151F19C7
                :100250002729051D32291E08F60083161E08831261
                :10026000F70043291E08F80083161E088312F900C0
                :100270007908F702031CF80A7808F60203184329E4
                :10028000F609F709F70A9F151F1631241F151F19C4
                :100290004729051D54291E08FA00D20083161E089E
                :1002A0008312FB00D300E6291E08FC00D40083164D
                :1002B0001E088312FD00D5007D08FB02031CFC0A0A
                :1002C0007C08FA0203186729FA09FB09FB0A83175D
                :1002D0001030700784007B088000840A7A08800050
                :1002E00083130230F0077013A20BE629EF212316C7
                :1002F000051A7F297608A6007708A50083295408E7
                :10030000A6005508A500A7011A222B08F9212A08E2
                :10031000F9212908F9212808F9214230051A483025
                :10032000F921051AA429A6015B08A5003F3A031D7F
                :10033000A8292030F9214D30F9214130F9215830D8
                :10034000F9212030F921B6295208A6005308A5004A
                :10035000A7011A222B08F9212A08F9212908F921D5
                :100360002808F9214130051A4C30F9218317103043
                :100370008400831379222908FE390319D229013018
                :10038000A900CE00FF30A800CF002030F921203096
                :10039000F9214D30F9214130F9215830F92123302C
                :1003A000F921E6292908CE00A6002808CF00A500DB
                :1003B000A7011A222030F9212B08F9212A08F92156
                :1003C0002908F9212808F9212330F921A409240852
                :1003D0000439051185049D3081000B11ED28803012
                :1003E000F8298C30F829C030F829CE30F829CB30E4
                :1003F0002312A1003C30A000A00BFC29FF21A10E7C
                :1004000021080F3923048600861686120800BB00D7
                :100410003B0E0F393038F9213B080F393038F921BC
                :1004200008001430A2008B010B1D142A0B11A20B23
                :10043000142A0800A801A901AA01AB01AC01AD0171
                :10044000AE01AF011830B000A50DA60DA70D2830E4
                :1004500084000830B100800D0A30000203188000CB
                :10046000840AB10B2B2AB00B242A3030A804A9042B
                :10047000AA04AB04AC04AD04AE04AF042F080F39DA
                :10048000031D08002F122E080F39031D08002E121D
                :100490002D080F39031D08002D122C080F39031DDC
                :1004A00008002C122B080F39031D08002B122A08F4
                :1004B0000F39031D08002A1229080F39031D0800EF
                :1004C00029122F080F39031D08002F120800EF21F1
                :1004D0002316F1012030F921F10A711E6A2A080061
                :1004E000F32123161030F1002030F921F10B742A8A
                :1004F0000800F101A801A901AA01831700088313CC
                :10050000A80703080139A90703080139AA078317B7
                :10051000840A00088313A90703080139AA0783176F
                :10052000840A83130230F107711F7D2A0310AA0C7D
                :10053000A90CA80C0310AA0CA90CA80C0310AA0C57
                :10054000A90CA80C0310AA0CA90CA80C0310AA0C47
                :10055000A90CA80C08003208B222CA0A3308B22239
                :10056000CA030800B800A030CB00CE224B08CD0053
                :1005700019234908CD0019234A08CD00192338084A
                :10058000CD001923E5222830C600CE22A030CD00B0
                :100590001923B91FCD2AC60BC52A080007168316D2
                :1005A000A730870083128711000087150000000024
                :1005B0000000000000000712000000000000000022
                :1005C000000087110000000000348316A730870068
                :1005D00083120712000000000000871500000000D1
                :1005E0000000071600000000871100000000000056
                :1005F00000348316A73087008312391F012B07169A
                :10060000022B071287150000000000000000871170
                :100610000034B9178316B730870083120716871581
                :1006200000000000000000000000071EB913871141
                :1006300000340830B6003913CD1B3917F922CD0D1F
                :10064000B60B1B2B092300348316A73087008312B7
                :1006500007120000000000008715000000000000E5
                :1006600007160000000087110000000000000034A1
                :10067000B9178316B7308700831287150000000072
                :10068000000000000000071EB91387110034083075
                :10069000B6003913CD1B3917F922CD0DB60B492BF6
                :1006A0003823B91B000000340830B600B70103102E
                :1006B000B70D3823B91B3714B60B582B0034023052
                :1006C000B500A030CB00CE224B08CD004723470811
                :1006D000CD0047234808CD004723CE22A130CD00CE
                :1006E00047235423B50B7B2B3917F92224233708D2
                :1006F000A500B30008003708A600B2003913F9229C
                :10070000712B5618A62D7022F101EF2123167108C6
                :100710004420F921F10A711E872B9C23F101F3215A
                :10072000231671085520F921F10A711E912B871AA1
                :10073000972B11225D250800831698168312C70196
                :10074000C801B401F1010030EB23FF30EB2300308E
                :10075000EB230030EB230030EB230030EB2352304F
                :10076000EB234530EB235330EB234930EB2353305D
                :10077000EB235430EB235930EB235F230310250D7B
                :10078000A60DA513A6172508EB232608EB23023098
                :10079000C807031CBD2BC70A4708803A031DBD2BA1
                :1007A0000030EB23FF30EB230030EB230030EB2352
                :1007B0000030EB230030EB235230EB234530EB23AA
                :1007C0005330EB234930EB235330EB235430EB23EE
                :1007D0005930EB2308000C1EEB2B99000800831600
                :1007E00017309900043098000C1283128030980062
                :1007F0000800031783128D000313210803178C00D0
                :1008000083168C130C1555308D00AA308D008C1476
                :10081000031383120D1E0A2C0D12080003178312F6
                :100820008D0083168C130C1483120C08031308001C
                :100830001030B000C001C10103103E1C2A2C3C083E
                :10084000C0073D080318262CC1072A2CC107C10A7E
                :1008500003190314C10CC00CBF0CBE0CB00B1C2C34
                :100860000800000000000000000000000000000080
                :100870000800BA0A6724071D0800851E3B2C720871
                :10088000D800A6007308D900A500A701F3212316FC
                :100890001A222C08F9212B08F9212A08F921290804
                :1008A000F9212808F921F1015808A1000430F923A1
                :1008B0005908A1000530F92371089920F921F10A9E
                :1008C000711E5C2C851A622C702267240800F321AB
                :1008D00023164208A500A601A7011A222A08F92119
                :1008E0002908F9212808F9214330F92120303A1844
                :1008F0002A30F9214308A500A601A7011A222A08D7
                :10090000F9212908F9212808F9215230F92120304C
                :100910003A1C2A30F9212030F9213D30F9214308D1
                :10092000BC00BD01500ABE00BF0118243E08C5002E
                :100930003F08C4004208C5070318C40A0310C50DC8
                :10094000C40D4408C7004508C8005F230130A60550
                :10095000A7011A222B08F9212A08F9212908F921CF
                :100960002808F9211122112208004E08B2000310B4
                :100970005B0DB2044F08B3004408C9004508CA0023
                :10098000AB224208A1000030F9234308A100013046
                :10099000F9237022F32123165330F9214130F92134
                :1009A0005630F9214530F9214430F9214408C70077
                :1009B0004508C8005F230130A605A7011A222B08AD
                :1009C000F9212A08F9212908F9212808F9212030DC
                :1009D000F9213E30F9214408A6004508A500A701E9
                :1009E0001A222C08F9212B08F9212A08F9212908B3
                :1009F000F9212808F921851AFB2C672408003A1CE4
                :100A0000072DC20A420350060319C201672CC30A0C
                :100A1000430351060319C301672C3A1C162DC20368
                :100A2000420A031D672C5008C200672CC303430A07
                :100A3000031D672C5108C300672C67227022F10147
                :100A4000EF21231671083320F921F10A711E222D9E
                :100A5000F101F321231671086620F921F10A711EB4
                :100A60002B2DB201B301C901CA014908A6004A08E9
                :100A7000A500A7011A22F32123162D08F9212C081D
                :100A8000F9212B08F9212A08F9212908F921280838
                :100A9000F921AB220230CA07031C352DC90AC91F30
                :100AA000352D4208A1000030F9234308A100013090
                :100AB000F923851A592D5D250800F101EF21231630
                :100AC00071082220F921F10A711E602D08006722A9
                :100AD0007022F101EF21231671087720F921F10A24
                :100AE000711E6C2DF12123164E30F9214F30F92162
                :100AF0005230F9214D30F921D70111221122112252
                :100B000011221122071D972DF12123164F30F921B3
                :100B10004330F9215830F9212030F921571411229E
                :100B20001122112211221122071D972D722D570813
                :100B3000A1000230F92367227022561CA12DB42592
                :100B4000A22DEF2311221930A20008007022F1011A
                :100B5000EF21231671088820F921F10A711EAA2DB0
                :100B6000BE251930A20008008316173099002430E2
                :100B70009800831290309800EA250800C701C80148
                :100B8000EA25E025473C031DC02D5230E525EA2526
                :100B9000E0258600423C031DC72D5F233308E52571
                :100BA0003208E5250230C807031CCD2D0D30E525A0
                :100BB0000A30E525C70AC71FC72DC701C8010800AD
                :100BC00000008C1EE02D1A08080000000C1EE52D08
                :0C0BD000990008001A081A081A0808000A
                :02400E00313F40
                :0C42000000000000000000000300FF00B0
                :00000001FF

                Comment


                • #83
                  Congratulation, fantastic work!!!.
                  I have construct it but i did not test because weather is not good.
                  What your graph shows??

                  Comment


                  • #84
                    Originally posted by Geo View Post
                    Congratulation, fantastic work!!!.
                    I have construct it but i did not test because weather is not good.
                    What your graph shows??


                    HI master Geo, the last test i made which has two reading result are a large hole 15 feet Deep which made by a treasure hunter here around the Philippines..
                    I think the EPE Resistivity logger is good. Sorry for my bad English..

                    Comment


                    • #85
                      What was the distance between the rods??
                      How large was the hole??

                      Comment


                      • #86
                        Originally posted by Geo View Post
                        What was the distance between the rods??
                        How large was the hole??

                        hello Master Geo, From the author they said that 500cm, i try it by 1 meter, the size of the hole one of them is 2.2 x 2.6 meter, deep of approx. 23 feet.

                        Comment


                        • #87
                          Very good thank you.
                          Is it possible to understand if there is an metallic object inside the ground, by using only the lcd???
                          I have some problems to load the program to pc.

                          Regards

                          Comment


                          • #88
                            Originally posted by Geo View Post
                            Very good thank you.
                            Is it possible to understand if there is an metallic object inside the ground, by using only the lcd???
                            I have some problems to load the program to pc.

                            Regards

                            yeah!..there is, as i have observed on EPE logger (the resistance) is 60-40 below..what programmer did you use, master Geo? Me? i use K150 and Pony prog without problem. the late hex publish by EPE maybe has a problem.

                            Comment


                            • #89
                              Originally posted by Saromines Ramiel View Post
                              yeah!..there is, as i have observed on EPE logger (the resistance) is 60-40 below..what programmer did you use, master Geo? Me? i use K150 and Pony prog without problem. the late hex publish by EPE maybe has a problem.
                              Thank you.
                              I have not problem to load the Hex code, this is OK. I use the MicroPro for programming.
                              But i have problem to load the program for data logger.
                              who program do you use, to see the graphics as this???? ""1465182_561868257231498_109982940_n.jpg"""

                              Regards

                              Comment


                              • #90
                                One photo.....

                                Click image for larger version

Name:	10122013029 (Medium).jpg
Views:	1
Size:	33.7 KB
ID:	338652

                                Comment

                                Working...
                                X
