**Geo** · 10-08-2013, 05:08 AM

Thanks Rael

**Hubert Dong** · 10-09-2013, 07:34 AM

Thanks

**Hubert Dong** · 10-09-2013, 08:17 AM

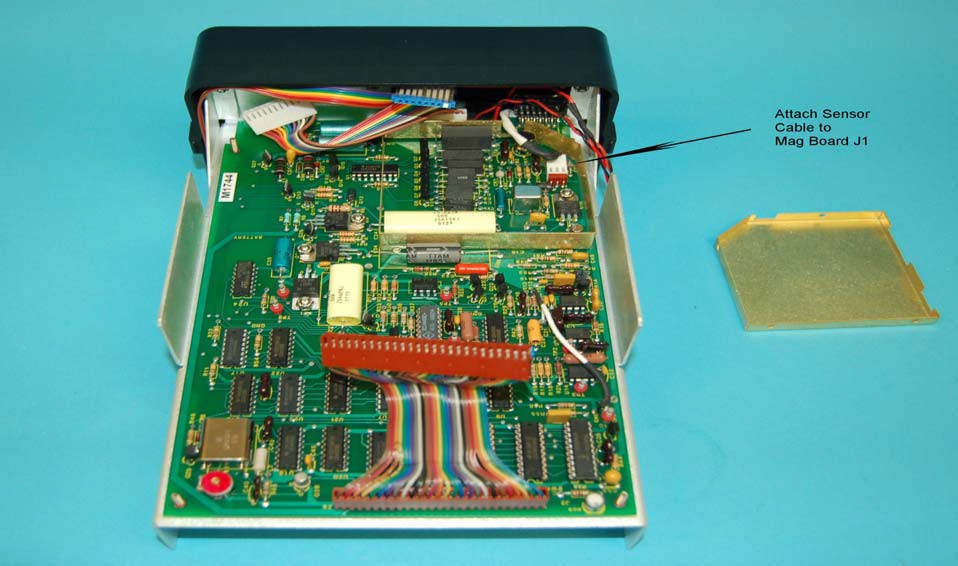

I do not understand some of the circuits in Magnetometer Board : Q19, Q20, Q21, Q22. What it is function ?

**rael** · 10-09-2013, 12:31 PM

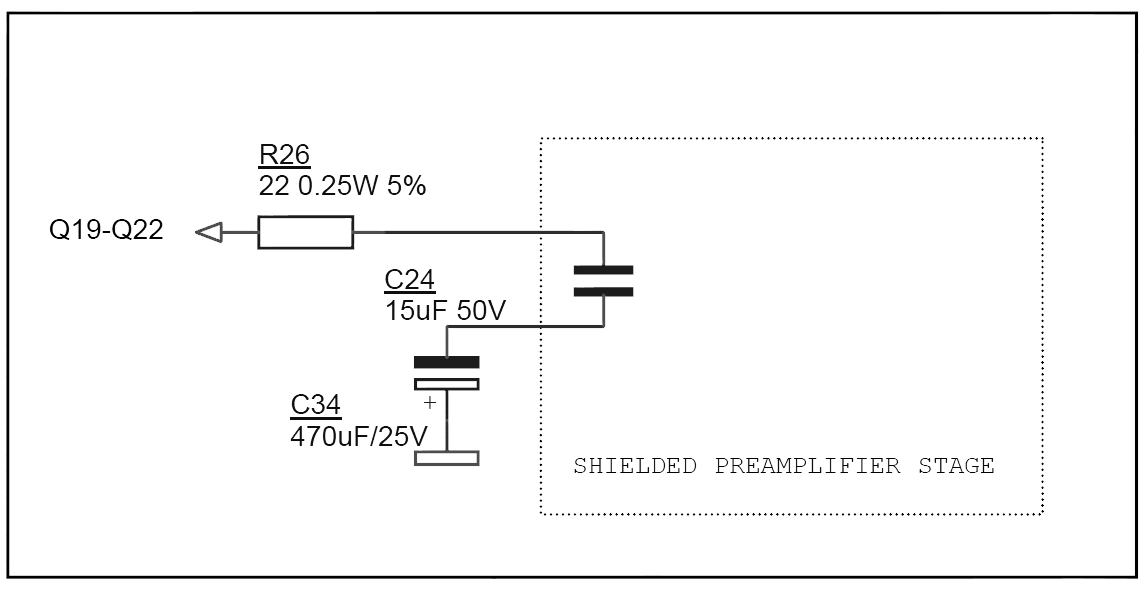

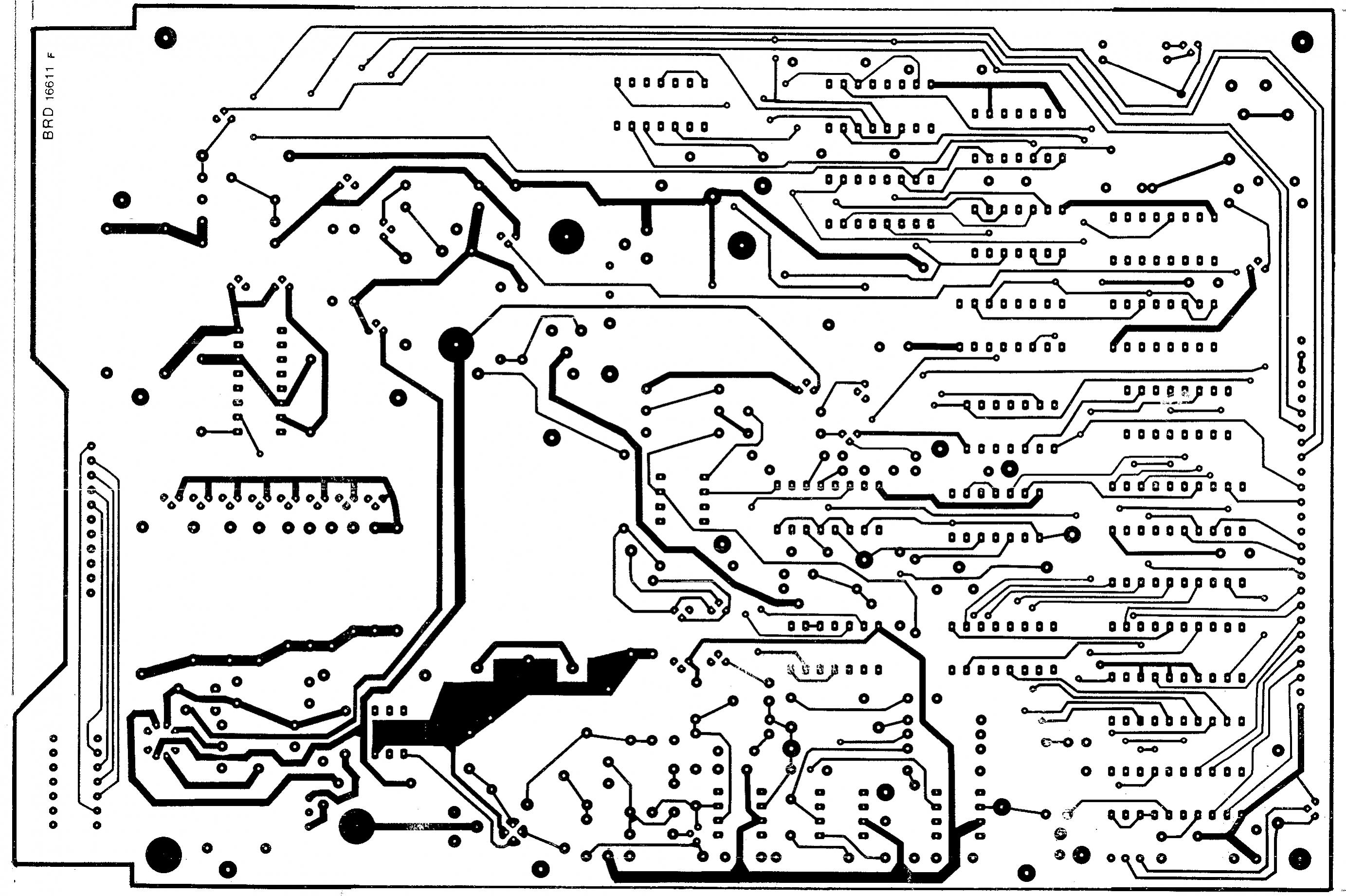

Real schematic, traced from PCB.

Attached Files

**Baterista** · 10-09-2013, 03:29 PM

Very good, thank you.

**Hubert Dong** · 10-12-2013, 01:56 AM

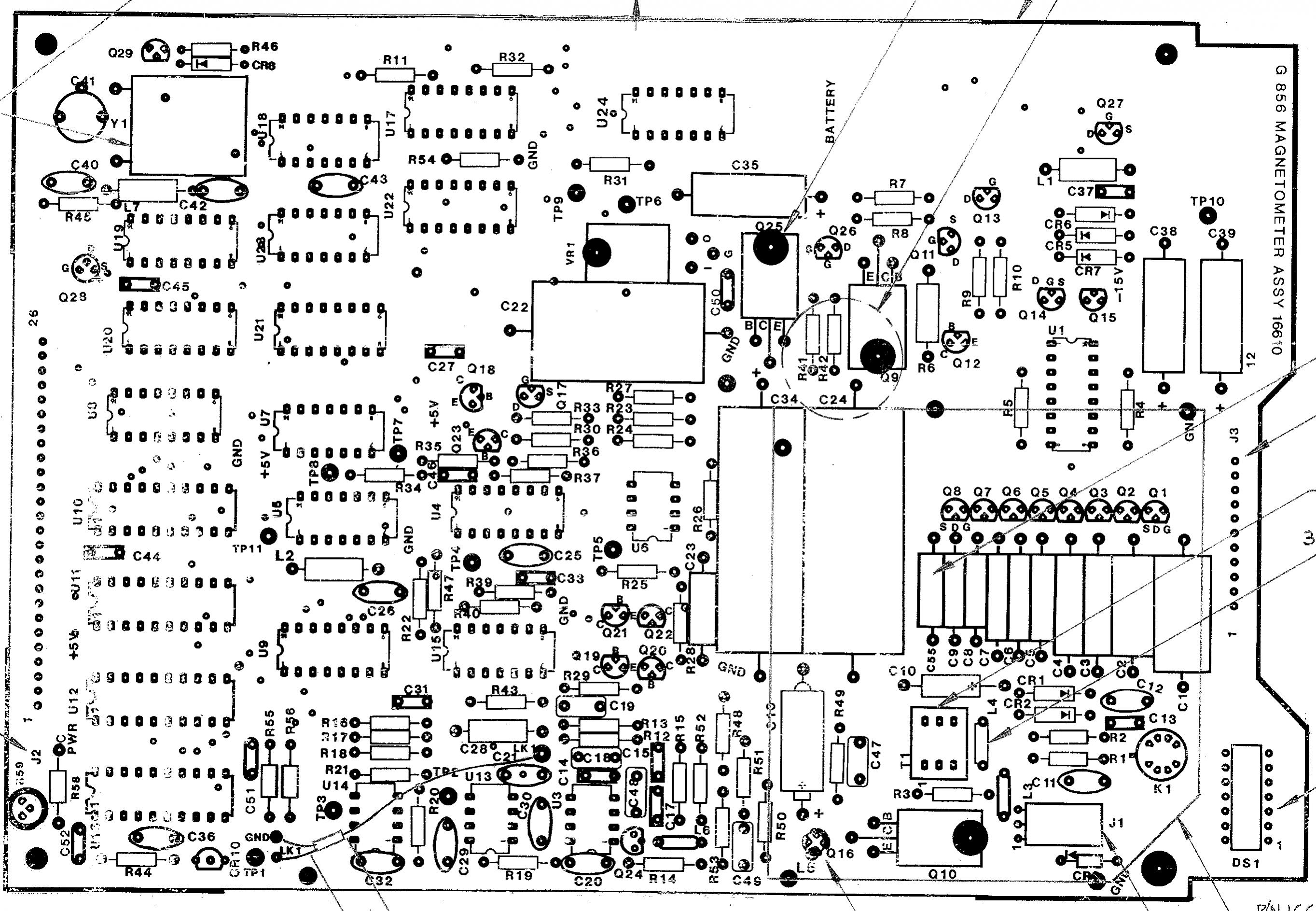

In Board Schematic， T1 is not clear.

**Hubert Dong** · 10-12-2013, 03:01 AM

L2, C26 , R12, R47, L5

**rael** · 10-12-2013, 03:28 AM

Bill of Material file

Attached Files

**Hubert Dong** · 10-12-2013, 03:34 AM

U4 shoud be 4046 ?

**Hubert Dong** · 10-12-2013, 03:38 AM

I can't download the Attached files "Bill of Material.pdf", please send it for me by E-mail: [email protected]
Thank you,

G-856 Proton Magnetometer Schematics
