Gradiometer schematic

[wtrk]

Hey.

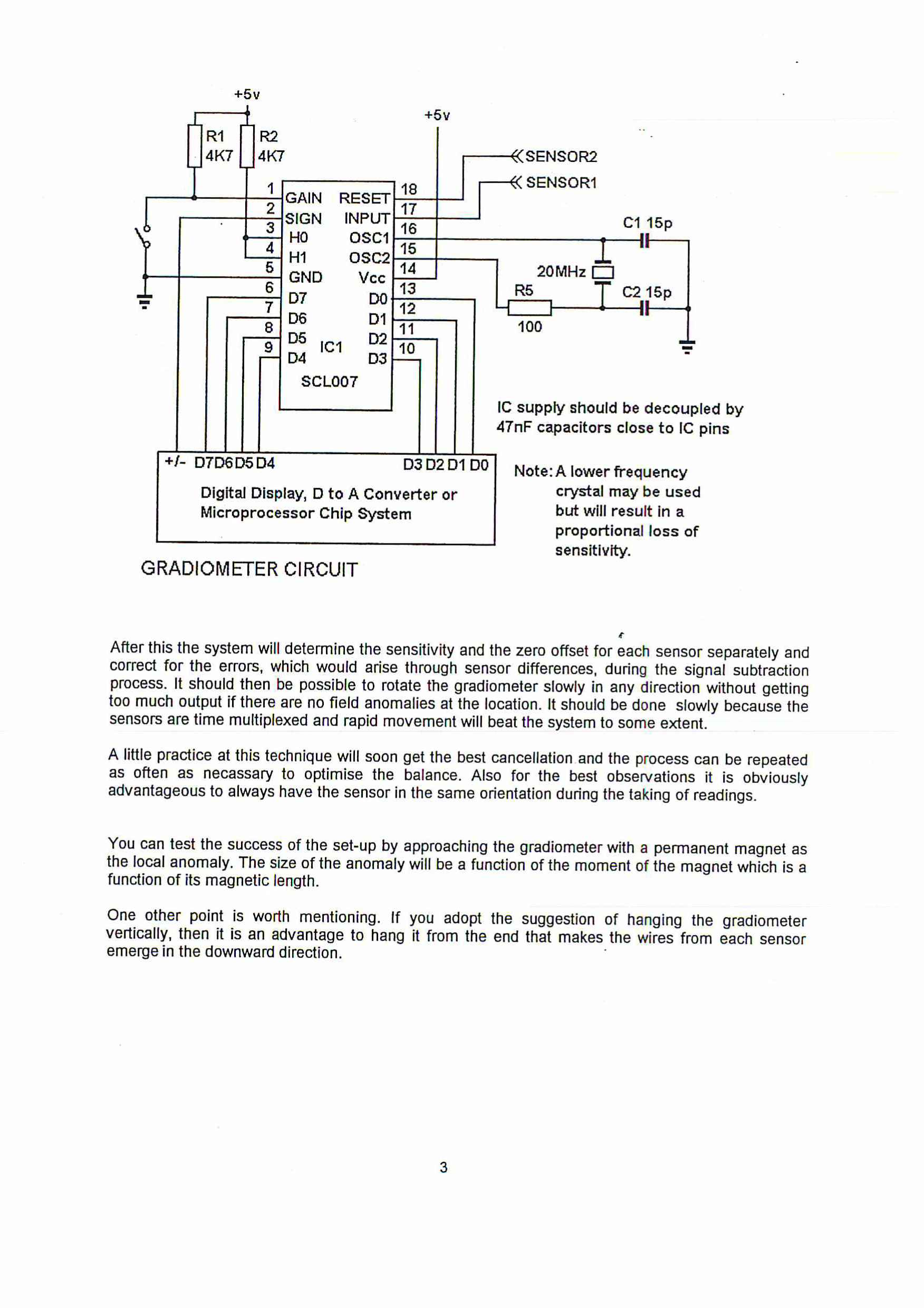

I have gradiometer circuit.
Can anyone help me abput pcb design

[bernte_one]

sure we can do

put the sheme here as a Picture with high Quality as ***.gif or as pdf document

[wtrk]

I hope it is not illegal..
This circuit is near my FGM1 sensors documents

[bernte_one]

this was already done by some other persons
the scheme you Show will not work alone

http://www.geotech1.com/cgi-bin/page...fmx1/index.dat


would be fine to connect the Output from the scl007 to an arduino with lcd Display to Show negativ and positiv part of field on bargraph or so

https://www.youtube.com/watch?v=hFWT5wCU-vo


complete kit
http://www.fatquarterssoftware.com/s...meter_Kit.html


you should think about contacting lugatek in Turkey and ask for ems100 sensor with differetial amplifier circuit and the tone Generator module

[wtrk]

this was already done by some other persons
the scheme you Show will not work alone

http://www.geotech1.com/cgi-bin/page...fmx1/index.dat


would be fine to connect the Output from the scl007 to an arduino with lcd Display to Show negativ and positiv part of field on bargraph or so

https://www.youtube.com/watch?v=hFWT5wCU-vo


complete kit
http://www.fatquarterssoftware.com/s...meter_Kit.html


you should think about contacting lugatek in Turkey and ask for ems100 sensor with differetial amplifier circuit and the tone Generator module

Now Lugatek is unaccessible.
Bro I have 2 FGM1 sensor. Now I need main board schematic. I m asking that " I dont want to buy ready pcb and PIC etc. , just I want to do it myself "
So I need mainboard schematic, pcb design and hex code.

[bernte_one]

i think i have what you search will see if i can find it on my hdd
will post it as soon as possible

[wtrk]

i think i have what you search will see if i can find it on my hdd
will post it as soon as possible

Im very greatfull for that.
Thanks and waiting.

[bernte_one]

sorry was an error of mine
i have only all datas from epe magazine epe magnetometry logger which is based on the fgm3 sensor by speake and co.

but that is not that what you search

[wtrk]

No problem..
Im looking for a gradiometer which is I can make it myself.
I can buy some different sensor like flc100.
but I should do myself rest of sensors.

Just I need main board schematic and hex code connecting to sensors
