We are very interest with thi Mag you're building.
A couple of questions:
- Is this Proton Differential Mag?
- Does it have audio/data output? And what plotting/contouring software can be used like the previous image you posted.
- Do you sell this as complete product? (Dorry, as we do not know how to build one)
- If so how much and how do we pay you.
We are in the Philippines and if possible please email quotation and contact numbers to [email protected]
Thank you very much.
For your info, this is the same survey results as I published before on this forum but displayed by my new post_processing and plotting system (the one we intend to integrate with our PPM system and give it for free).
We are now testing one of our hand-assembled board set built according to the final board layout by a professional PCB maker.
The front-end board is working well and the controller board will hopefully be tested before the end of next week.
At the same time, we have checked that the board set with its rather complex outline fits comfortably inside its box.
Next week, a set of sensor coils will be made by a professional winding company according to our specs.
We plan to start our first fully integrated system tests in lab, then in the field, in two weeks if all goes well.
After that, all depends on the results we'll get from this Alpha testing but we should then be able to populate (and possibly slightly patch) more of the first series of board sets we have in stock.
These systems will then be used for demo and Beta testing.
By the way, three persons are currently directly working on this project:
- Jim Koehler from BC, Canada
- Alexandre Tartar from North of France
- Myself from Belgium
Willy

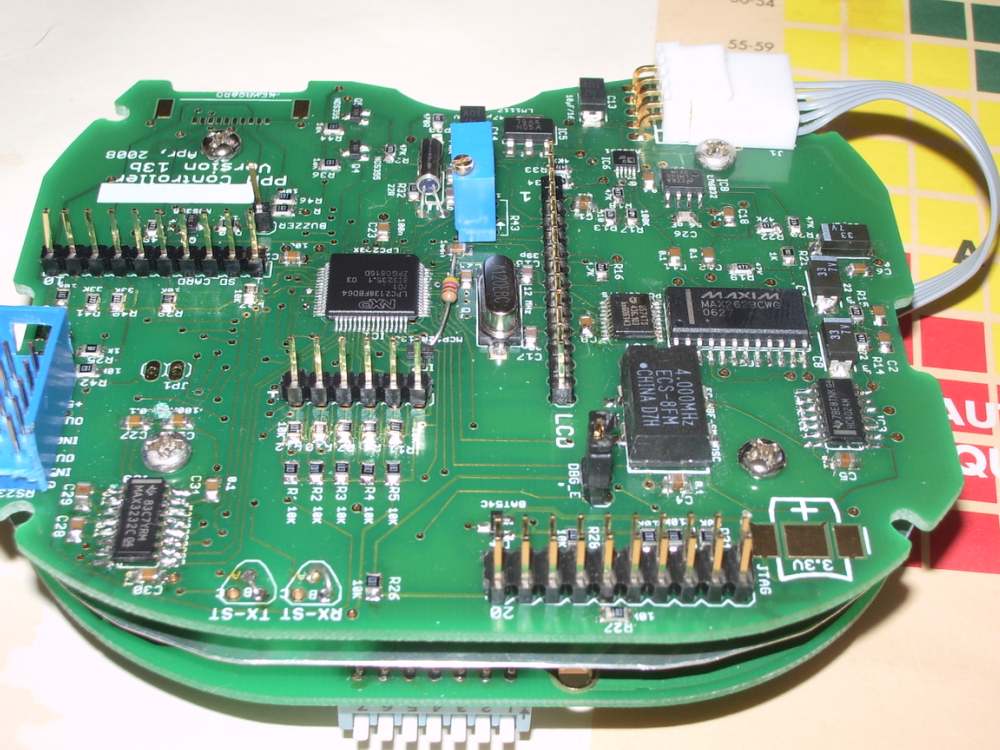

I have received the first set of assembled and tested boards. They look perfect. Next week-end, we'll hopefully make their integration in the box and test the system with the first newly built sensor.

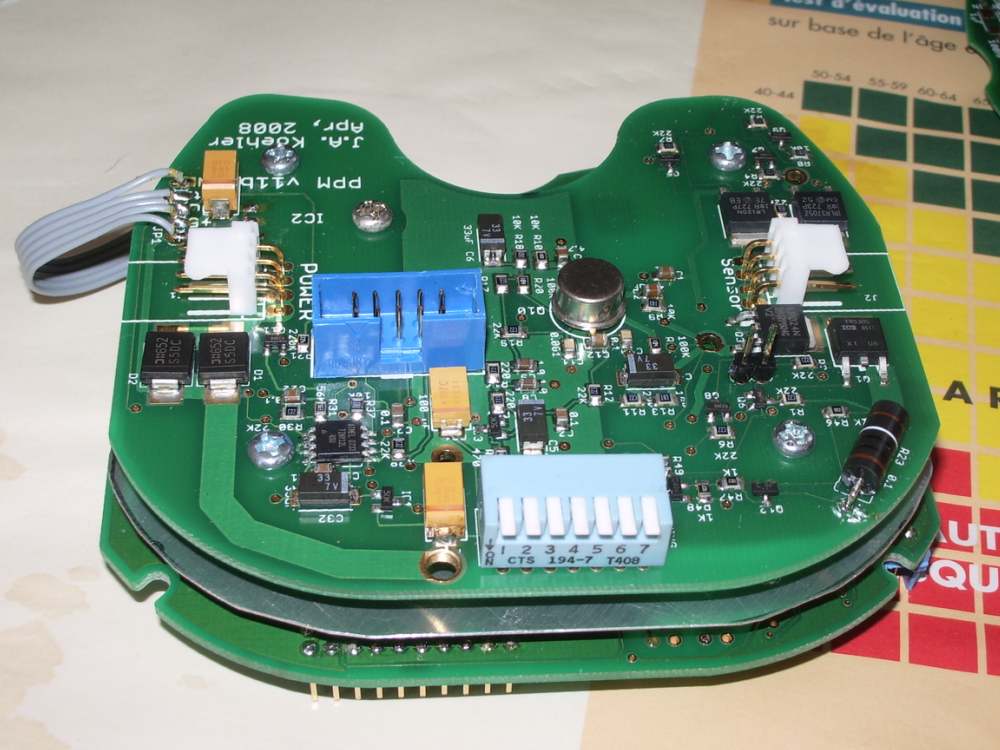

This is the pictures of the two main boards.
The things are progressing well, we are very happy.
Willy
I'm very much impressed with your progress especially that you will also sell a complete system plus free software. This is good for us who don't know how to build, aside from it being time consuming. We'd rather buy something built by the experts.
Thank you also that you have option to pay using Paypal as this is very important for us who are located very far (Philippines).
On this end we are very much interested in buying your Mag. We are very ready and will wait for your go signal to sell.
By the way, hope you can email me your email address. I can't open your profile as am not a registered member. Well, I tried last month but when I follwed the link to activate my membership it won't allow me saying the link is not verified. I don't know why but I didn't bother as I can still post as 'Unresgitered'.
By the way, just for an idea/estimate, how much would the price of the Differential Mag be. Would it be double or triple with your earlier estimates?
I am surprised that you could not register to the forum. You should be.
The estimate we gave before was for a kit made of a set of boards, not for a full PPM system with its box, stick and sensor.
Indeed, to get a differential PPM system, you need two separate instruments, one acting as fixed station and the other as mobile station.
However, it depends what you are searching for. If what you look for is made of magnetic material like iron or steel, the field gradient generated
I am surprised that you could not register to the forum. You should be.
The estimate we gave before was for a kit made of a set of boards, not for a full PPM system with its box, stick and sensor.
Indeed, to get a differential PPM system, you need two separate instruments, one acting as fixed station and the other as mobile station.
However, it depends what you are searching for. If what you look for is made of magnetic material like magnetite, iron or steel, the field gradient generated by those will very much override the daily field variations and you should not need a differential instrument in that case.
For archaeological surveys looking for weak gradients generated by underground structures like wall foundations, fire pits or wells, this is indeed necessary.
This is finally our best proposal for a PPM Semi-Kit package.
See the new thread in magnetometer chapter.
We are waiting for your reactions and questions.
Hi all,
We have got independent benchmark test results from one of our first users.Those results are much better than we could have ever dreamed of. They are at least equivalent (if not better) to the results you get from a 'professional' system but at a quarter of the usual commercial pricing.,
Hello Willy ,
here we are interested for your equipment but the test result are not well explain and very confusing ( for me)!!!! Take for example the test 3 the amno box : you are pointing a arrow to a orange rectangle between blue and red variation not in the center of the blue ??? or in the center of the red??? ....the same for a unknown target
For the test 4 the same i do not see the arrow in the center of the red white o perhaps i do not understand the concept between positif and negatif and for the sheet of 35X 20 it is between green and blue and i suppose if the photo will be very large i will see many of this plate of 35 X 20 ???? (if difficult to me to explain in English ).
For the test one i do not see nothing of the good preparation i see in the photos , please make comments.... explanation with PRECISE ARROW on your photo to explain where YOU SEE EXACTLY THE TARGET...
I see you make many effort to realize your detector and see you make a very good work Willy but it is very important for me and the forum to understand well the test data with your comments ... and also important to make the decision to buy your Kits.
Have goods days and Regards
alexis.
Hi all,
We have got independent benchmark test results from one of our first users.Those results are much better than we could have ever dreamed of. They are at least equivalent (if not better) to the results you get from a 'professional' system but at a quarter of the usual commercial pricing.,
Hi Willy,
I am really interested to get one of your gadget but the bench mark to me is not clear and very confusing. too too many red targets showing in your data and and very confusing for a treasure hunter. it looks like targets are every where down there, and for somebody how is looking for gold would not know where to begin digging.
Is it possible to show the target shape as clear as possible? or some how make a little bit of distinction the showing targets.
Willy, I am not criticizing or questioning your very good work here, but for me I need to make sure to understand what I will get for my team.
Best regards,
If you want to fully understand the theory behind the magnetic survey interpretation rules, you should read the following document: http://perso.infonie.be/j.g.delannoy/BAT/ampm-opt.pdf in the chapter V Interpretation.
The effects of the presence of an object made of magnetic material upon the local earth magnetic field is ruled by well-known physical laws and are independent from the type of magnetometer instrument used to make the surveys. Every such objects act much like a magnet with two poles (dipole) where one pole re-inforces the total earth field and the other pole decreases it (e.g. a cannon made of iron). Sometimes, a dipole has its two poles so much distant from each other that the survey instrument just measures the effect of the closer pole, this is then called a 'monopole'. This is the case if a long object is buried vertically. In that case, the instrument will only see the effects of the top end. This is also the case if the object is round (e.g. a cannon ball)
To make things simpler, there are thus two main cases to consider:
1. A monopolesignature will show as a single point on the plot with a large positive field gradient (a mountain). In that case, the object is located right at the top of the positive peak. See test2, this is a ball-shaped object made of the accumulation of magnetic coins. It is located at around 4,3.
2. More usually, you will see dipole signatures where you see a positive field gradient (a mountain) close to a negative field gradient (a valley). This is the effects of re-inforcement and weakening of the total earth field at the two ends of the dipole. You draw a straight line between the two peaks and the object is located just in between with its orientation given by the straight line. This is the case for all the other tests.
The depth of an object can be evaluated by the sharpness of the peaks. Shallow objects generate sharp peaks while deep objects generate low and wide peaks.
The test 4 shows two simple objects of different weight and buried at two different depths in two different orientations. The bigger one generates a large field gradient of around 45 nT (this is the difference bewteen the total field at the positive peak and the total field at the negative peak).
All the color changes shown along the borders of the surveys have to be ignored, they are meaurement and gridding artifacts.
If the survey area would have been much larger, these peaks would show like montains in the middle of a flat desert.
In test3, the ammo box was explicitely buried at the location shown on the 2D plot and showed a signature of a typical dipole but it seems that there was already a target of unkown nature in the survey area. An actual digging could uncover this 'mystery'!
Coming now to the test1, this was the most delicate case of all as the targets are magnetically small and buried deep (almost 3 meters).
The only target parts that can ever be detected by a magnetometer are the iron sheets making the ammo boxes. It is obvious that the copper content and the coppe sheet are invisible to its 'eyes'. They were put there as tests for TDEM and FDEM instruments.
Since they are clustered, their individual dipole signatures combine together and the interpretation of the precise shape and orientation of those three distinct targets is impossible.
There are two other effects which disturb the interpretation of that particular plot:
1. You can see the waves on the 3D plot between successive survey lines. This is the effect of a small magnetic object carried by accident on the operator body or in the control box. This survey was still made with the sensor carried at the back of the operator and that made it too close to the box. In the meantime, this has been corrected by a different sensor carrying configuration.
2. On the 2D plot, you can see a stagging of consecutive survey lines. This was due to a bad synchronization of the start and end reading points on the zig-zag survey lines. The operator has now corrected this end/start survey line operating procedure.
In spite of these disturbances, the combined dipole target is visible. Again, the border lines have to be ignored.
This test will be re-executed and its results will be published again to clarify this case.
A few more comments:
To Carthage,
Looking for gold with a magnetometer will not really be directly detecting it. The only good reason why one would use a mag to look for gold is that it would easily detect 'black sand' and iron ore deposits which are usually co-located with gold ore. But it would be completely useless if you look for gold nuggets in river beds.
Also, the real shape of targets will NEVER be shown by ANY magnetic or electromagnetic instrument. It will always show rounded corner signatures.
To Alexis,
I can assure you that the test field is generally clean from any foreign magnetic material but, if a dipole signature is shown, it will ALWAYS be the indication of a real target and not random noise. Our instrument gives with each of its readings some quality factors which guarantee the validity or invalidity of a field reading. This particular test site is very far from any source of electromagnetic noise and all its readings were verified to be correct. This means that enlarging the survey area would not show many other '35X20 targets???' as you suggested. If there is nothing buried, the plot will be 'flat' all over the area where there is nothing buried with magnetic material. I have already published on this forum some larger survey area I made over our archaeological site with a few potential targets shown as dipoles. At that time, I was still using a previous prototype version of the our mag. Look at the post dated 05-31-2008, 08:38 AM in this thread.
I also have complemented the test report with a larger survey area showing a few examples of dipoles and monopoles.
The survey area of these tests was strictly limited to the interesting spot in order to limit the time and effort consumed for the tests.
