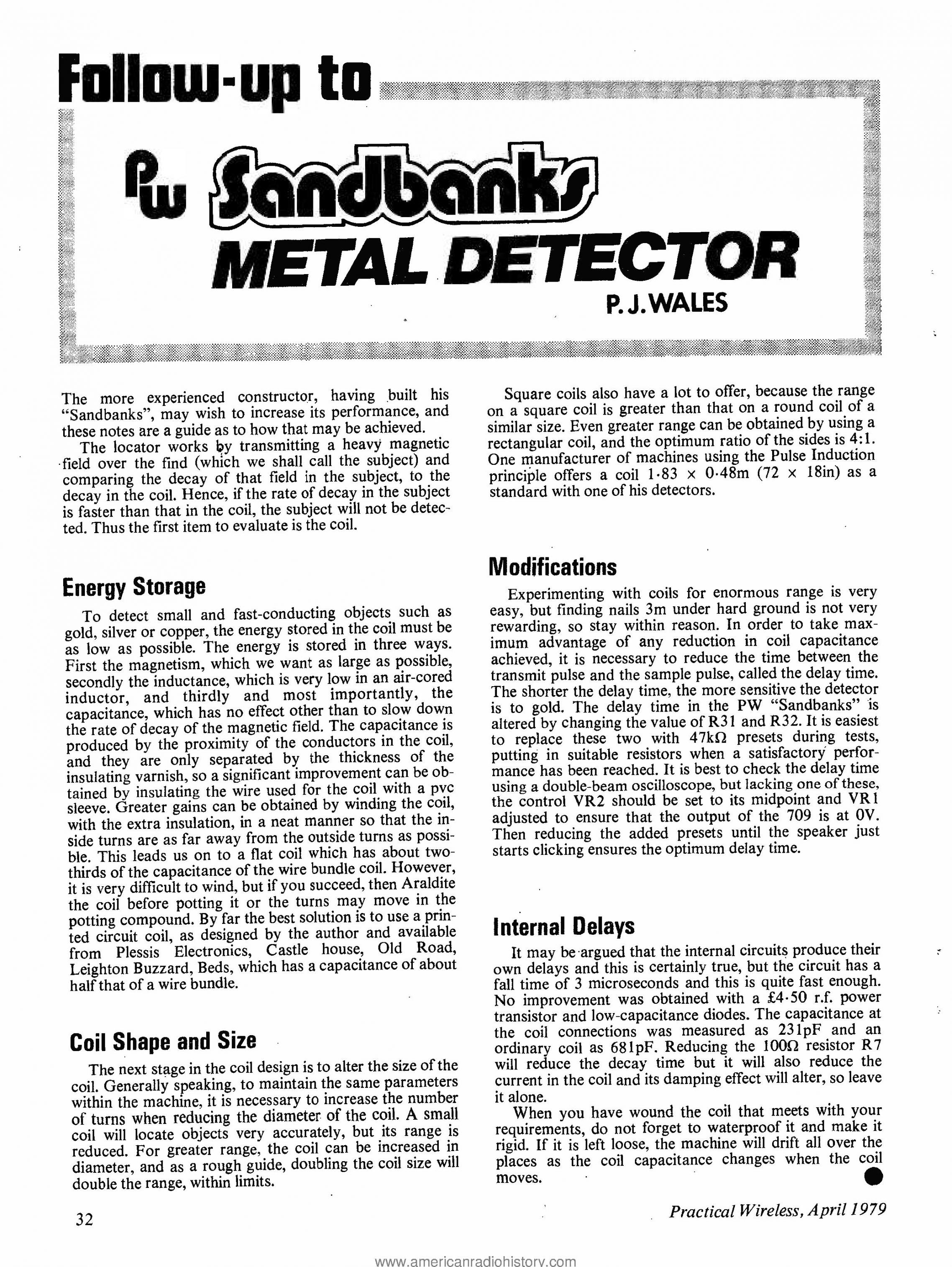

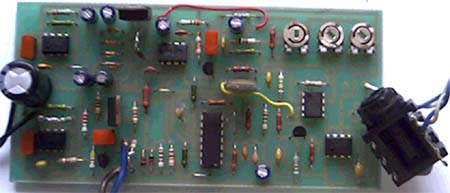

There is a follow up-article on the sanbanks project in a subsequent magazine, which discusses modifications to the original circuit. I post it here. The sandbanks I built works great, and goes deep on the beach sand. I built it entirely of salvaged components and I managed to alter the circuit for use with NE5534 chip instead of the old 709. The original circuit used T1 and IC3, a CMOS ring oscillator for the PS.
Anyone thinking of building original circuit should have no problem with T1, as it is nothing special.

[dbanner]

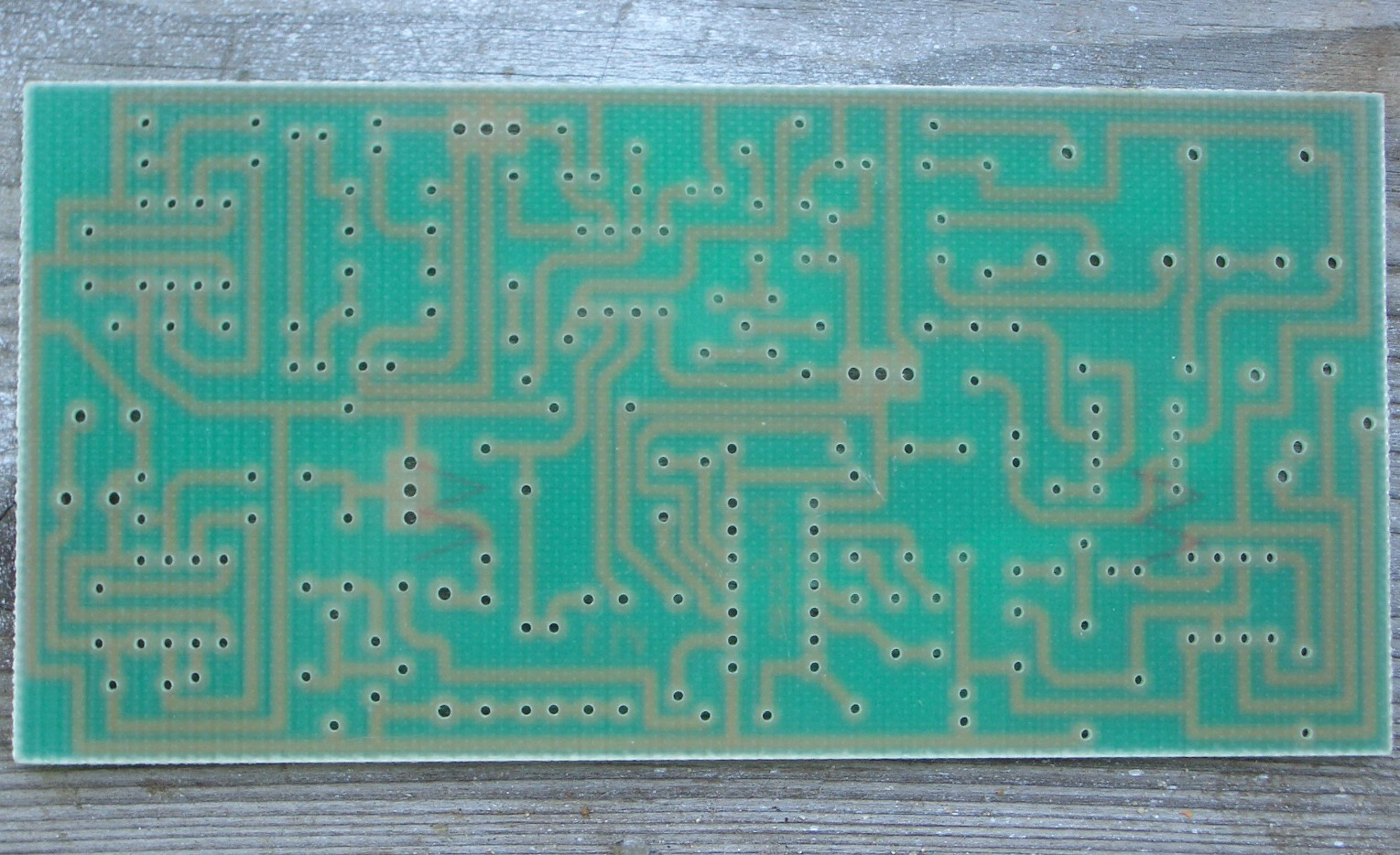

at the moment we start a project here in german forum based on this pcb

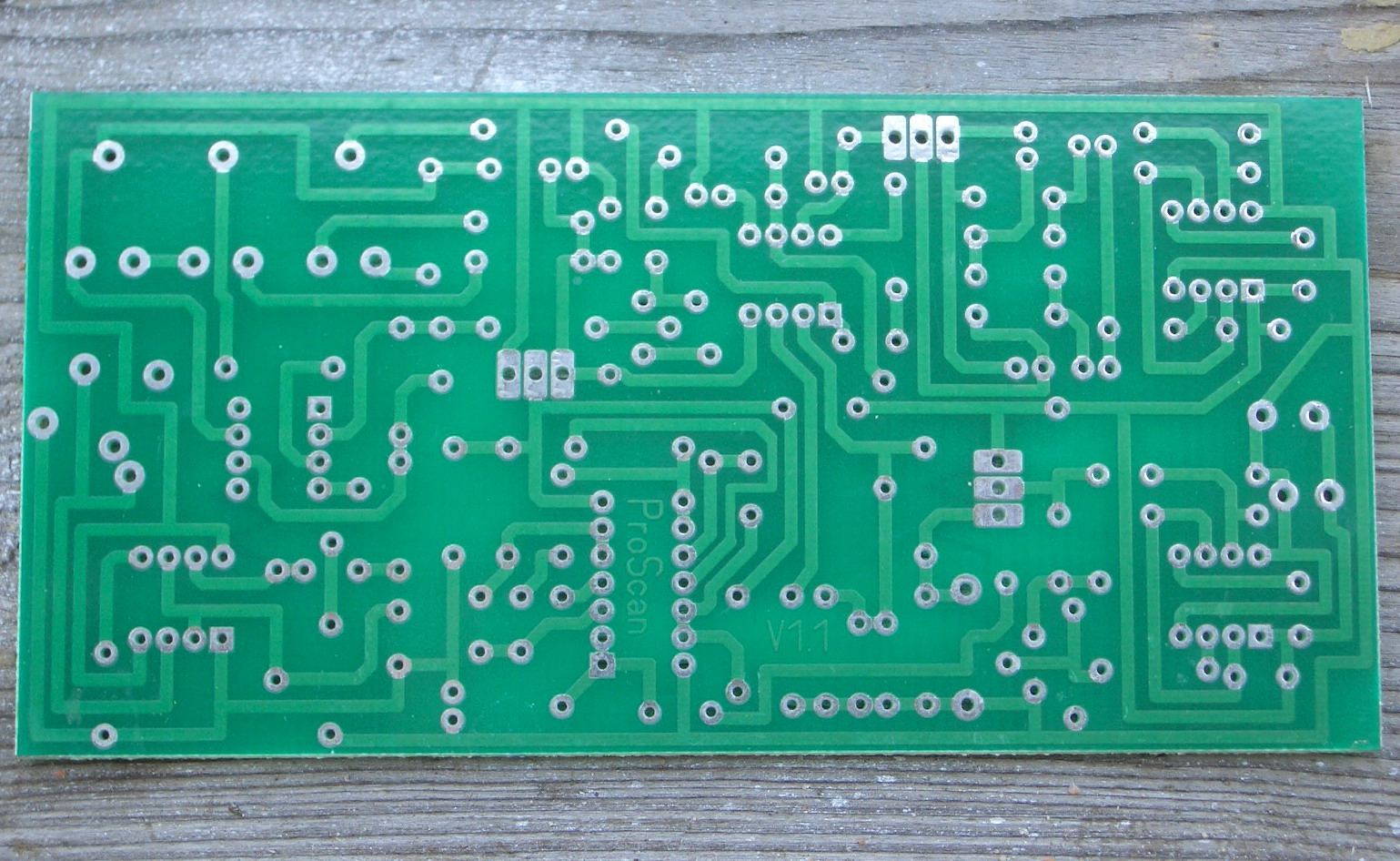

I have this layout, seems the same.

[kt315]

There is a follow up-article on the sanbanks project in a subsequent magazine, which discusses modifications to the original circuit. I post it here. The sandbanks I built works great, and goes deep on the beach sand. I built it entirely of salvaged components and I managed to alter the circuit for use with NE5534 chip instead of the old 709. The original circuit used T1 and IC3, a CMOS ring oscillator for the PS.
Anyone thinking of building original circuit should have no problem with T1, as it is nothing special.

pay 6 euro and 3.52 for shipping and i send you the board right now.
much noise from nothing again. the winter melancholia time.

[Andi68]

Do not be sad .....

[dbanner]

I already have built too many of these ****ty "click click" detectors. I am fed up with them. This was before I realised they are all more or less same performance. Nothing new here.
Need very good VLF beach detector project with a good discriminator. There is no winter here. Only economic slowdown and plenty rain from ITCZ weather. It makes for suicidal tendencies.
I will focus in the upcoming months on a rather neglected aspect for DIY construction.
The hardware of the control box and stem, coil connectors, and proper vacuum forming apparatus for coil housing, control knobs, pots and switches, shielding materials, waterproofing, etc,etc. So in the end, I will have nice looking, professional device. Just need a good circuit to put in it. Or I may just start buying "used" detectors, and fixing them up. Or maybe even start new hobby like "brass rubbing" or collecting bottle caps(our beaches are infested with them).

[Andi68]

I start to dream ....

[MartyJ1963]

@BernteOne,,,Could you give a link to German forum pleas?,,Thanks, Regards, Marty

[Arionas]

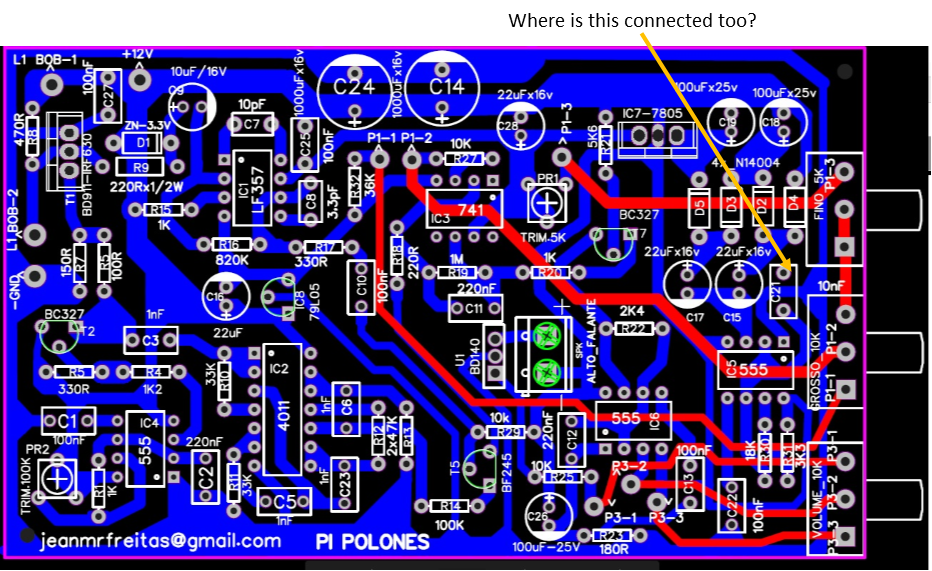

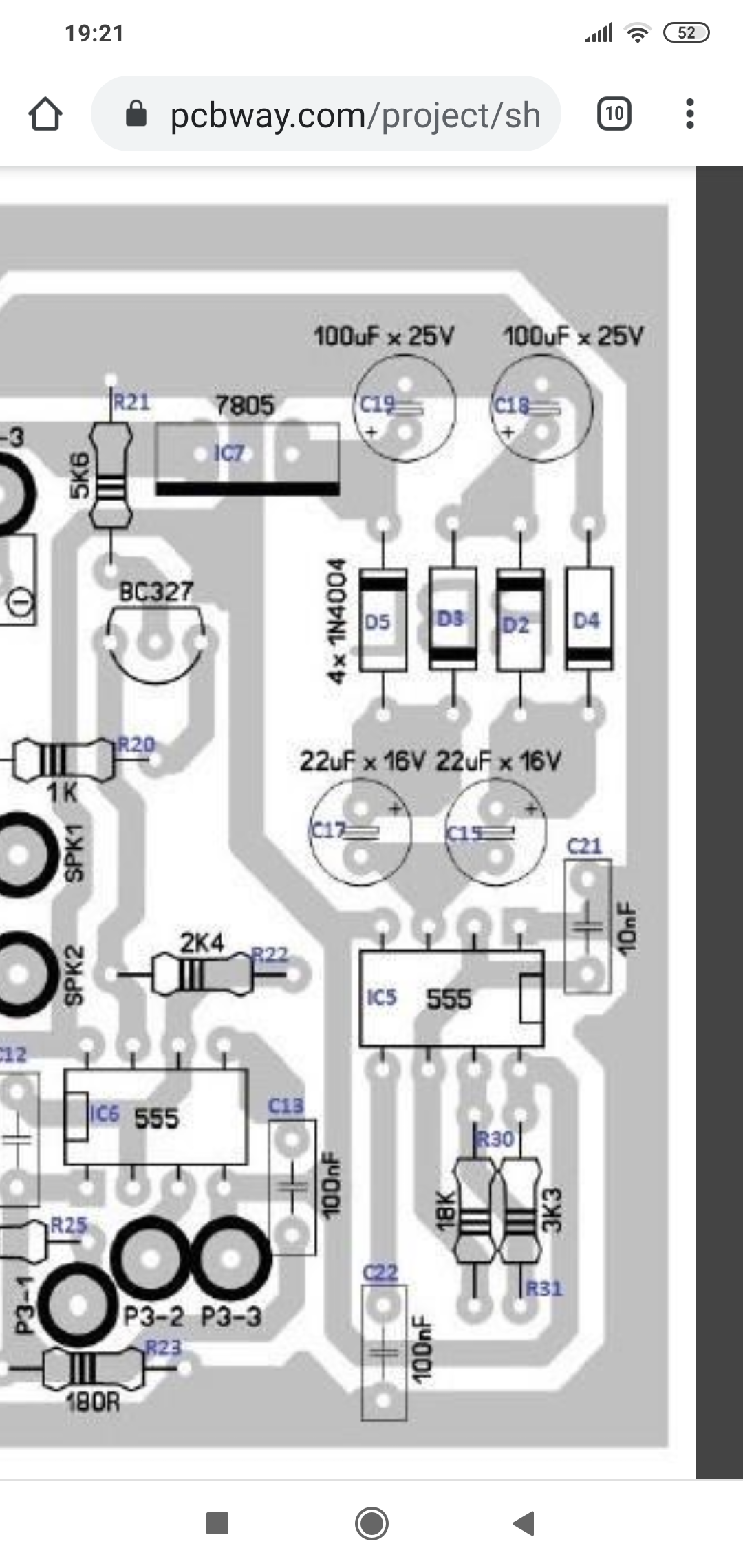

at the moment we start a project here in german forum based on this pcb

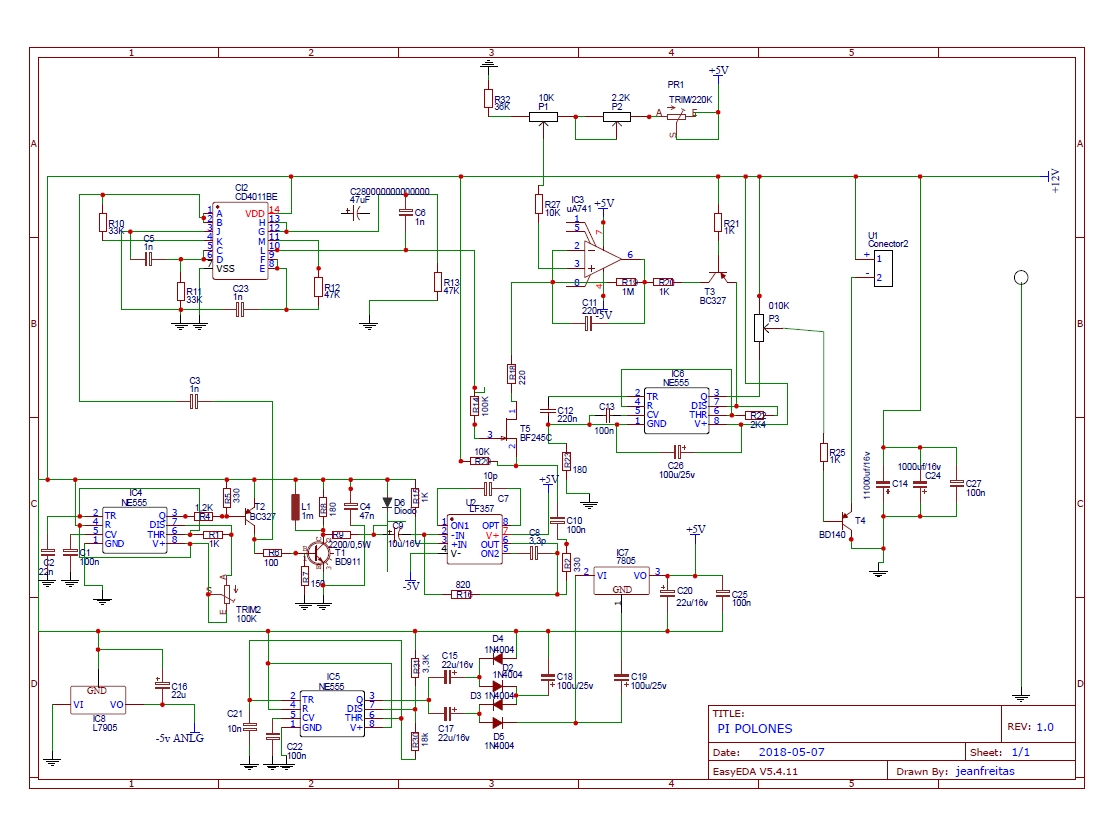

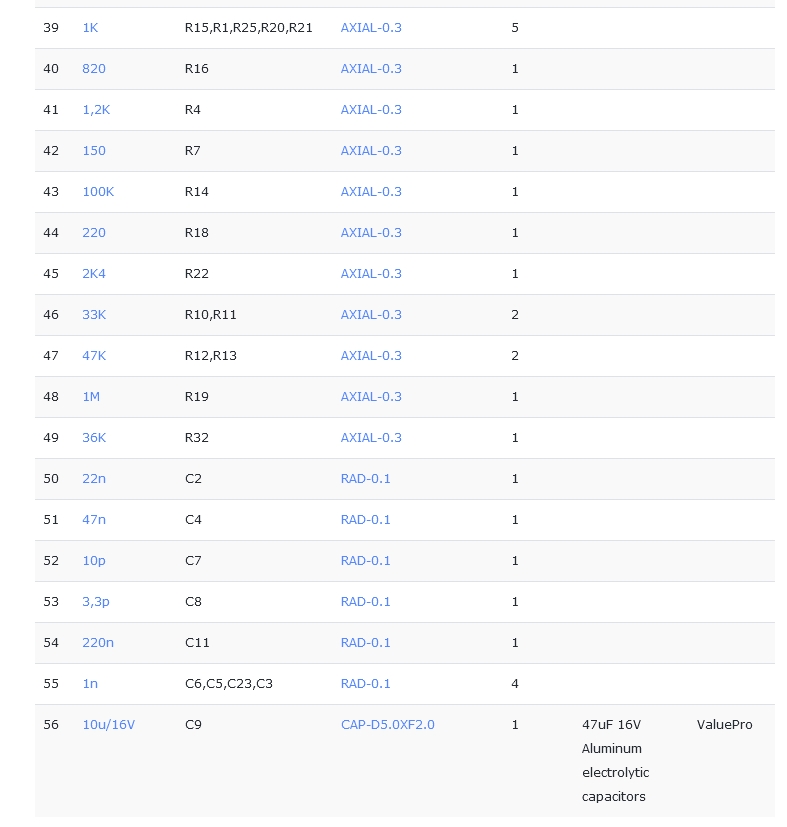

https://easyeda.com/jeanfreitas/pcb2-placa

[Arionas]

[dbanner]

Good project.

[kt315]

Good project.

all files-in-one. you can take a file from rar and put it back in GT1. winter time.

http://depositfiles.com/files/uve8cpug8

[MartyJ1963]

Thanks for the files KT315 and Aronas,,,,but can anyone give a link to the German forum please?,,,I'm interested to have a look. Thanks, Regards, Marty.

[Andi68]

http://www.detektorforum.de/smf/index.php

[MartyJ1963]

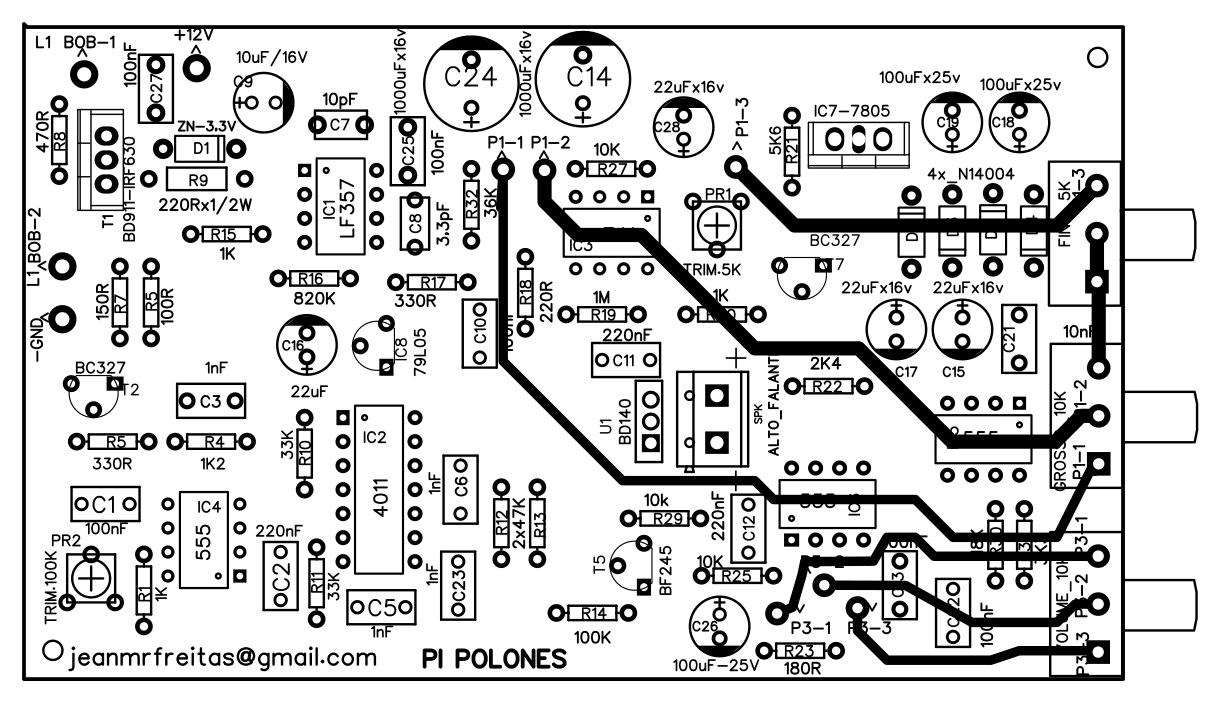

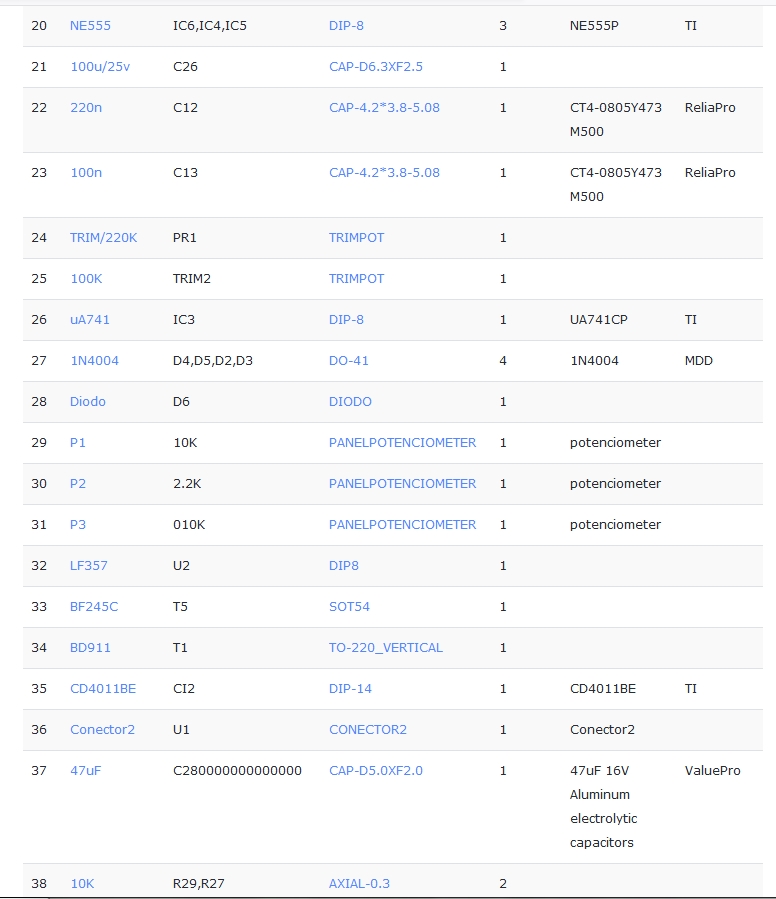

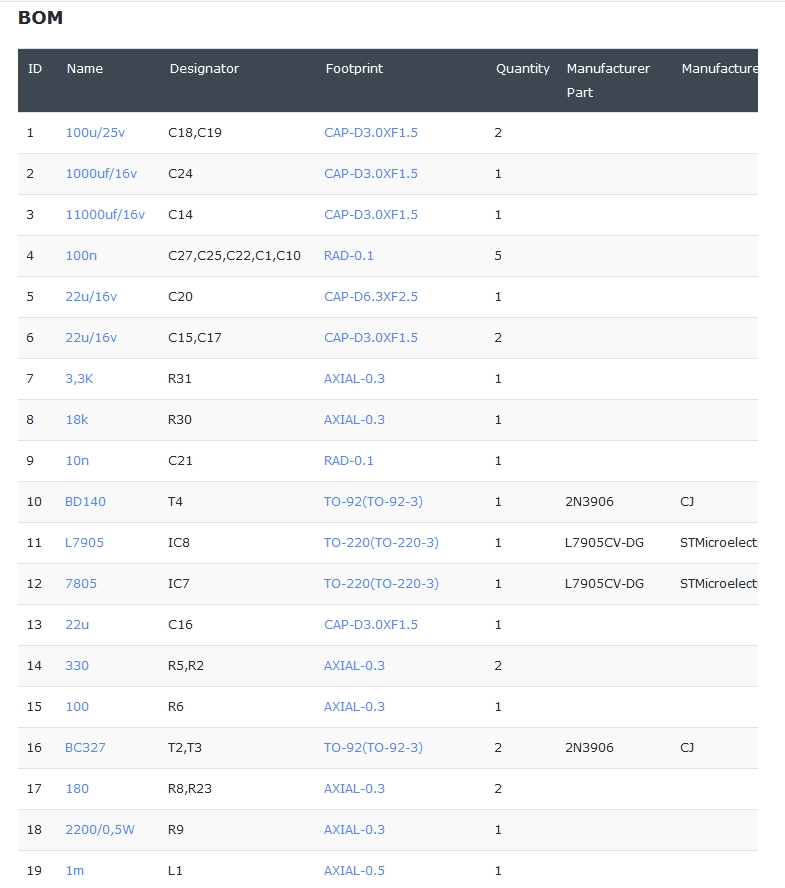

Thank you Andi68,,,,There seems to be a capacitor unconnected on the pcb image from the new Polones project? Regards,,,Marty
