felezjoo PI(the best pulse induction metal detector that I made until now)

[crni1]

Ивцониц и други су у праву, дубина, осетљивост, дискриминација са овим детектором углавном зависи од ИЦ круга ЛФ357,
са једним Иц кругом, најбоље ради када је 1охм завојница, а други 1.5охм, исти је са дебљином жица.
Што значи да сваки ЛФ357 захтијева различите карактеристике сонде.

[aft_72005]

Hi to all
Please see PCB image . design by Walkman . I want sprint file .
Any body having . please upload .
Regards.

[Qiaozhi]

Ивцониц и други су у праву, дубина, осетљивост, дискриминација са овим детектором углавном зависи од ИЦ круга ЛФ357,
са једним Иц кругом, најбоље ради када је 1охм завојница, а други 1.5охм, исти је са дебљином жица.
Што значи да сваки ЛФ357 захтијева различите карактеристике сонде.

Please read the forum rules -> Basic Rules of the Forums
and make your posts in English.

[MartyJ1963]

@Aft_72005,,,,I found this layout by Walkman,,,I dont know if it's the correct one you want but I will have a look in my files for you to see if there are any other layouts by him. Marty

[aft_72005]

Hi marty

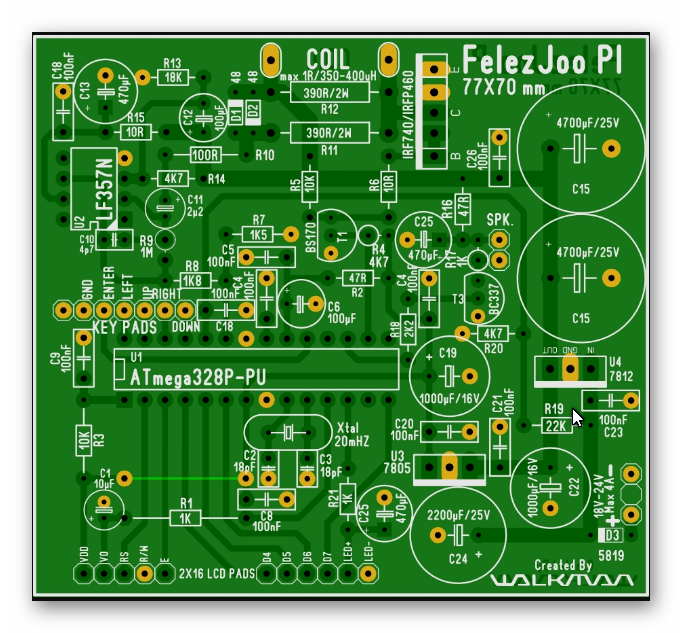

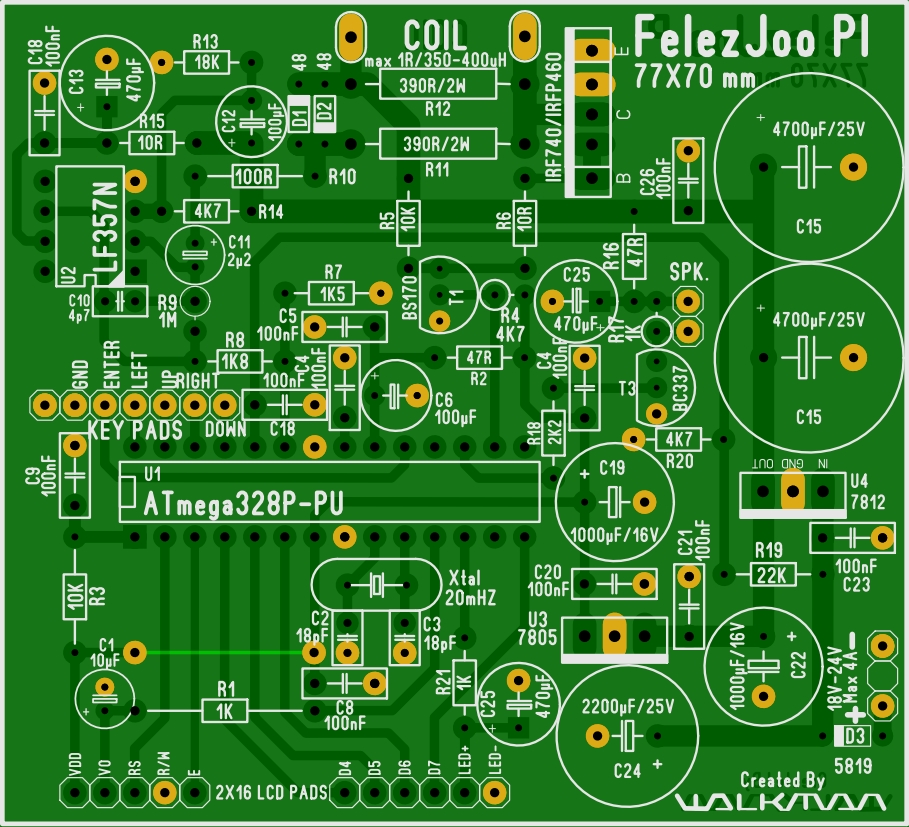

Thank you . but i want other draw bywalkman . see picture

[crni1]

Please read the forum rules -> Basic Rules of the Forums
and make your posts in English.

I apologize for who knows which way, my English is bad and I use the translator, I put all this nice in English, but as soon as the post is learned the translator translates it and there is an error.

[aft_72005]

Nobody didn’t have this sprint file ?draw by Walkman .

[TufaN]

Nobody didn’t have this sprint file ?draw by Walkman .

You want. Lay file available in the attachment

[aft_72005]

thank you .
regards .

[tenere750]

since I understand it is version 3.35 without cash, ie broken

[CDI]

Can somebody confirm that Arduino Uno can be used as programmer for 3.35 version?

[tenere750]

I have ordered the arduino uno I expect to come in to write to the original hex when i will answer it

[RS_Phil]

Can somebody confirm that Arduino Uno can be used as programmer for 3.35 version?

You can buy using Arduino Uploader but the problem is how to set fusebit on it.

[tenere750]

https://www.youtube.com/watch?v=Po8M4cWSgug

[yass14]

Is there an adjustment to get rid of imaginary signals
Is there an adjustment to get rid of imaginary signals
