Vallon VMH3CS Mine Detector

[Ferric Toes]

Hi Eric,

You said that you've attached the plot for gold/silver, but the plot is actually the one for gold/copper. Oops!

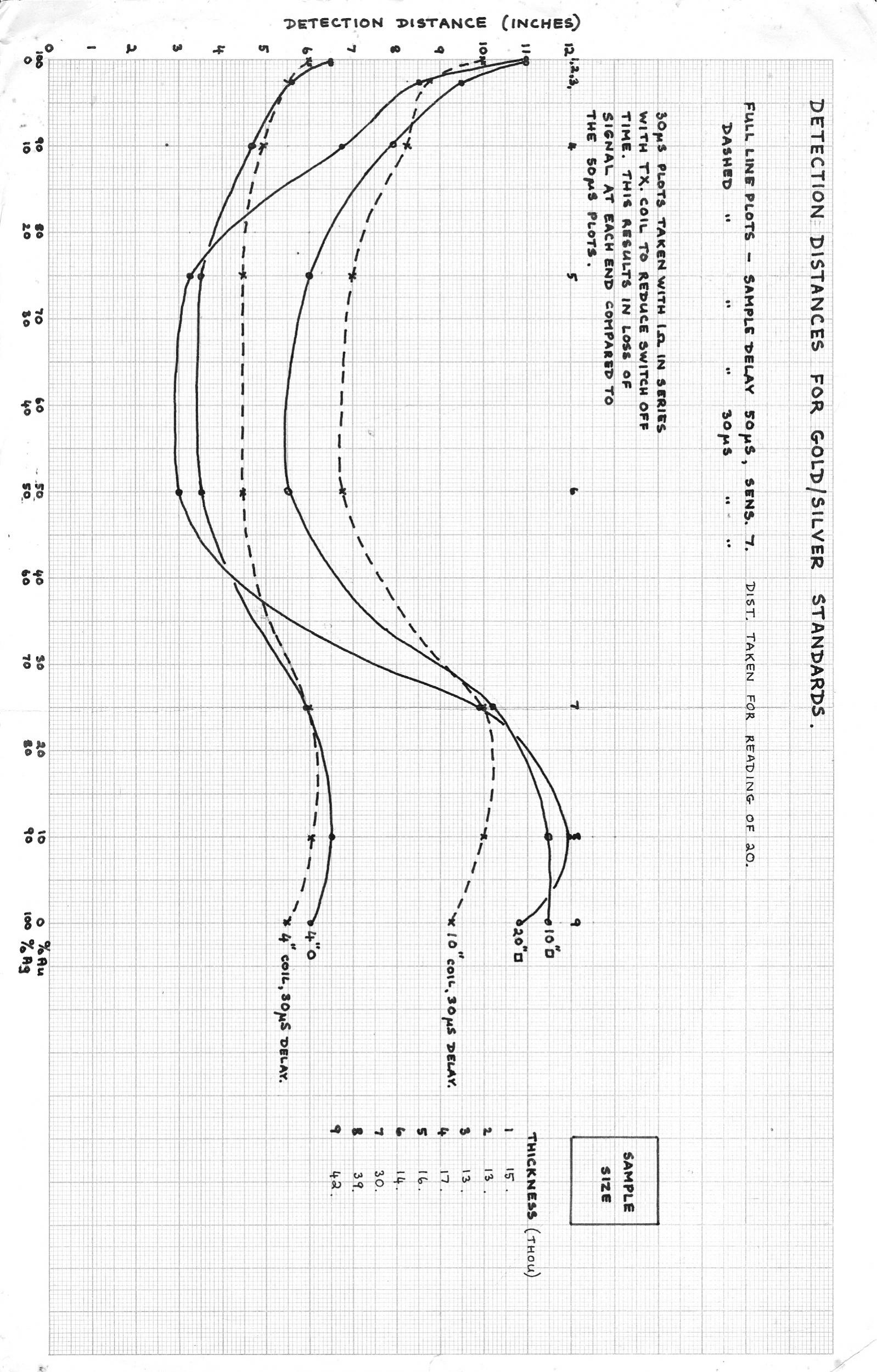

Oops is right. Here is the correct one. A bit more complex as it deals with the different coil sizes.



Eric.

[ionut_mtb]

Oops is right. Here is the correct one. A bit more complex as it deals with the different coil sizes.

[ATTACH]42816[/ATTACH]

Eric.

Thank you, now is clear.

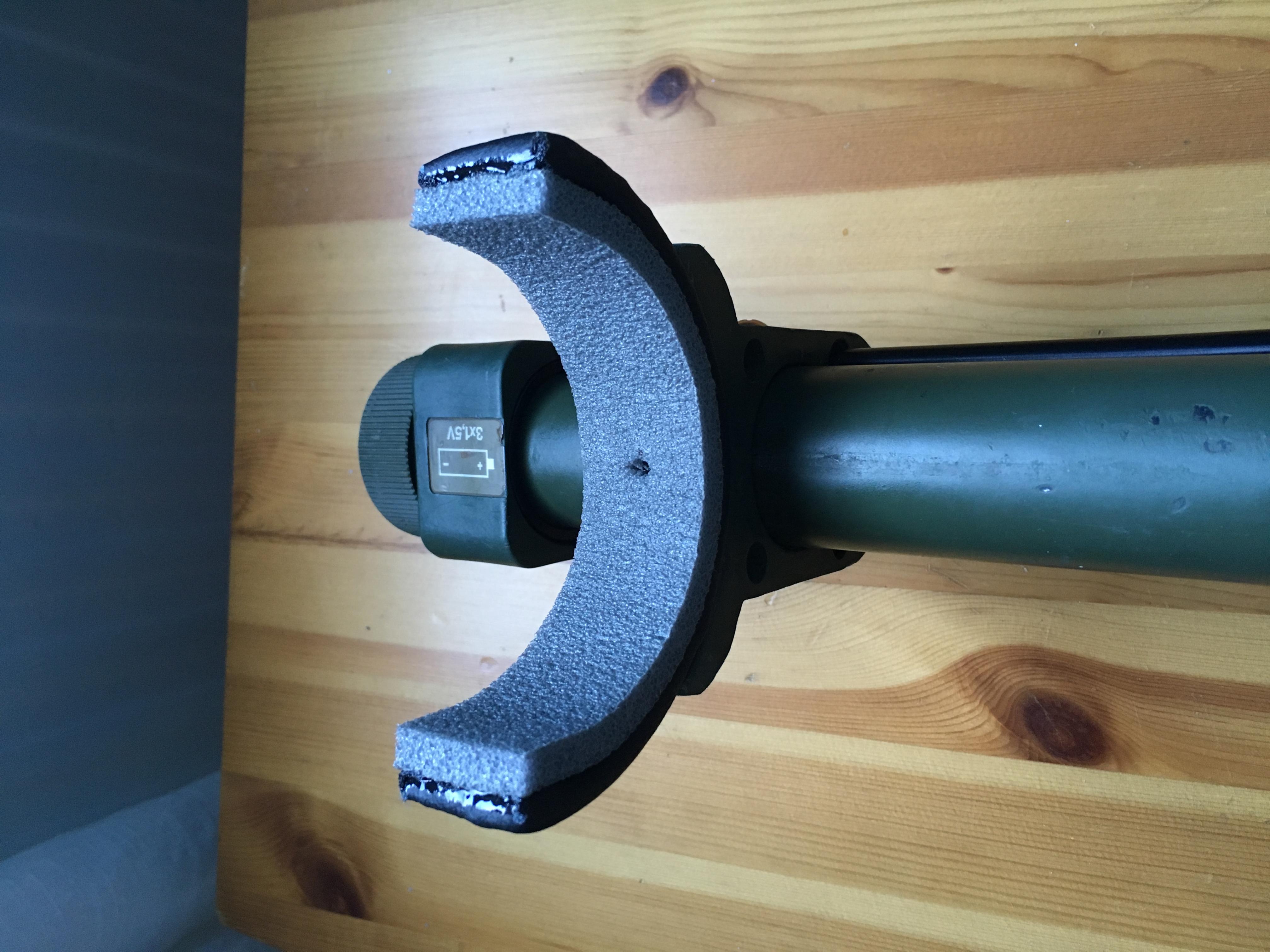

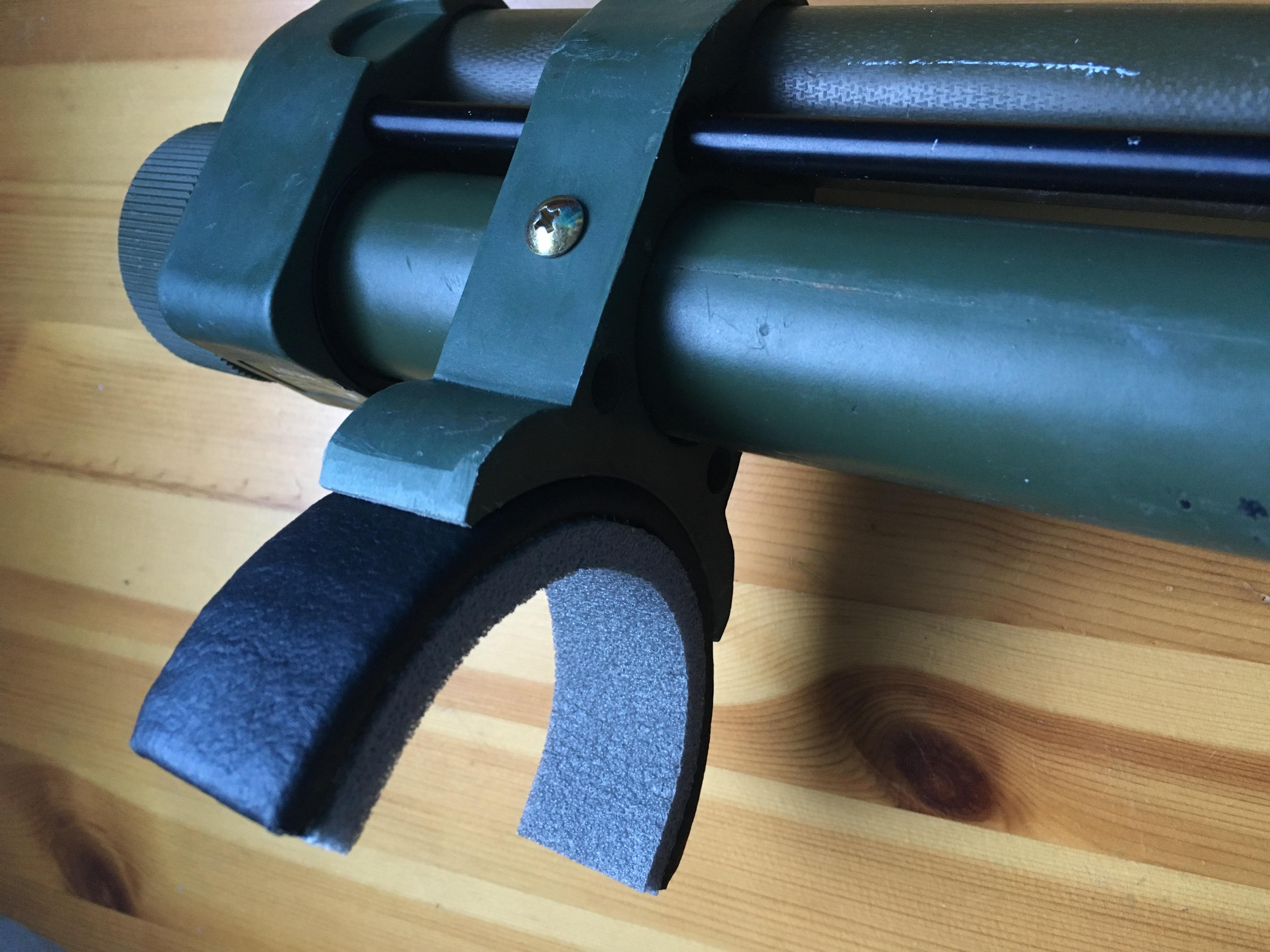

This is the armrest i made from pvc/leather for this vallon.

[ionut_mtb]

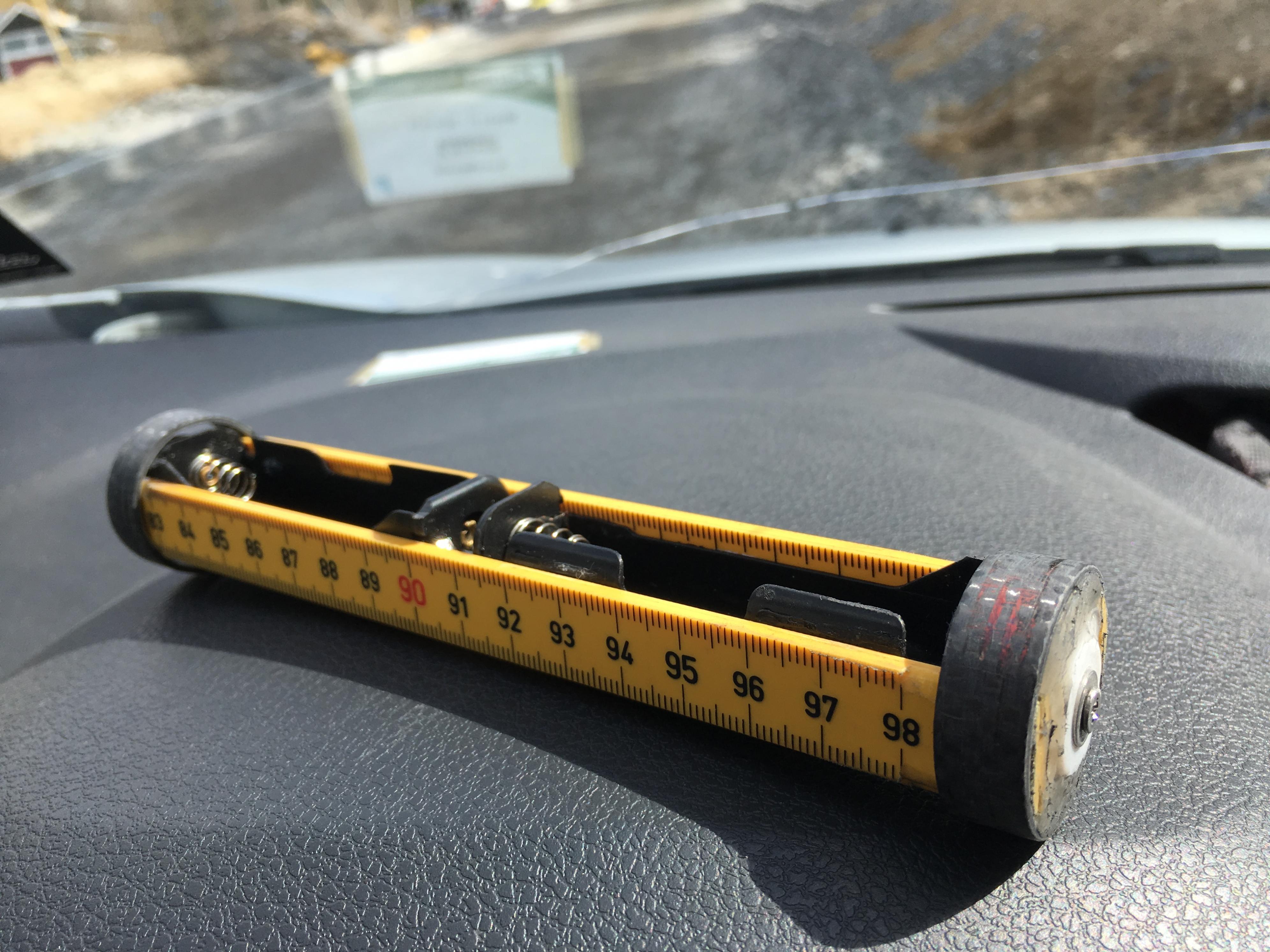

2x18650 in paralel, vallon adapter.

[Zajber]

Hi!

Does anyone have the manual for the VMH3CS?
Mine is acting up and I would like to check the manual.

I can host it for others if I could get a copy.

[Altra]

Try this link
http://www.vallon.de/download.lasso

Sorry it appears the operating manuals are no longer listed

[chevesne]

https://drive.google.com/file/d/1wrBZ8d0quNX5Wq-I9xY_vY8HhICJ7gxN/view?usp=sharing

Edit: Only for 2 days.

[smokingdragon]

Cheers for the download!!
Simon

[Zajber]

Thank you!

Will upload and post link later.

[Zajber]

Heres another link hosted on my Onedrive.

https://1drv.ms/b/s!Akmc4WLuH1rlhJIxnwux3dwsroNAcw

[lucafa]

Hi
Heres another pdf info about vallon

http://commons.lib.jmu.edu/cgi/viewc...t=cisr-journal

[lucafa]

HI

A question.

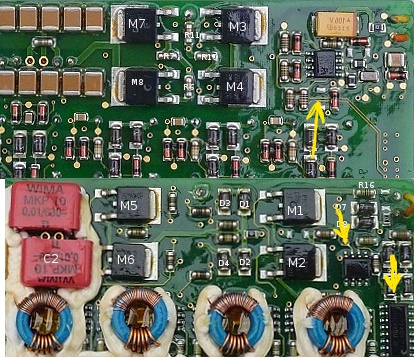

I have drawn yellow arrows on the image. Does anyone know what components they are?
BYE

[KingJL]

TOP right: 4532A

Bottom right: 8 pin SOIC is OPA627; 16 pin SOIC is DG442.

[lucafa]

Many thanks kingjl.

In my PCB OPA627 is marked 48760 and DG442 is marked 48790.
You have feedback with other pcb as it is marked on mine?
I think start retro engineering. I wanted to understand how schematic structured.
If not problems for you I would like to write you in private message about the work to have an exchange of ideas.
Regards

[KingJL]

I really don't have much to add... the identification of the subject components was accomplished by others!!

[lucafa]

Ok kingjl
No problem.
however you are very kind.
Regards
