Garrett (pulse) XL 500

[baum7154]

Yes, that's it ... I would have saved time and few metters of wire i i've seen this thread before.
I did not have the translation the first time i did it .
I'll take care to cover the wire with tape before epoxy !!

------------------

This construction of the 3DSS coil from the 1930s is all described in detail in the Chance PI Coil thread of the Coils forum. I have posted many pictures there as well.

Regards,

Dan

[gerson]

I searched in thunting and didn't find it. hello does anyone have the PCB pb of this mod.
documents and measures for home printing?
https://www.geotech1.com/forums/atta...4&d=1472194411

[dbanner]

Yes, I have it,.in Gerber. I got it many years ago from this forum. I love upload it in the morning, if I can get sober.

[6666]

Yes, I have it,.in Gerber. I got it many years ago from this forum. I love upload it in the morning, if I can get sober.

[Emersonpaz]

:Felicidades:

[kt315]

:Felicidades:

Italiano???

[gerson]

ok. dbanner thank you

[Emersonpaz]

Portugu?s Brazil friend sorry, as well as Gerson would also like the current files. If you have Gerber for making the PCB.

[surfdetector]

Yes, I have it,.in Gerber. I got it many years ago from this forum. I love upload it in the morning, if I can get sober.

This seems like it would be a good project to do if you still have the Gerber files.
Cheers

[gerson]

https://www.geotech1.com/forums/show...-sample-timing
https://www.geotech1.com/forums/show...ighlight=xl500

[walkman]

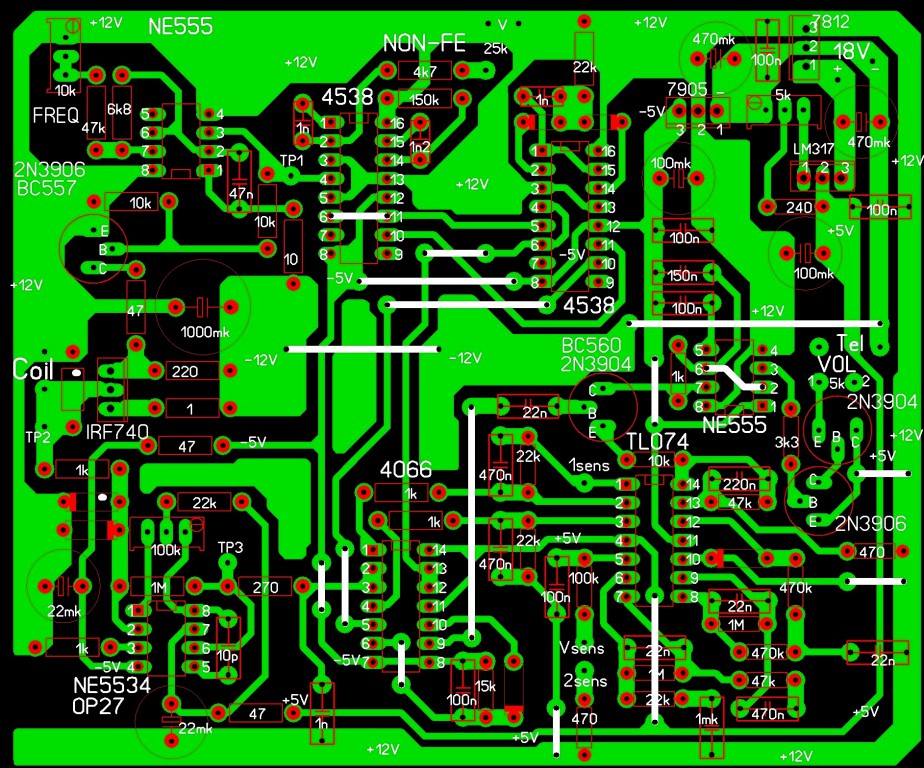

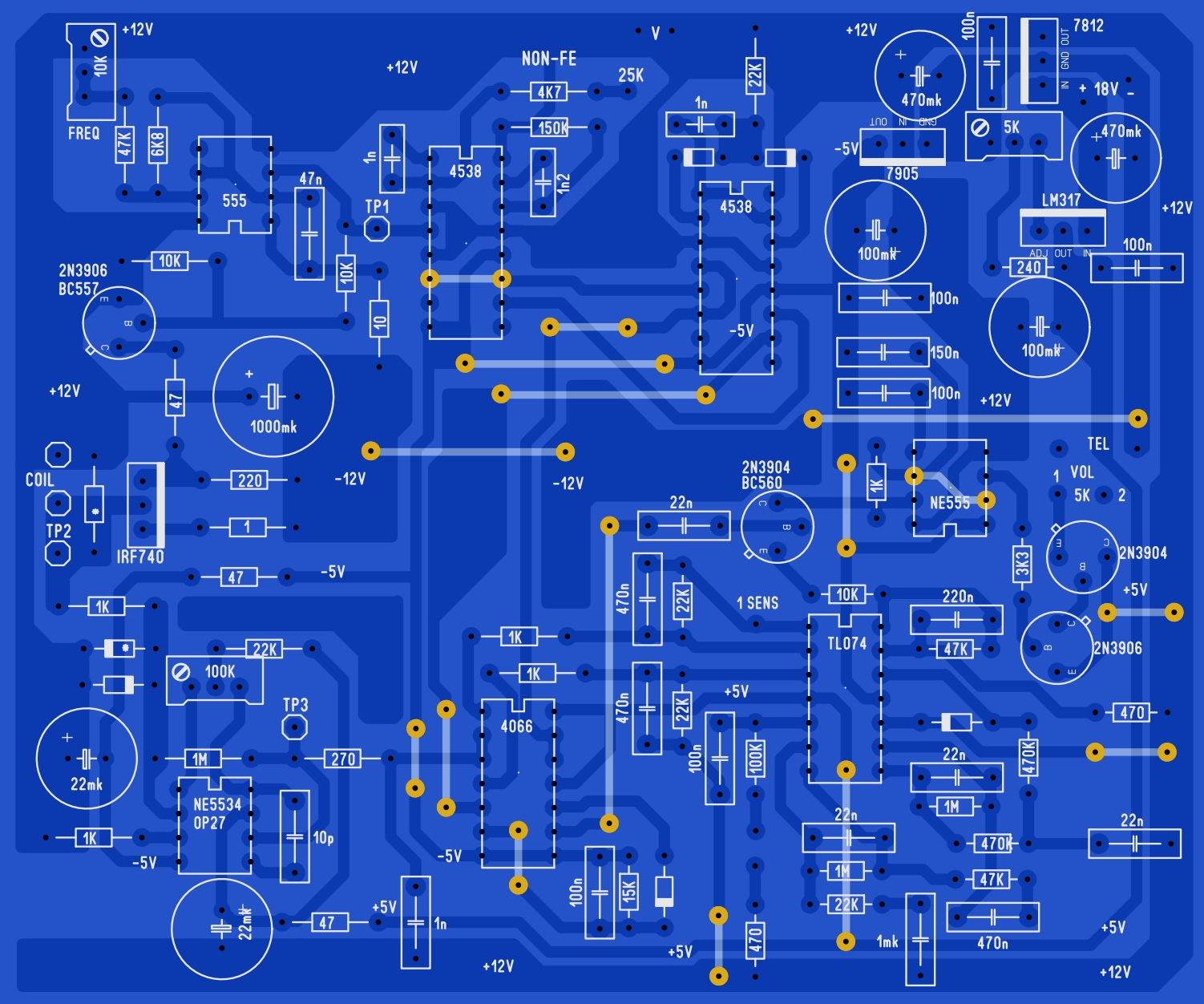

I redrawed for those who want to do it.

[MartyJ1963]

Hi Walkman,,,Thanks for the files. Is there a Schematic for this PCB? Thanks, Marty.

[gerson]

USTA? BEM. R?dio. obrigado pelo arquivo.
19/08/2016, 05:42

# 16

[surfdetector]

Hi Walkman,,,Thanks for the files. Is there a Schematic for this PCB? Thanks, Marty.

Has anyone seen the Gerber files that dbanner said he was going to share?

[kt315]

SP6.0 is primitive pirates' soft product. being for pirates only using it was hacked by the pirate. Karma.
comparing with old version 5.0 you see new has GERBER converting. so you can for one day to cope ANY board.
this layout is simplest for copy.
