Help to design a PCB for my PI design!

[smity]

Please Give answers

Here to answer questions? Or should not be knocking on the closed door?

[Qiaozhi]

Here to answer questions? Or should not be knocking on the closed door?

You need to ask 1843, as it's his design.

[WM6]

The PCB I posted is a Whites Surfmaster (unfinished) clone.

When it is finished, I will post the PDF and the Protel format of the PCB here.

Hi Sean, not finished yet?

[skylly]

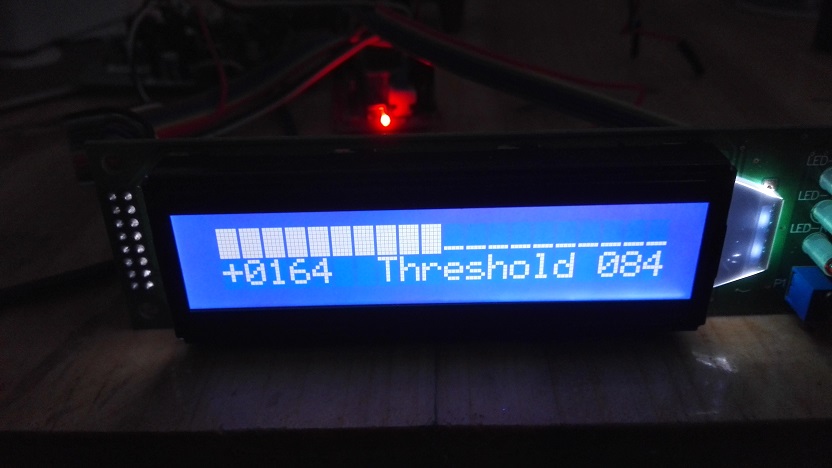

I have make this pi, It display is OK, But it cant detect anything.
If I connect the Base and Emitter of Q9, It smokes everywhere, And I dont know why.

[gamen83]

Hello guys,

I know this is an old thread, but I'm really interested in this scheme and would like to ask you a question:
What is the purpose of d6, c10 and r13? Is this to shift the voltage level from -/+5V to 0-5V?
I want to experiment with DSP but don't know how to interface the ADC with preamp. I'm pretty good at coding but really bad in electronics, so I will appreciate any advice regarding interfacing the preamp and ADC. I won't do any commercial stuff, just doing it for my own fun.

Thanks in advance!

[gamen83]

Nevermind, I found the answer by myself.
Thanks to the hundreds of "knowing" people who helped me...

[geoscash1]

Anything new or happening with this project?
