    WHo Have THis Project i need Layout and Schematic Plzzz

  • #2
    Click image for larger version

Name:	schemat.JPG
Views:	3
Size:	156.7 KB
ID:	341309

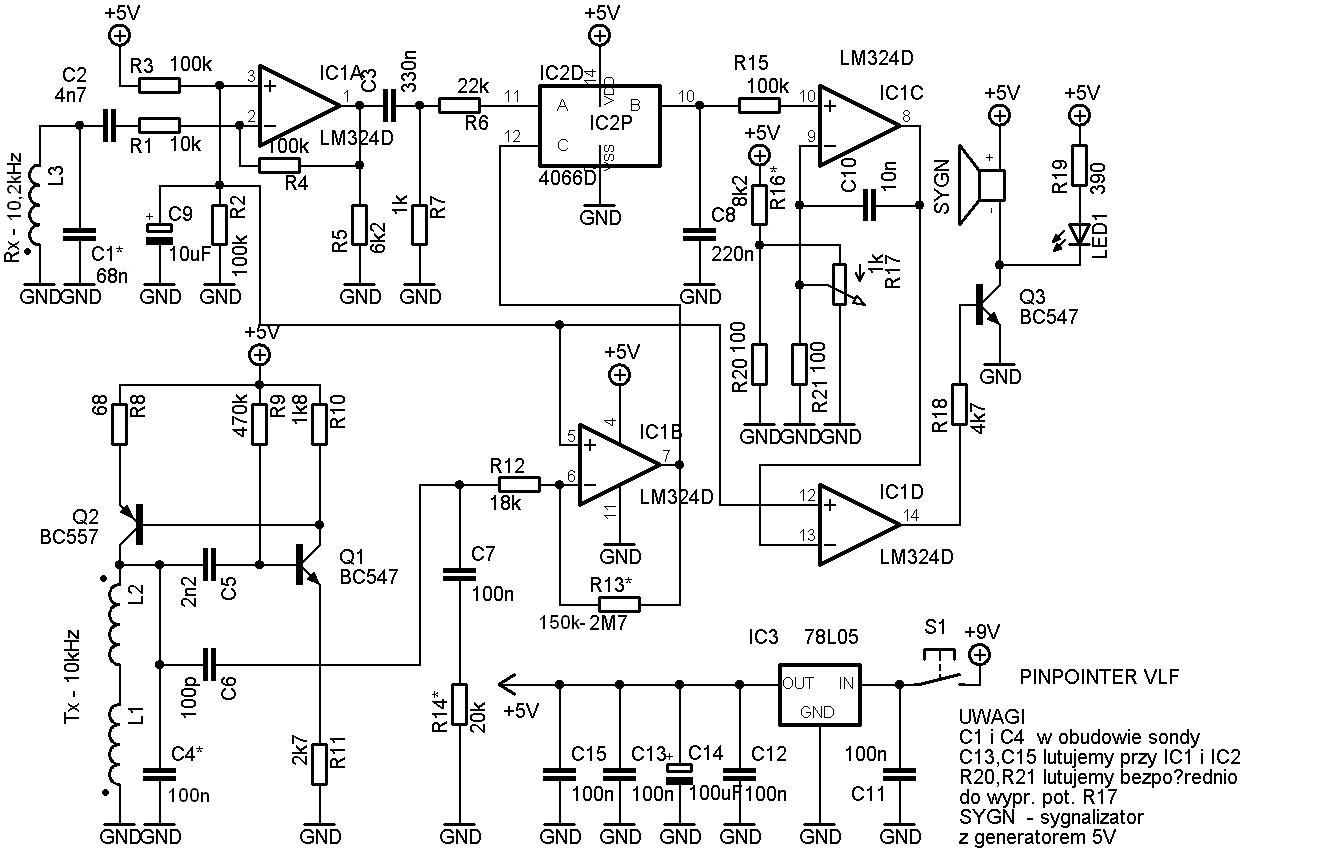

    The Schematic is here who can help Draw With Sprint Layout
    also translate that schematic in english to

    Comment


    • #3
      http://www.elektroda.pl/rtvforum/vie...390&highlight=

      Comment


      • #4
        there dont have layout file bro

        Comment


        • #5
          Hi try sent PM to autor.

          Another site page describing the device's

          http://www.exploracja.cyberdusk.pl/p...p?f=45&t=12519

          Comment


          • #6

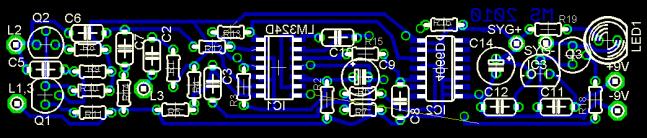

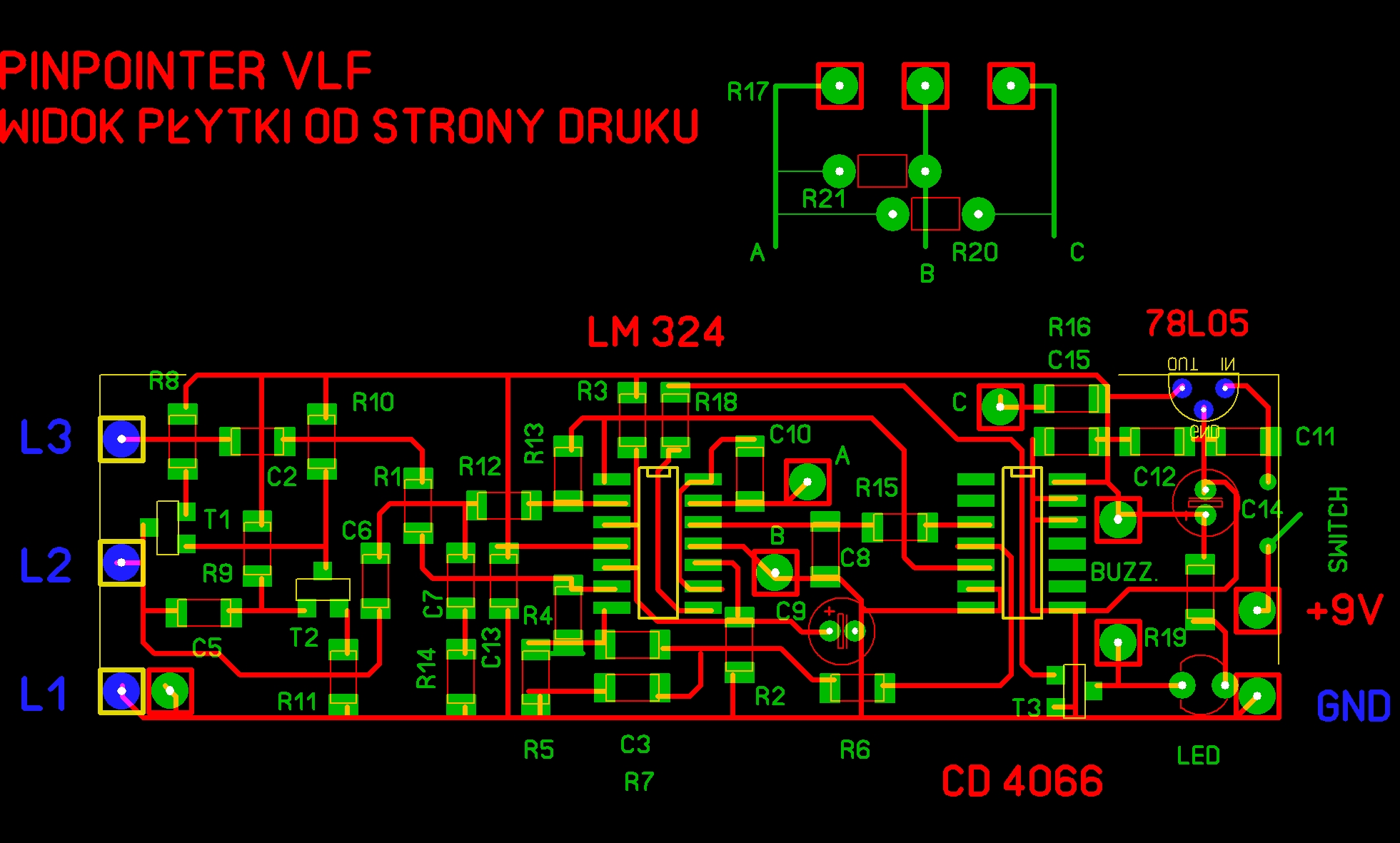

            Click image for larger version

Name:	36_1283615146.jpg
Views:	1
Size:	716.6 KB
ID:	348378
            Click image for larger version

Name:	27_1282992263.jpg
Views:	2
Size:	33.2 KB
ID:	348379

            I found this pictures with google.
            I want to make one, i have all parts here and it looks like it works better than the russian pirat.
            I hope it works without etching the board.

            I need a Partslist. Has someone a Partslist?
            THT Parts pls. Can i replace the transistors?

            Comment


            • #7
              dont waste of you component
              i have post others pinpointer version using atmel

              Comment


              • #8
                hello paku, where can we find the atmel Version?

                Comment


                • #9
                  Atmel version? I want it to....

                  Comment
