    Are there any solid schematics for this anywhere?

  • #2
    Originally posted by frankly View Post
    Are there any solid schematics for this anywhere?

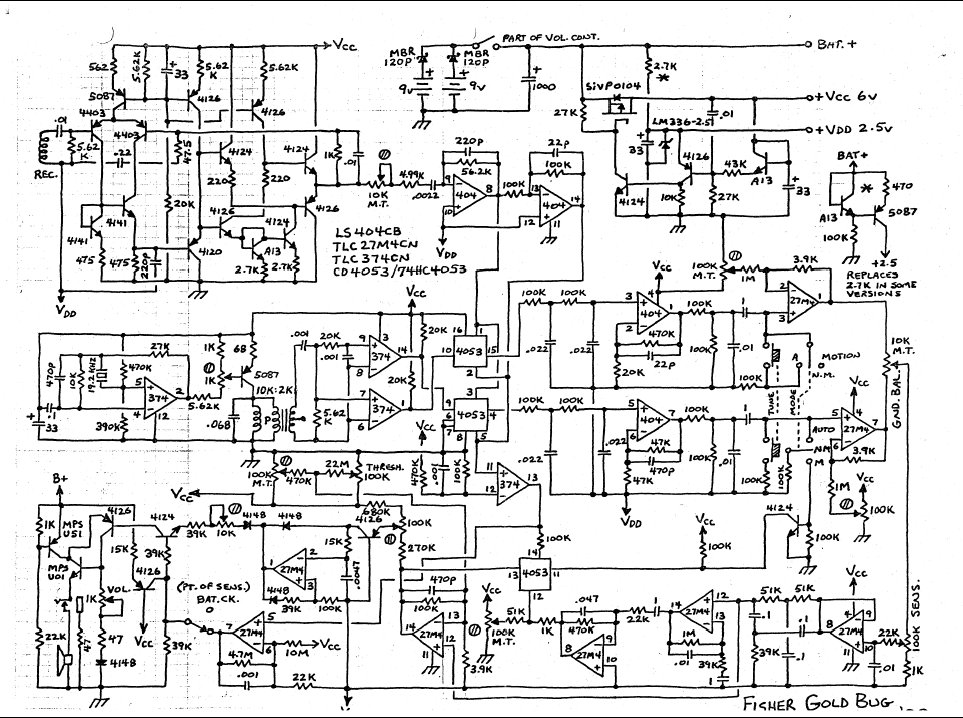

    The only Gold Bug schematic I have is this one ->
    Attached Files

    Comment


    • #3
      can you share pics of your board Franky?

      Comment


      • #4
        fisher Gold Bug khz what ????........ my Gold Bug two tone 20.300 khz.....

        Comment


        • #5
          Looks like a 19.2 khz xtal...

          Comment


          • #6
            rx tx rezonas coil ..?Silver Dollar

            Comment


            • #7
              Thanks Qiaozhi

              I was looking for this schematic long time. I jave Gold Bug II Pro and this will be very helpfull incase my detector gets broken.
              So far i will like to ask you if you have Fisher CZ20 schematics, because my detector died after i sumerged the coil into salt water. Also i tried to opend the coil that unfortunaly i broke by accident. So now i m waiting for a new coil from fisher that fits CZ20 (5 and 15 Khz working frequency), but i need the schematic to find wich componet was burn and also the way to connect the coil.
              My email is [email protected]

              Originally posted by Qiaozhi View Post
              The only Gold Bug schematic I have is this one ->

              Comment


              • #8
                Originally posted by nelson View Post
                So far i will like to ask you if you have Fisher CZ20 schematics, ...
                Sorry, I don't have that one. Try asking KT315 if he has it on his CD archive.

                Comment


                • #9
                  my-your DVD archive is based ONLY on your information, on information from you. if you do not wish to fill it, on my requests, it would be blank.
                  elementary with your english you can ask the schematics Monte, Melbeta, Bob Sickler,http://www.metaldetectorrepair.com/
                  Keith Wills, president http://www.brokendetector.com/ etcetera etcetera.
                  without YOUR activity there will be NOTHING too. that is too simple rule of a nature.

                  Comment


                  • #10

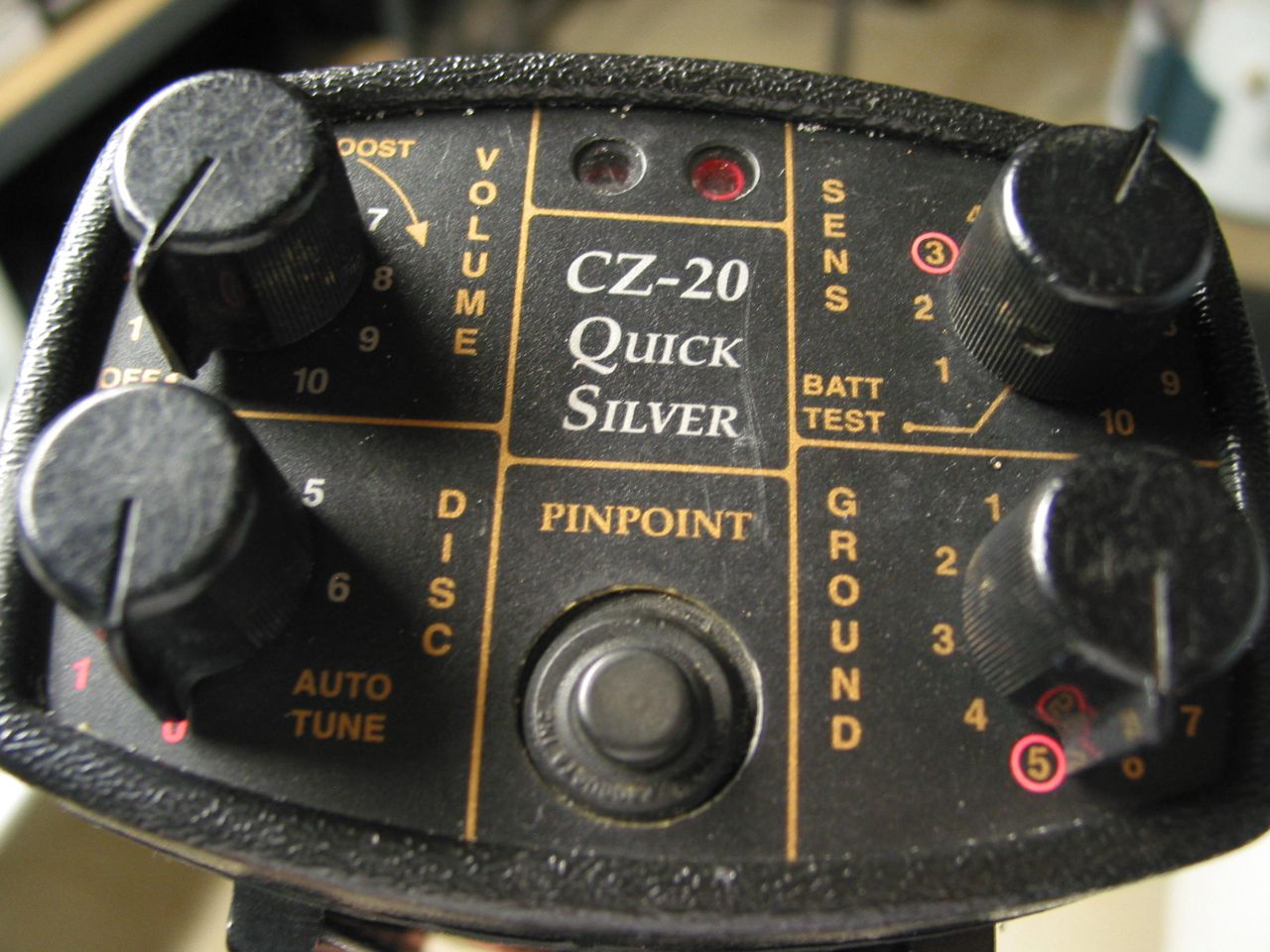

                    Click image for larger version

Name:	CZ-20 Quick Silver.jpg
Views:	1
Size:	168.9 KB
ID:	342014

                    Comment


                    • #11
                      sandman:
                      Fisher Gold Bug - 19Khz

                      Fisher Gold Bug II - 71Khz

                      Comment


                      • #12
                        __Click image for larger version

Name:	1.jpg
Views:	1
Size:	34.4 KB
ID:	342015

                        Comment


                        • #13
                          Hi KT315

                          Yes i know that.
                          Well i can tell you that i m trying to get back here again, because i had some troubles to continuing my work here.
                          So far i did not forgot your requeriments.
                          I will PM soon

                          Comment
