  • white's 5900 di pro plu schematics.

    Hi, I'm trying to repair a White's 5900 pro plus, if someone can 'help me with the electronic schematics.

    We are grateful.

  • #2
    Is that the DI Pro CB or DI Pro SL?

    Comment


    • #3
      Whites 5900.
      Attached Files

      Comment


      • #4

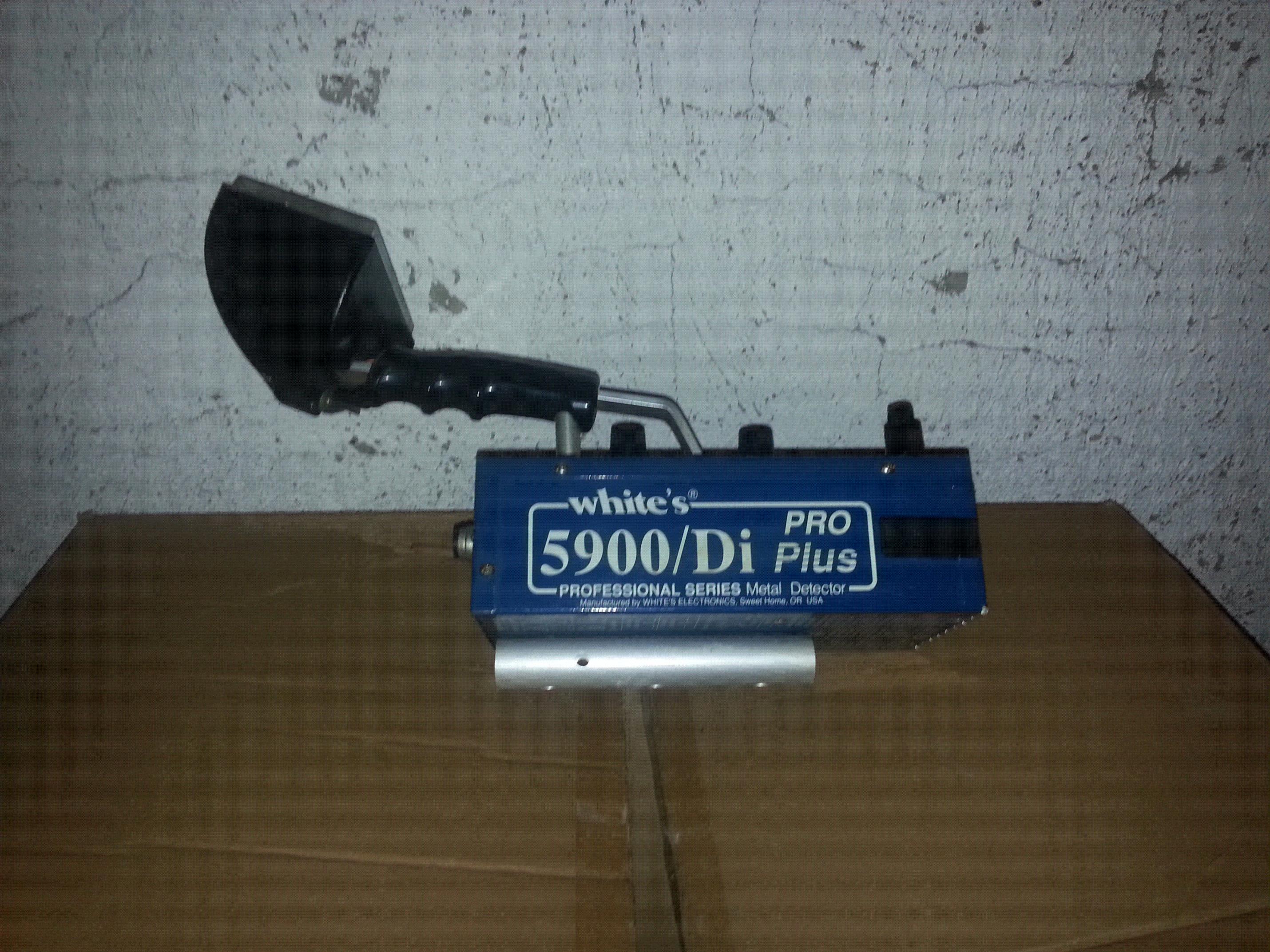

        The model 'in this photo.Click image for larger version

Name:	20141108_070252.jpg
Views:	1
Size:	909.9 KB
ID:	342089

        Comment


        • #5
          thinking patent US4783630.pdf has sure the schema. you can take it on this site, a banner atop the page is clickable - go to a section with patents.

          Comment


          • #6

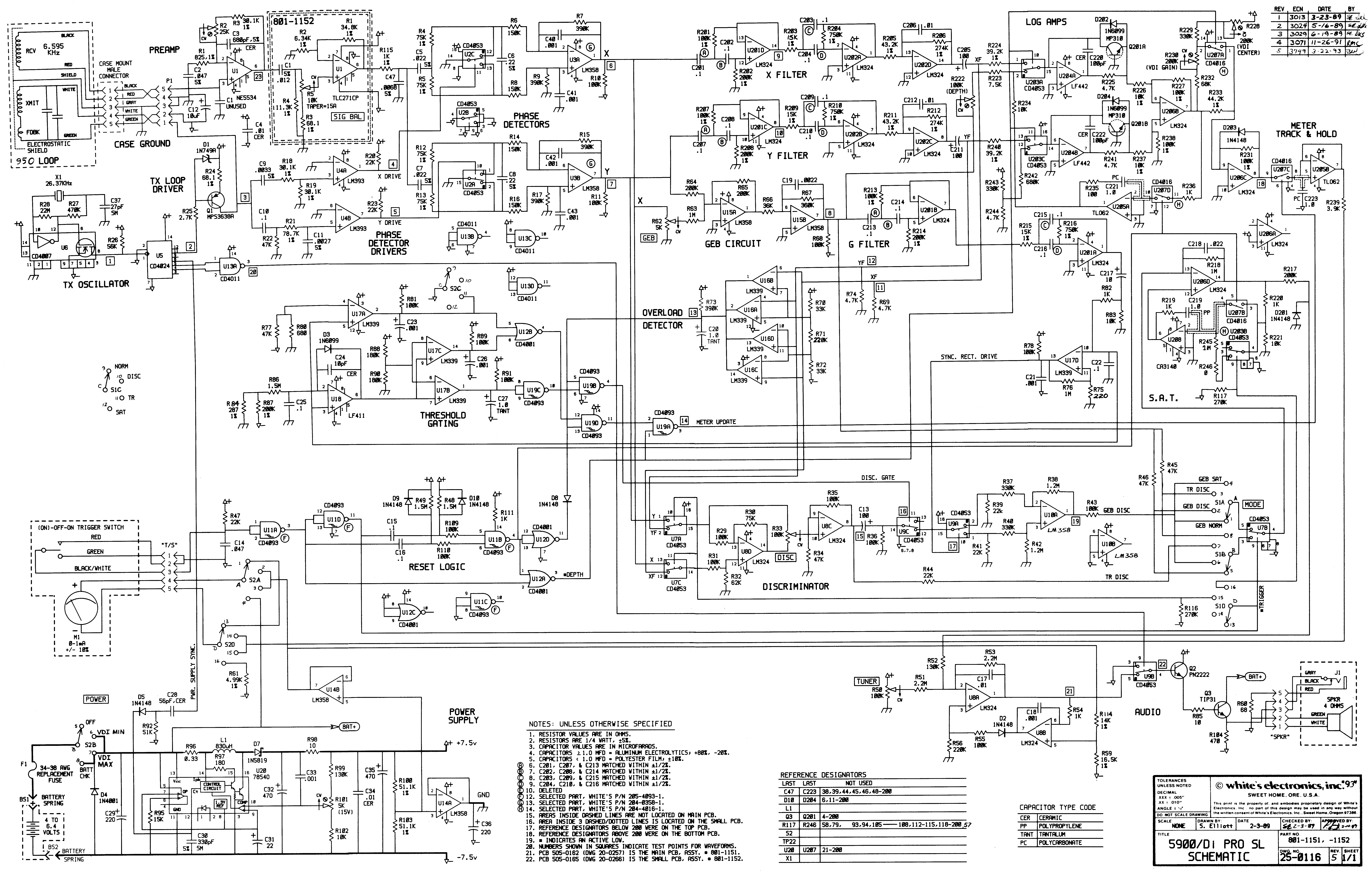

            The schematic is pretty much what was posted here. I have a 5900. I am souping it up a bit. I have added in the sensitivity control from the 4900. It makes the GEB mode chatter, but in TR mode it works well, though it tends to keep the meter at nickle range.
            The achilles tendon of the 5900/4900 is the stupid battery box. I got my 4900 sans battery, and my 5900 not working (just a bad battery pack). I went Tanners in Dallas and bought a couple of 4 c cell holders, and some wires that have a male end and a female end that lock. Soldered them to the circuit board, and bingo. Working detectors, with an easy to replace battery pack. Made a couple of them so I can swap them in the field. Next mod will be the sigbal control.

            Comment


            • #7
              Ok...Thanks!!!!

              Comment
