Arado 120B schematics..

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • Arado 120B schematics..

    Hi everybody and thank you fro the great forum!

    I've tried looking for arado 120b schematics but all I can find is old threads and no working links. If anybody has the schematics for the 120b, could you please be so kind to share.

    Thank you and happy holidays!

  • #2

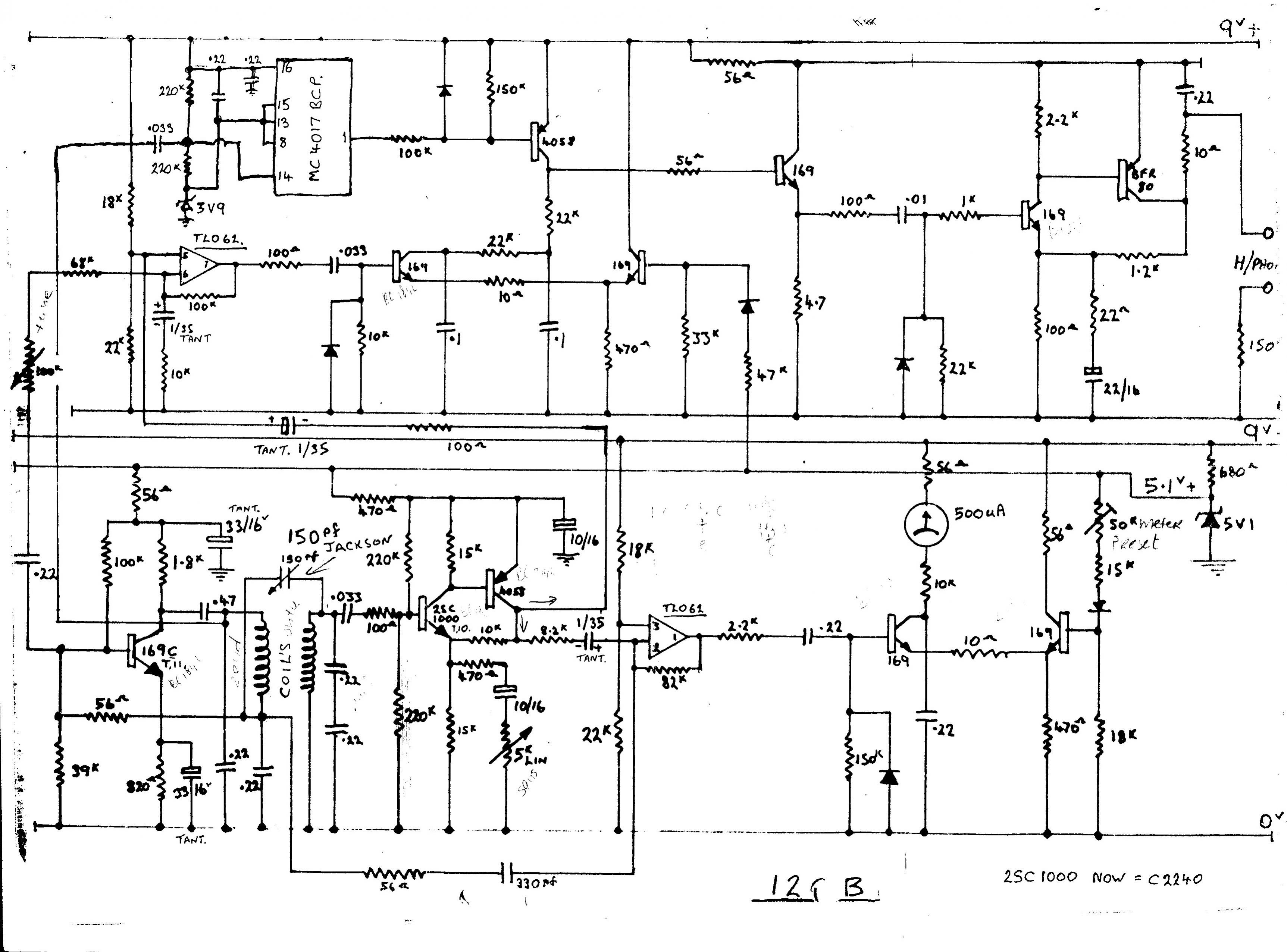

    Click image for larger version

Name:	Arado120_sch.jpg
Views:	1
Size:	701.3 KB
ID:	342357

    Comment


    • #3
      Wow! Thank you, kt315 ! I honestly did not expect this to be answered in like 5 minutes

      Perhaps I can use the thread to ask: are the potentiometers linear or logarithmic? and also are all resistors on 0.25W?

      Thanks again and have great holidays!

      Comment
