Deepers Detector

[soylu]

hi did mfc deepers start drawing

[Tim]

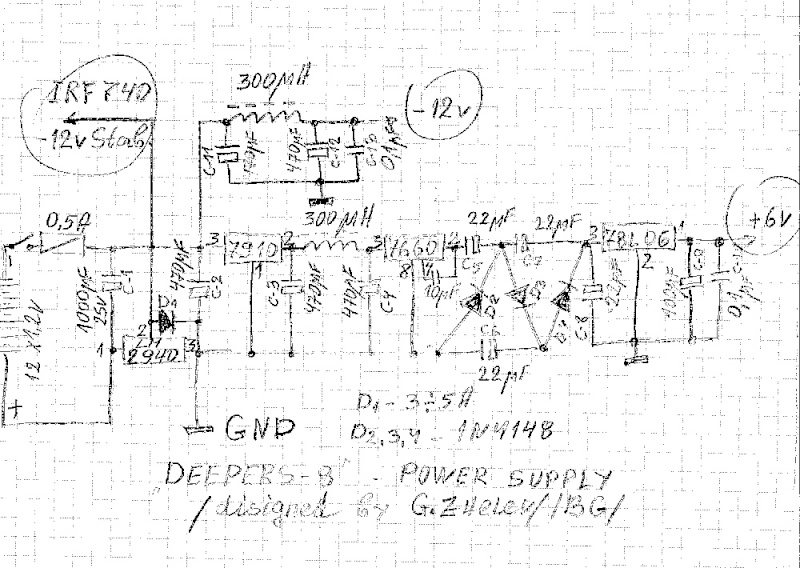

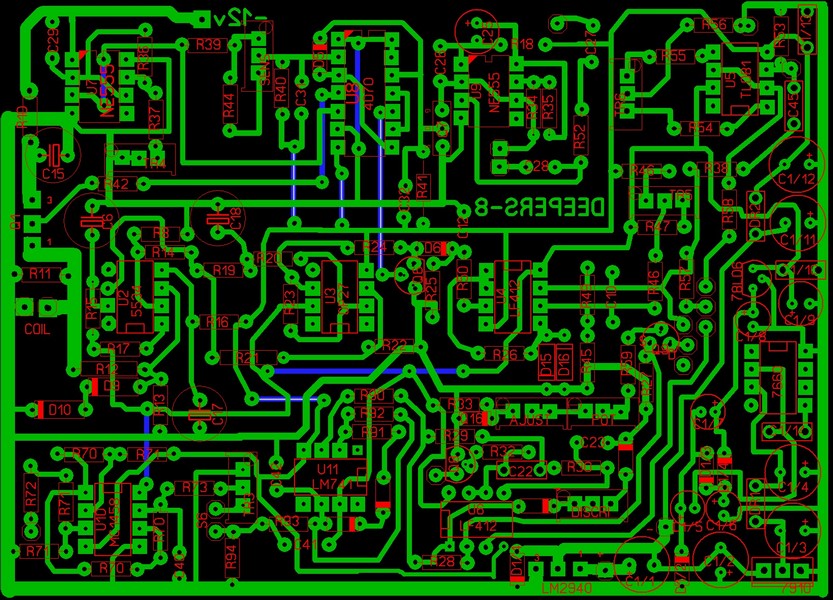

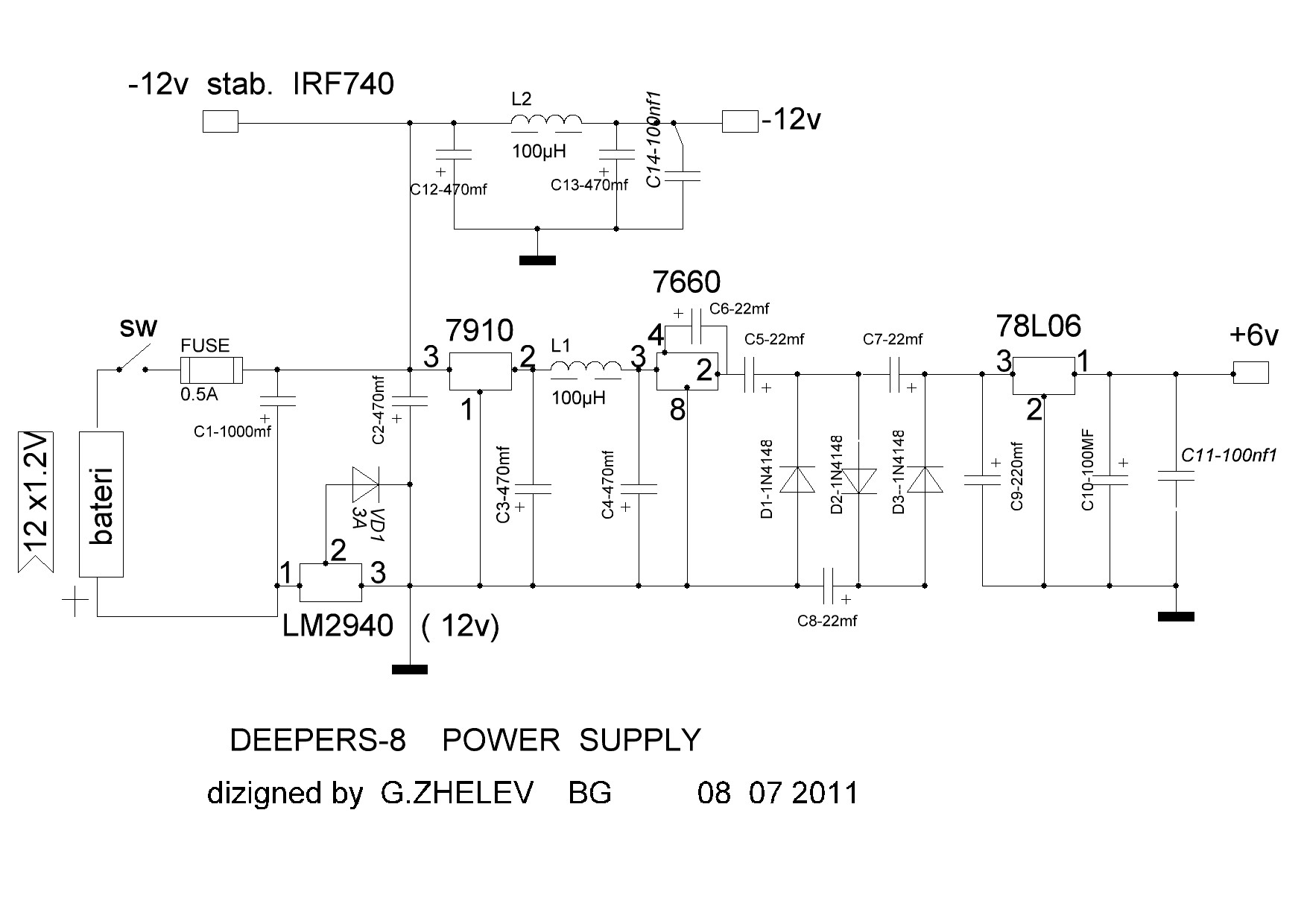

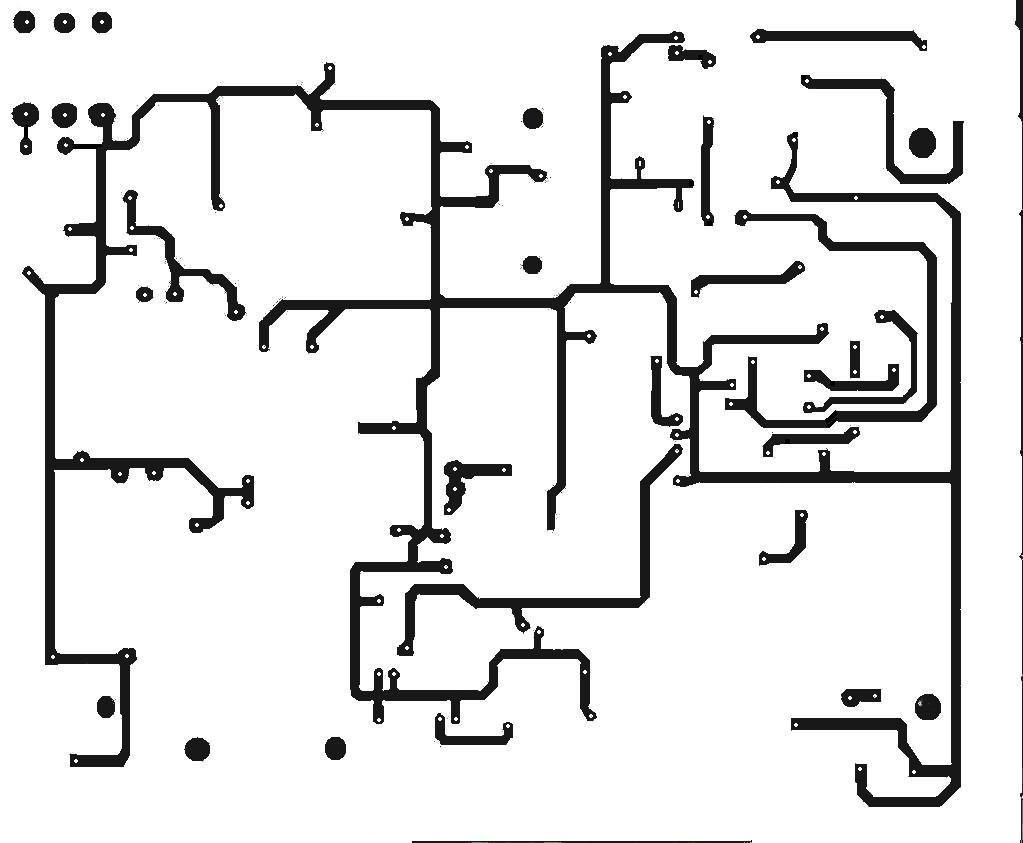

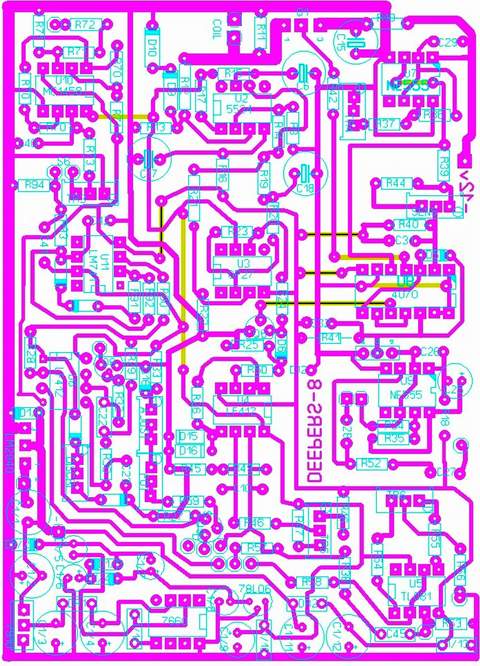

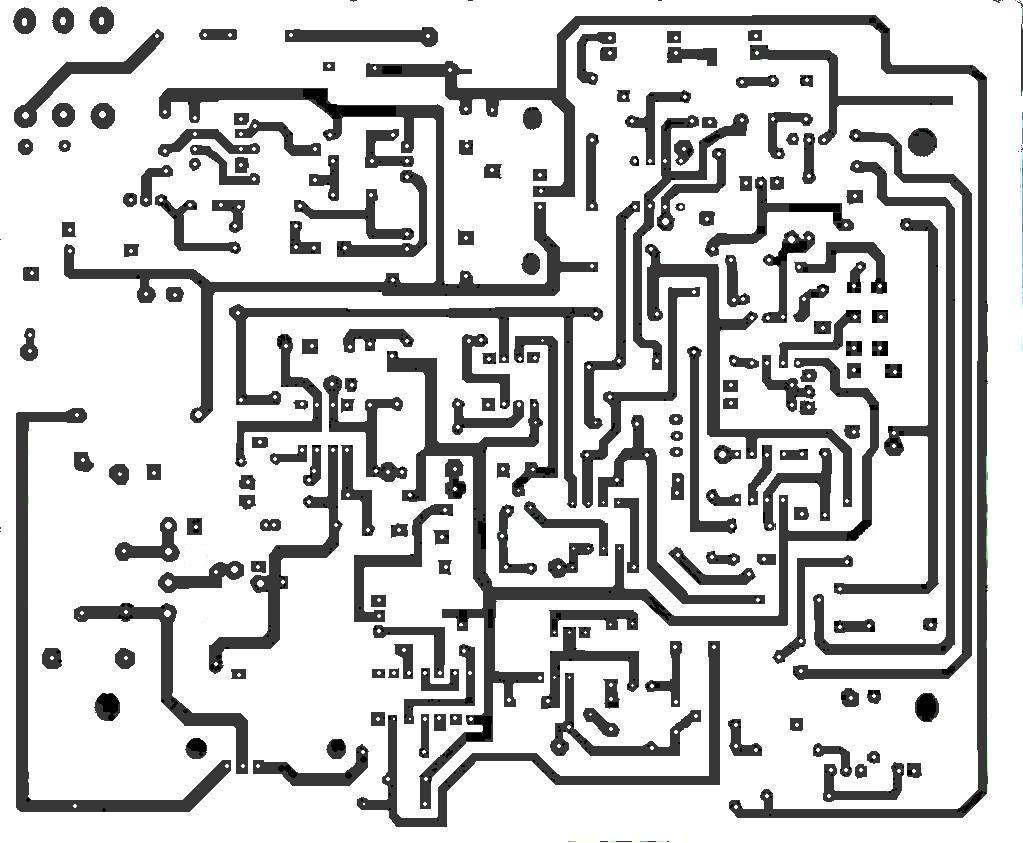

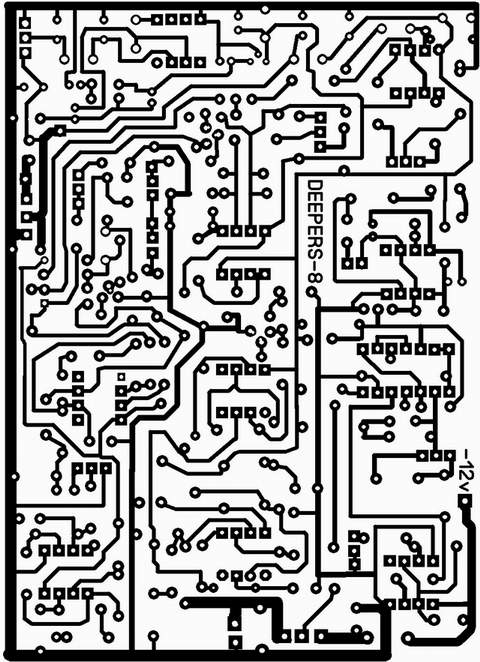

All my stuff on the Deepers 8

[kt315]

need a size and pins step of this tipo fuse holder https://www.ebay.com/itm/2Pcs-Panel-...4AAOSw1iNa8hAs

also a size of this https://www.ebay.com/itm/10-50PCS-BL...LOLgh7bEv1KzVQ

TIA

[bernte_one]

22,6mm-22,5mm pin to pin, pin thickness 1,1mm

[kt315]

thank you Bernd. i desolder those two tipo from boards to measure the size for p-cad.
thinking to do tree pins on side the fuse holder placement that will fit all tipo...

http://ipic.su/img/img7/fs/CIMG6299.1528458740.jpg

[nelson]

I can post Deepers x5 scheme but I am not responsible if somebody use this for business, because for me is only for personal use and repair.

Hello MFC.
Can you share deepers X5 to [email protected] ?
in advance many thanks
Nelson
Santiago Chile.

[RS_Phil]

To all friends . I want file of deeper x8 that works good .Help deeper x8

Do you have some video of Deeper 8 my friend TIM?

[Tim]

Sorry no. This is all stuff I collected here by many hours of perusing and searching. I have placed all the relevant info I have here in the post above.

[soylu]

hello MFC The wiring diagrams, values and other are correct too, a small detail in a resistor or diode backward you can correct. (tell where to fix)

[sbalio1]

Hi to all if ennyone have a file of deeper x5 thanks to posted in forum

[kt315]

Hi to all if ennyone have a file of deeper x5 thanks to posted in forum

hi

[LDTVN]

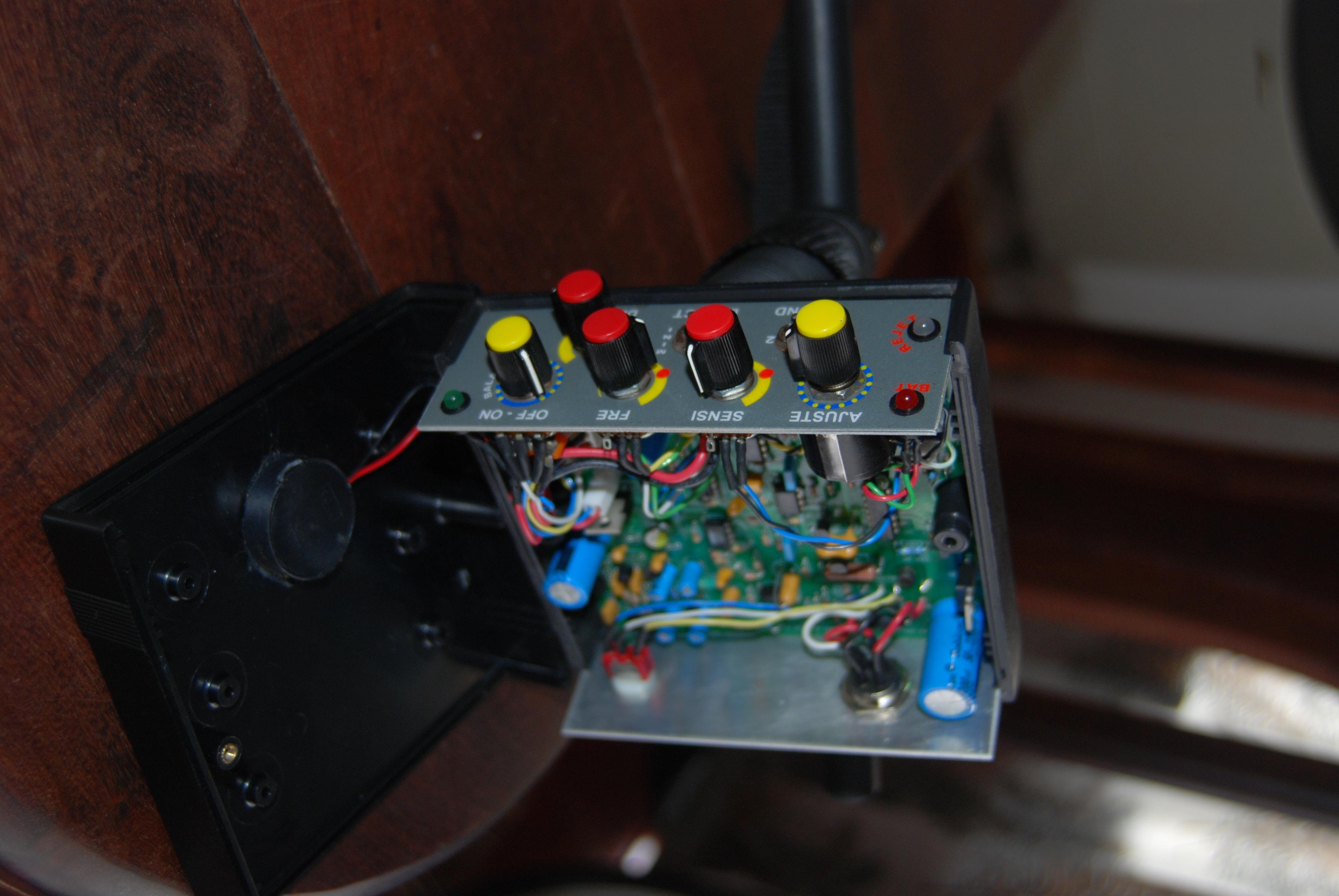

Hardly It's a photo of Deepersx5. No frequency control knob!

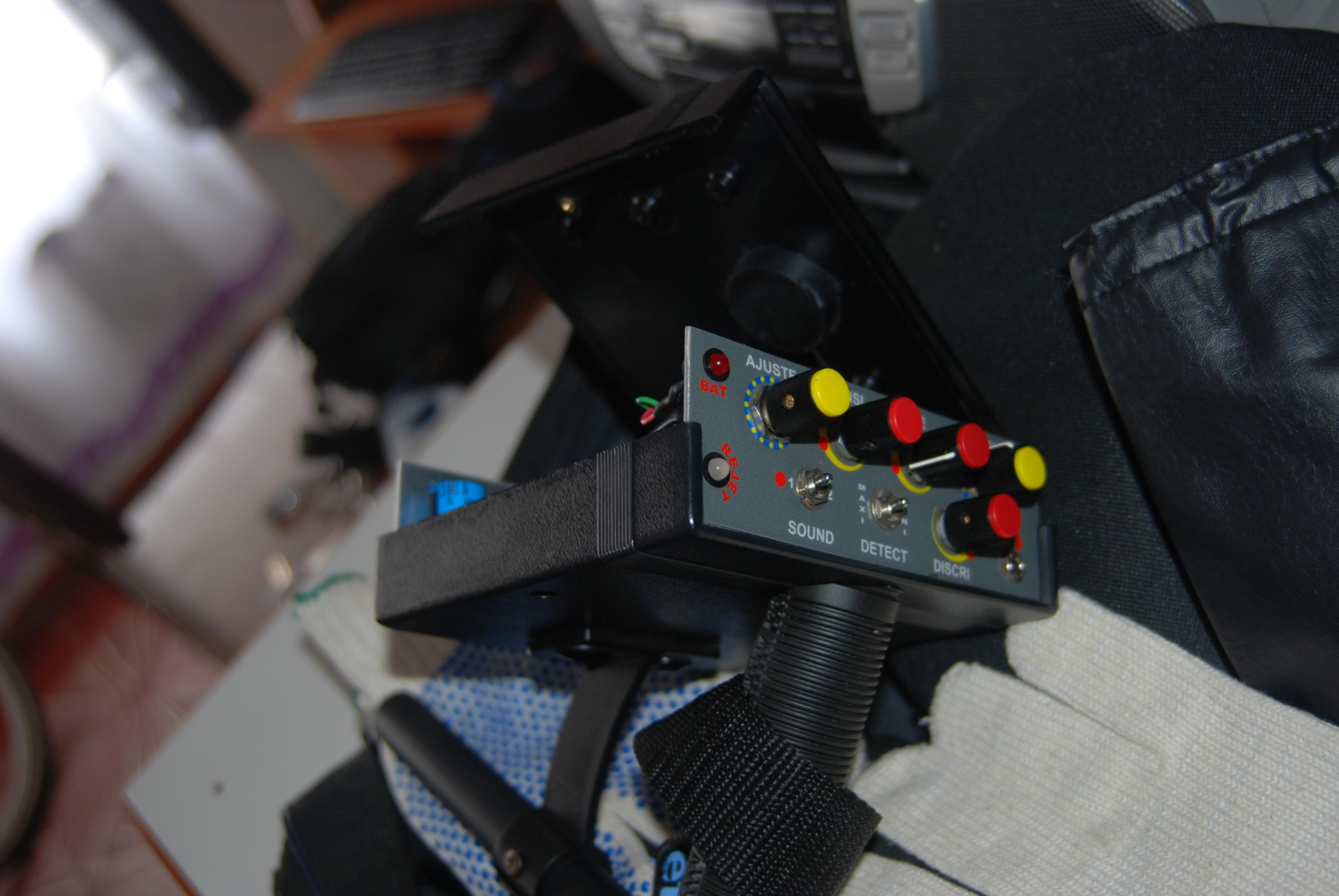

Here is the photo of the front panel Deepers x5

[soylu]

hello MFC I sent you an email

[MFC]

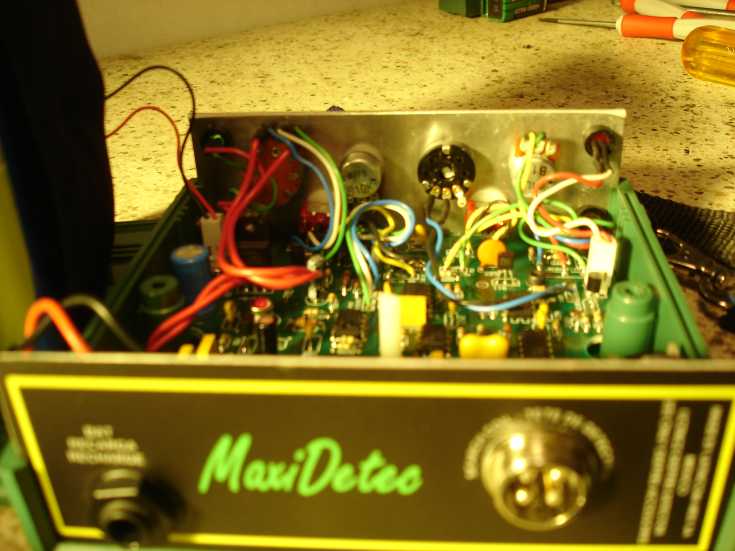

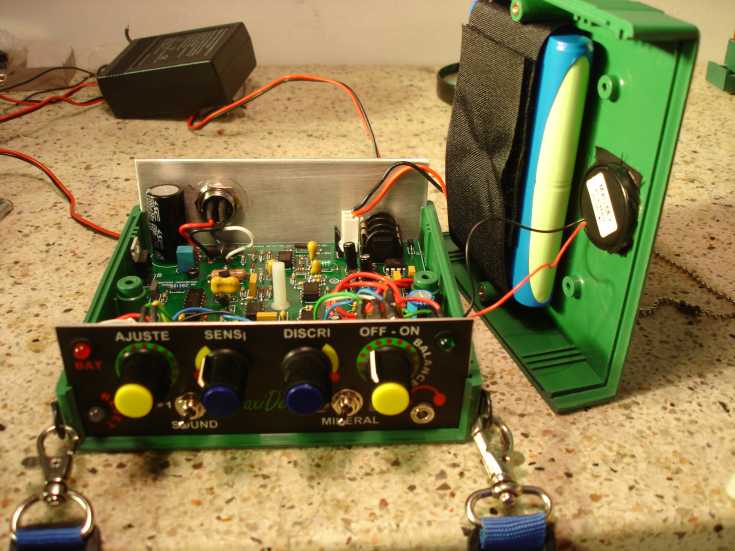

This is Deepers Maxi Detect, the pictures are very poor for reversing.
You need both sides with clear details.

I thing is almost the same X5 with a very small changes.

[MFC]

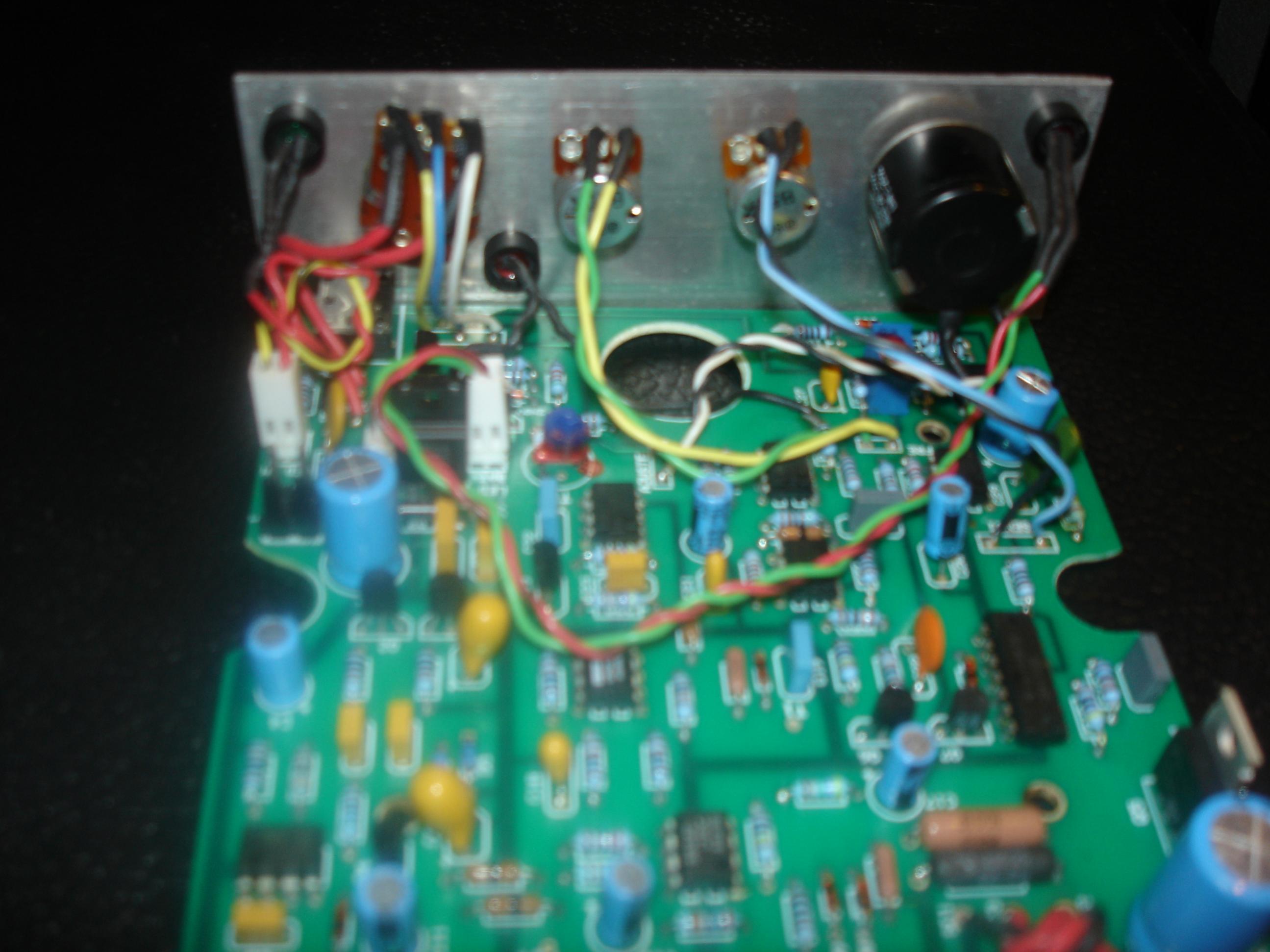

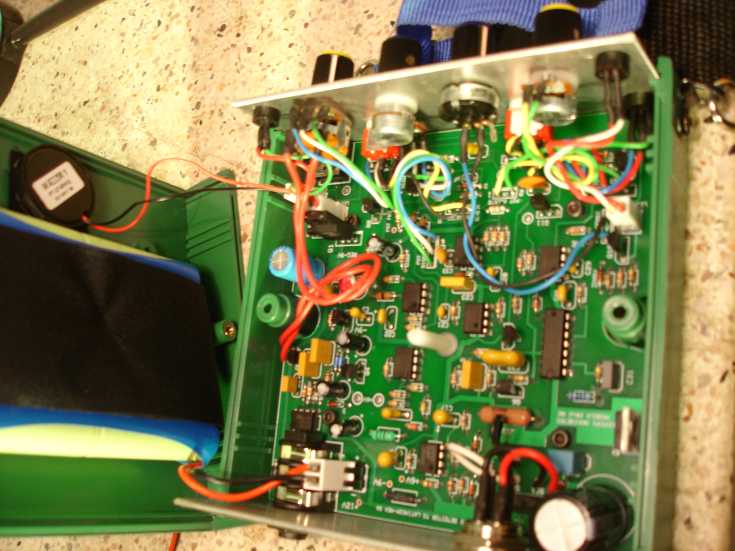

Please the pictures need to be both sides of the board and very detailed, if not is not usefull.

I will post the X5 full schematics soon.
