Deepers Detector

[kt315]

This is Deepers Maxi Detect, the pictures are very poor for reversing.
You need both sides with clear details.

I thing is almost the same X5 with a very small changes.

i got such pics on my email. yes, people shared pics but sometimes they are idiotics crazy. there will not another pics because people do not want to learn my instruction.
http://www.geotech1.com/forums/showt...here-share-out

you have to do only you keep in your hands and do not cherish illusion in hope kt315 will give you clear pics.
i am not so rich man like an american men to buy 5000usd prised detectors and to desolder it on details.
i got only 90euro in a month on my job. live on this money man and i will see on you.

[soylu]

you are very right KT315

[soylu]

Would you please share with us now (MFC)

[sbalio1]

Thanks ( MFC) to put deeper x5 its nice detector .

[MFC]

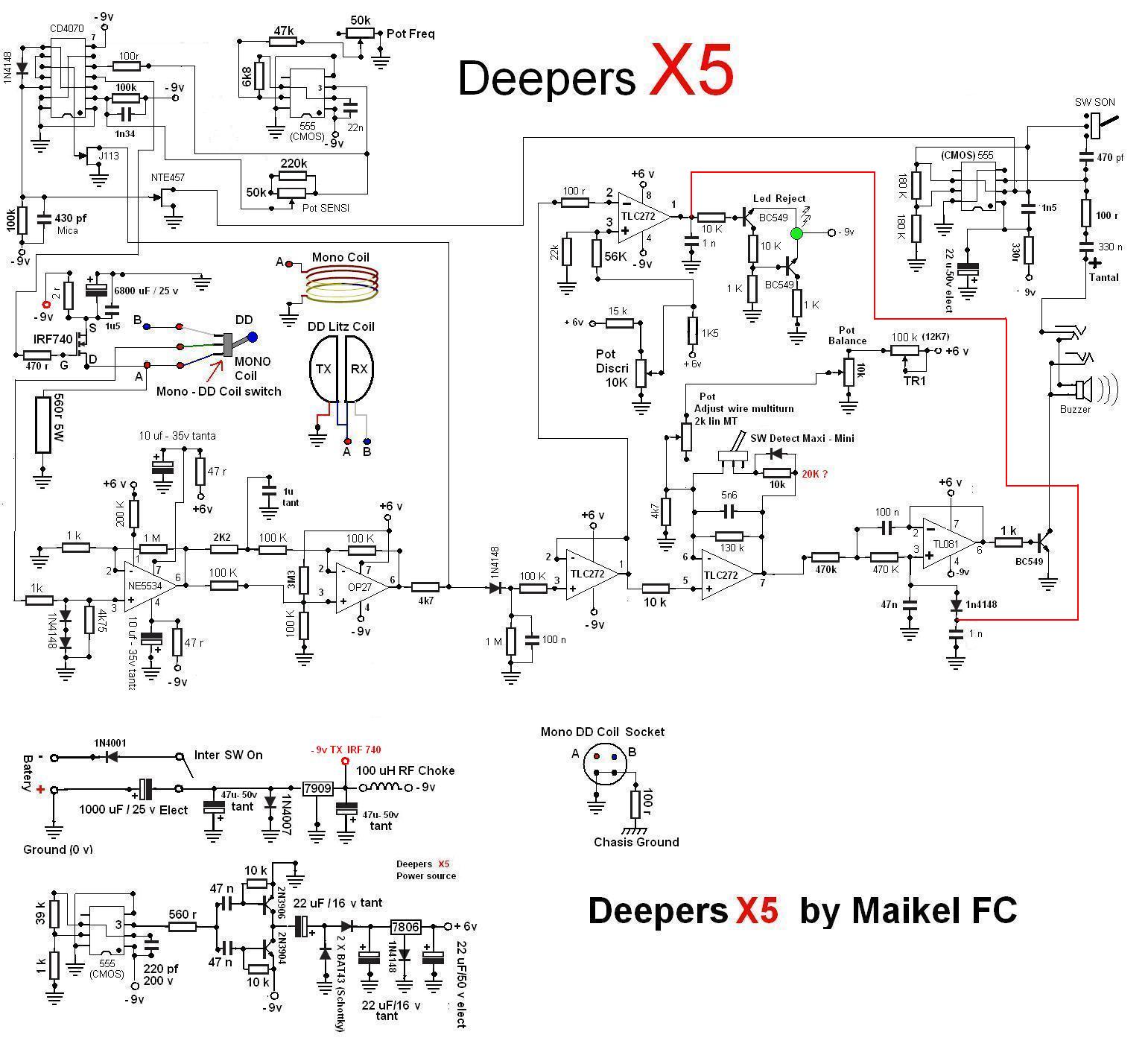

Here is a version of Deepers X5 schematics that I promess, I am working on it yet. This is a preliminar version but is full functional.

please I need your coments is something wrong.

[soylu]

ok I will work on MFC

[soylu]

thank you

[soylu]

we develop together

[soylu]

I need full coil values

[soylu]

all deepers interested
Are there deepers x5 original photos
If you have one x5, send us detailed photos

[LDTVN]

Thank you very much, MFC.
I can draw this scheme in Altium Designer if you want. But for this I need a photos this board in good quality. Can you send me to mail?

To souly.
Coil is compatible with Deepers 10DD

[LDTVN]

MFC, I do not understand one moment in the scheme

Maybe -9V should be connected to E BC549?

[dbanner]

Maybe it is two colors, with ground at higher potential , one colour, when trani is on, other color

[LDTVN]

I read the manual, really there two colors led. Rather it is with a common cathode. However, he is very strange and incomprehensible drawing. Where is red and where is green?

[dbanner]

Cathode to -9v?
Not sure if two colors LED?
Where is deepers manual?
One common cathode, two anodes. Or one common anode and two cathode. Common cathode is more usual.
Look at schematic above, green color is always lights, but iron will change to red.
