Deepers Detector

[kt315]

Photos of Deepers 7 Board

[ATTACH]40572[/ATTACH]
[ATTACH]40573[/ATTACH]

read it http://www.geotech1.com/forums/showt...here-share-out

[MFC]

He bernte_one

In others Post KT315 Put some photos of deepers 10DD but the part list he puts is incomplette.
Ex all potentiometter values dont exist.

Pot Sensi
pot Adjust
Pot Balance
Pot Discri
TR6

Caps values incomplette

With all values completed I can made The PBC for the Deepers 10DD and complette the values for Definitive schematics.
I am interested and I can help you. But we need to get these imcomplette values.

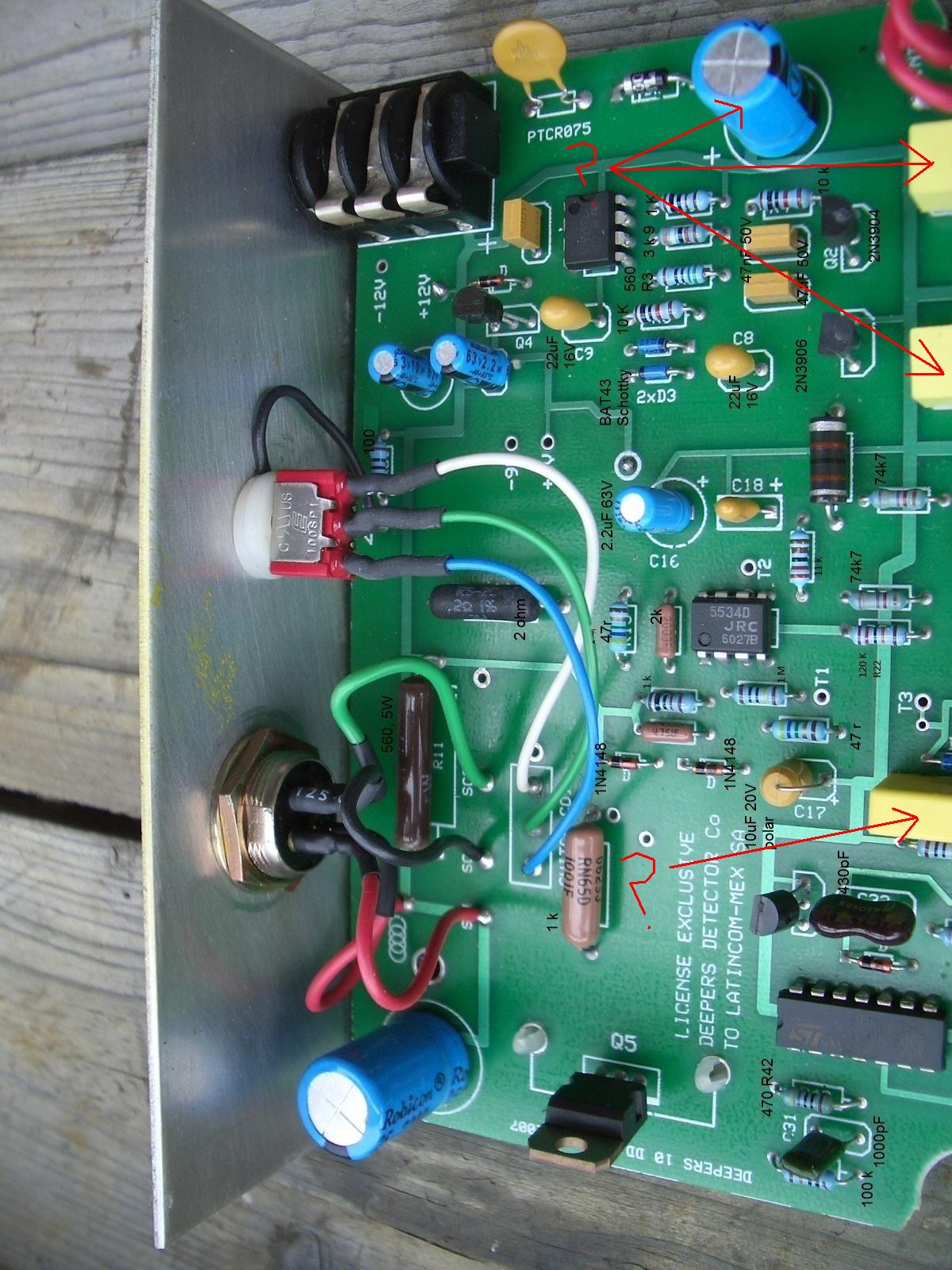

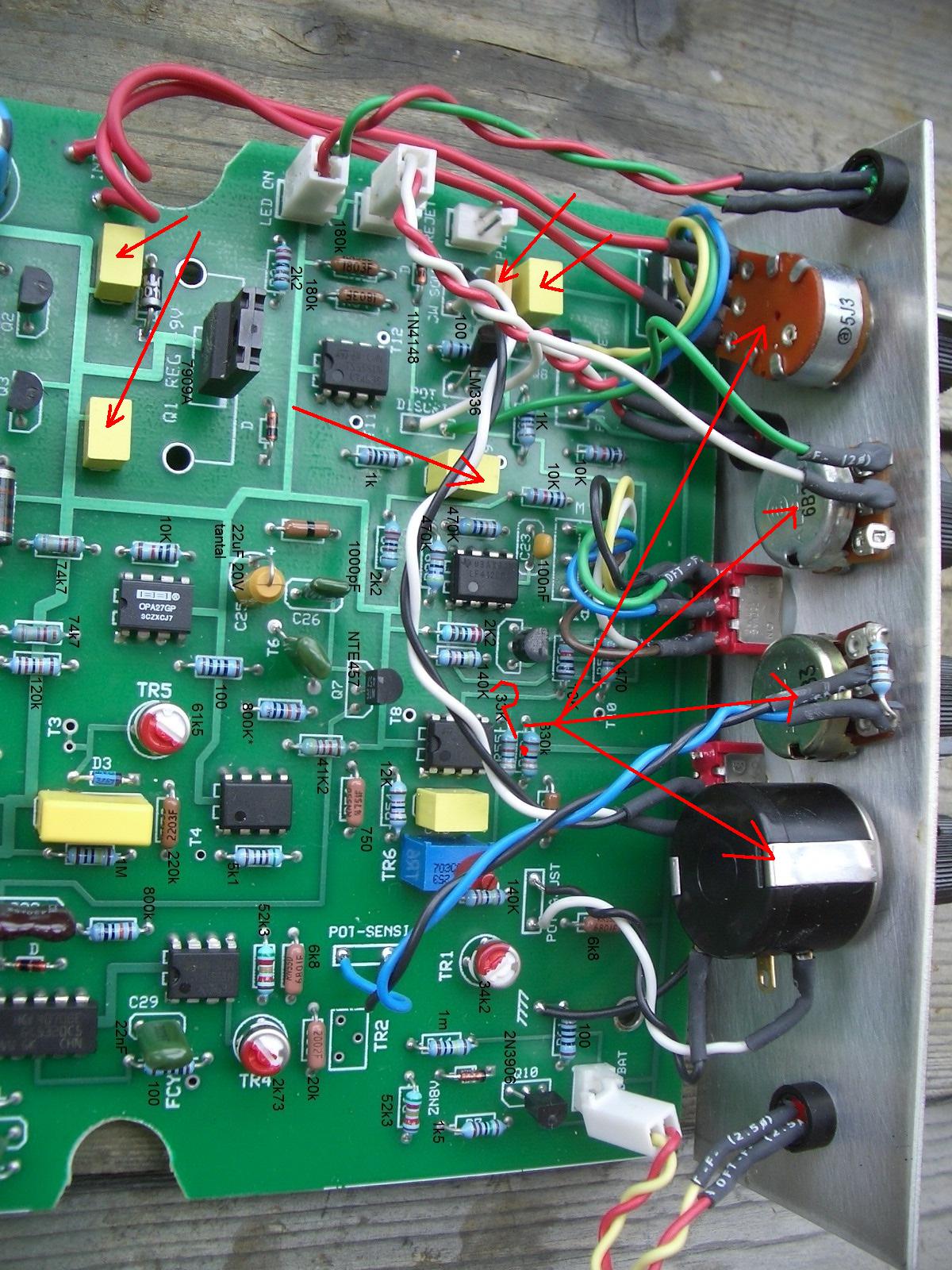

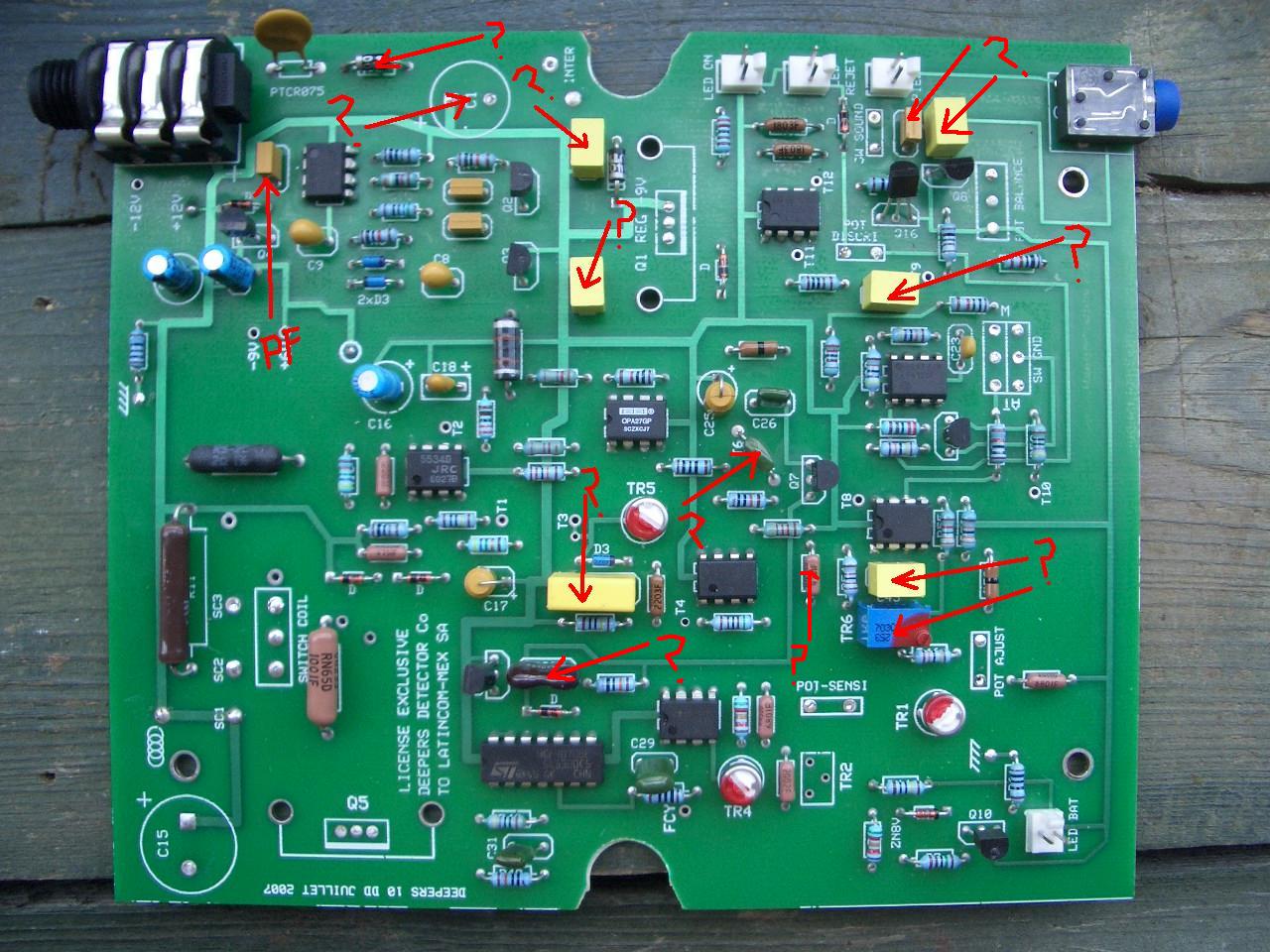

See the pictures below for details we need.

[MFC]

Hi all

The Pictures of Deepers 7 posted by me not was take for me, I friend sent to me, Soon as possible I will take good quelity Deepers7 inside box pictures for you with importants details. Now I working with 4 Deepers Schematis Deepers 7,10DD, 2x1 and X5 too, In the future I will post more information about old models Deepers 10DD and deepers 7, The power source for Deepers 8 At is the same for Deepers 7 that I will post soon.

I dont why the person that post the sch of Deep 8AT dont post the power source too. Well no problem Deepers 7 power source work exactly as Deep 8At

Coming more soon.

Good luck

[kt315]

i am NOT orbit
i give full info. all had been uploaded but probably you are beginner for forum and do not see the info.
http://depositfiles.com/files/me3gubuk7

[MFC]

No, I refer to the Info posted in the Thread started by jantnadal, The Deepers 10 pictures dont have marked the values on the components, a cap value cant be seen in a photo because their labels some times are hidden for the picture angle. The same with potentiometers etc. The part list is incomplette too, dont have all componets values, without them is not possible to draw a schematic especially if you dont have the detector in your hands. Other thing is some members dont have access to these info at http://depositfiles.com/files/me3gubuk7 because cant access there. I put info only in Geotech forum and for all, avoiding all permission problems that other websites have.


Now I working on most modern Deepers Schematic of like 2x1 and X5 full. But may be I cant post here because these detector have copyright and they are active now in the market. But these all deepers are the same thing. All model I had tested do exactly the same, by the way always the lower frequencies like 400 HZ and Less are Better. Haigher is problematic with ground effect, and all deepers have these ranges from 7 to X5 models. I only need the Full part list of Deep10DD to complete the schematics posted in this thread. Full part list without errors.

take care

MaikelFC

[kt315]

i do not want put all files again just i uploaded them and do not see deep sence do my job again. all files are accessable on the link i gave. part list, my sketch with values, pics
of high resolution of board and pots with values, etc.

[MFC]

Sorry but this link is restricted and is not a Free web site because you need an acount for download any content and you must pay for it. All my info is free and visible for all.

If you can send this compressed file Deepers.rar (53.1 MB) from http://depositfiles.com/files/me3gubuk7 to my email ([email protected]) I will finish the schematic and a PBC for Deepers 10DD and post it here in geotech.

Take care

MaikelFC

[Orbit]

I'm not a KT 315 I'm not selling fake Scheme !

[kt315]

I'm not a KT 315 I'm not selling fake Scheme !

concretely please. what my schematic is fake and where i sell them? links?

[6666]

http://depositfiles.com/files/me3gubuk7


To get the file off the website is free,
it just takes time and you need to follow the slow REGULAR mode process which goes something like this.
click the link, wait for page to load
click REGULAR DOWNLOAD
the page reloads
you then need to enter a password just read the instructions in the box to get the password, sometimes its just a question sometimes you need to watch a video
click continue or whatever it says
then the page reloads
then click REGULAR download file !
then click save file in browser
then wait while the file downloads, can take up to 25 minutes

[MFC]

No friend I cant see that web site. Can you send me this compressed to [email protected]?

The Deepers 7 is another thing, I have this here physically and I am working full on it for sharing too. The X5 and 2x1 for now I cant post them. My only interest is sharing Freelly all that PI machines.

Maikel

[MFC]

No I am not sure, all deepers model put the OP27. For replace you need exact pin-out coincidence.

[Orbit]

KT315 I'm joking with you !I wish you all the best !

[6666]

http://depositfiles.com/files/me3gubuk7


I have just scanned this file, AVG says it has a virus.

[liudengyuan]

There is no need to download these garbage things, it will not have some good results, a waste of everyone's energy
