I know there was a Fisher F75 schematic here but now a search does not bring it up. Is there another schematic archive here somewhere. Also I notice the search engine seems awkward and does not bring things up in a relevant order. It is like a lot of unrelated things show first.
Announcement
Collapse
No announcement yet.
Do F75 schematics get removed here
Collapse
X
-
Schematics don't get removed unless they violate a company's copyright. Ferinstance, if an original Fisher schematic was uploaded and Fisher says to remove it, it gets removed. End-user reverse-engineered schematics are not removed, even if a company complains (and that has happened).

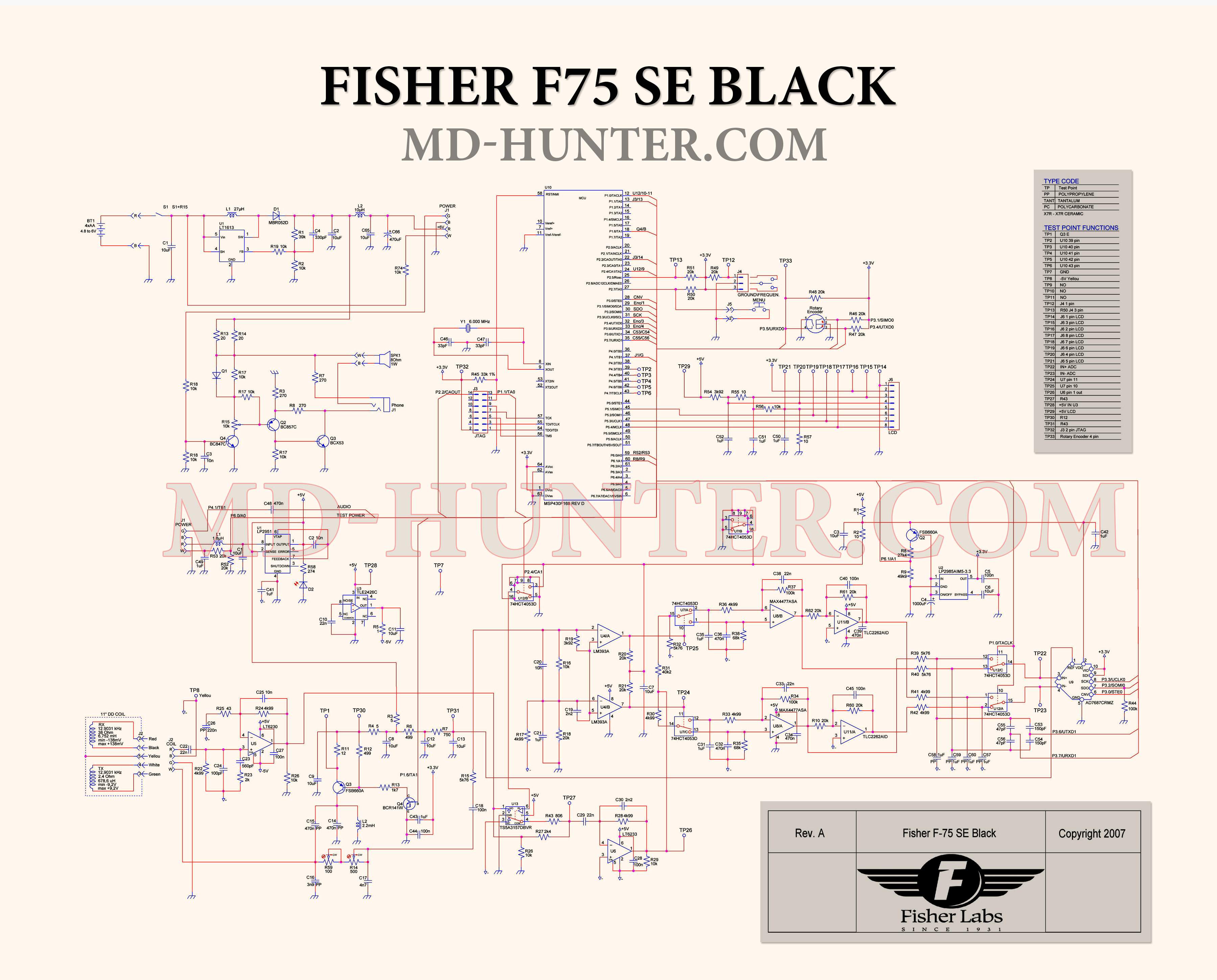

That said, I recall this F75 schematic:
http://mdrussia.ru/uploads/monthly_2...8355d54071.jpg
It's been linked to on Geotech but I don't find it's been uploaded here.
-
goodwill

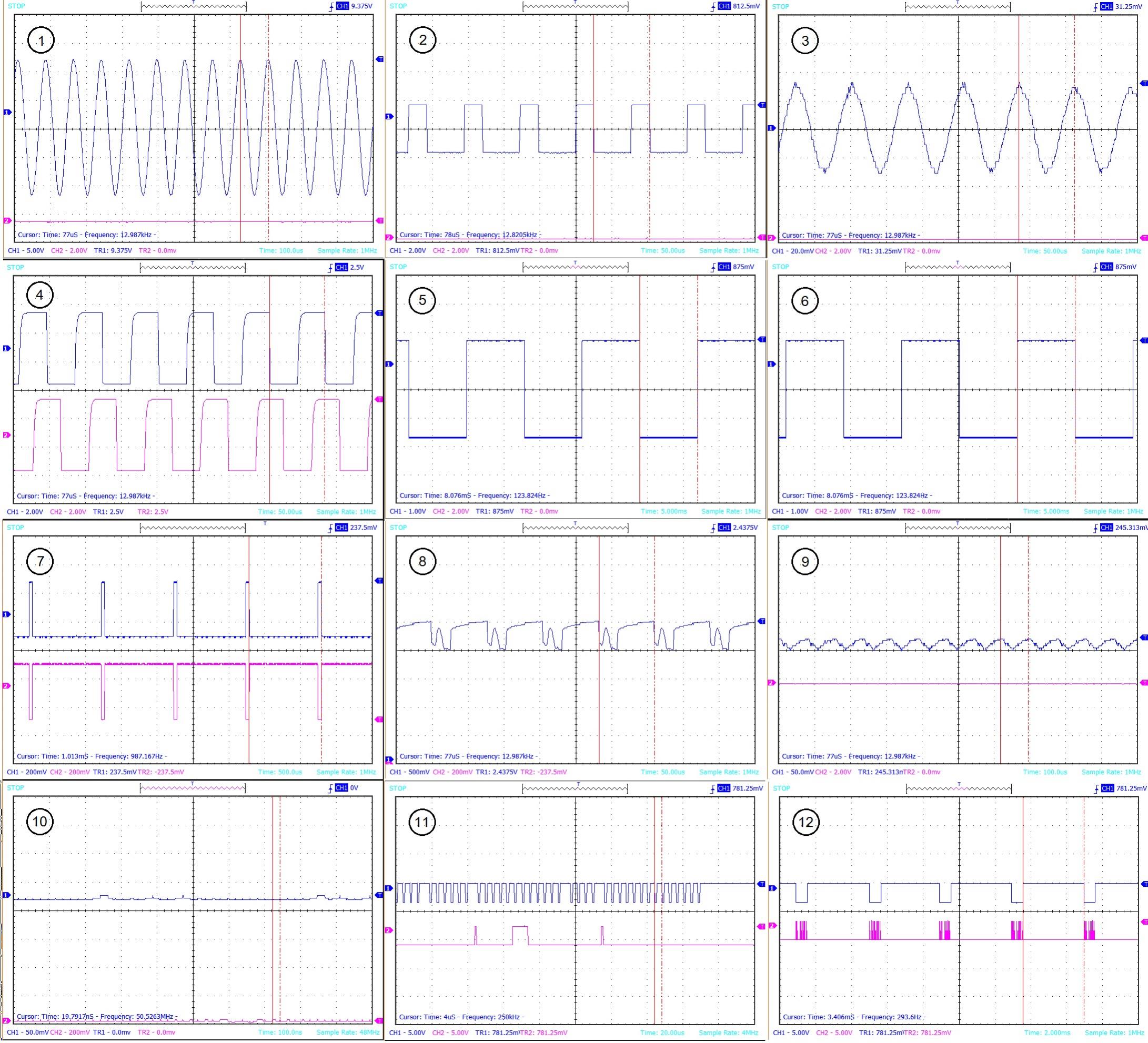

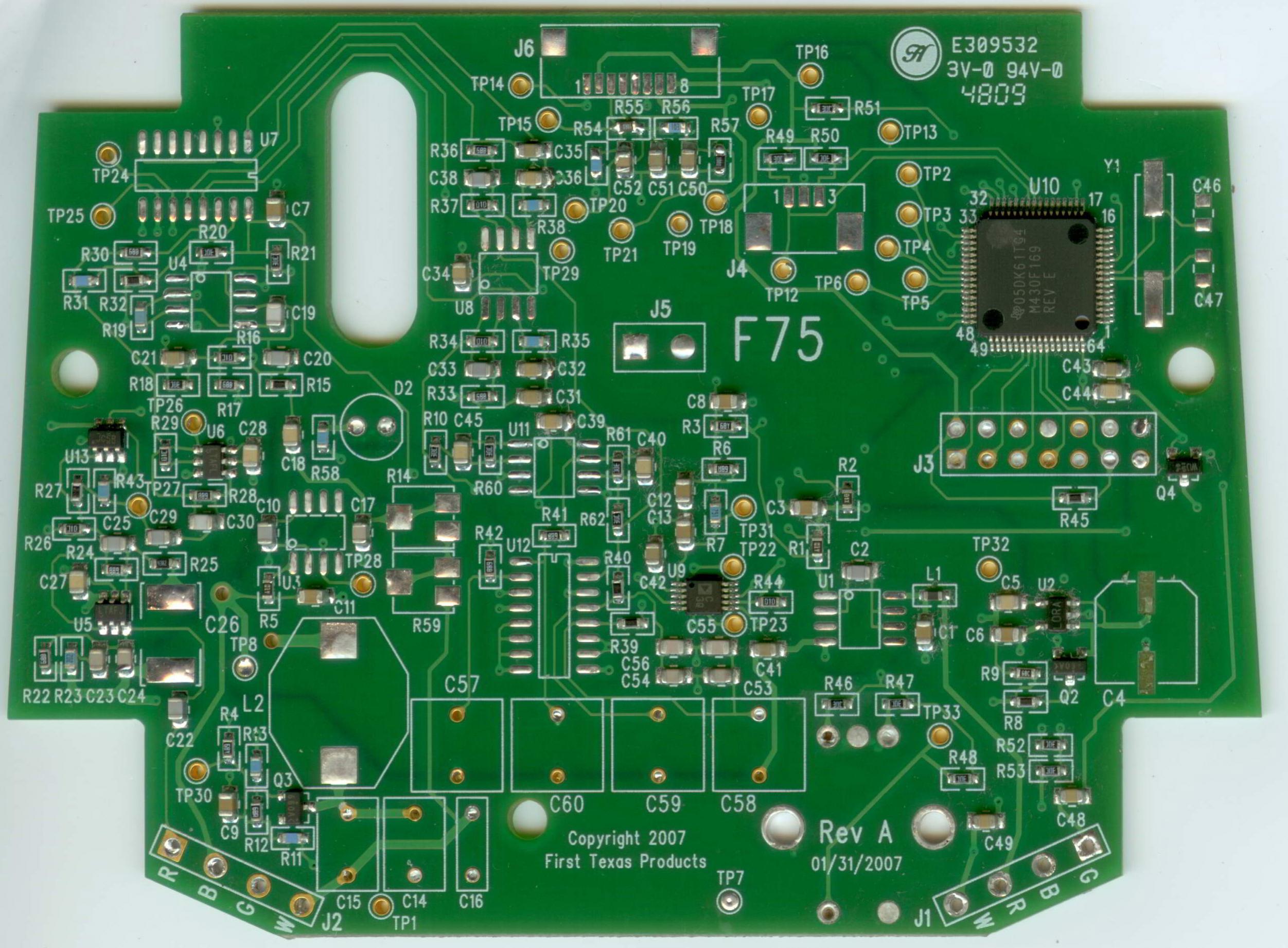

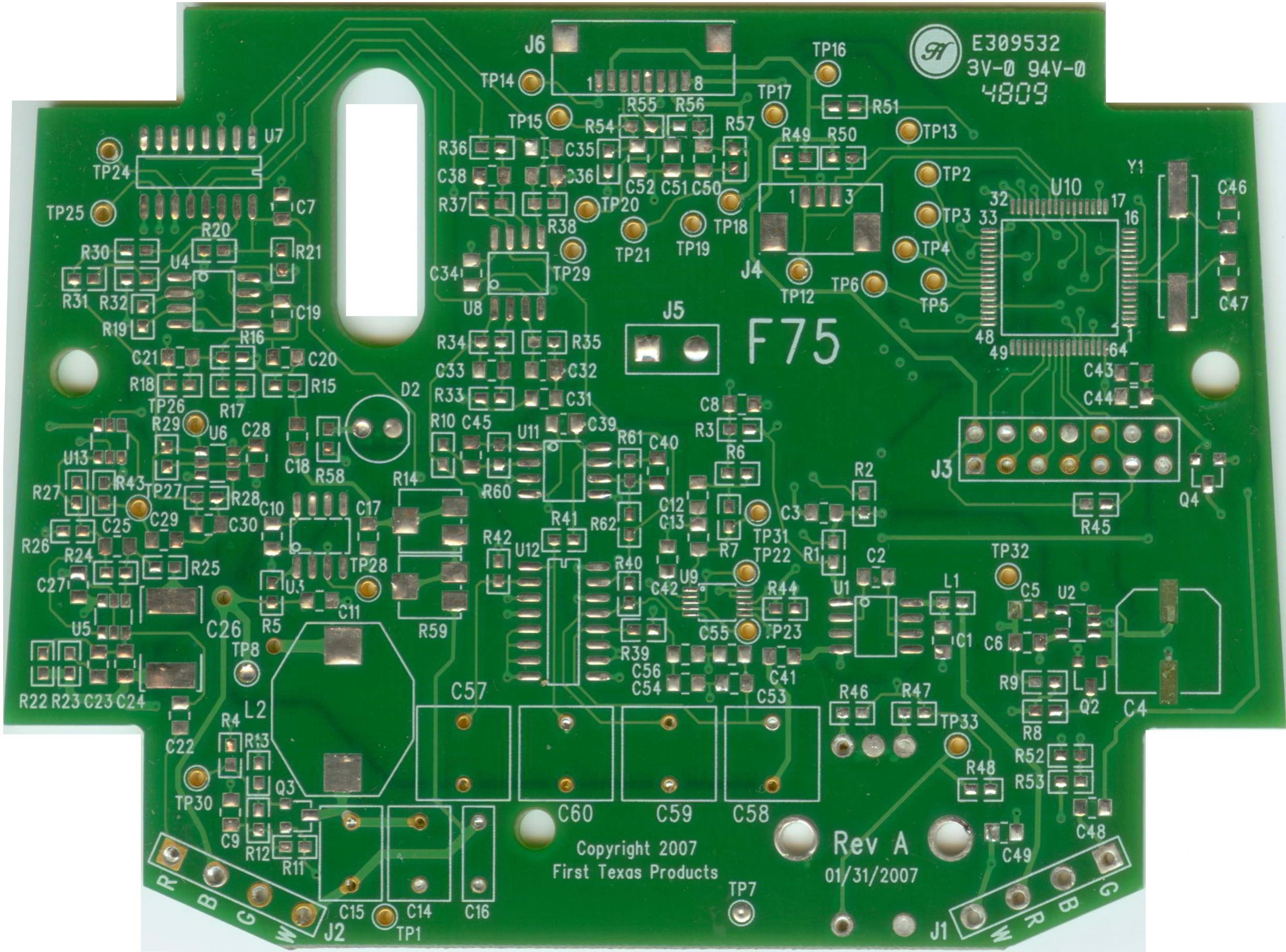

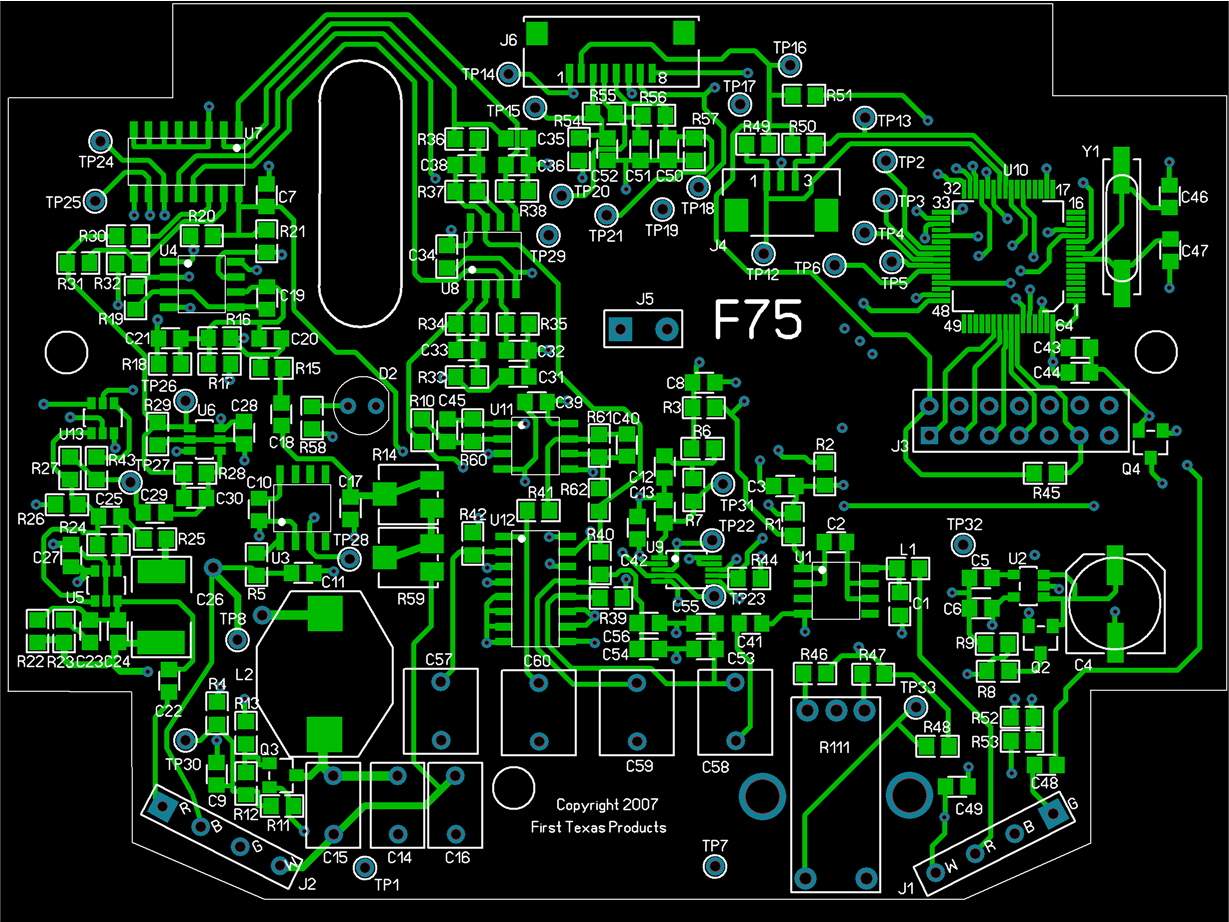

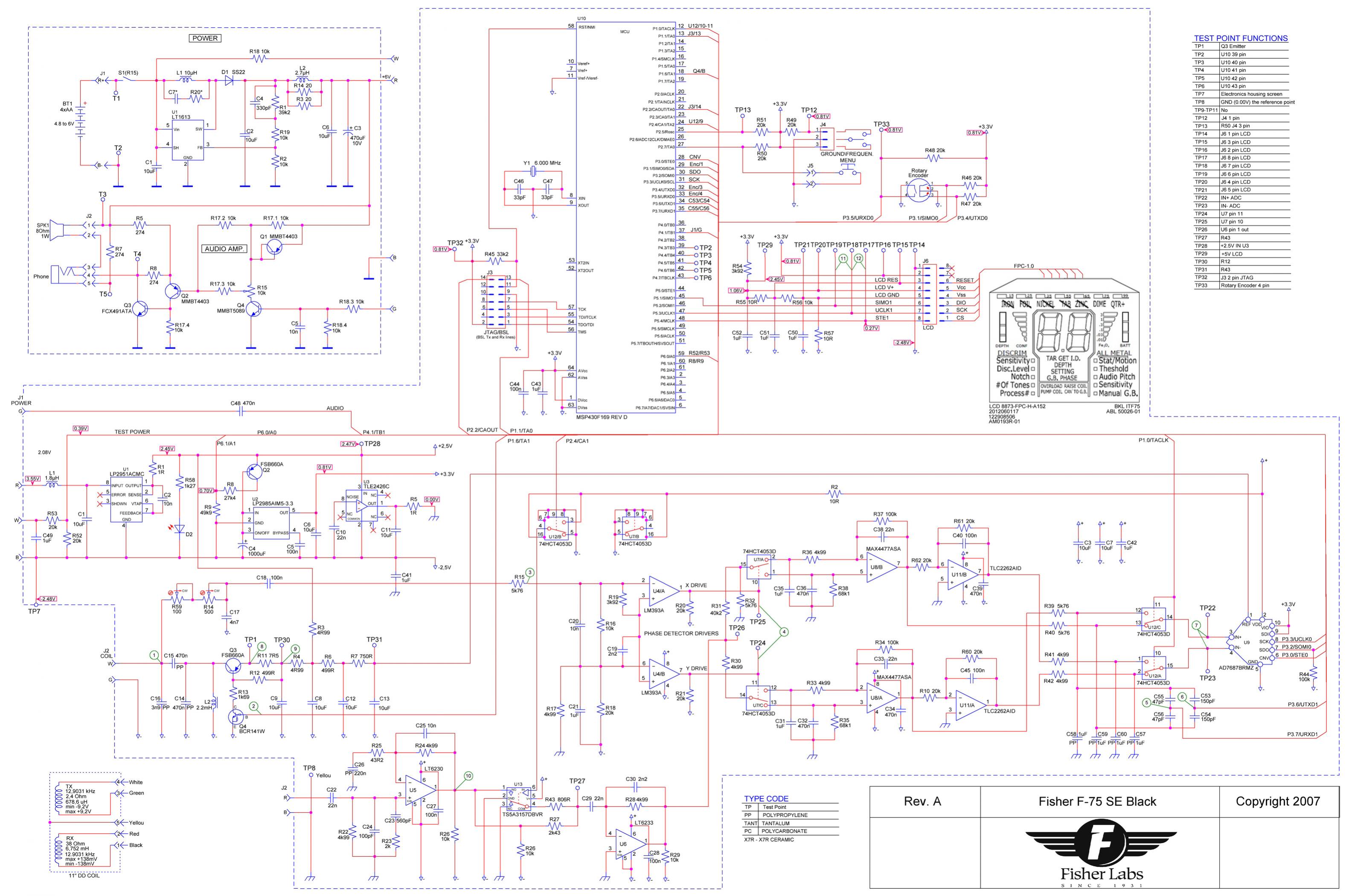

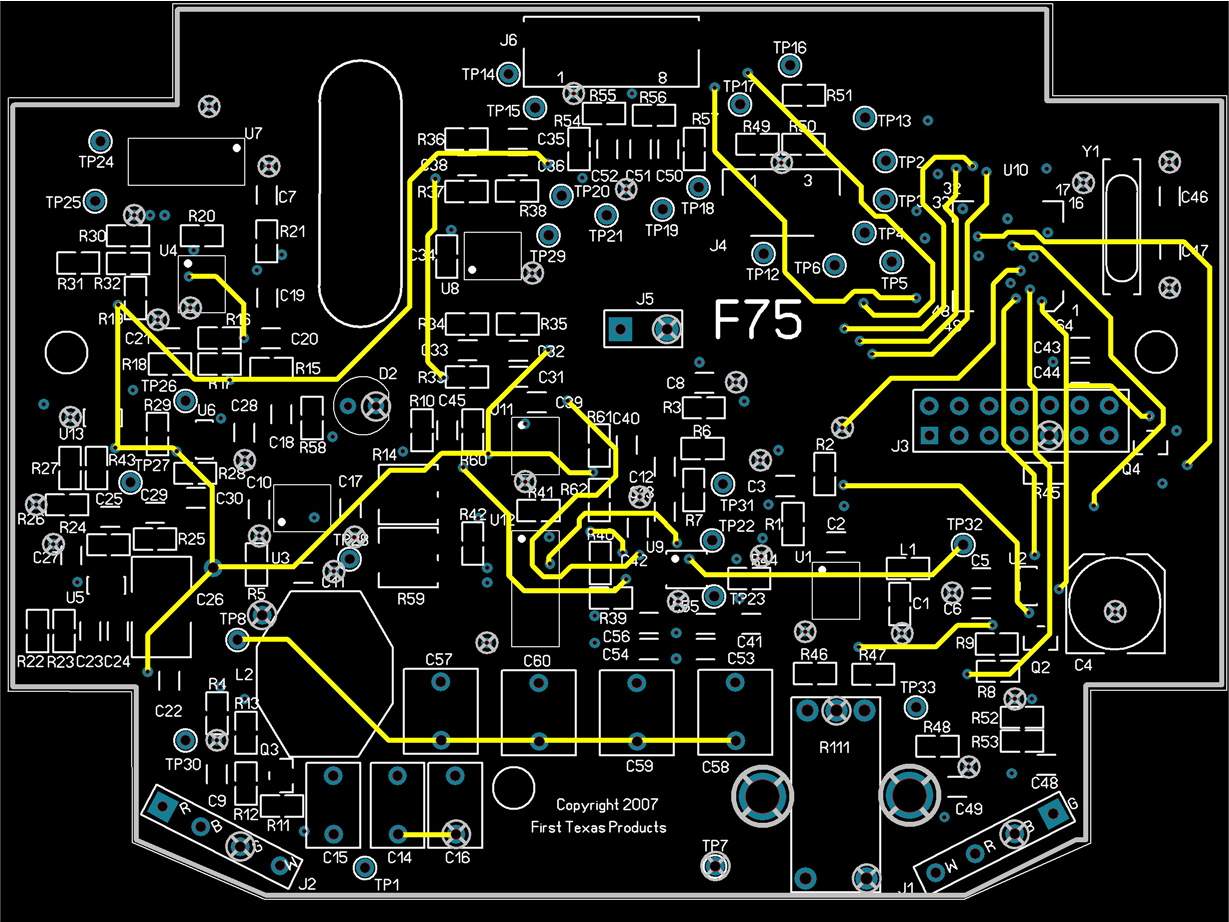

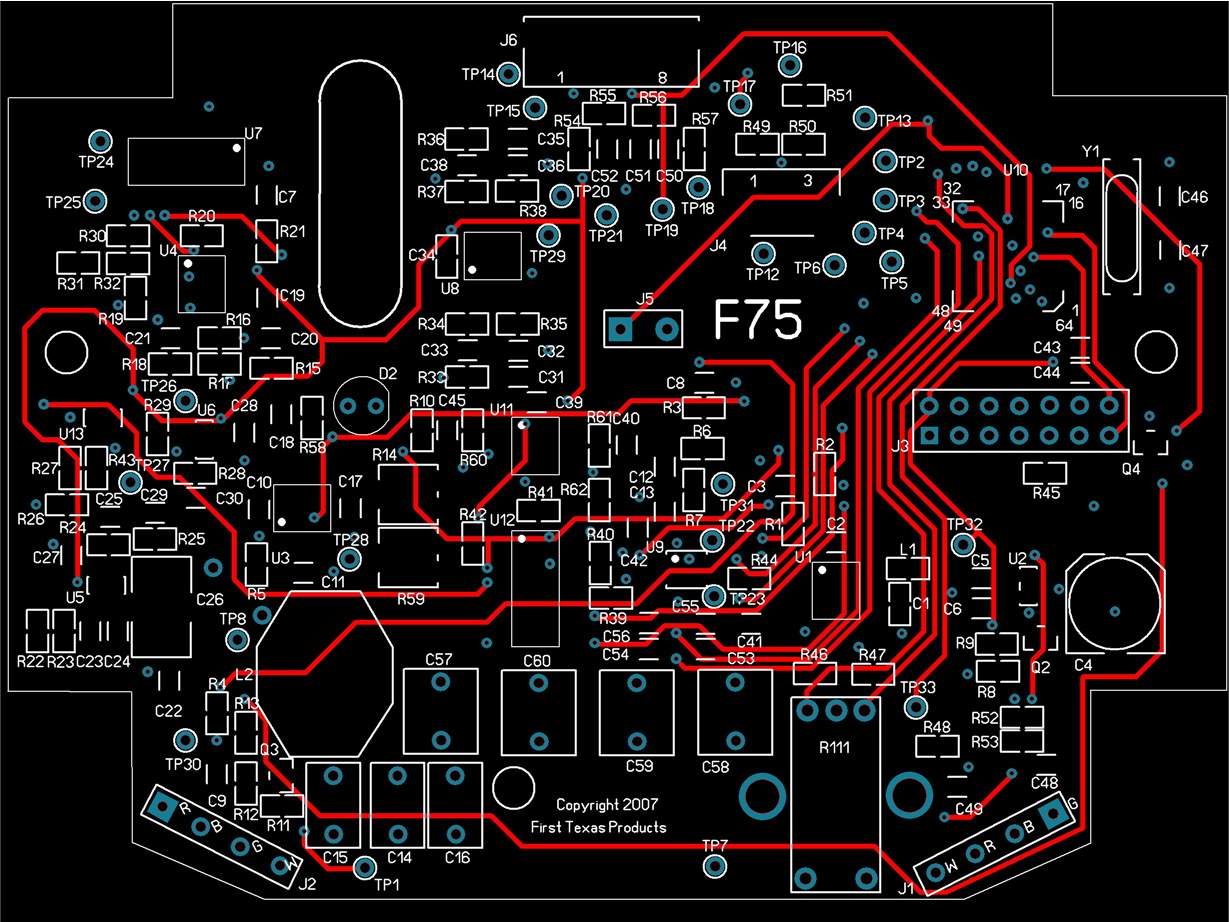

... ....Attached Files- F75_sch.jpg (637.8 KB, 229 views)
- D2.jpg (837.0 KB, 126 views)
- 11232.jpg (500.3 KB, 108 views)
- 2%20cлой%201.jpg (489.2 KB, 97 views)
- 1%20слой.jpg (269.1 KB, 91 views)

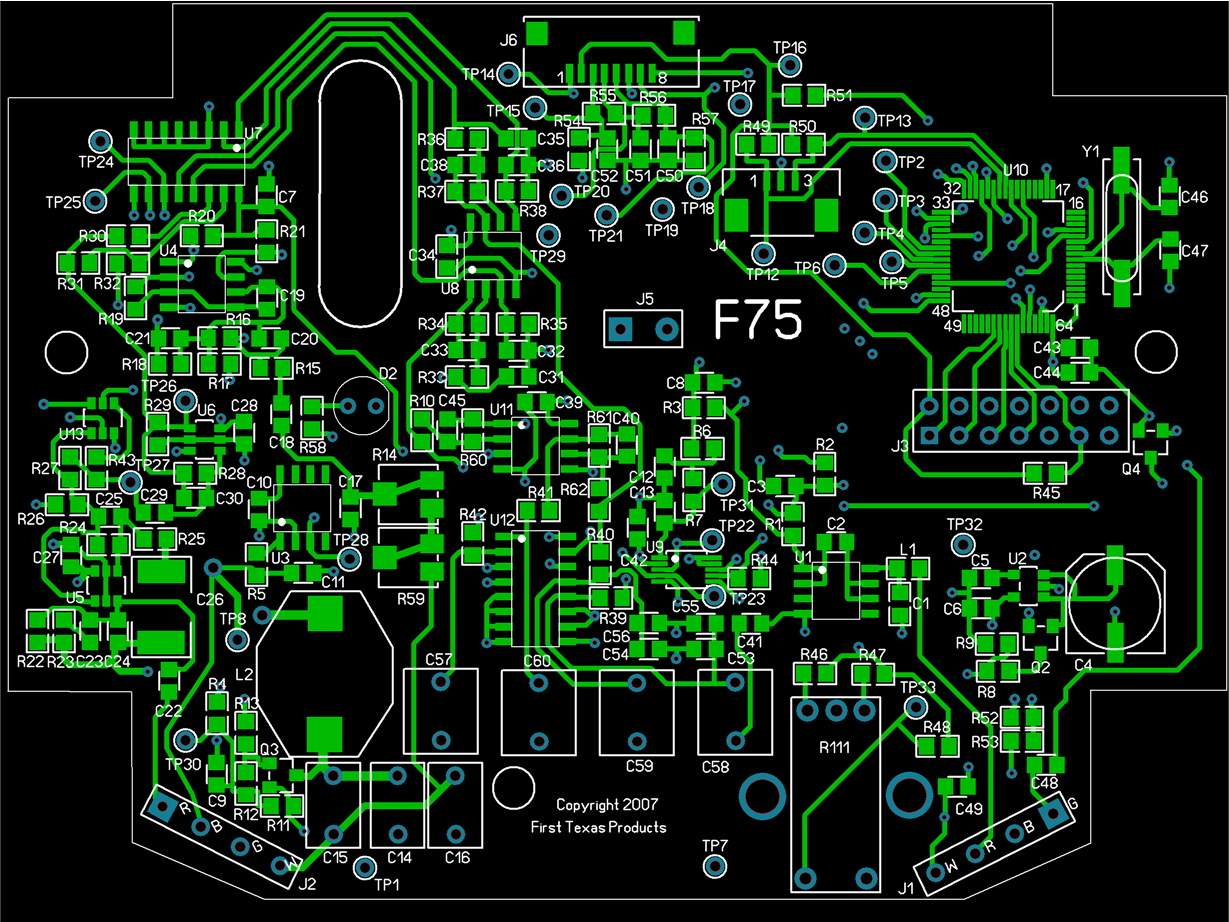

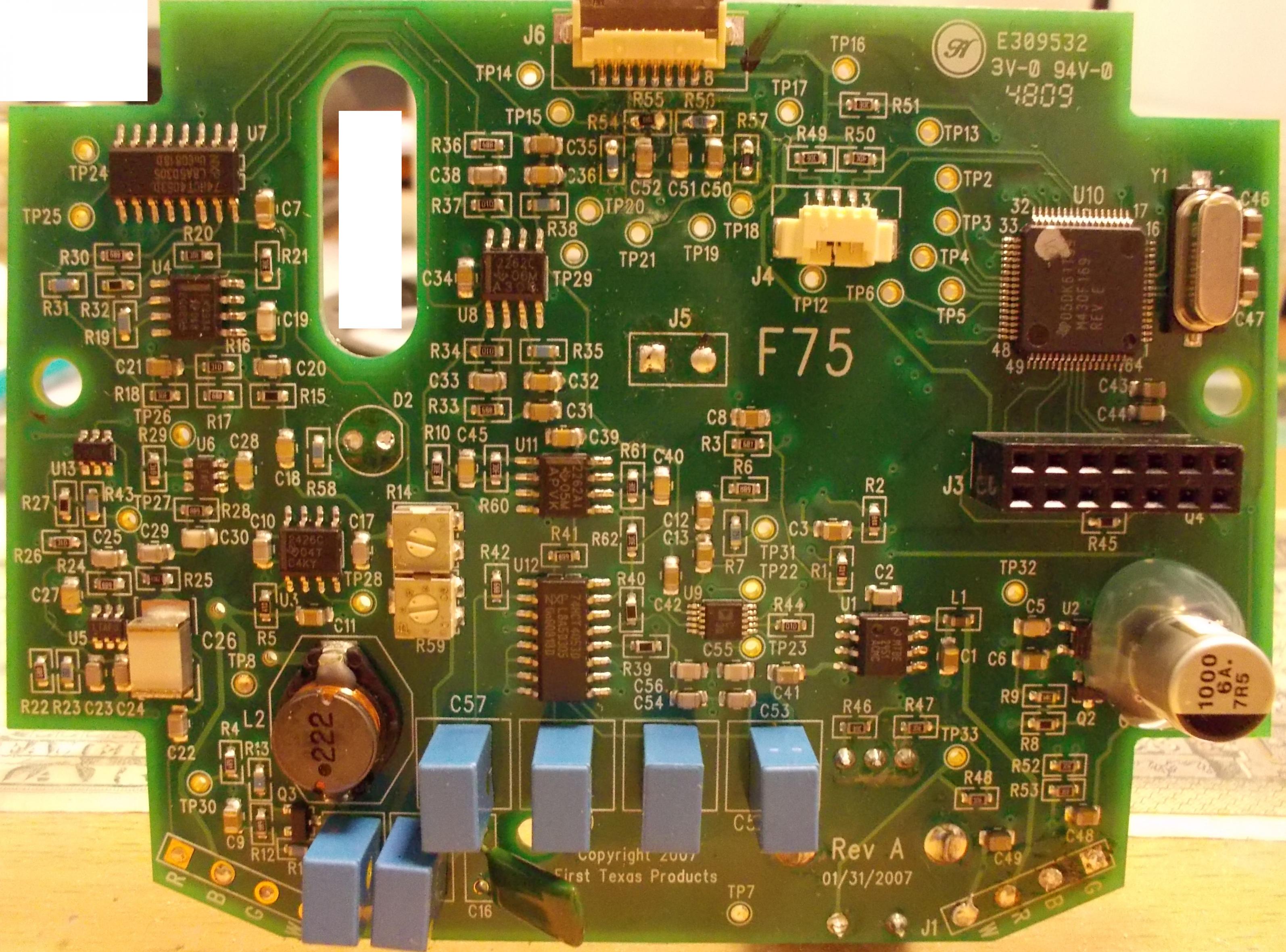

- fisher-f75-circuit-diagram-board-layout-01.jpg (624.3 KB, 129 views)

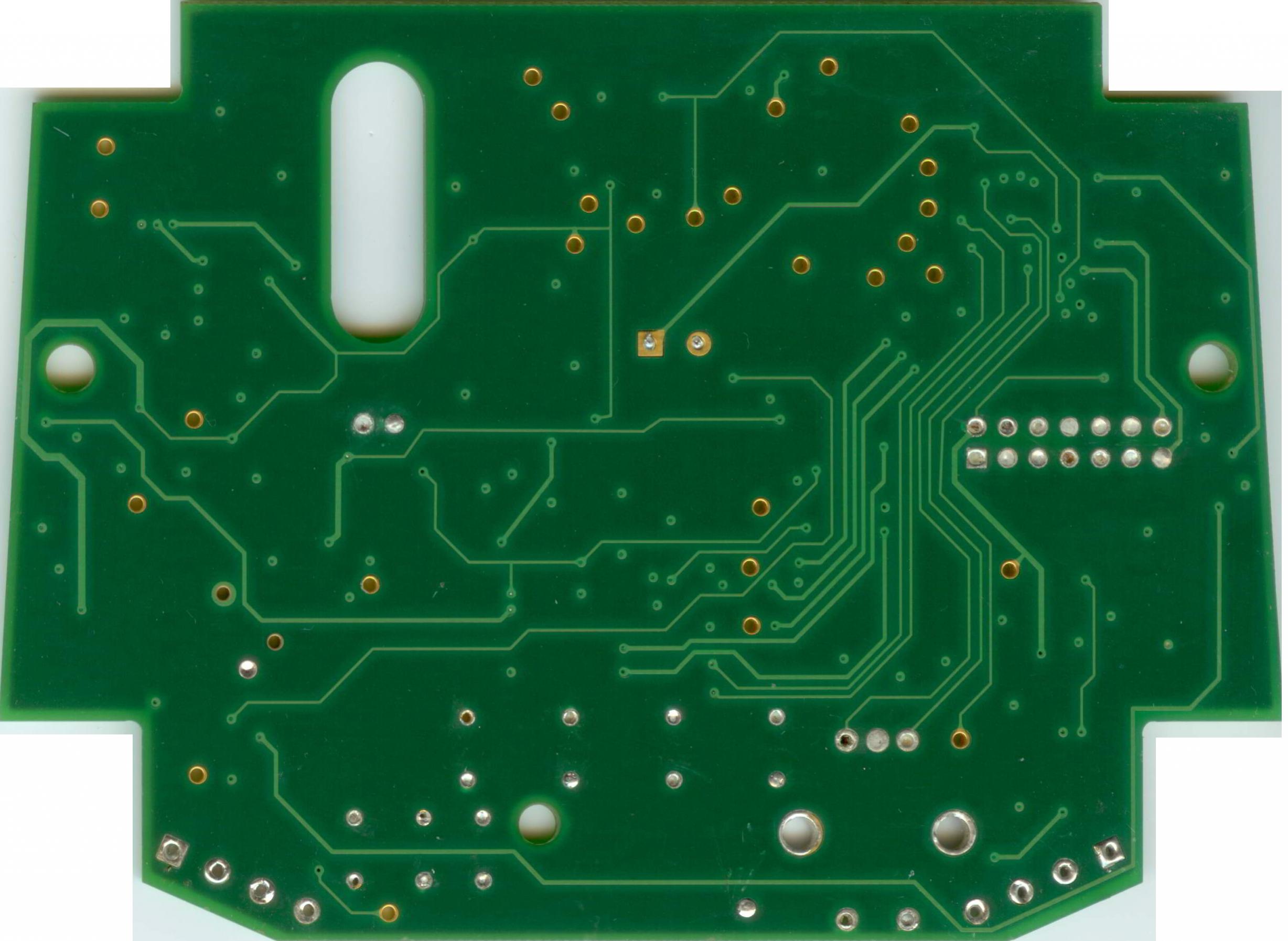

- fisher-f75-circuit-diagram-board-layout-02.jpg (205.6 KB, 117 views)
Comment
-
-
I have these images saved on my computer. I'm pretty sure I got them from the MD-Hunter blog site ( or possibly it's cousin, MD-Arena ) , but they don't seem to be on MD-Hunter anymore, I assumed they had been given some 'legal advice' , and took them down.
