  • PCB_FULL_SMD_TESORO_COMPADRE

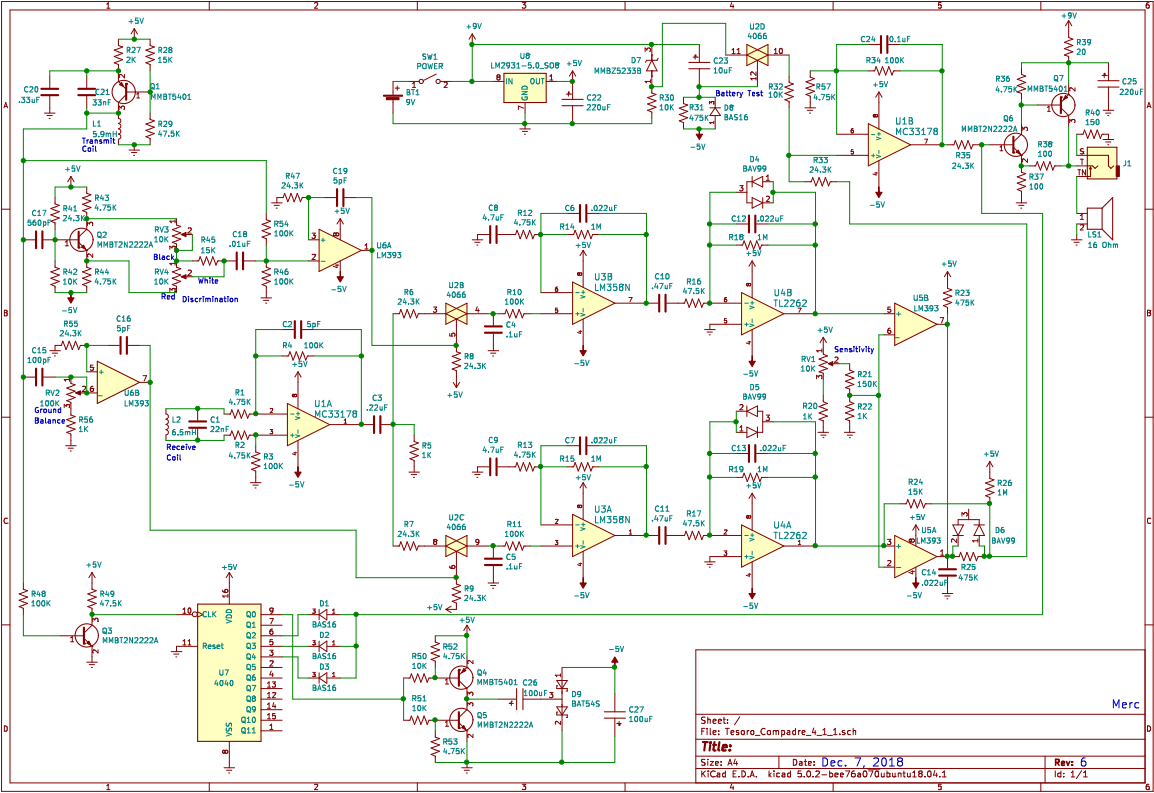

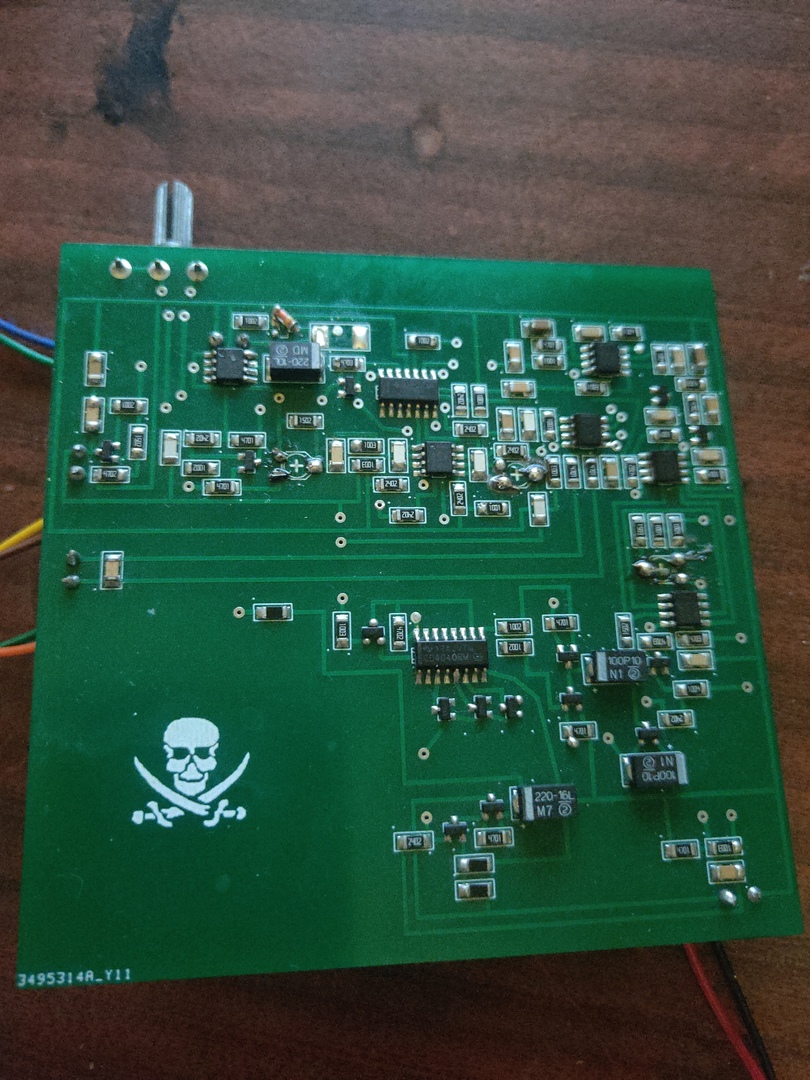

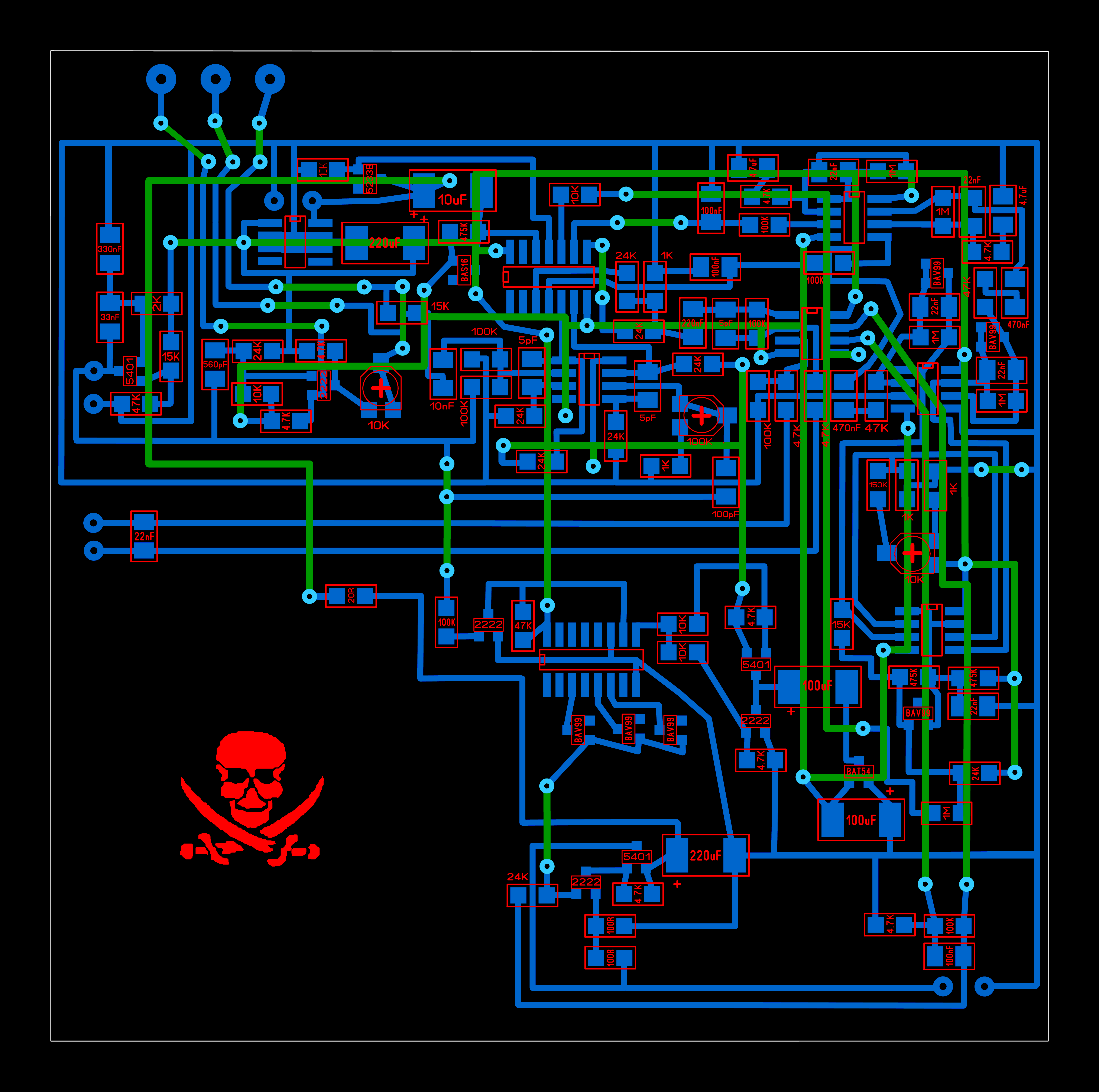

    Hi all. Sharing my final printed circuit for Tesoro Compadre assembly. I assembled it myself and my friend too, this is a completely serviceable circuit! Catches 5 kopecks of the USSR - 20-22 centimeters in the air.
    Click image for larger version

Name:	scheme.png
Views:	1
Size:	208.0 KB
ID:	371940
    Click image for larger version

Name:	printed circuit.gif
Views:	1
Size:	603.7 KB
ID:	371941
    Click image for larger version

Name:	board photo.jpg
Views:	1
Size:	403.9 KB
ID:	371942

  • #2
    Thank you Hinkri, Regards, Marty.

    Comment


    • #3
      list of elements (without chips) and quantity
      RE1206DRE074K75L (YAG) - 10
      RE1206DRE07100KL (YAG) - 8
      RE1206DRE071KL (YAG) - 4
      RE1206DRE0724K3L (YAG) - 9
      RE1206DRE071ML (YAG) - 5
      RE1206DRE0747K5L (YAG) - 4
      RE1206DRE07150KL (YAG) - 1
      RE1206DRE07475KL (YAG) - 3
      RE1206DRE0715KL (YAG) - 3
      RE1206DRE072KL (YAG) - 1
      RE1206DRE0710KL (YAG) - 5
      RE1206DRE07100RL (YAG) - 2
      RE1206DRE0720RL (YAG) - 1
      RE1206DRE07150RL (YAG) - 1


      TS53YL104MR10 (VISHAY) - 1
      TS53YL103MR10 (VISHAY) - 2


      CC1206JRNPO9BN223 (YAG) - 6
      CC1206CRNPO9BN5R0 (YAG) - 3
      CC1206JKX7R9BB224 (YAG) - 1
      CC1206GKNPO9BN104 (YAG) - 3
      CC1206KKX7R9BB475 (YAG) - 2
      CC1206JKX7R9BB474 (YAG) - 2
      CC1206FRNPO9BN101 (YAG) - 1
      CC1206FRNPO9BN561 (YAG) - 1
      CC1206FKNPO9BN103 (YAG) - 1
      CC1206JRX7R9BB334 (YAG) - 1
      CC1206JRNPO9BN333 (YAG) - 1


      293D227X9016D2TE3 (VISHAY) - 2
      293D106X9016A2TE3 (VISHAY) - 1
      293D107X9016D2TE3 (VISHAY) - 2

      Comment


      • #4
        Originally posted by Hinkri View Post
        Hi all. Sharing my final printed circuit for Tesoro Compadre assembly. I assembled it myself and my friend too, this is a completely serviceable circuit! Catches 5 kopecks of the USSR - 20-22 centimeters in the air.
        [ATTACH]57040[/ATTACH]
        [ATTACH]57041[/ATTACH]
        [ATTACH]57042[/ATTACH]
        Thank you Hinkri for sharing your work.
        This could well be my next build project.
        Alan

        Comment


        • #5
          Originally posted by SkyeHi View Post
          Thank you Hinkri for sharing your work.
          This could well be my next build project.
          Alan
          don't forget to share your work here

          Comment


          • #6
            Most certainly

            Comment


            • #7
              Originally posted by Hinkri View Post
              don't forget to share your work here
              Did you solve the problem with constant squeaking? What was the matter?

              Comment


              • #8
                Originally posted by ArchibaldSTM View Post
                Did you solve the problem with constant squeaking? What was the matter?
                I believe that the power supply was too high and the current. 12 volts 2 amps

                Comment


                • #9
                  Hello everyone
                  There is a pcb of components through holes for the compadre?
                  Thank you

                  Comment


                  • #10
                    Originally posted by Hinkri View Post
                    list of elements (without chips) and quantity
                    RE1206DRE074K75L (YAG) - 10
                    RE1206DRE07100KL (YAG) - 8
                    RE1206DRE071KL (YAG) - 4
                    RE1206DRE0724K3L (YAG) - 9
                    RE1206DRE071ML (YAG) - 5
                    RE1206DRE0747K5L (YAG) - 4
                    RE1206DRE07150KL (YAG) - 1
                    RE1206DRE07475KL (YAG) - 3
                    RE1206DRE0715KL (YAG) - 3
                    RE1206DRE072KL (YAG) - 1
                    RE1206DRE0710KL (YAG) - 5
                    RE1206DRE07100RL (YAG) - 2
                    RE1206DRE0720RL (YAG) - 1
                    RE1206DRE07150RL (YAG) - 1


                    TS53YL104MR10 (VISHAY) - 1
                    TS53YL103MR10 (VISHAY) - 2


                    CC1206JRNPO9BN223 (YAG) - 6
                    CC1206CRNPO9BN5R0 (YAG) - 3
                    CC1206JKX7R9BB224 (YAG) - 1
                    CC1206GKNPO9BN104 (YAG) - 3
                    CC1206KKX7R9BB475 (YAG) - 2
                    CC1206JKX7R9BB474 (YAG) - 2
                    CC1206FRNPO9BN101 (YAG) - 1
                    CC1206FRNPO9BN561 (YAG) - 1
                    CC1206FKNPO9BN103 (YAG) - 1
                    CC1206JRX7R9BB334 (YAG) - 1
                    CC1206JRNPO9BN333 (YAG) - 1


                    293D227X9016D2TE3 (VISHAY) - 2
                    293D106X9016A2TE3 (VISHAY) - 1
                    293D107X9016D2TE3 (VISHAY) - 2
                    what about resistor and capacitors tollerance ?
                    from the codes you list above seams that they are 0,5% ("D" letter on code)

                    we really need this tollerance ?

                    Comment


                    • #11
                      Originally posted by giuhalftrack View Post

                      what about resistor and capacitors tollerance ?
                      from the codes you list above seams that they are 0,5% ("D" letter on code)

                      we really need this tollerance ?
                      doesn't matter

                      Comment


                      • #12
                        Originally posted by Hinkri View Post

                        doesn't matter
                        thank you, I'm willing to make a THT version of it bye

                        Comment


                        • #13
                          Originally posted by giuhalftrack View Post

                          thank you, I'm willing to make a THT version of it bye
                          Will you do it based on my payment?

                          Comment


                          • #14
                            Originally posted by Hinkri View Post

                            Will you do it based on my payment?
                            No I will made for me thanks to the info on this website and then I will share it with everyone
                            My job gives me enought money to do what I wanna do.

                            bye

                            Comment


                            • #15
                              Originally posted by giuhalftrack View Post

                              No I will made for me thanks to the info on this website and then I will share it with everyone
                              My job gives me enought money to do what I wanna do.

                              bye
                              wanted to ask based on my electronic drawing board

                              Comment
