Hello ,all friends in the forum and happy new year:

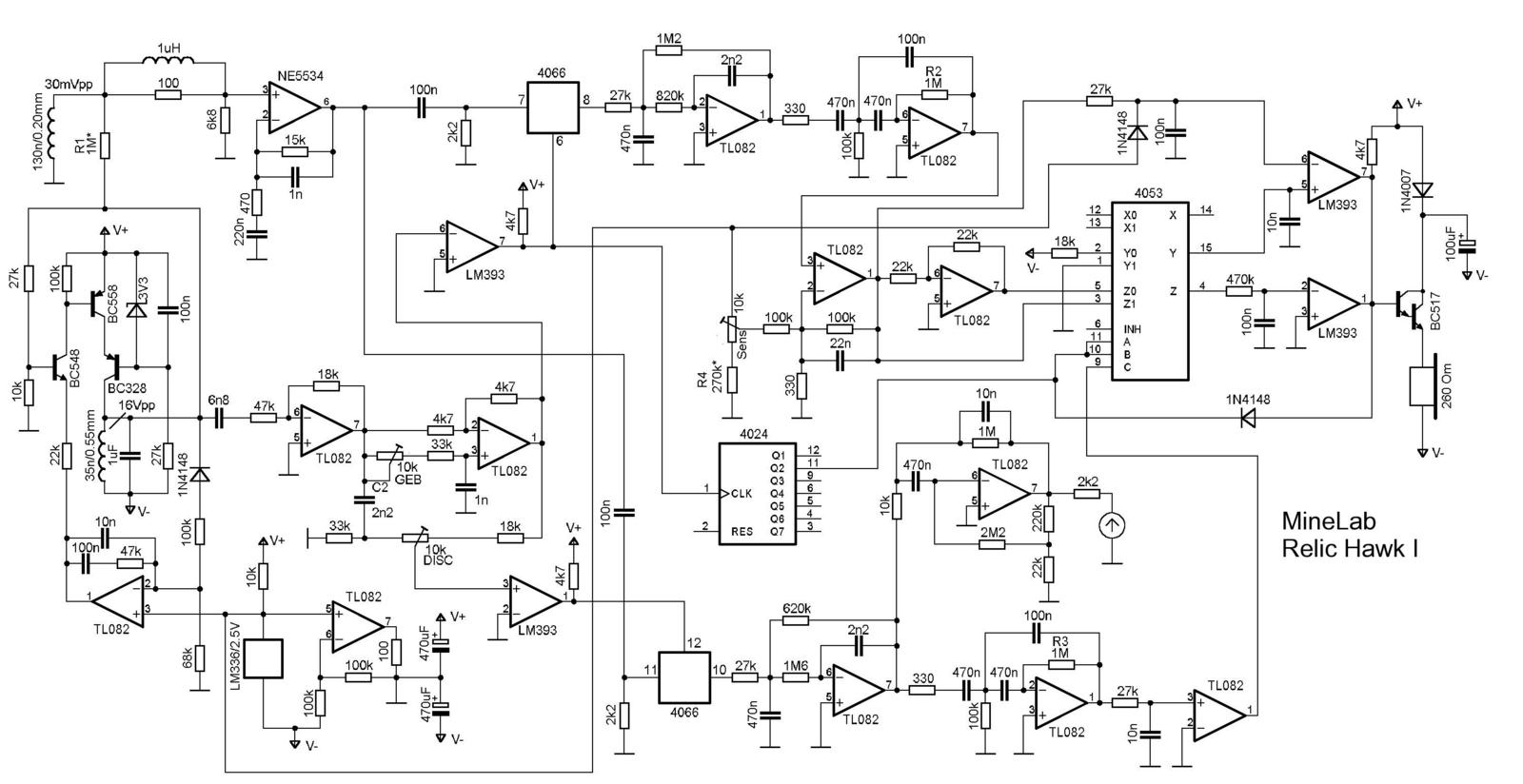

This is the minelab relic hawk shematic.

[Xurck]

RH

Do you have a PCB ?

[Dave The Rave]

Relic Hawk

Is the relic hawk suitable for beach detecting,also what are the supply voltages for the circuit shown.

[Largesarge]

Don't know about the beach, but looking at the requirements for some of the IC's I'd reckon the supply voltage would be 12V. This is only a reckon because I don't see any regulators other than a 2.5V shunt diode reg and I don't think would quite do it for the whole circuit.

If somebody on the forum is familiar with the unit they could chime in.

[Dave The Rave]

Relic Hawk diagram

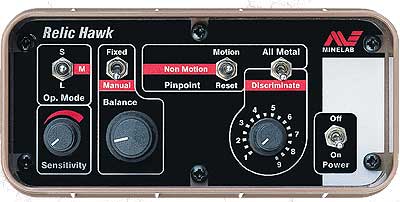

Is the circuit diagram of the relic hawk complete,as i looked at a picture of this detector and it has about five toggle switches,i can only see on the diagram maybe one switch shown with the symbol of an arrow in a circle,is the diagram total complete?also if somebody wanted to make an 8" coil for this detector what would be the specifications.

[Esteban]

Yes, you are right.

[diggerbarns]

I am wondering if this is the relic hawk diagram. As far as I can make out the R/H does not have a meter. But this diagram clearly shows one. Also like someone else said where do all the switches connect. There could be another board on the back of the panel perhaps. I wonder if this could be from another detector not relic hawk. It would be great though if some up to date Minelab diagrams turned up. I looked inside one minelab, it was nearly all suface mount and sprayed with white paint. Can't see how you can trace that.

[bradley]

Relic Hawk

A few years ago some guys in Tennesse handbuilt metal detectors
They called it Relic Hawk. This may be a diagram of their detector.

[Gosho]

Hi! I have the full working schematic of the relic hawk. This one is waste of time, it is really far away from the original device. I noticed so many differences and errors on this. The whole part of L-M-S is missing. Take my advice and don't waste your time and money.

[Dave The Rave]

relic hawk

I cannot understand why somebody posts a circuit diagram of the relic hawk which is not complete,what a waste of time,just a big joke.

[diggerbarns]

So what is the whole part of the L-M-S what is the L-M-S?
This could still be some use in the future if we get other parts of the diagram at a later date.
Why do I get a red dot next to my user name.
Why are there pictures missing on some parts of this forum. I am a bit new to this.

[Largesarge]

Yo Digger the red dot means you're online. The pictures that aren't there, just a little red x, I believe signifies that the pic is no longer on the picture hosting site. If I'm wrong I'm sure someone can shed a better light light on it.

[diggerbarns]

Thank you Dennis.

[diggerbarns]

Miszlai Ferenc I did not understand your email . Please send another and include your email address.

[Esteban]

The only "Hawk" posted here I remember was the "CoinHawk" (maybe 2 years ago), don't remember the "Relic Hawk"... Need minimum 200% zoom for view fine.
