    Was curiuous what was available on this machine

  • #2
    Nothing m8! I asked over two years ago and got nothing. Expect the same, unless you know someone inside tesoro, in which case, "share the love" when you get the info ;-D

    Comment


    • #3
      Might be getting one SOON (I hope) STAY posted!!

      Comment


      • #4
        Message to Sean Goddard

        Hi Sean,

        Sorry to hijack this thread - but did you not see the request by Ivconic in the Modifications forum about the CoinHawk?

        Comment


        • #5
          I have a schematic I drew some time ago of a Toltec 80 that I used to have. I'm not sure if it is complete.

          Comment


          • #6
            Originally posted by Merc View Post
            I have a schematic I drew some time ago of a Toltec 80 that I used to have. I'm not sure if it is complete.
            Please post it anyway.

            Comment


            • #7

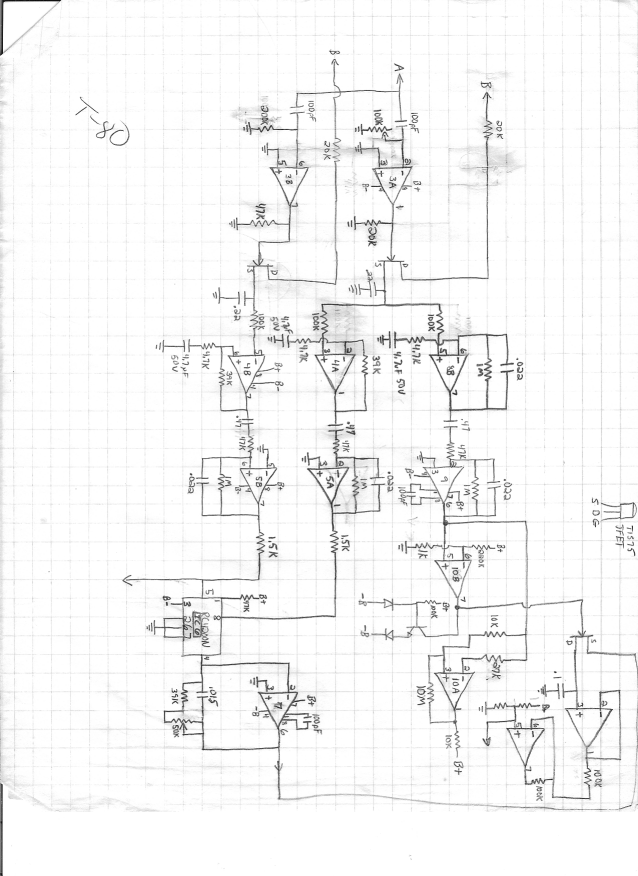

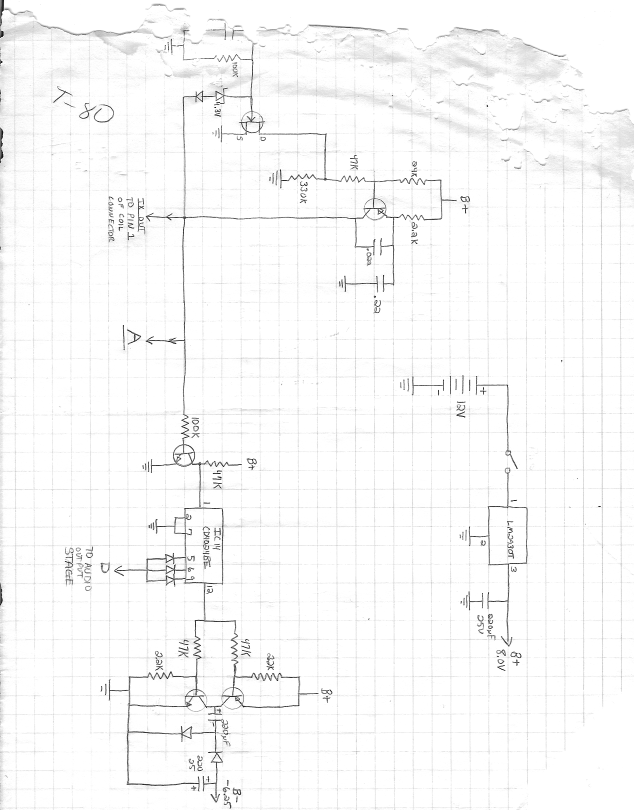

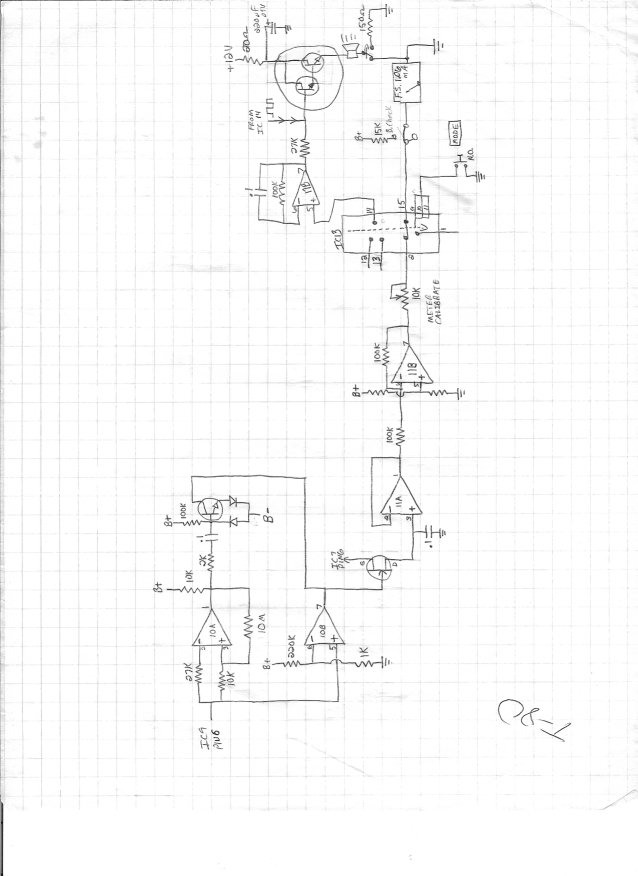

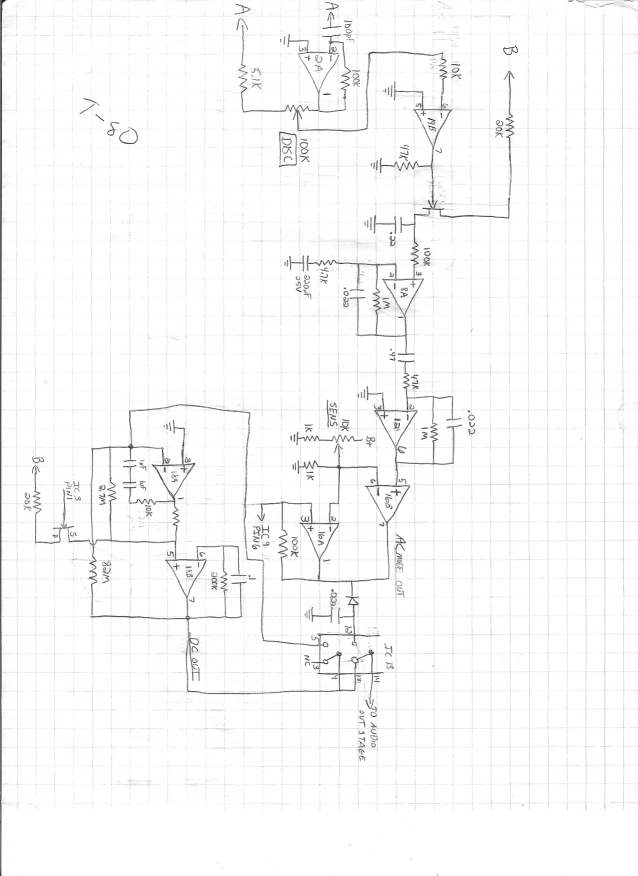

              Toltec 80 schematic

              I drew this some time ago and don't remember if it is complete or not. But maybe it's useful to someone.
              Attached Files

              Comment


              • #8
                Toltec 100 is MOOOORE difficult!

                Comment


                • #9
                  Toltec 100 has EIGHT channels 2 for normal I and Q, 2 for notch (I and Q) and FOUR for meter (with hotrock compensation) I will post as soon as I've draw it up in Protel format.

                  The diagram is NOT very clear so you may have to sort errors out if I miss any.

                  Comment


                  • #10
                    to Sean_Goddard
                    please upload toltec 100 schematic
                    i will try to clear errors
                    regards

                    Comment


                    • #11
                      I've just found out that the schematic I have is a Tesoro original one from a service manual and so I can post it for copyright reasons.

                      If you want to know what the pots do I can tell you that and what the signal paths are. Sorry, I'm really disappointed I cant help, but the guy I got it off has told me not to post it as he thinks that Tesoro put DIFFERENT errors in each copy they let out to authorised service centres and so this would point straight back to him and cost him his livelihood, and I can't be the cause of that in fairness can I? Also I don't want to cause any problems for the forum.

                      Comment


                      • #12
                        Toltec 100 schematic

                        I just bought a working Toltec 100 off of Ebay. In the next few months I plan on tracing out a diagram myself. Wish me luck.

                        Comment


                        • #13
                          Great!

                          Hey! Merc

                          That's a good idea
                          I Will keep an eye on your posts!

                          Thanks!
                          JF

                          Comment


                          • #14
                            Toltec 100 schematic

                            Just wanted to let everyone know that I haven't forgotten about the Toltec 100 schematic. I'm almost finished with it and want to check it out really well before I post. Also, I have the manual which I will scan and post.

                            Comment


                            • #15
                              Merc, fine. but a best way is to share up the scanned PCB's sides. much people do speedy the trasing copy using Sprint Layout-5. it has possibility to put an image as some mask. then you not need in the schematic because you get the all PCB image not waste the time. in SL-5 you can also save the result in Gerber file.

                              Comment
