What is the size in of PCB post # 27 , in mm ?

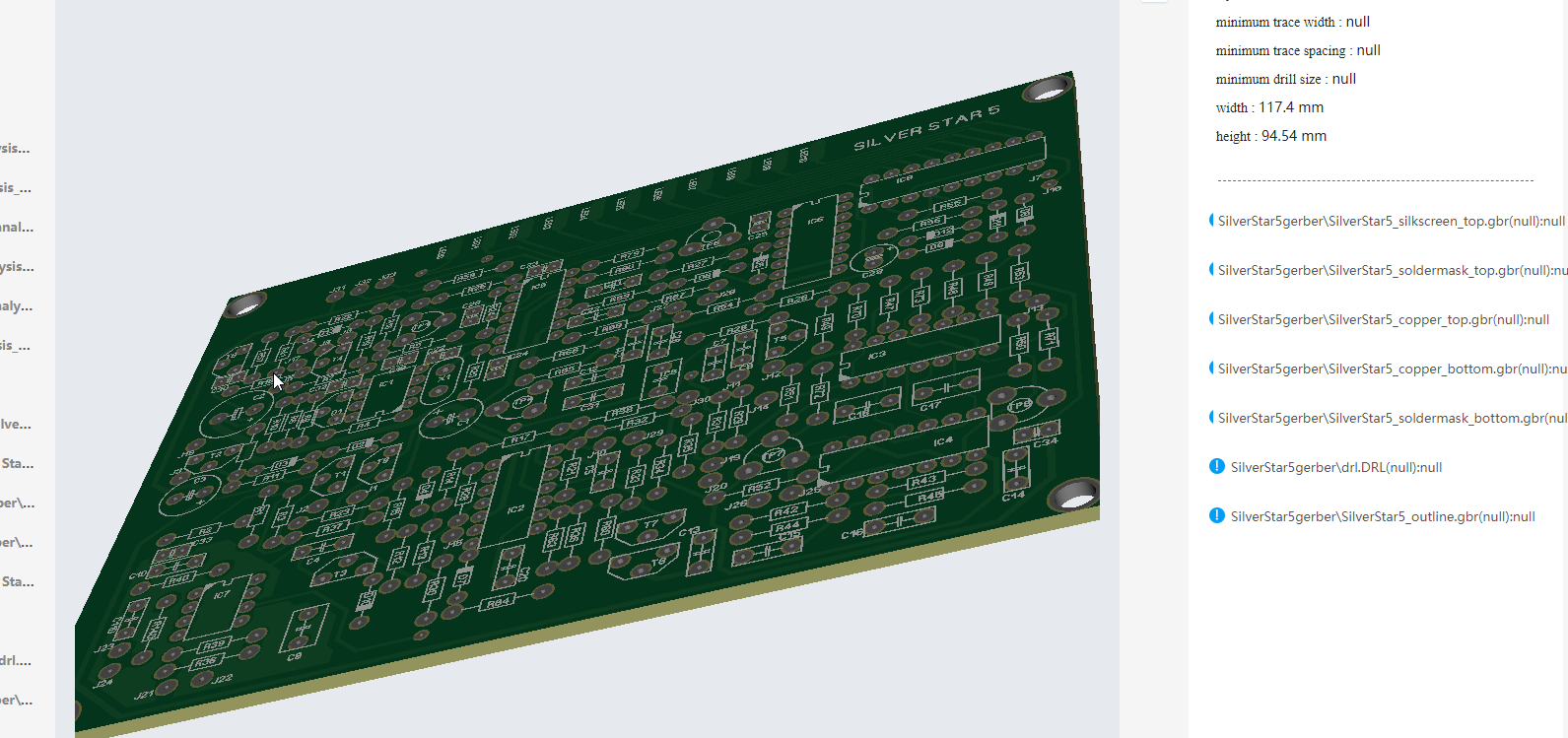

I am trying to order PCB from pcbway but I have problem to upload your gerber, not able to make selection and files are in gray color.

I know what you're talking about.
I too had problems with PCBWay so I've been exclusively using JLPCB since then.
Here, as you see; JLPCB does not cause problems, does not ask questions, does not bother you,

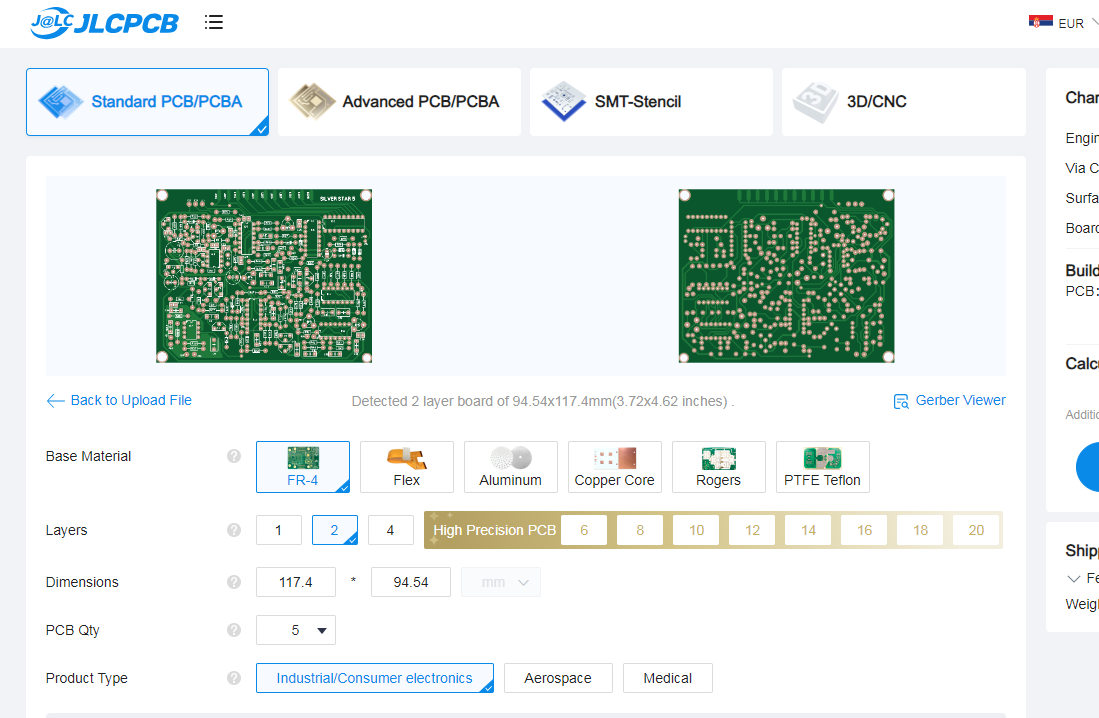

you just upload a "zip" archive with gerber files and the online service does everything else by itself.

[ivconic]

[ivconic]

I love "for dummies" solutions, because they free me from trivial things and tiring about side jobs.
I don't want to know everything, I don't want to become an expert on Gerber standards, I don't want to fill out various meaningless forms.
I want to give my draft in the form of gerber files and get a complete estimate immediately.
JLPCB fulfills all that.
And they became incredibly fast!
With a fairly affordable Fedex shipping option; they make pcbs for me, pack them, send them and it arrives at my address in the worst case within 10 days!
They are everything I've ever dreamed of when it comes to pcb making.
The only small "problem" I still have is making the production files, in case I want them to solder components on the pcb.
Complete or partial assembly. I compile the BOM file easily, but pick and place always gives me problems.
But that's not up to them, it's up to Sprint Layout software that doesn't have that part done well.
I haven't checked, I don't think they have it yet; to immediately accept the Sprint Layout format and to do the production files themselves.
And that would be a complete dream come true!
Because I don't want to learn anything about production, I'm not even interested in that.
All I want is for my pcb design to materialize as soon as possible with as few "questions" and "forms" as possible.
So far I have not found a better service than JLPCB.

[ivconic]

Just checked, they have it all covered: https://jlcpcb.com/help/article/71-H...print-Layout-6
But already half way through reading, when I saw what all had to be done: I was exhausted to the point of pain!




A dear little girl answered me on chat, she says she's not a bot but a human being, ok... so I explained my problem to her
and suggested that they introduce support for direct upload of Sprint Layout files.
She said she would pass that proposal on to the "bosses"... Ok, I'll just have to wait and see what happens.

[pito]

RadioTehnika, 2015
I saw there this photo, here is a link to the original, a few years ago there was a video and the sensitivity was high, the pan 20cm was detected from distance over 1 m.

http://cxema.my1.ru/publ/konstrukcii...ja/100-1-0-448

[pito]

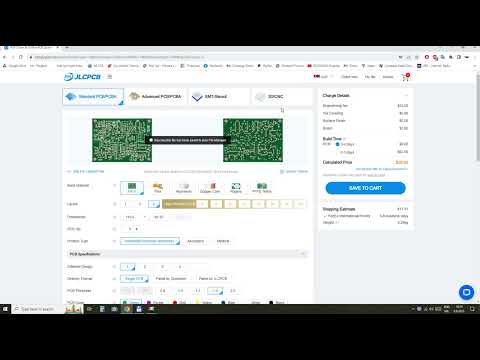

When I uploading file, from JLCPCB I get this message;incorrect format, upload in rar or zip format and use English filename.

[ivconic]

[ivconic]

Any success?

[pito]

No, I can't go further than 15 seconds on the video.

[ivconic]

It is obviously not because of the gerber files I provided.

[pito]

Maybe i comeback to it later.

[ivconic]

You have to be registered on the page, of course.
Next comes to my mind; regional settings, changing the name of the zip achive with some regional symbols and letters maybe?
Last but not least; the type and version of archive packer?
Maybe you unpacked my archive to see the files and later packed it back again BUT with different (unrecognized by JLPCB) packer?
I noticed that "eastern" keyboard settings and file names written like that; can often cause confusion by "western" software.
That's why I have several options always active when manipulating with file names, extensions and regional settings:



And of course, last one: the internet connection, regional "restrictions" (if any by the Chinese side) and possible "censorship" by the local internet provider?
I would not be surprised by this at all. Ever since the covid and recent global situation; horrible censorship is put on the internet especially in the "western" countries.
Many cases when I share some "prohibited" links with "western" friends; and they can not see nor visit those at all!
And those are never something like "dark web" crap, I don't deal with such garbage at all.
...
And very last one; the virus in your system!

[pito]

That's ok, I was just wonder how they get such good sensitivity with small Tx power.

[pito]

Did you convert png file to gerber ?
If so which software you are using for that ?
