OLD Garrett ADS GroundHog schematic WTD

[rbethman]

I have an OLD Garrett ADS GroundHog. While some consider it 'cheap' to send back for repairs, the last repair and shipping cost more than I paid for the detector. I want to be able to fix it myself, AND to make my OWN search coils.

I'm a HAM Radio Operator and have been repairing and restoring circuits since 1981.

Search coils are LIKE antennae. They have to be RIGHT for the frequency they operate at.

Thanks!

[Joescope]

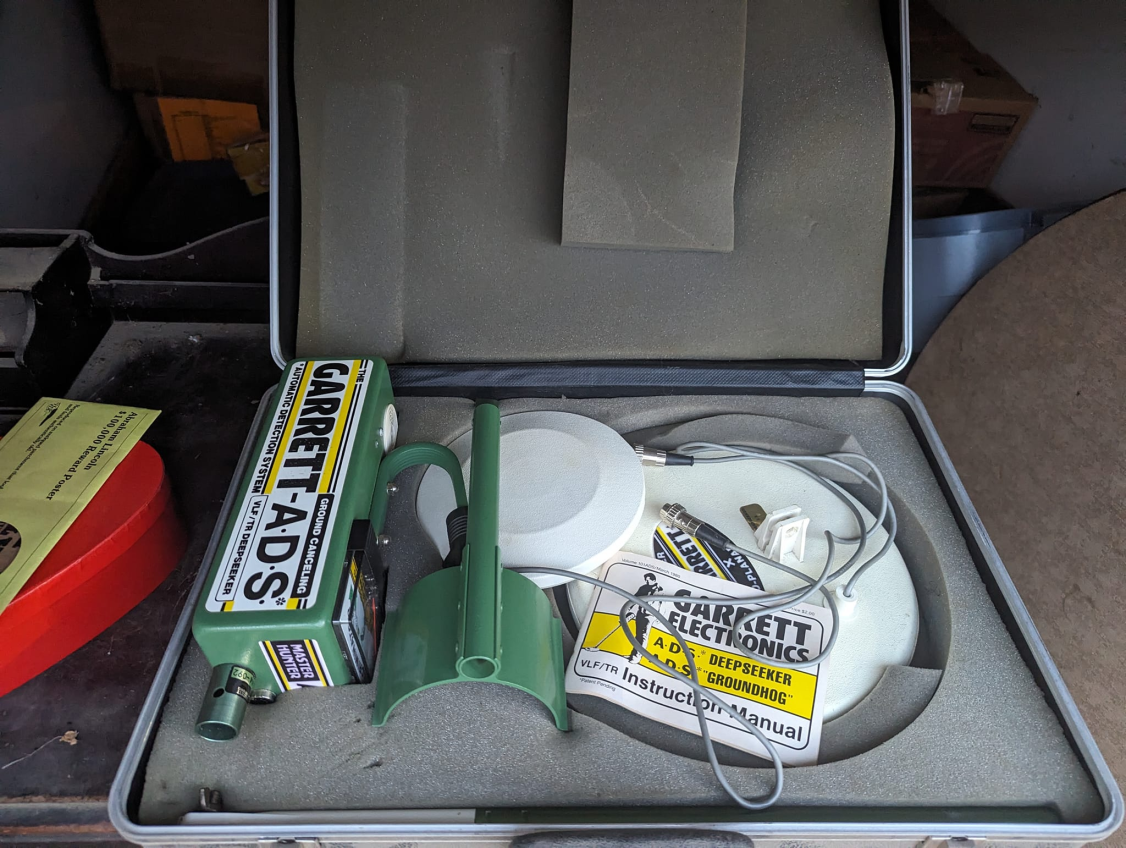

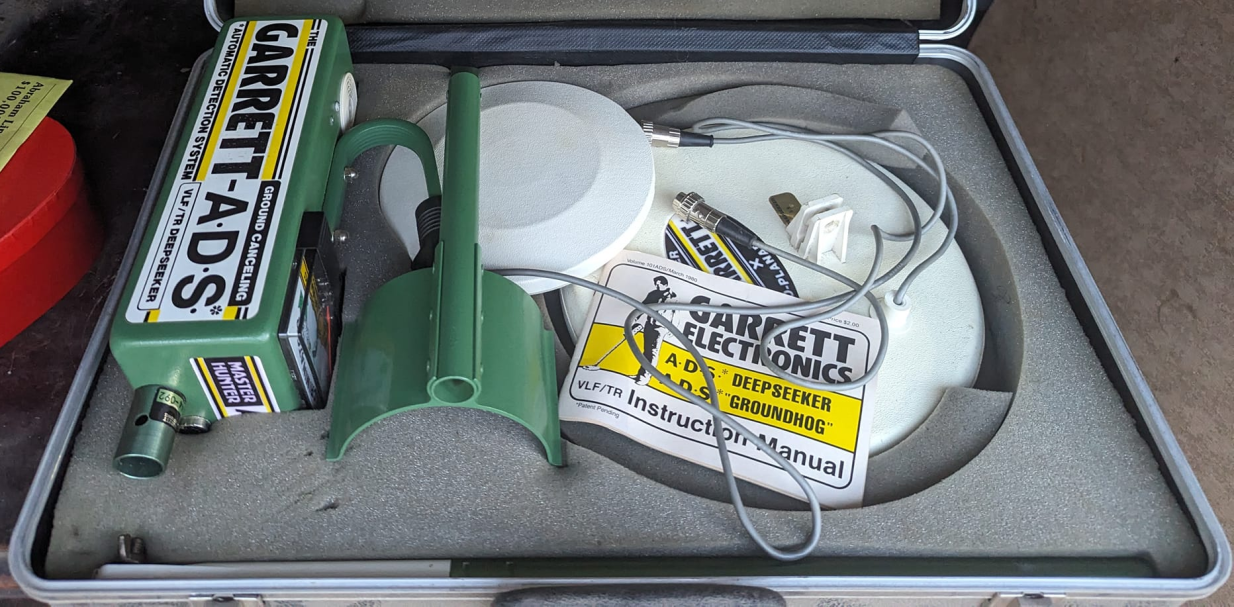

If the image comes through, a fellow found his late father in law never opened or used his ADS Deepseeker/Groundhog. On the Garrett Metal Detector page on Facebook. Makes me think both operated at 15khz. I bought a broken Groundhog and reworked the connector to fire it up on my ADS1. It doesn't like 1.5 khz. I wanted to install sturdier plastic for the mechanical connection to the rod, haven't gotten around to McGivering it yet. Then see if I can monkey around with the tuners for transmit and receive to go 15khz. The guy's name is Derrick Aldridge.

[giuhalftrack]

love those Garret detectors.. unfortunately they are quite expensive for me (to buy in US e shipping to Italy).. looking forward to see schematics and rebuild them.
