    • Hi all friends

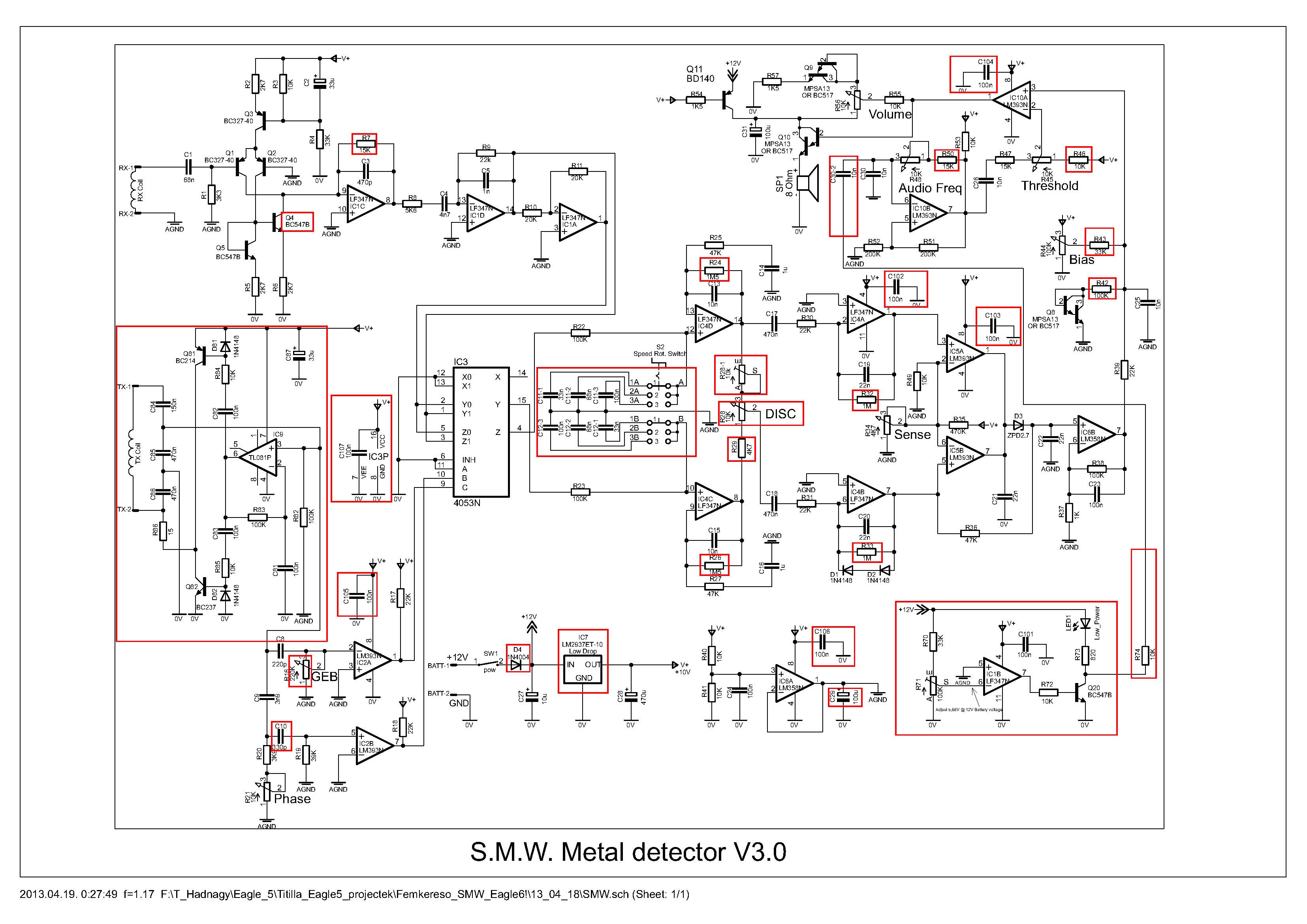

      There is schematic V3 of S.M.W with some changes compared to version 2 of this detector in this link (http://www.hobbielektronika.hu/forum...=198055‎), and a video with great performance on YouTube. Is there any PCB for this version of S.M.W?

      Comment


      • Click image for larger version

Name:	SMW_3_0_2.jpg
Views:	2
Size:	529.8 KB
ID:	337339

        Red rectangles is different than version 2

        Comment

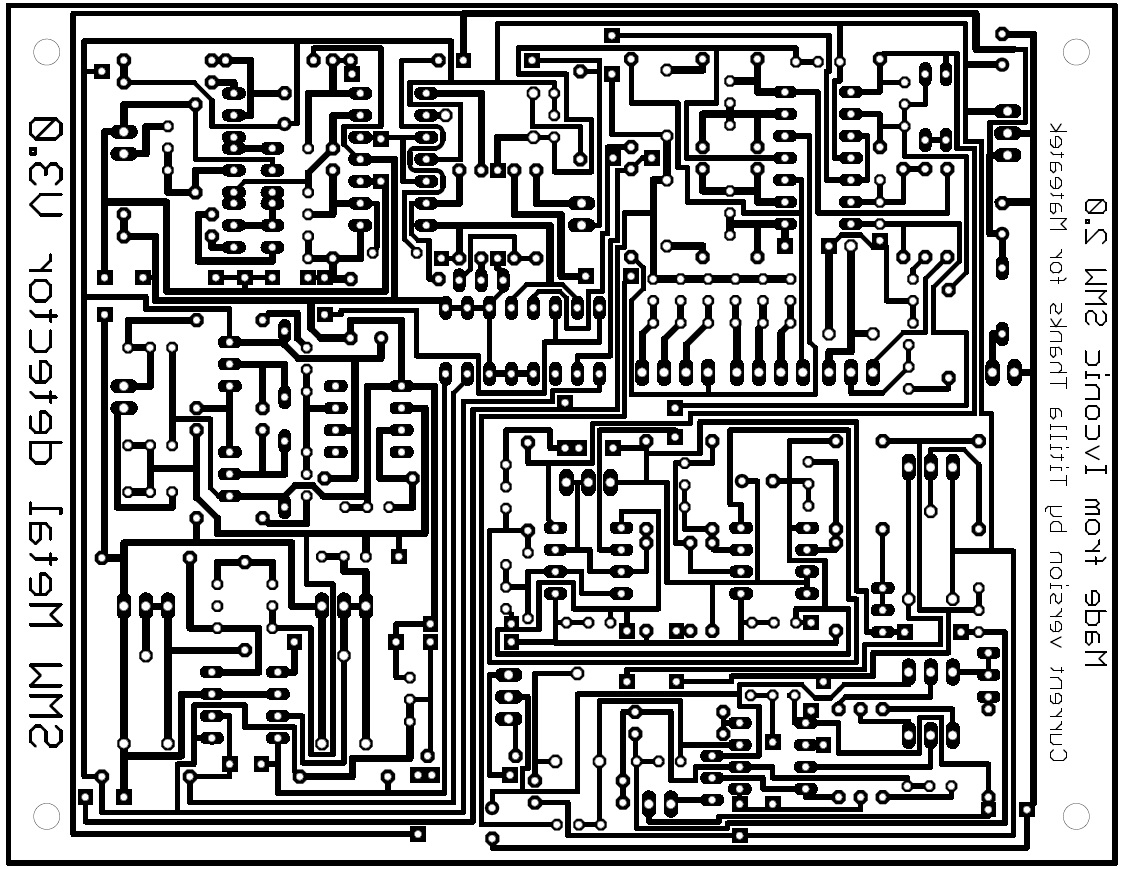

        • smw 3,0 pcb
          Attached Files

          Comment


          • Thanks Mr Walkman. Is there any components placement for this PCB?

            Comment


            • Hi friends

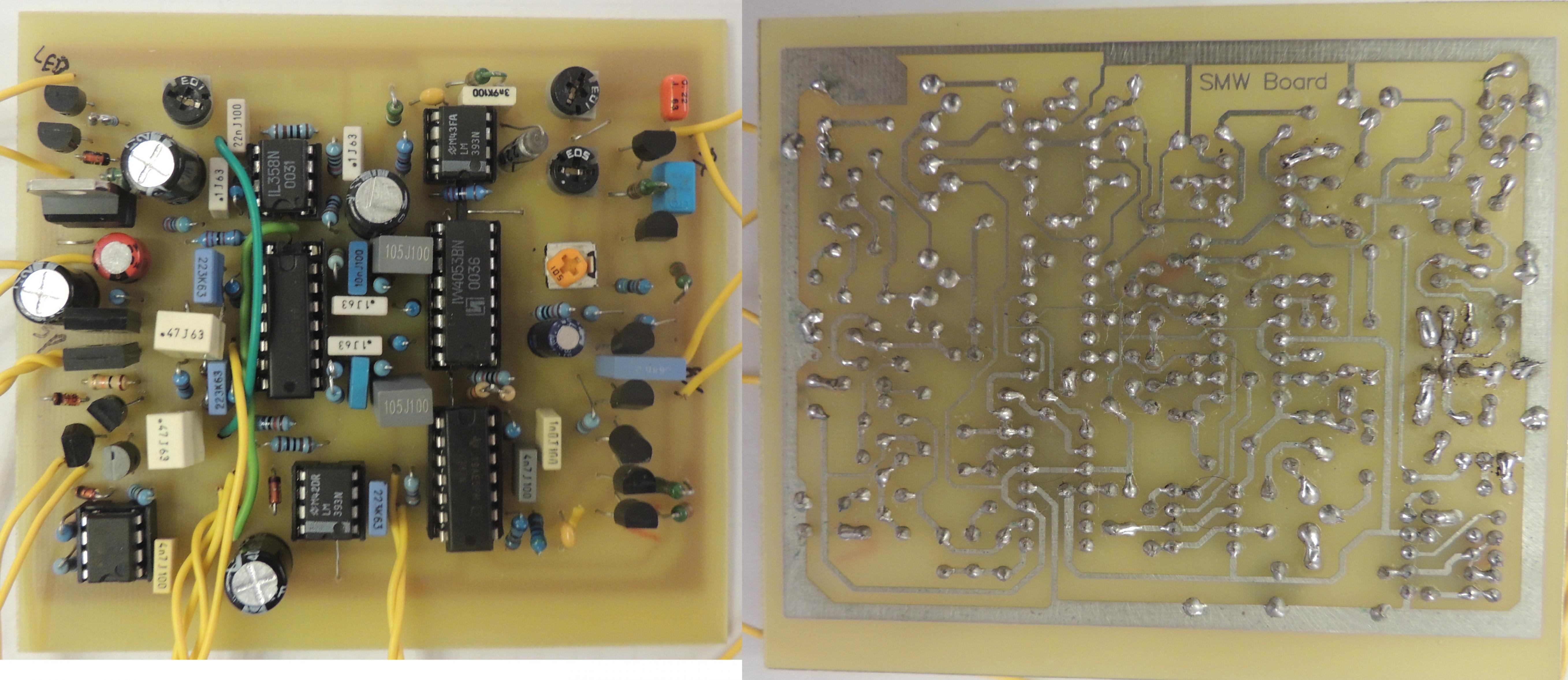

              I made ​​two circuits of the SMW v2 metal detector
              But I had some problems:Click image for larger version

Name:	smw..jpg
Views:	1
Size:	993.4 KB
ID:	337347
              1) In both circuits a low continuous sound is heard from the detector in all time
              2) In both circuits when I touch the coils or some potentiometer the detector makes noise like when an object detected
              Please help how can I solve this problems?Click image for larger version

Name:	smw..jpg
Views:	1
Size:	993.4 KB
ID:	337347

              Comment

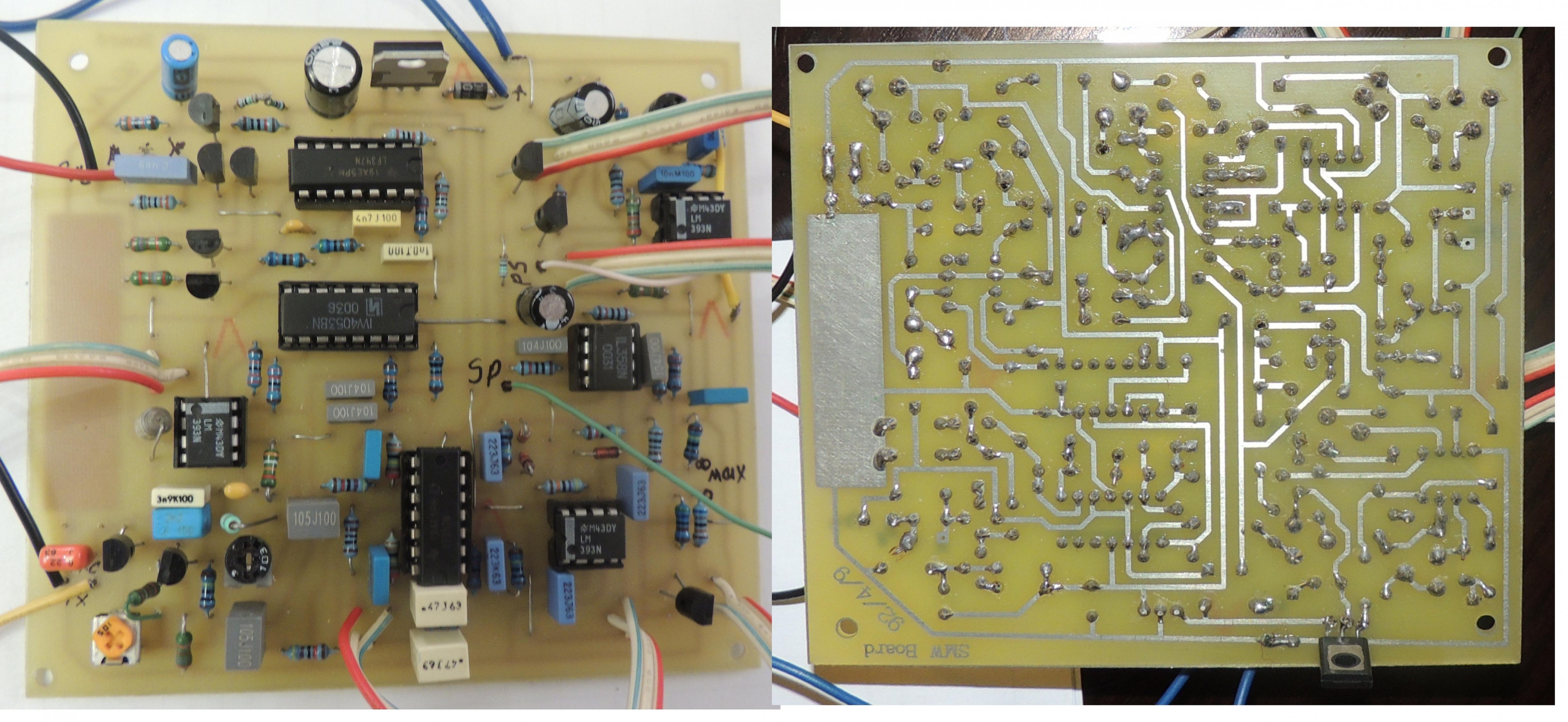

              • And second boardClick image for larger version

Name:	2.jpg
Views:	1
Size:	978.7 KB
ID:	337348.

                Comment


                • Originally posted by salih View Post
                  in my SMW I have problem There is an inverse relationship between sensitivity and volume key . When the sound is low Detecting coin in the air 40cm . When the sound is high Detecting coin in the air 29cm. I use BC517 Instead of MPSA13. help.
                  MPSA13 Is stronger than BC517

                  Comment

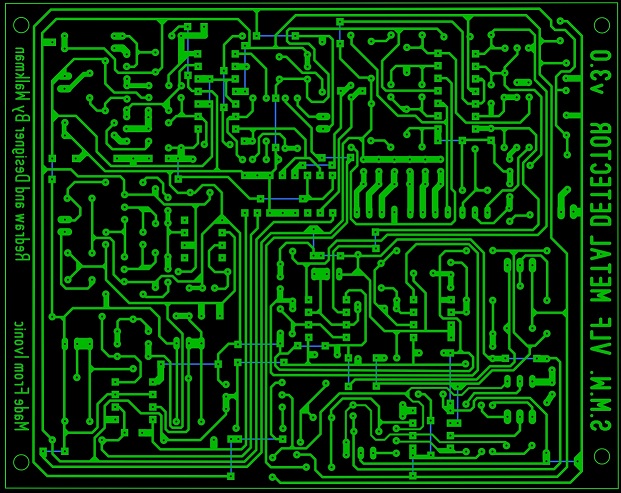

                  • smw 3 pcb shematic and all data
                    Attached Files

                    Comment


                    • Originally posted by walkman View Post
                      smw 3 pcb shematic and all data
                      Thank you dear Walkman

                      Comment

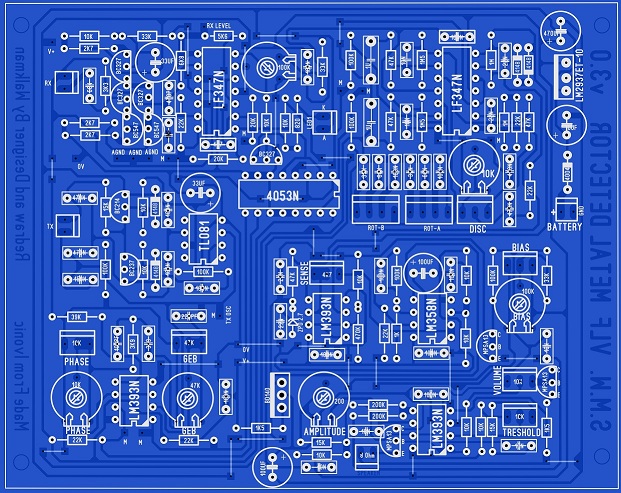

                      • These are my drawings SMW3
                        Attached Files

                        Comment


                        • Hi walkman. This circuit needs adjustment with oscilloscope?

                          Comment


                          • Why was was rotary switch S2 added - i.e. what is it supposed to be accomplishing?

                            Comment


                            • It influences recovery speed, but in full honesty, the influence of such solutions is not big, so you can freely put only the largest capacitors instead.

                              Comment


                              • Hi everyone

                                I make version 3 of S.M.W

                                Can i replaced LM2937ET-10 with Lm317 or 7805 or LD1117DT33TR ?

                                Please help me

                                Comment
