    Anyone have an MD-7030 schematic or know where to find one on-line?
    This is the "Famous Trails Discriminator II" detector brand but Radio Shack also carried it under the 63-3013 part number.
    Thanks to all!
    Beav

  • #2
    Also schematic for the Famous Trails Challenger or the MD-1023 or the GD-1023 which is also know as the Gold Snoop. All these are the same detector made in China.
    Schematics please

    Comment


    • #3
      MD-1023 , GD-1023

      Or if someone could post some good photos of the upper side and under side of the printed circuit board
      thanks in advance
      gef

      Comment


      • #4
        Originally posted by gef12 View Post
        Also schematic for the Famous Trails Challenger or the MD-1023 or the GD-1023 which is also know as the Gold Snoop. All these are the same detector made in China.
        Schematics please
        you can cooperate with GDM. seems similar to what you want.
        http://md4u.ru/forum/viewtopic.php?t=1247

        hh

        Comment


        • #5
          Originally posted by kt315 View Post
          you can cooperate with GDM. seems similar to what you want.
          http://md4u.ru/forum/viewtopic.php?t=1247

          hh

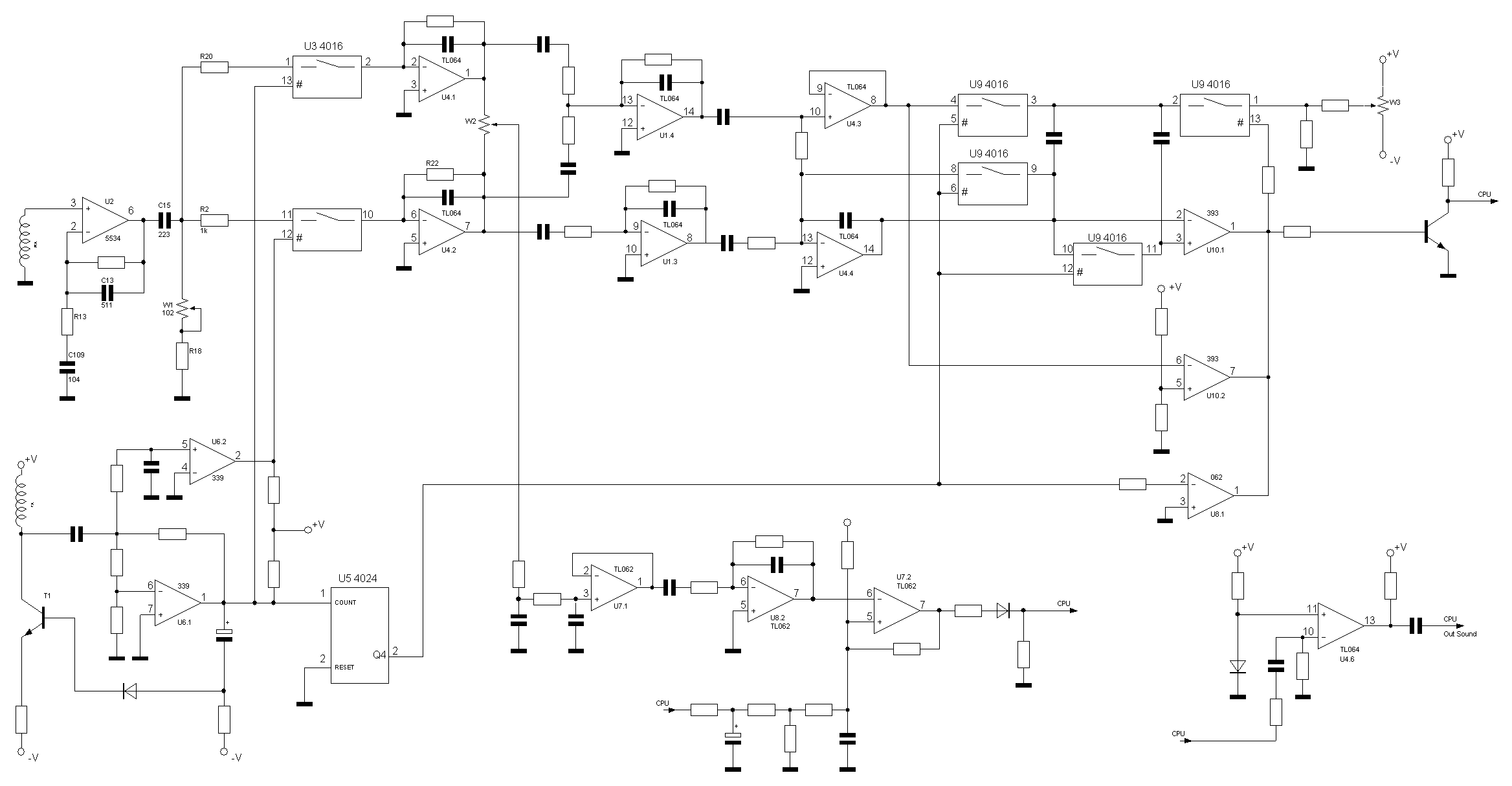

          OK - so this is the interesting part, but what about some component values?
          Attached Files

          Comment


          • #6
            mission will not be completed...
            you see - there is a word 'CPU' (acronym). it mean perhabs Central Processing Unit. or yet u-controller. it still need in some code...
