SUPER SILVER SABRE U-MAX

[aft_72005]

Hi to all
Anybody have circuit diagram ?
Best regards .

[kt315]

cool like seems machine... transformered from Compadre I believe. all are in your hands... but hands must be skilfuled.

[Max]

Hi,
yes it's a mod of existing stuff... look at knobs they aren't by tesoro... then the two switches etc

I saw it on a thread "super silver sabre..." on this forum some time ago... but man that made it haven't posted any circuit for mods as far I remember.

But you can made too... just have to mix some of the schematics already here as KT315 suggested.

It's easy... (for skilled people).

thread is at : https://www.geotech1.com/thuntings/s...t=super+silver

Best regards,
Max

[aft_72005]

cool like seems machine... transformered from Compadre I believe. all are in your hands... but hands must be skilfuled

Hi
Thanks for your guide, you are right,
But only one things and that is ,I don’t have compadre circuit.
Are you having it?

[aft_72005]

Hi Max
Yes, I saw that picture at: http://www.thunting.com/geotech/foru...t=super+silver

But I don’t know that it is not tesero original designing.
Best regards.

[Max]

Hi
Thanks for your guide, you are right,
But only one things and that is ,I don’t have compadre circuit.
Are you having it?

Hi,
don't remember about compadre schematic, I think I haven't. But I think that original thing was a SilverSabre not Compadre... then with mods it has panel geb and two disc pots... so you need SilverSabre schematic... you can find in its thread in the Tesoro section.

I think he just mounted a pot for GEB on panel thus removing the trimpot from board... so he can adj geb on soil... and gain better sens and less false signals.

Then he add another disc pot and a switch to commutate from one to another... making maybe something similar to manual notch disc (first use one disc setting, then use the other to guess what metal target is).

Seems very easy to replicate... look at schematic of silver.

Best regards,
Max

[aft_72005]

Hi Max

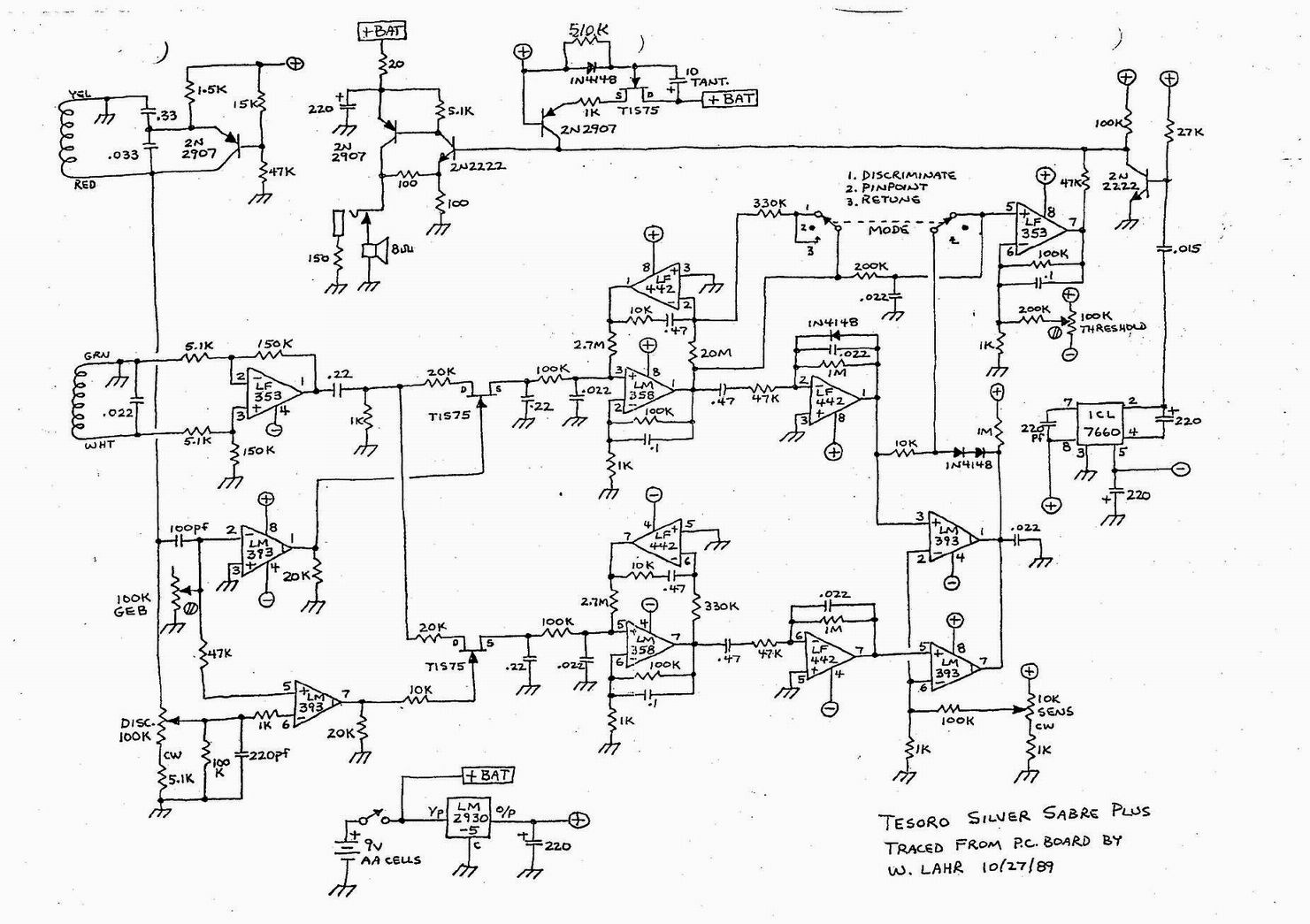

Thanks ,I had SilverSabre circuit , I also thinking similar you about

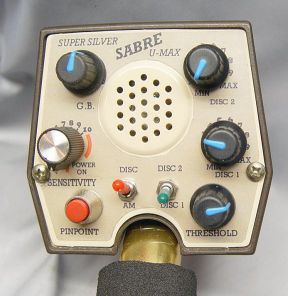

What we see in picture .
Best regards.

[aft_72005]

Hi

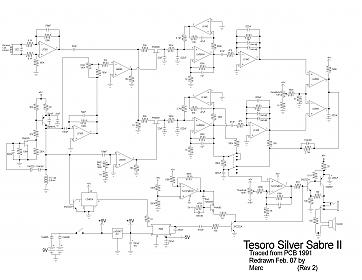

SilverSabre II circuit by Merc.

[aft_72005]

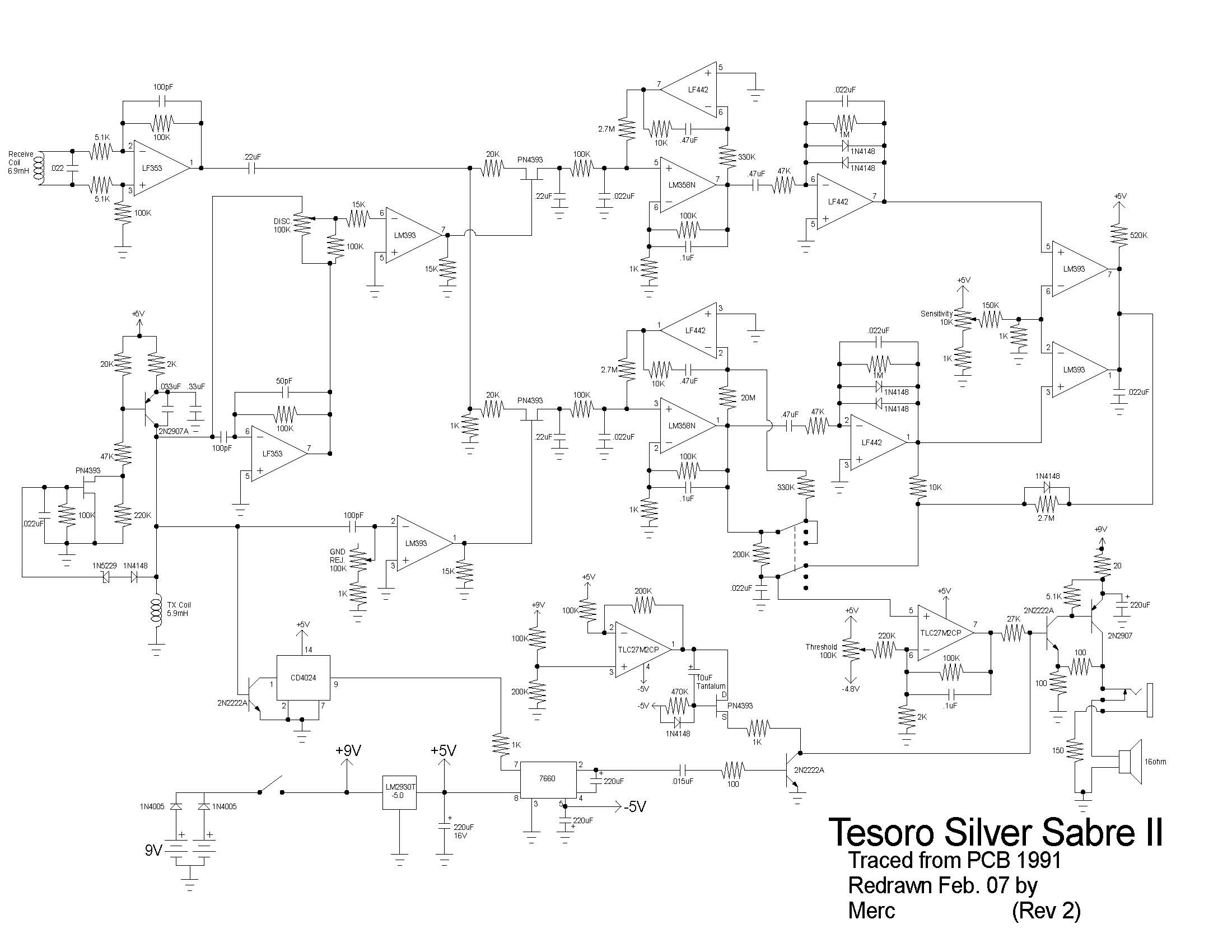

Excuse , SilverSabre II with better resolution.
Regards .

[ismail surek]

do you have PCB for super silver sabre_?

[erolunall]

http://thunting.com/geotech/forums/s...ad.php?t=13145

selam ismail nasılsın
linke bak uyarsa

[nelson]

Hi Max.
A question about metal detectors schematics. Where do you get them?
I use to spent lots of time surffing the net by new schematics and other stuf.
I had see that most of the schematcs have the same format. So where do you get them, from a magazine, a book, etc.?

Regards

Nelson

Hi,
don't remember about compadre schematic, I think I haven't. But I think that original thing was a SilverSabre not Compadre... then with mods it has panel geb and two disc pots... so you need SilverSabre schematic... you can find in its thread in the Tesoro section.

I think he just mounted a pot for GEB on panel thus removing the trimpot from board... so he can adj geb on soil... and gain better sens and less false signals.

Then he add another disc pot and a switch to commutate from one to another... making maybe something similar to manual notch disc (first use one disc setting, then use the other to guess what metal target is).

Seems very easy to replicate... look at schematic of silver.

Best regards,
Max

[chemelec]

Nelson: Not sure about others, But I just created a set of Symbols in my Digital Camera Software
Thats where I design all my schematics.

Almost any Graphic Editor will work.

Take care....Gary
PS: Hope we can meet when I'm in Chile in february.

*****************************************

Hi Max.
A question about metal detectors schematics. Where do you get them?
I use to spent lots of time surffing the net by new schematics and other stuf.
I had see that most of the schematcs have the same format. So where do you get them, from a magazine, a book, etc.?

Regards

Nelson

[Max]

Hi Max.
A question about metal detectors schematics. Where do you get them?
I use to spent lots of time surffing the net by new schematics and other stuf.
I had see that most of the schematcs have the same format. So where do you get them, from a magazine, a book, etc.?

Regards

Nelson

Hi,
my source of schematics ? Friends!
Good people that collect them and then send me or exchange with me.

Some things are similar cause same people made them by hand or by cad software.

My problem is organization... I have to made a single device e.g. CD or DVD with all I have... cause so often I save stuff here and there on other stuff then is a problem finding particular stuff when I need it.

I've lot of confusion on my DVDs ...so you can find a spaghetti recipe just near the TGS schematic there !

Kind regards,
Max

[ismail surek]

http://thunting.com/geotech/forums/s...ad.php?t=13145

selam ismail nasılsın
linke bak uyarsa

i am fine thank you how are you
thank much for your link
