Treasure Hunter mod.

[sascho.bg]

Treasure Hunter mod. schematic.Work.
Schematic hire:
Snimka.bg
търсене-а4а4-търси
Please,save in Geotech Forum Thread.
Sascho.bg

[Qiaozhi]

Treasure Hunter mod. schematic.Work.
Schematic hire:
Snimka.bg
търсене-а4а4-търси
Please,save in Geotech Forum Thread.
Sascho.bg

Did you forget to attach something?

[sascho-bg]

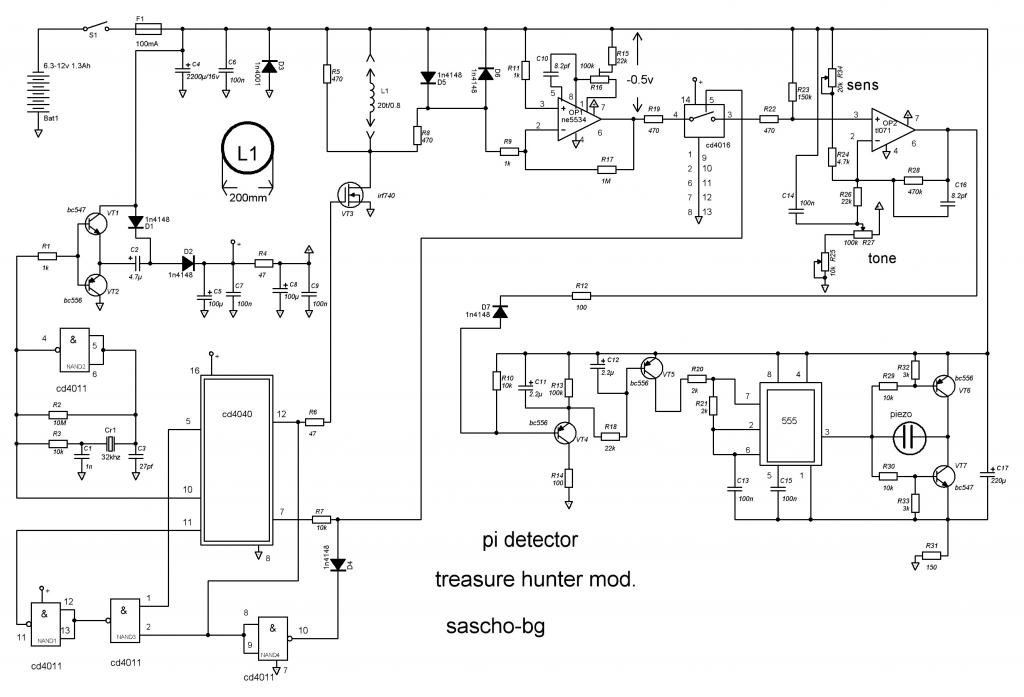

Schematic
http://images26.snimka.bg/006030141-big.jpg
http://www.snimka.bg/photo.php?photo_id=6030142

[aft_72005]

Hi
Upload here for using another, treasure hunter mod. Schematic From sascho

[Geo]

It seems to be a good and simple detector. Only "problem" that it is a single sample detector. But if there are not electrical lines near then it will be a fine detector(small bettery, good gain and why not a very light detector)
Regards

Ohhhh thanks Sasho

[DIRCEU]

Treasure Hunter mod. schematic.Work.
Schematic hire:
Snimka.bg
търсене-а4а4-търси
Please,save in Geotech Forum Thread.
Sascho.bg

Hi! SASCHO-BG

I am very interested in this project.
Can you post the PCB here???

Thanks in advance

DIRCEU

[sascho.bg]

http://images26.snimka.bg/006108518-big.jpg

[DIRCEU]

http://images26.snimka.bg/006108518-big.jpg

Many thanks SASCHO

DIRCEU

[aft_72005]

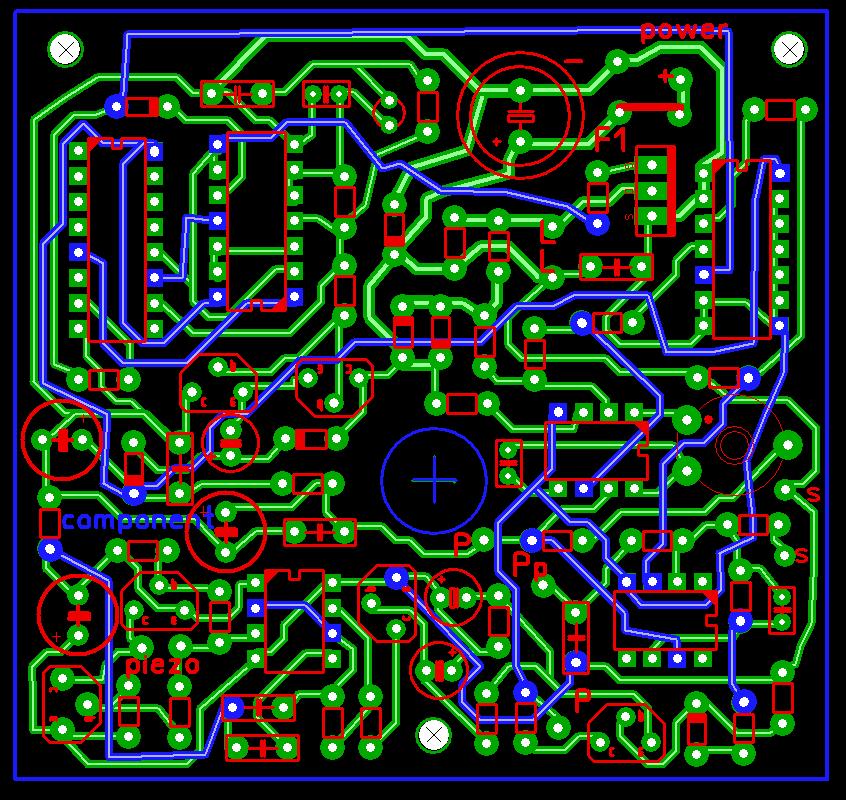

PCB from sascho

[Unregistered]

...

Can you please post a layout of pcb?

[sascho-bg]

Layout of pcb

http://www.skatafka.com/download.php...54f35385302327
Resistor-vertical mount.

[sascho-bg]

Good quality schematic
http://www.skatafka.com/download.php...fdd0a29e8c00a6

[Unregistered]

Thanks!
