PI ?

[ivconic]

Interesting PI. Schematic?

[rajesh]

pi

ivconic Interesting PI. Schematic
but i think this is a old verssion schematic what is the coil inductanc & diameter of coil

[ivconic]

I said: "Interesting PI. Schematic?"
Two sentences. First that it is interesting PI. Second "Schematic?" - meaning " anybody have schematic for this?"

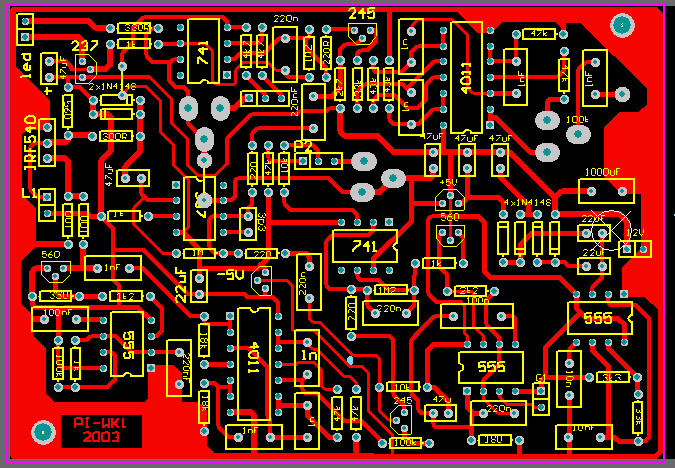

So i dont have schematic and dont know nothing more about this PI. I just have this pcb pattern and nothing else.

Regards!

[Geo]

Hi Ivica. Can you attach the schematic (no the pcb)???

[Geo]

I just saw your second reply

[Geo]

But with 741 as first stage amplifier, it is not a interesting PI design.

[ivconic]

Why? You can always use some other opamp.

[Patrick]

Hi Ivica. Can you attach the schematic (no the pcb)???

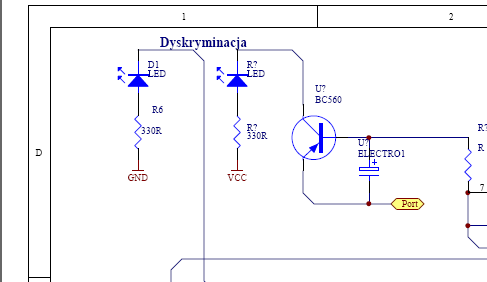

Wyk pi-1 Schema.pdf

[ivconic]

How i missed that schematic??
Patrick you are the CHAMPION!
Thanks much!

[Geo]

There is a difference. It has not the dual op.amp LM358 and it has the 741, so something is missing

[aft_72005]

But with 741 as first stage amplifier, it is not a interesting PI design.

Hi Geo
Schematic help us, first stage is LF357 , good choose . it is fast opamp
Best regards.

[aft_72005]

Other thing , it had discrimination.
Best regards.

[Patrick]

Other schemas and PCBs in Geoscan but it must be sorted.

http://ndt.host.sk/

[Geo]

Other schemas and PCBs in Geoscan but it must be sorted.

http://ndt.host.sk/

Thank you

[kt315]

Other schemas and PCBs in Geoscan but it must be sorted.

http://ndt.host.sk/

a file WHITES.rar is corrupted
