  • pcb for deeper8

    hi to all
    i desing pcb for deeper8
    dawnload attech file for complet pcb

    attech file pcb

  • #2
    Hello Mesy64
    Downloaded file asking for rar password.

    Regards
    Erol

    Comment


    • #3
      im sorry
      ok.pasword is 123456

      Comment


      • #4
        one problem
        in pcb is not exist r28 (180k)
        please insert
        good luck

        Comment


        • #5
          hola mesy al diagrama le faltan circuitos imtegrados segun el diagrama del deepers 8 me podrias enviar los componentes y el circuito impreso si lo tienes gracias

          Comment


          • #6
            PLEASE, use translator to correct your errors

            Originally posted by jantnadal View Post
            hola mesy al diagrama le faltan circuitos imtegrados segun el diagrama del deepers 8 me podrias enviar los componentes y el circuito impreso si lo tienes gracias
            Translation with Google:
            Hello MESY, the missing circuit diagram according to the diagram imtegrados Deepers 8 could send me the components and the PCB do thanks.
            Google detected that "imtegrados" is written erroneous in Spanish.

            Comment


            • #7
              Originally posted by mikebg View Post
              Translation with Google:
              Hello MESY, the missing circuit diagram according to the diagram imtegrados Deepers 8 could send me the components and the PCB do thanks.
              Google detected that "imtegrados" is written erroneous in Spanish.
              imtegrados, bad. integrados, correct. This mean ICs, integrated circuits.

              Comment


              • #8
                Hi according to the diagram appears u6b u4b and which do not have the number of Ics shipping according to the diagram do not appear in MESYAS if anyone has please put it through

                Comment


                • #9
                  hi to all freinds

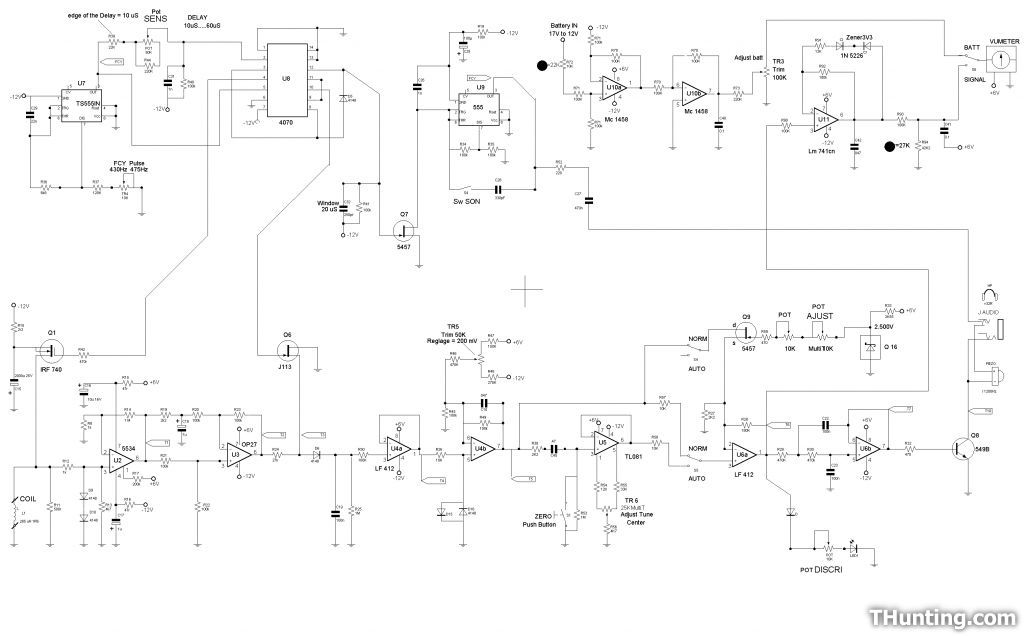

                  this pcb os according this schematic
                  G.L
                  Attached Files

                  Comment


                  • #10

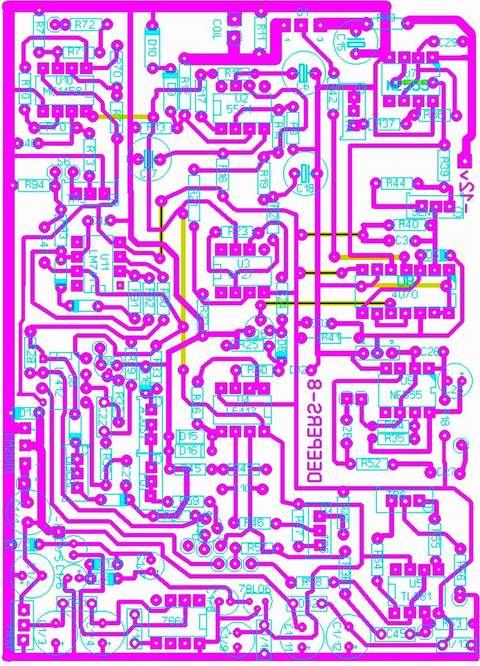

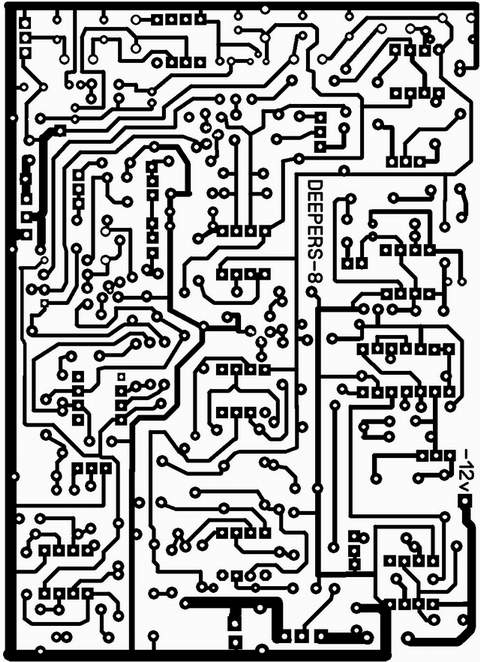

                    PCB

                    Need to verify the error. Did my friend, and George adjusted. The results please let this topic.
                    Attached Files

                    Comment


                    • #11

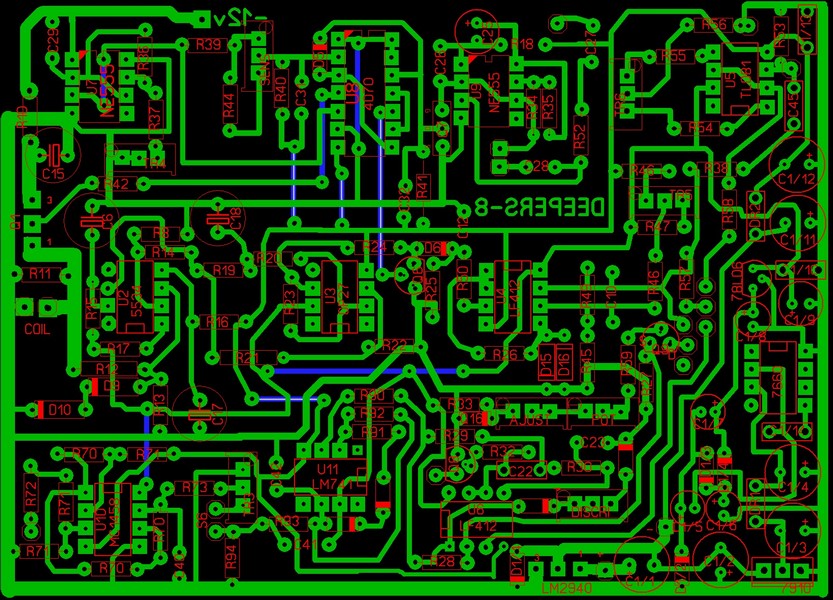

                      PCB+comp...
