Fisher CZ 5 Schem+PCB for exchange

[jackdetect]

Hallo fellows,
CZ 5 has few interest solutions.I can send this schematic by email, in excange for other serious schematics of metal detectors.
Salute!

[PhilippeM]

Re: Fisher CZ 5 Schem+PCB for exchange

HI jack detect,
You can fund a lot of informationS , schematicS, ideaS every where in this site so you can give us all your information in exchange: what do you think about this ?????Regards
PhilippeM

[kt315]

Re: Fisher CZ 5 Schem+PCB for exchange

I have on Whites 6000 Di Pro and TM-808.
is it the subject?

[jackdetect]

Re: Fisher CZ 5 Schem+PCB for exchange




Hallo,
First, cz5 schematic is not original manufactory, and I think nobody have original schematic yet. I work 3 month on this schematic. Unfortunately, I lose patience, and cz5 schematics only draw with pencil, and scan. But I done it well, and schematic is fully operative.Protel PCB file has two boards, with thin top and bottom layers, because of descriptive reasons.
Second, you must know, cz5 is extremely complicated metal detector, and almost impossible to reproduce. I make my one simplify version of him. But, he has some advance solutions, unseen in elder models. And I think, maybe quite productive for my colleagues designers, and also, for service. Of course, either obscurity on the schematic, I can help.
If you still interest, email me.
I know, thet another schematics whose circulate on internet, but I catch only 1266.
I nead all schematics, because I also repair detectors.
I wish to share all my informations with other friends, but at right time.
Sorry for bad english.
Salute, Jack.

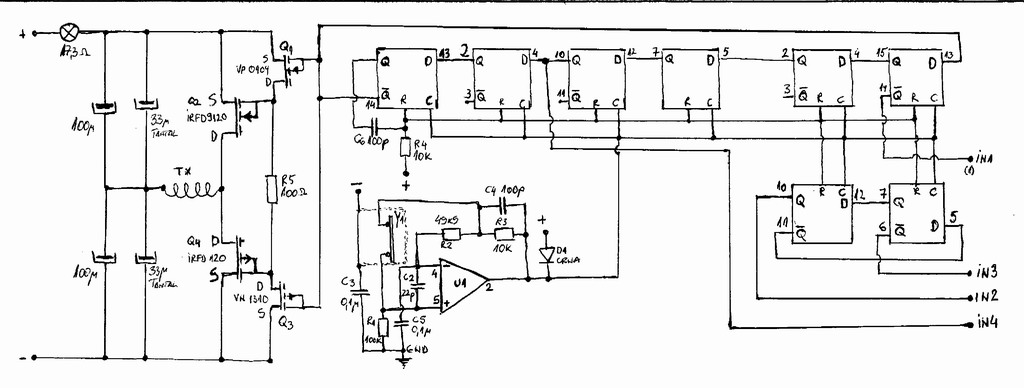

p.s. I send part of sch. oscillator+transmitter

[PhilippeM]

Inventory

Hi,
what did you have?
What do you want?
regards
PhilippeM

[jackdetect]

Re: Inventory




Hallo,
I want:
Fisher 1212 and 1280
Minelab Sovregn, Elite, Relic Hawk
TM 808
Lorenz,Puls Star
Thank for fellows which are already send me some schematics.
Salute,
Jackdetect

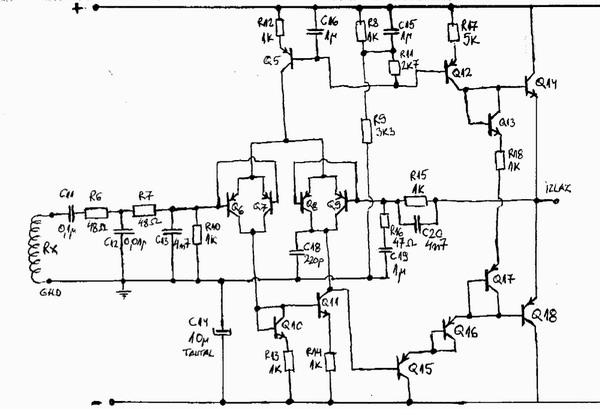

p.s.cz5 preampl. with discreet comp.

[Gene L.]

Re: Inventory

Yes I would like Minelab Eureka Gold,Whites GMT "e"series.And Garrett Infinium. See I dont ask for much.Oh and also Garretts 2500. Thank-You Gene L.

[jackdetect]

I would like EM61

I was only ask for Schematics whose alredy circulate between you fellows.
Sorry, if I want so much.
Salute,
Jackdetect

[Gene L.]

Re: I would like EM61

Hello, Was a beautifull schematic just posted, a Whites tm-808 , excellent deep seeker also. Probably as good or better than Em61 . Take care Jack ,bye Gene L.

[jackdetect]

Re: I would like EM61

Are you joke with me?
Two box detectors without diferential receive coils?
They are excellent deep seekers only for a ground disturbance!
Good hunt with tm808.
I repeat again, I nead schematics of comercial metal detectors, only for repair.
Salute,
Jackdetect

[Gene L.]

Re: I would like EM61

>Are you joke with me?
>Two box detectors without diferential receive coils?
>They are excellent deep seekers only for a ground disturbance!
>Good hunt with tm808.
>I repeat again, I nead schematics of comercial metal detectors, only for repair.
>Salute,
> Jackdetect
No joke. I hope you find schematic. Keep checking this forum. Bye Gene L.

[ot283]

Hallo,
First, cz5 schematic is not original manufactory, and I think nobody have original schematic yet. I work 3 month on this schematic. Unfortunately, I lose patience, and cz5 schematics only draw with pencil, and scan. But I done it well, and schematic is fully operative.Protel PCB file has two boards, with thin top and bottom layers, because of descriptive reasons.
Second, you must know, cz5 is extremely complicated metal detector, and almost impossible to reproduce. I make my one simplify version of him. But, he has some advance solutions, unseen in elder models. And I think, maybe quite productive for my colleagues designers, and also, for service. Of course, either obscurity on the schematic, I can help.
If you still interest, email me.
I know, thet another schematics whose circulate on internet, but I catch only 1266.
I nead all schematics, because I also repair detectors.
I wish to share all my informations with other friends, but at right time.
Sorry for bad english.
Salute, Jack.
p.s. I send part of sch. oscillator+transmitter

Hi Jack,
Did you have some grogress with the cz5 schematics? do you have its block diagram? I think that i have som corrections for you. please reply. Oded, Israel.

[Qiaozhi]

Hi Jack,
Did you have some grogress with the cz5 schematics? do you have its block diagram? I think that i have som corrections for you. please reply. Oded, Israel.

Hi Oded,

Unfortunately Jack passed away last year.
Here is the full schematic, but there are many details missing.

[Unregistered]

Hi Oded,

Unfortunately Jack passed away last year.
Here is the full schematic, but there are many details missing.

Sorry to hear about Jack, God may keep his sole.
Thanks for the schematic. I'm familier with those.
I'm looking for the corrected version or for any other CZ5/6 schematic that are more readable.
Thanks again.
Oded.

[kt315]

hi folks,

much from you asked me to fresh what I have on CZ-5...-6 matter. I have done it now.

enjoy!
http://rapidshare.com/files/36626686...r_CZ5.zip.html
