    hi to all

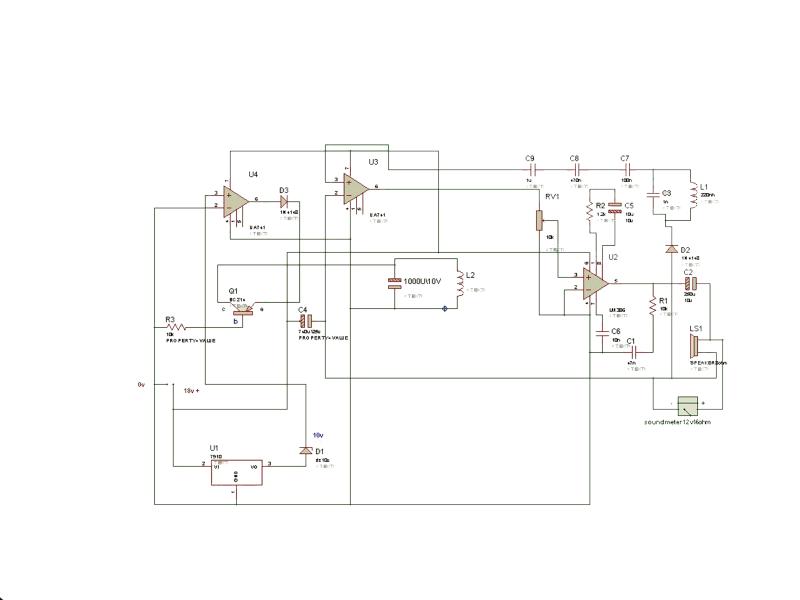

    This sketch plan from me,Is it possible will succeed in the detection of metal


    Attached Files

  • #2
    Hi alnamr. At what distance in the air detected by 25mm coin? Image resolution is weak, I can not see the elements.

    Comment


    • #3
      hi maikl

      how are u see list
      u1 7910
      u2 lm386
      u3andu4 ua741 ampl
      c1 47n
      c2 250u\10v
      c3 1n
      c4 740u\25v
      c5 10u\10v
      c6 10n
      c7 100n
      c8 470n
      c9 1u
      c10 1000u\10v
      r1 10k
      r2 1\2k
      r3 10k
      vr1 10k
      d1 zener 10v
      d2and3 1n4148
      q1 bc214L AMPLIFIER TRANSISTOR

      LS 1 8 OHM SPEKER AND SOUND METER 12V 16 OHM

      l1 3\5 swg 200 torn 12\5cm
      l2 3\5 swg 80 torn 25 cm

      Wish I would have discovered how much Hz will produce thes board
