Need this circuit printed circuit board

[yhl]

我发现这在波兰的文章。但不打开里面的脱氧文件/
我需要打印的PCB
http://www.lucaslab.grandhost.pl/luc...krywacz_PI.htm

[Qiaozhi]

我发现这在波兰的文章。但不打开里面的脱氧文件/
我需要打印的PCB
http://www.lucaslab.grandhost.pl/luc...krywacz_PI.htm

It looks like an Eagle schematic.

Very nice homemade PI project. TX is 100pps with 16" coil.

[cordius]

i've read in post 14 http://www.geotech1.com/forums/showthread.php?t=17019 it detect a money at only 10 cm it's possible?
excuse my english

[Qiaozhi]

i've read in post 14 http://www.geotech1.com/forums/showthread.php?t=17019 it detect a money at only 10 cm it's possible?
excuse my english

The website says it can detect a liter can of paint at 80 to 100cm with 40cm diameter coil, and a coin at 25 to 30 cm. With a 1meter coil it can detect a large target at 6m. It has one 12V 1.3AH lead-acid battery with a 12 hour battery life.

[cordius]

The website says it can detect a liter can of paint at 80 to 100cm with 40cm diameter coil, and a coin at 25 to 30 cm. With a 1meter coil it can detect a large target at 6m. It has one 12V 1.3AH lead-acid battery with a 12 hour battery life.

very thank's i try to built it for homemade experiments!
Do you know if this video http://www.youtube.com/watch?v=cgM_bJMGiFk is for this project?
Do you know were is connected the meter in the pcb layout?
Thank's again!!

[Qiaozhi]

very thank's i try to built it for homemade experiments!
Do you know if this video http://www.youtube.com/watch?v=cgM_bJMGiFk is for this project?
Do you know were is connected the meter in the pcb layout?
Thank's again!!

That's not the same detector in the video. The website says it is a standard PI that detects all metal, but the one in the video has the possibility of discrimination.

[cordius]

That's not the same detector in the video. The website says it is a standard PI that detects all metal, but the one in the video has the possibility of discrimination.

no matter, is good for more experience

[kt315]

That's not the same detector in the video. The website says it is a standard PI that detects all metal, but the one in the video has the possibility of discrimination.

this is a PI, like Proscan or a clone of Proscan (thinking very popular in Poland) but with some additional attachment (module) that has a possibility to discriminate.
to be more objective to this vid...

Wykrywacz metali, typu ''PI'' z podwójnym modułem do rozróżniania rodzaju metalu i wielkości znaleziska. Puse induction metal detector with distinguishing.''PI'' . TEST

[yhl]

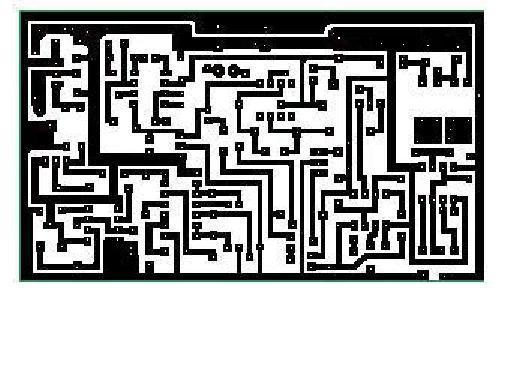

Who can make the PCB

PCB

[yhl]

Who can change into a black and white printing PCB

[yhl]

I've found it. Can you tell me a better change

xiexie 谢谢

[WM6]

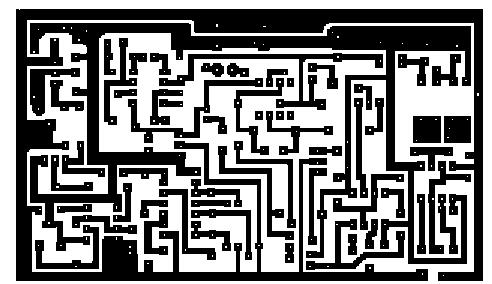

maybe more clear

[yhl]

Need to in diameter . 40 cm and 1m , the coil parameters

Need to in diameter . 40 cm and 1m , the coil parameters

[cordius]

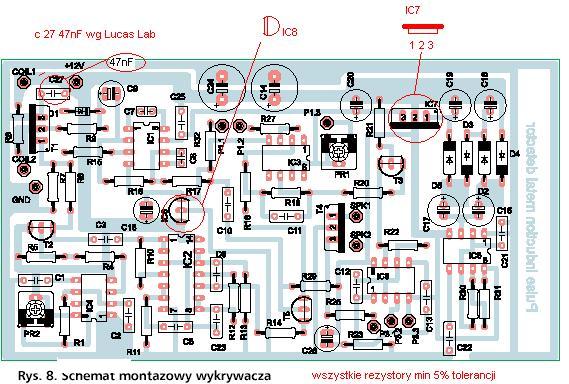

Ic 7 is rotate? are you sure?

[yhl]

Picture is wrong, I just found the PCB.
I'm also doing the circuit.
Do you think this circuit you? You ready?
