  • Hi thunderbolt
    thank you ,A useful addition to each on her time,I hope more when given the chance.
    best time
    j.

    Comment


    • Thanks this will help me a lot
      Originally posted by thunderbolt View Post
      below is a quick setup guide, there are some misunderstandings as I saw from your messages
      so I put this guide to correct most of you before you complete the device
      it is mostly compatible with the original setup guide except first 3 chapter.

      1- 4094 need to be TTL, 5V, 74hc series
      - 4051 need to be CMOS, 12V, hc series
      - GLCD can be WinStar 12864B, you can connect it one by one with a HardDisk cable
      RX resistors for Winstar12864B are R37:2.2K, R40:6.8K


      2- coil resistance can be between 3-4R, inductance need to be minimum 400-500uH,
      dampening resistor for coil need to be 680R metalfilm 2W


      3- schottky can be byw29e, if you cant't find this part make it short circuit


      4- see 12V at VD7 pin


      5- points need to see 5V
      - PIC pin 11
      - U3(4094) pin 16
      - GLCD pin 14
      - the jumper just under C25


      6- jumper the pins of PIC 11 and 8 (IC powers activated)
      don't forget to remove this jumper after test


      7- points need to see 12V
      - D3 (TL062) pin 8
      - D2 (TL062) pin 8
      - U2 (4051) pin 16
      - R60
      - D1 (4066) pin 14
      - the jumper over C12
      - D5 (4066) pin 14


      8- points need to see -E (1.4V)
      - D2 (TL062) pin 4
      - D3 (TL062) pin 4
      - D7 (TL062) pin 4
      - D4 (LF356) pin 4
      - D1 (4066) pin 7
      - D5 (4066) pin 7
      - the jumper below R14
      - the jumper between C28 and C29
      - Q3 S pin
      - Q4 S pin

      9- put all ICs except PIC and GLCD


      10- points need to see +E
      - D7 (TL062) pin 8
      - D4 (LF356) pin 7
      - D6 (TL082) pin 8

      11- adjust TR1 to see 6.22V at D6 pin 5


      12- points need to measure 180Hz
      - VD10
      - R84 and R90
      - R85
      - D1 (4066) 5,6,12,13 pins




      13- you need to see 5.3V at D3A, 1st or 2nd pins
      this measurement need to be done between opamps - or + supply pins
      forexample you can measure between D3 pin 1 and D2 pin 4 or pin 8
      if you can't see this measurement
      problem source can be one these:
      - VD12-VD15 diodes damaged
      - R78, R83 100K resistors are not true
      - D3 opamp damaged


      14- TE9 line (t1 collector) need to between 7-9V
      if not, problem source can be:
      if gain high TE9 line can be greater than 11.2V
      if gain is low 2N7000s or 4066s are damaged

      Comment


      • Hi to all

        I need .lyt format of pcb

        can you help me

        Regards

        Comment


        • Hi mrmr16
          None at now lay. out format of pcb of DP3.
          best time
          j.

          Comment


          • Hy All!

            Have got someone the hex file for Delta Pulse 3 yet?
            If yes, please send me a PM!

            Thank you!

            Comment

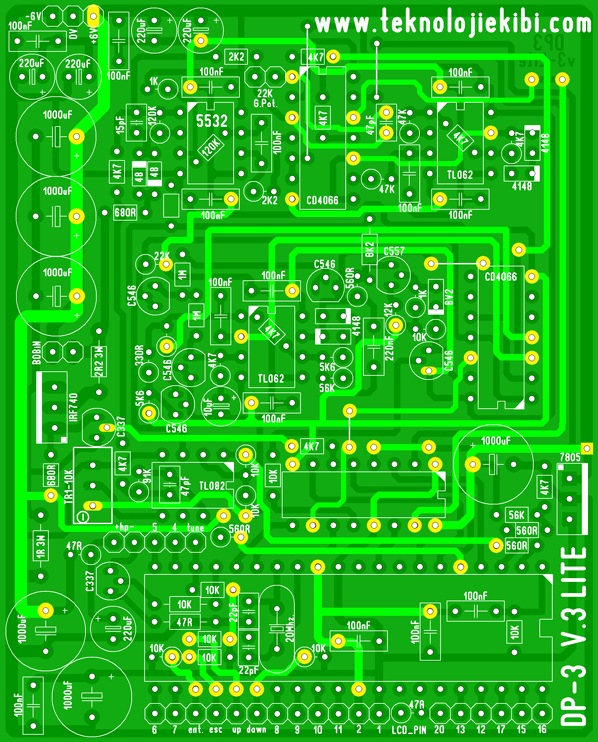

            • New PCB

              Click image for larger version

Name:	dp3lite.jpg
Views:	1
Size:	545.3 KB
ID:	333483

              Comment


              • Hex file English

                http://www.teknolojiekibi.com/yeni/i....0;attach=2805


                Follow updates here http://www.teknolojiekibi.com/yeni/i...p?topic=3797.0

                Comment


                • Hi Pasha.
                  I did not find 74VHC4051N.
                  I found HEF4051BP and HCF4051BE.
                  Can I use one of them ?

                  THANKS

                  Comment


                  • Hi volcano
                    74VHC4051N TTL type ,HEF4051BP and HCF4051BE CMOS type.
                    -------------------------------------------------------------------------------

                    you Can use HCF4051BE, 74hc 4094



                    best time
                    j.

                    Comment


                    • Originally posted by jap View Post
                      Hi volcano
                      74VHC4051N TTL type ,HEF4051BP and HCF4051BE CMOS type.
                      -------------------------------------------------------------------------------

                      you Can use HCF4051BE, 74hc 4094



                      best time
                      j.
                      thank you Jap.

                      Comment


                      • Hi
                        Pasha, a week ago I sent a message
                        But ever answer my emails and private messages
                        plz answer my email and pm
                        tnx.

                        Comment


                        • Originally posted by hadi-dindar View Post
                          Hi
                          Pasha, a week ago I sent a message
                          But ever answer my emails and private messages
                          plz answer my email and pm
                          tnx.
                          Hi hadi-d!

                          I did not get the email from Pasha!

                          Best regards

                          Comment


                          • pasha plz check your email and pm box

                            best regards

                            Comment


                            • Hi all
                              please I need the name of this component (SPEAK)

                              Comment


                              • SPEAK= speaker connection

                                Comment
