My Digital Pulse detector Delta Pulse 3

[jap]

Hi All!

I Almost done with the soldering, but I need some informations:

- I bought a LCD, this: http://www.ebay.co.uk/itm/160375870532 , than i would like know which resistors need to? R37, R40
- P1 is 3 pin, than wire go to LEDs?
- D8, Idont found Schottky, which value is it?


Thx

Biogas

Hi Biogas
-For U glcd R37=2.2K,R40=6.8K,R43=47.
-For D IF NOT =SHORT
-P1 is 3 pin?--->PIN2 IN P1 COMMON +12V
best time
j.

[Biogas]

Hi Biogas
-For U glcd R37=2.2K,R40=6.8K,R43=47.
-For D IF NOT =SHORT
-P1 is 3 pin?--->PIN2 IN P1 COMMON +12V
best time
j.

Hi Jap!

Thank your help!

Can you share your DP3 photo? (I would like see, what I wrong done... :/)

Thx

Biogas

[Biogas]

Hi Jap!

I need a lot of help, what I write whit red bolt italic.

Frequent questions for DP3 ver3 and easy board was divided into parts as schematic:-
1 - part of the coil and power.
2 - part Charger and can not mounted it.
3 - part programmed controller + keyboard + audio{SP} out.
4 - part GLCD and control.
5 - part scope and its components.
6 - part determine the type of metal and match between the signals used by pic.
7 - part of a normal delta pulse .
-----------------------------------------------
I've put all the notes in every part of the answer to all questions.[*]-dEMO HEX =~ver3 used only in ver 3 pcb.
-start test with coil 40cm , 3~4 ohm,400~500uh. How many is the wires diameter and how many turns? For 1x1 m coil, have you information? Wires diameter (CAT5 is ok for it?) and how many turns? (4 m CAT5 wires is enought?) And how can I connect to the 5 pin connector? Or I need just a 2 (or 4) pin connctor? Than conncet 8 wires to 1. (or 1-2.) and the another side the 8 wires to the 2. (3-4.) pin(s)?
-Must use keyboard sw1~5. 1-5 pins are 5 keyboard, what is the 6. pin?
-follow measure at points as schematic & PDF .
-adj TR1 Will help in setting.
-all value of R,C are All worked and change values for improvement.
-All value of R=560 will changed later to improve performance.
-All value of R of U2,D6 Can be modified to obtain the best results.
-Most problems of choose different types of GLCD and followed connection method.
-R43,37,40 Changed for the relation for GLCD[part 4].
-in case not use Charger ,can use sw on/off in P3[part2].
-all C 100n is mk type.
-There are important components in the function, such as Q3,4=2n7000,Q6=BS250,D4=LF357,D6,Q5,Q9,U1.
-Responsible for higher sound both T14,R79.
-Responsible for the delay in the start vd12, C22,C24,C28.
-The difference in results is due to the difference in components and quality of connections of the pcb.
best time
j.

For battery pack is enough 10 (or 12) 1,2V AA 2-3000 mAh battery, or I need another 12V battery whit high capacity (mAh)?
What is it the two leds? (Low battery and battery charging?) First Pin is a LED, third Pin is an another LED, and what is the second pin? (+12v coonnect?)

Thank you!


Best regards

Biogas

[jap]

Hi Biogas
-see!
best time
j.

[jondek]

Hi!
Is Pasha still selling pic? I would be interested to buy pic or kit.

Best wishes Joni

[volcano]

Hello Jap
Please do not go out from Forum
I have some questions

[volcano]

Hi Jap
Thank you very much
You have guided me to change somes resistors in the in my 1st project (PIM-2).
And I have done the same thing with the 2nd project (DP3).
Now I am very interested for DP3.
But I have a problem ( the display run without coil normaly, and it does not run when I connect the coil)
and when it is ON, just I connect the coil, it will be OFF .

THANKS

[jap]

Hi volcano
-When it switches off when you connect the coil it means it is working short on the battery voltage decreases and thus reduced voltage of +5 volts
-the IRF740 bad
-change VD7,VD8
-Test & change VD12,13,15,C22,C24
best time
j.

[volcano]

Hi volcano
-When it switches off when you connect the coil it means it is working short on the battery voltage decreases and thus reduced voltage of +5 volts
-the IRF740 bad
-change VD7,VD8
-Test & change VD12,13,15,C22,C24
best time
j.

Hi Jap

You are right

when I run, the tension decrease to +5V

So I will do all what do you say to me

thanks

[volcano]

Hi Jap
you are really wonderful
thank you very much
I changed IRF740 and and diodes.
Finally, the display is ON with coils.
But it remain a one problem : ( I can not get this bandwidth ).



I want to say that I have the first problem ( the PIC can not detect the coil )

THANKS

[turboaleks]

Hi,

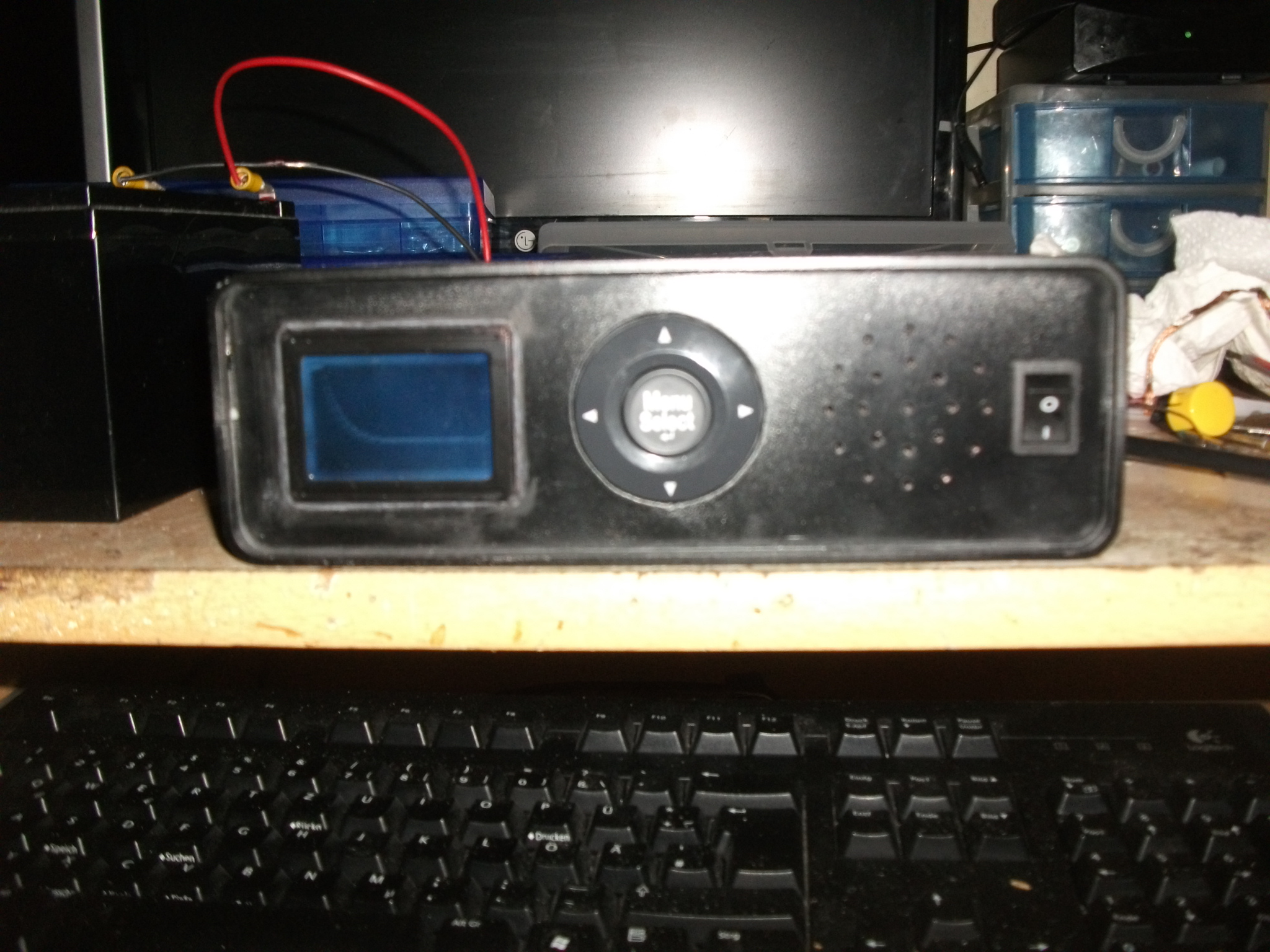

finally my OSC looks like this:

[volcano]

Hi turboaleks

Congratulations to you

[Biogas]

THX

Hi Biogas
-see!
best time
j.

Hi Jap!

Thank you!

If I have time, than I do it onward, because under Family (1 year olds girl), and under Work it is not possible...

[turboaleks]

Thank you Volcano. I hope you will finish your DP3 soon.

[volcano]

Hi Jap
it remain a one problem
the PIC can not detect the coil.
the IRF740 is very hot when I connect the coil.
I can not get this bandwidth.



thanks
