  • Pulse Induction History and Theory

    I have quite a lot of historical material and background theory so the idea of a separate thread is to keep much of it in one place, particularly complete papers. They will not necessarily be in date order, but to start things off here is a landmark paper by F. B. Johnson of the Signals Research and Development Establishment. The paper was written in 1956 when the Army was interested in investigating new technology for locating unexploded bombs. The research covered the basic theory of PI in some depth and is still relevant today. At the time though, the military lost interest because they felt that there was a likelyhood that a magnetically activated fuze would respond to the pulsed field and explode the bomb.

    Eric.

    Johnson FB005.pdf

  • #2
    Eric, thank you very much for starting this thread and posting these documents which are of great importance and help to us.

    Tinkerer

    Comment


    • #3
      Very nice... almost all of the design criteria for both the coil and the electronics are discussed in this paper, even though it is from 1956. Thanks!

      Comment


      • #4
        The comments on the margin are also very informative. Thanks.

        Comment


        • #5
          Originally posted by Davor View Post
          The comments on the margin are also very informative. Thanks.
          Here are some further comments, corrections, and observations by John Alldred, who worked for me in the 1970's.

          Eric.

          John A's Comments001.pdf

          Comment


          • #6
            Damn it!, where can I get a thyratron? *LOL*
            (No, I'm not going to build a thermo nuclear bomb igniter with it.)

            Thanks Eric. Very interesting.
            Aziz

            Comment


            • #7
              Originally posted by Aziz View Post
              Damn it!, where can I get a thyratron? *LOL*
              (No, I'm not going to build a thermo nuclear bomb igniter with it.)

              Thanks Eric. Very interesting.
              Aziz
              You don't need anything as high tech as a thyratron, just use an ordinary iron clad mains switch. It was good enough for Johnson.

              Comment


              • #8
                Here is the next installment, although going backwards in time to 1955. This is the paper by Westcott that Johnson cites in his work.

                Eric.

                Westcott002.pdf

                Comment


                • #9
                  Eddy Current Method for Measuring the Resistivity of Metals. 1959.

                  A paper from 1959 which is relevant to PI.

                  Eric.

                  Bean et al001.pdf

                  Comment


                  • #10
                    Utilisation of Magnetic Viscosity Effects in Soils for Archaeological Prospection

                    1966 paper on the application of PI to location of buried pits, ditches, etc.

                    Eric.

                    Colani 1966 001.pdf

                    Comment


                    • #11
                      I really enjoy reading your pdf articles, keep'em coming. Thanks!

                      Comment


                      • #12
                        Originally posted by Ferric Toes View Post
                        Here are some further comments, corrections, and observations by John Alldred, who worked for me in the 1970's.

                        Eric.

                        [ATTACH]22392[/ATTACH]
                        Thyratrons can be found on Ebay--I bought one for experimentation. Advantages: very low on resistance, can handle very high currents and can tolerate high voltage without breakdown, in contrast to semiconductor devices.

                        Prospector_Al

                        Comment


                        • #13
                          Originally posted by Prospector_Al View Post
                          Thyratrons can be found on Ebay--I bought one for experimentation. Advantages: very low on resistance, can handle very high currents and can tolerate high voltage without breakdown, in contrast to semiconductor devices.

                          Prospector_Al

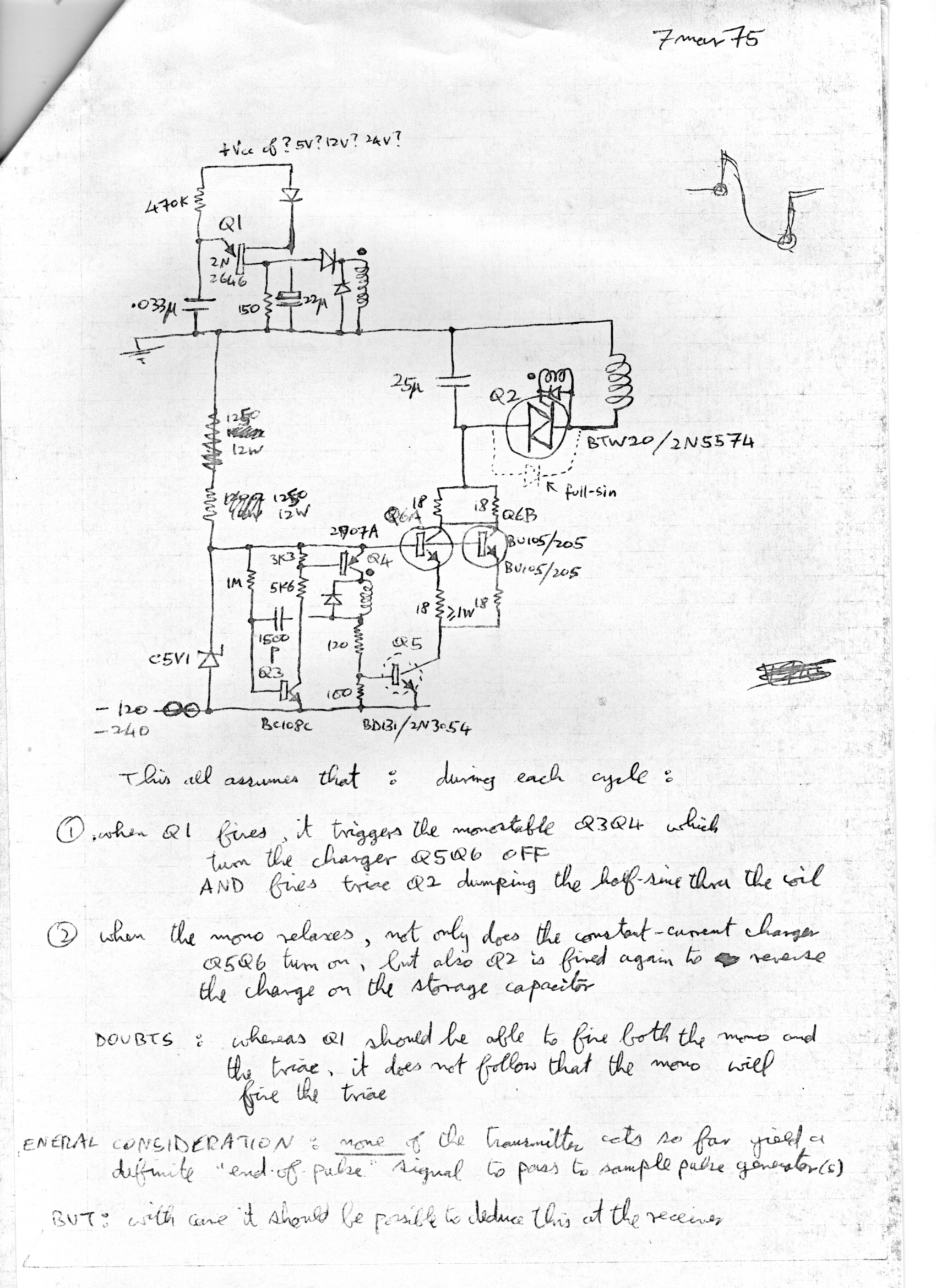

                          In 1975 John Alldred and I tried a 2N5574 TRIAC device for a 1/2 sine transmitter. Worked fine and a pity we did not pursue it further.

                          When I worked at Mullards there was a thyratron device that pulsed current through a 1/2in square copper bar to magnetize magnetron magnets. Hate to think what the peak current was but the bar was hot after just two or three pulses. The pulser was in a room of its own and you could audibly hear the thump of the current when the discharge button was pushed.

                          Eric.

                          Click image for larger version

Name:	Triac Pulser002.jpg
Views:	1
Size:	981.8 KB
ID:	334523

                          Comment


                          • #14
                            Thanks Eric for sharing.

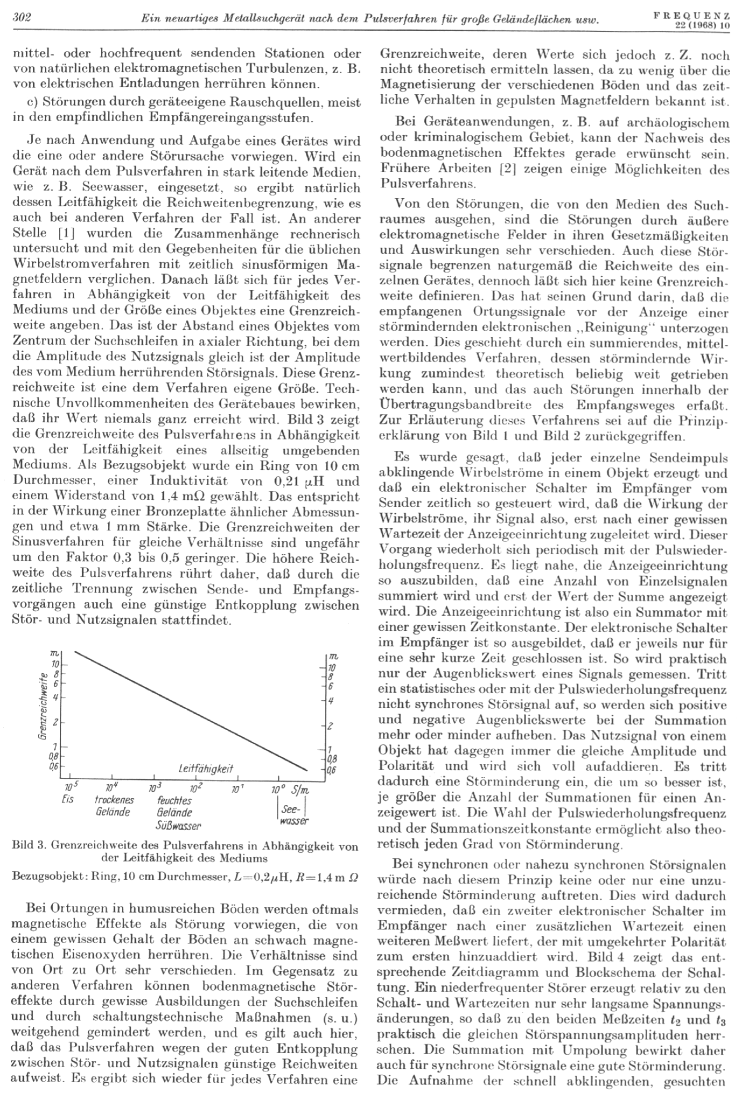

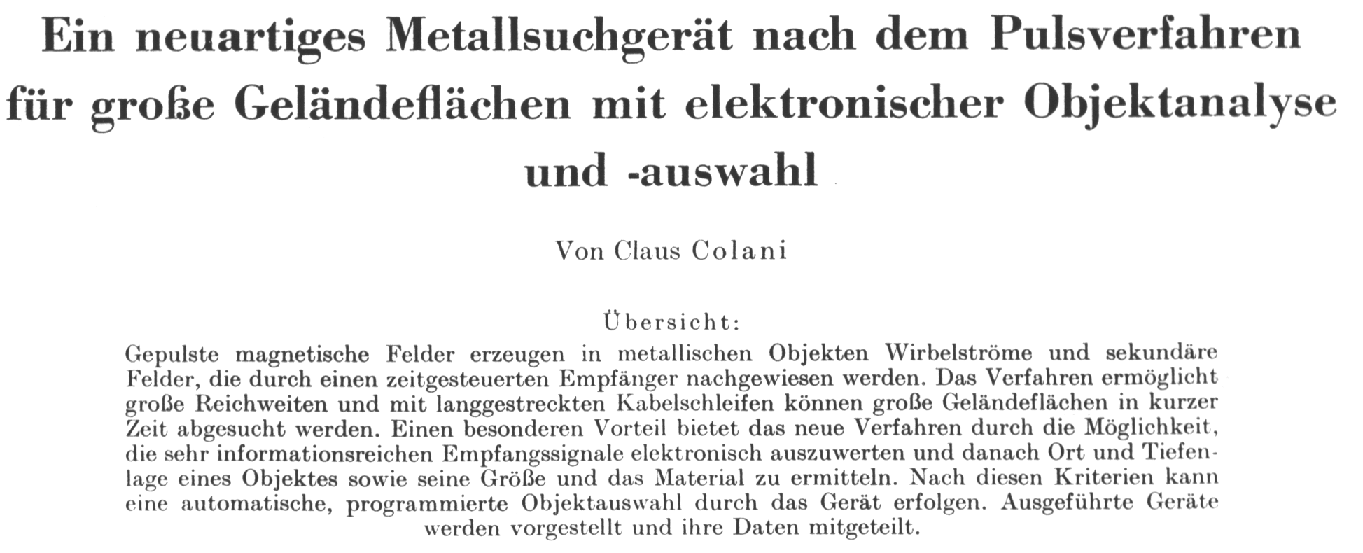

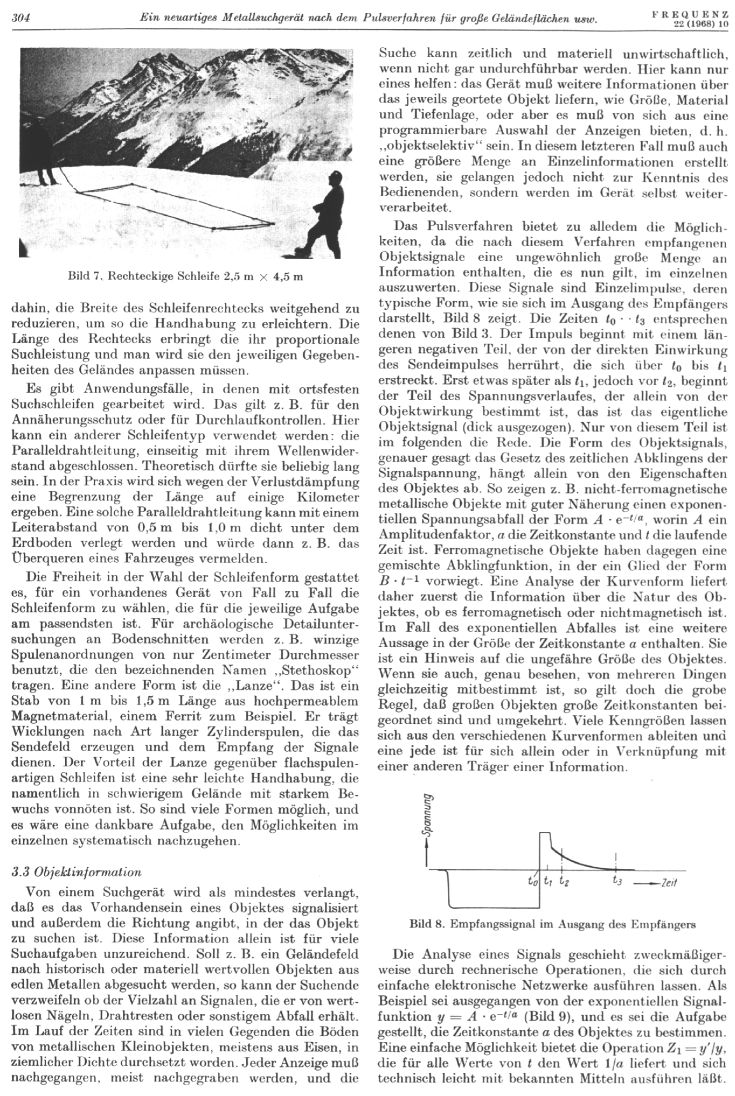

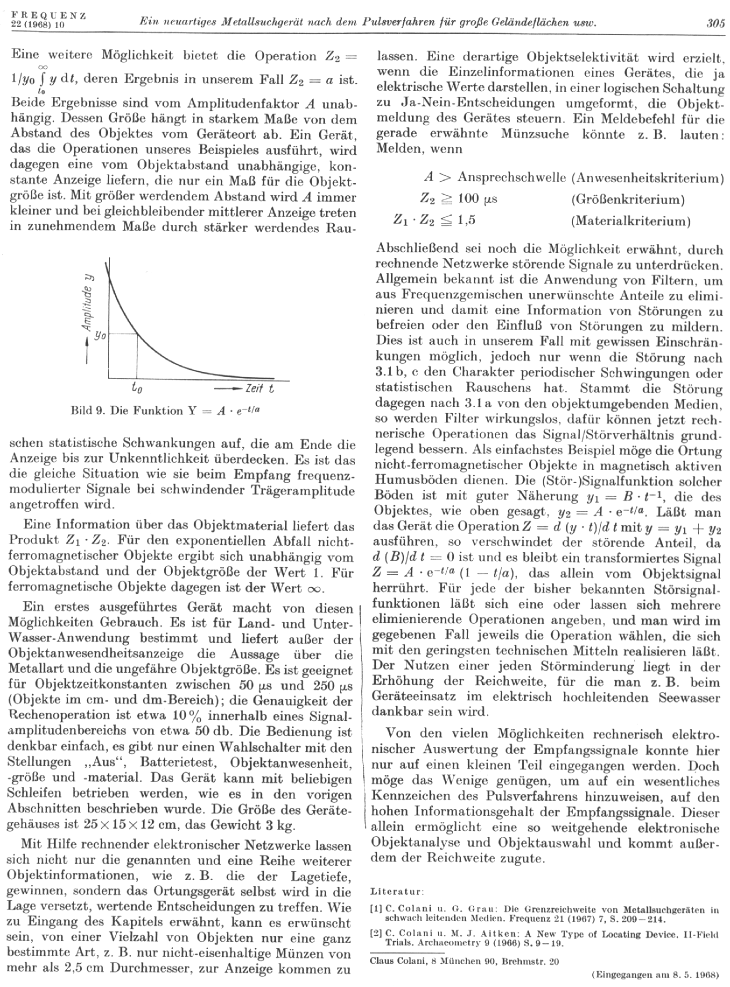

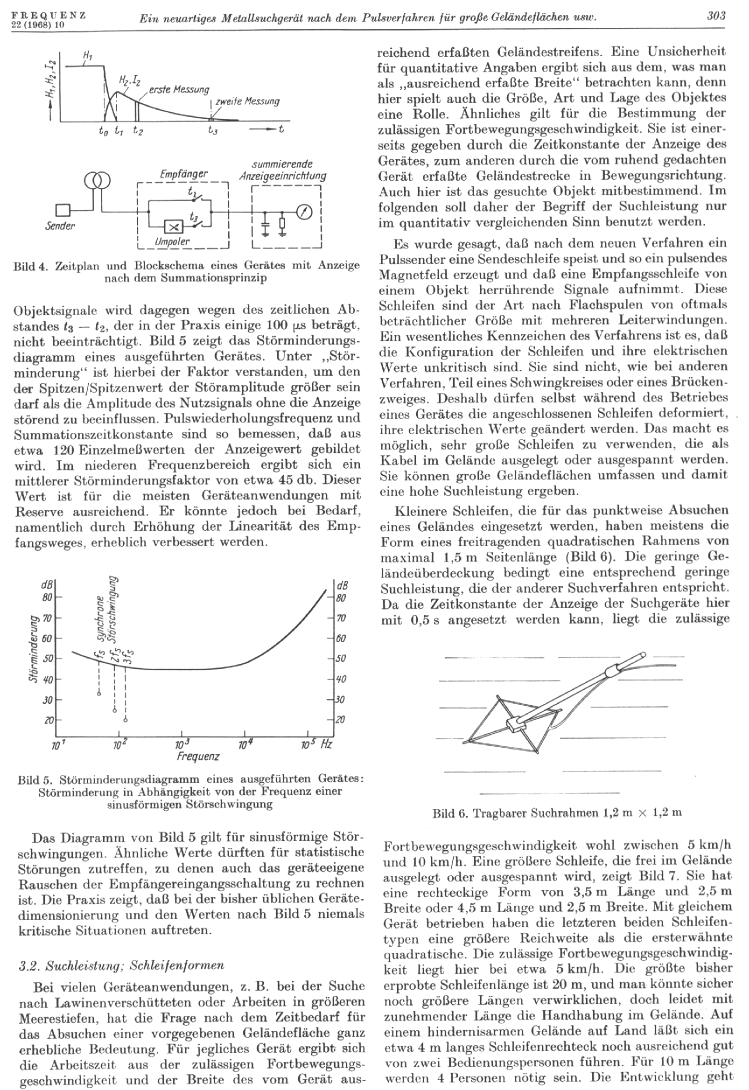

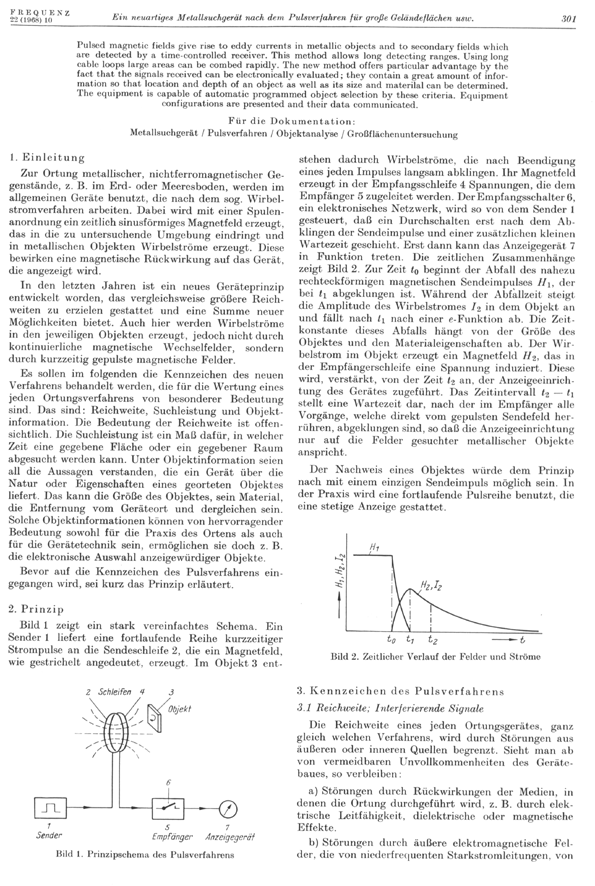

                            Since you skipped to the 1975, I am adding Colani's article from 1968. It is in German. I believe it is still interesting for all.

                            Actually, I would love to see more materials in German, Russian or other 'not-english' languages.

                            proscan

                            Click image for larger version

Name:	colani1a.gif
Views:	1
Size:	157.8 KB
ID:	334525Click image for larger version

Name:	colani1sm.gif
Views:	1
Size:	210.6 KB
ID:	334526Click image for larger version

Name:	colani2.gif
Views:	1
Size:	375.9 KB
ID:	334527Click image for larger version

Name:	colani3.gif
Views:	1
Size:	303.9 KB
ID:	334528Click image for larger version

Name:	colani4.gif
Views:	1
Size:	408.7 KB
ID:	334529Click image for larger version

Name:	colani5.gif
Views:	1
Size:	300.9 KB
ID:	334530

                            Comment


                            • #15
                              Thyratrons

                              Originally posted by Prospector_Al View Post
                              Thyratrons can be found on Ebay--I bought one for experimentation. Advantages: very low on resistance, can handle very high currents and can tolerate high voltage without breakdown, in contrast to semiconductor devices.

                              Prospector_Al
                              Hi Eric,

                              I have two EEV CX1622 thyratrons. 35 kV/5000 A. This is for the "Giant Nugget" detector, for Australian use.

                              You can have one ($600.00) if you wish--bought on Ebay--condition unknown at this time, but they look great.

                              Allan

                              Comment
