  • Originally posted by Dave J. View Post
    Haven't tried it, but seems to me that the "two rings" method of simulating nonconductive magnetic viscosity ought to be able to approximate pretty well a typical magnetic viscosity curve on a given piece of experimental apparatus.

    --Dave J.
    I did tried, actually built one completely mechanical “variable TC” simulator, using two coins and variable distance adjustment. Amplitude changes too, but time constant can be continuously adjusted, it works, nice test gadget.

    Comment


    • See the field test measurement results for the hot mineralized and varying Oz ground.
      Vertical unit: mV (0 .. 2000 mV)
      Horizontal unit: µs (0 .. 150 µs)

      Zip-file containing the pictures:
      MicksDataV2-Test2-LongPulse-12pics.zip

      The premium AEGPF members will get more: The original Excel file.


      Cheers,
      Aziz

      Comment


      • New measurements with 7 µs delay

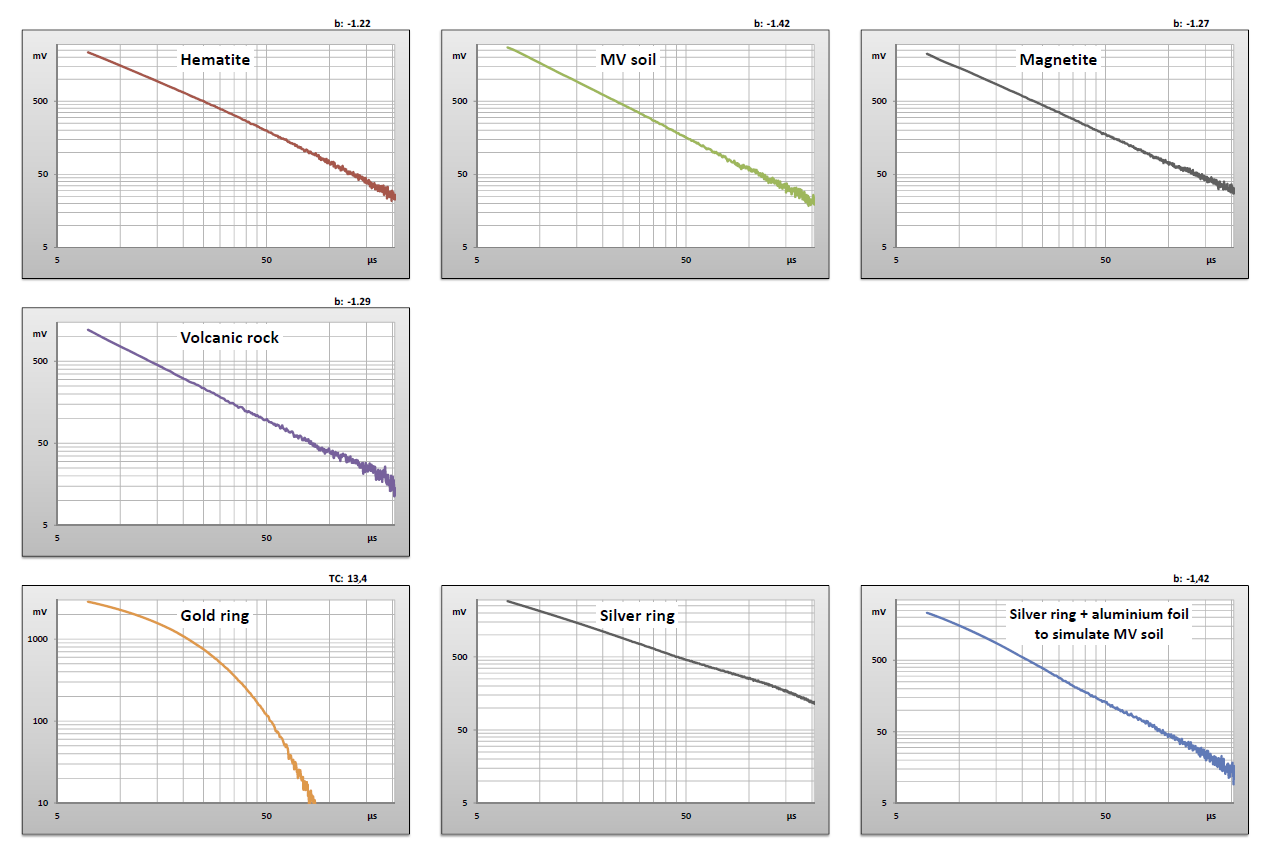

        Here are new measurements with a delay of only 7 µs (i.e. 50 µs TX on, 2 µs TX off, then 7 µs delay). This is shortest time possible with the current setup. Horizontal range: 5 to 205 µs, with the curves starting at 7µs. Vertical range: 0 mV (lin) resp. 5 mV (log) to 3000 mV (1500 mV for volcanic rock).

        Excel file: decay_curves_03a.rar

        Notes:
        • There is no time offset, i.e. p=0
        • The dynamic range is higher (1:100 for the MV soil sample)
        • The hematite curve is not exactly straight in the log-log graph. There is a slight kink at about 30 µs – no idea why.
        • I had to use aluminium foil instead of the gold ring to simulate the viscosity decay. The resulting curve does not fit exactly, but I only spent a few minutes with adjusting the positions of the ring and the foil, so this could be improved.

        Unfortunately, I do not have any Oz samples ...

        Thomas

        Click image for larger version

Name:	decay_curves_log_03a.png
Views:	1
Size:	95.2 KB
ID:	338305
        Last edited by PiTec; 11-06-2013, 09:09 PM. Reason: Attachements updated

        Comment


        • Originally posted by PiTec View Post
          Here are new measurements with a delay of only 7 µs (i.e. 50 µs TX on, 2 µs TX off, then 7 µs delay). This is shortest time possible with the current setup. Horizontal range: 5 to 205 µs, with the curves starting at 7µs. Vertical range: 0 mV (lin) resp. 5 mV (log) to 3000 mV (1500 mV for volcanic rock).

          Excel file: [ATTACH]27105[/ATTACH]

          Notes:
          • There is no time offset, i.e. p=0
          • The dynamic range is higher (1:100 for the MV soil sample)
          • The hematite curve is not exactly straight in the log-log graph. There is a slight kink at about 30 µs – no idea why.
          • I had to use aluminium foil instead of the gold ring to simulate the viscosity decay. The resulting curve does not fit exactly, but I only spent a few minutes with adjusting the positions of the ring and the foil, so this could be improved.

          Unfortunately, I do not have any Oz samples ...

          Thomas

          [ATTACH]27104[/ATTACH]
          Thanks Thomas for your valuable effort. The exponent b is almost in the same ball park for Oz soils.

          See the attachment for the short TX pulses of the above measurements in Oz.
          MicksDataV2-Test2-ShortPulse-4pics.zip

          Cheers,
          Aziz

          Comment


          • I think the 1/t law has got totally screwed in a typical PI usage finally.
            The PI gurus owes us the explanation, when the 1/t law gets valid (if ever and the required conditions).

            Aziz

            Comment


            • Please explain why it is screwed. It is you that owe an explanation. Agreed that the exponent changes slightly due to the particle size distribution, but most other effects are down to electronic errors, particularly at early times. Noise at late times is a possible problem but that can be removed by filtering.

              Eric.

              Comment


              • Originally posted by Ferric Toes View Post
                Please explain why it is screwed. It is you that owe an explanation. Agreed that the exponent changes slightly due to the particle size distribution, but most other effects are down to electronic errors, particularly at early times. Noise at late times is a possible problem but that can be removed by filtering.

                Eric.
                Hi Eric,

                we can exclude electronic errors with simple single TC target responses. In the log/lin plot, it must be a straight line. If not, the non-linearity can be obtained and compensated. In the measurements we did with single TC target responses, the non-linearity in the early timings can be excluded. Noise can be excluded with oversampling too (averaging over many many measurements).

                We do not face with exponents of b = -1 in a typical PI configuration. These facts are based on many many different real field test measurements. I have processed a new set of measurement data today and they show the same fact.

                I hope Robby_H or Rafferty can explain it. *LOL*

                Aziz

                Comment


                • Ok guys,

                  we have found a much better VRM response model for non-conducting soils now.
                  Forget what I have written about.
                  More on the other forum.
                  More later here.
                  This is it:
                  G(t) = a*( (t+p)^b - 1/(t+p+w) )

                  Stay tuned..

                  Cheers,
                  Aziz

                  Comment


                  • More measuremets

                    Hi,

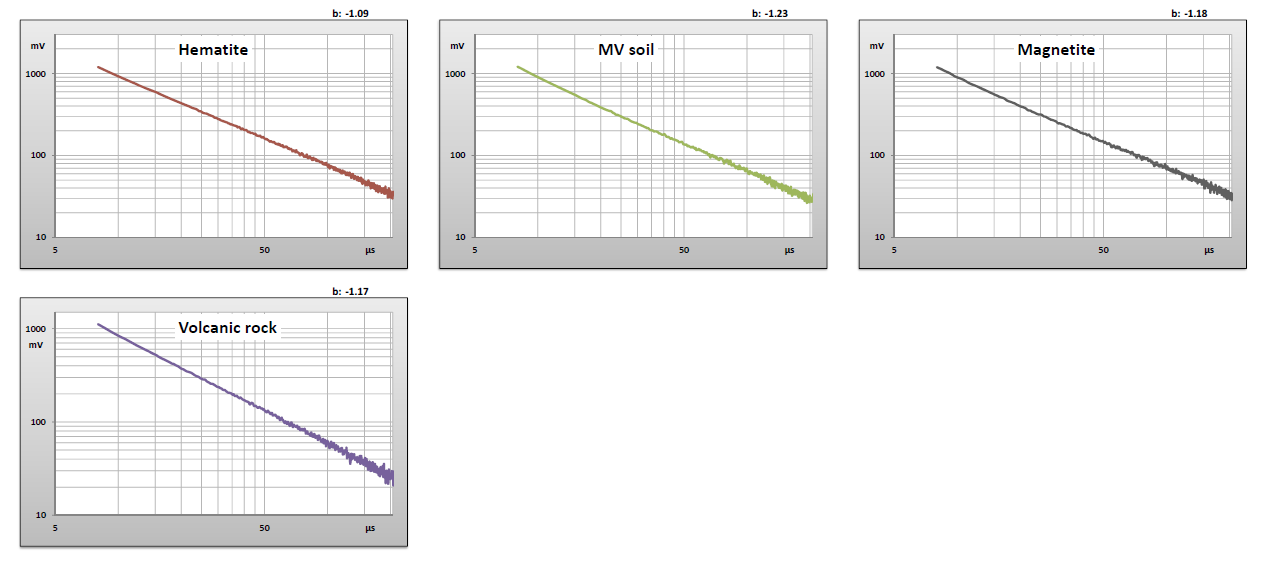

                    I made more measurements to show how the TX pulse widths affect the exponent b. The previous measurements were made with a 50 µs TX on pulse, followed by a 2 µs TX off (flyback) pulse, i.e. quite typical for a PI detector. The flyback pulse is the one that actually induces usable eddy currents in resistive targets and magnetizes the soil. The TX on pulse is counterproductive, so separating it from the flyback pulse reduces or even eliminates the weakening effect. See my post from 24 Jan 2013:

                    http://www.geotech1.com/forums/showt...732#post164732

                    Here are 2 sets of measurements with a TX on pulse length of 500 µs. 450 µs of these are constant current, so the flyback pulse is effectively the only pulse that kicks the targets. The first measurements were made with a 2 µs flyback pulse as before. The exponents are closer to -1 now:

                    Click image for larger version

Name:	decay_curves_log_500µ_on_2µ_off.png
Views:	2
Size:	53.7 KB
ID:	338366

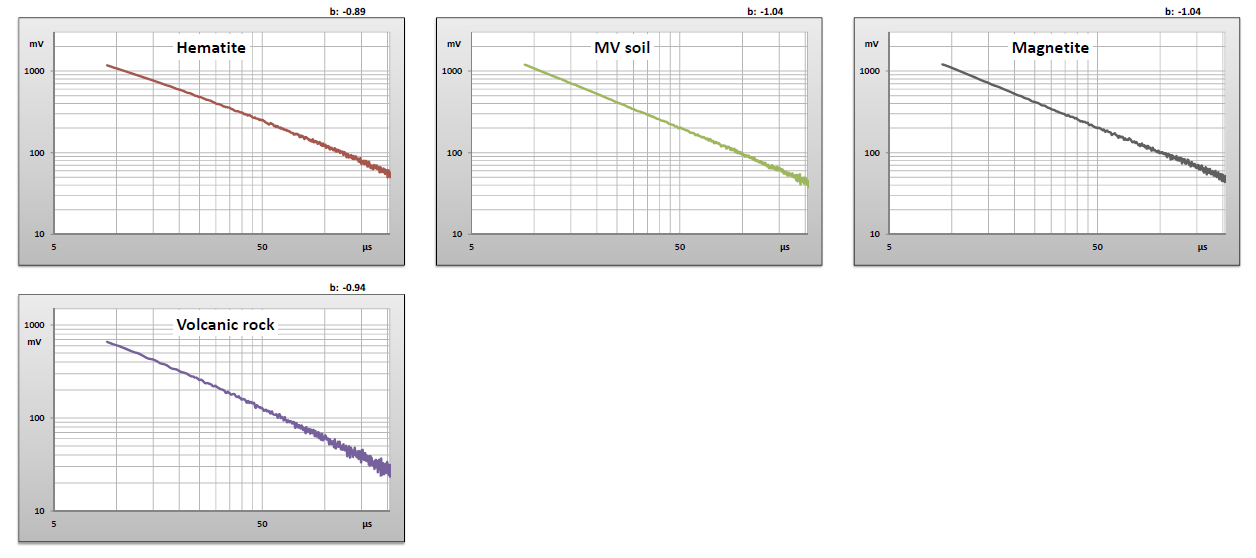

                    With an increased flyback pulse length of 10 µs particles with longer time constants react stronger, and the exponents are getting quite close to -1. This seems to be a timing that is more similar to what Eric uses in his tests.

                    Click image for larger version

Name:	decay_curves_log_500µ_on_10µ_off.png
Views:	2
Size:	56.9 KB
ID:	338365

                    BTW, why do inline attachments like the two above do no longer show up in the post? They used to do some time ago, now I have click on each attachment to see it. 'Show images' is checked in the general settings.

                    Thomas

                    Comment


                    • Another Try: Now Really Busted!

                      Hi all,

                      ya wanna see my new magnificiant, excellent, super-duper VRM soil modelling function at work? I have taken Thomas's data and made the best fit VRM model functions.
                      My fair rule: You get what you give.
                      Thanks Thomas for providing the measurement data.

                      See the pictures and the Excel file (all zipped).
                      Thomas's-Decay-Curve-V2-pics.zip
                      F$#K!, the Excel file is too large for upload (~1.07 MB). Admin please! I'm getting mad again.
                      Where are my blue pills now? Doctor!!!!!

                      Cheers,
                      Aziz

                      PS: To forum and patent trolls:
                      Eat this now: G(t) = a*( (t+p)^b - 1/(t+p+w) )

                      Comment


                      • Originally posted by Aziz View Post
                        Hi all,

                        ya wanna see my new magnificiant, excellent, super-duper VRM soil modelling function at work? I have taken Thomas's data and made the best fit VRM model functions.
                        My fair rule: You get what you give.
                        Thanks Thomas for providing the measurement data.

                        See the pictures and the Excel file (all zipped).
                        [ATTACH]27178[/ATTACH]
                        F$#K!, the Excel file is too large for upload (~1.07 MB). Admin please! I'm getting mad again.
                        Where are my blue pills now? Doctor!!!!!

                        Cheers,
                        Aziz

                        PS: To forum and patent trolls:
                        Eat this now: G(t) = a*( (t+p)^b - 1/(t+p+w) )
                        I hope someday you can actually make a working model of something that works in the REAL world that is not some computer idea. So good luck in making a working detector that is better than anything out here now.

                        Comment


                        • Originally posted by PATCHES JUNIOR View Post
                          I hope someday you can actually make a working model of something that works in the REAL world that is not some computer idea. So good luck in making a working detector that is better than anything out here now.
                          PJ, you probably don't know it. But I have found the holy grail of VRM science.
                          Candy couldn't. *LOL*

                          Now let's look at the patent offices, whether someone will need taring & feathering.

                          Aziz

                          Comment


                          • Hi guys,

                            I have removed the older Excel sheet pages and it should work now.
                            Thomas'sDecayDataV2-05lite.zip

                            Aziz

                            Comment


                            • Originally posted by Aziz View Post
                              PJ, you probably don't know it. But I have found the holy grail of VRM science.
                              Candy couldn't. *LOL*

                              Now let's look at the patent offices, whether someone will need taring & feathering.

                              Aziz
                              Hate to tell ya but most here are wise to your stories with no product.

                              Comment


                              • Originally posted by PATCHES JUNIOR View Post
                                Hate to tell ya but most here are wise to your stories with no product.
                                Wait a bit. Someone will come up with the WBGB detector!!! And you can forget your GPX!
                                Maybe a QED-V2-WBGB too.
                                Who knows.

                                Comment
