    • Hello everybody,

      The latest LP Zero (see photo) based on the Golden Mask 1 circuit, has an iron volume adjustment option. Is it possible to add it to the Magnum circuit and how?

      Thanks for your reply,

      Comment


      • Click image for larger version

Name:	20180616_132523.jpg
Views:	1
Size:	1.03 MB

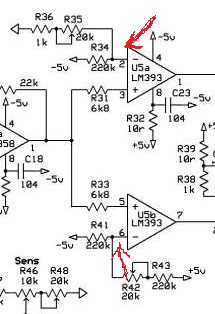

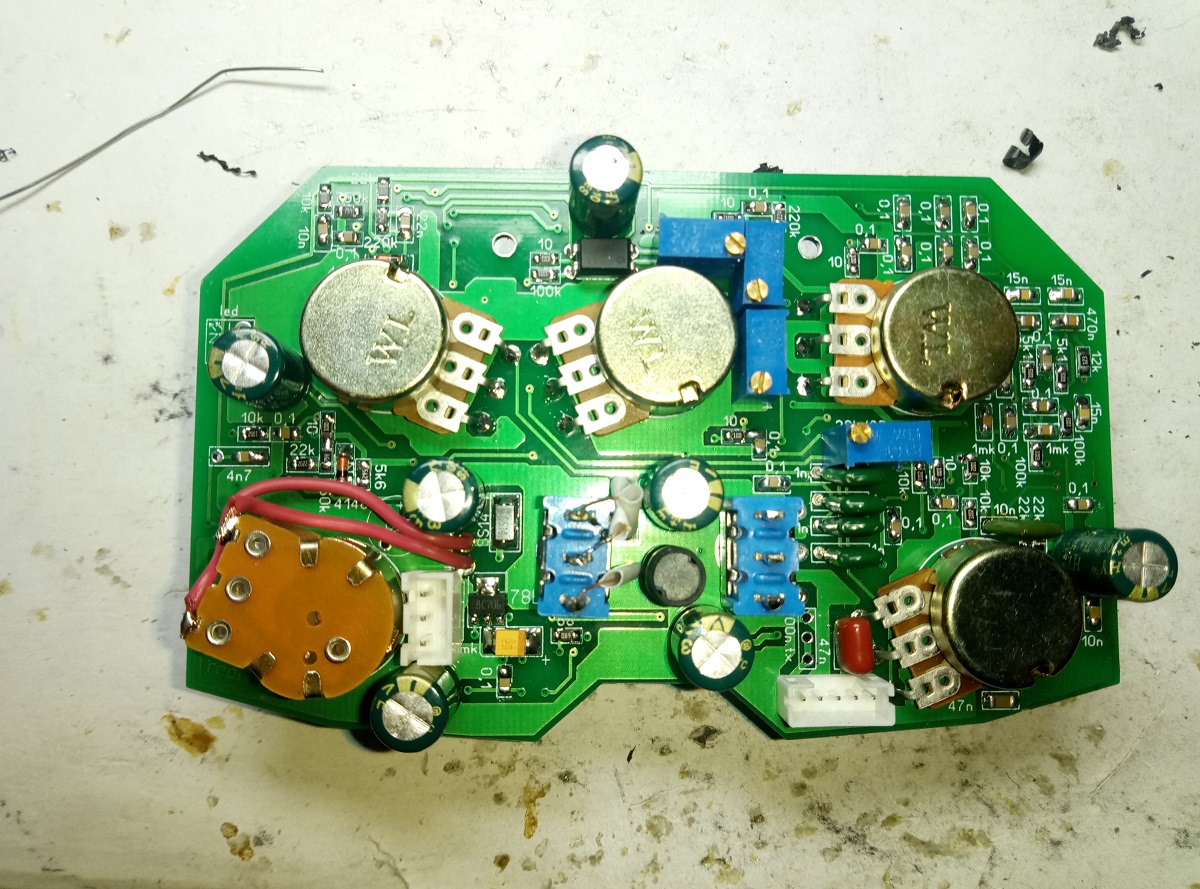

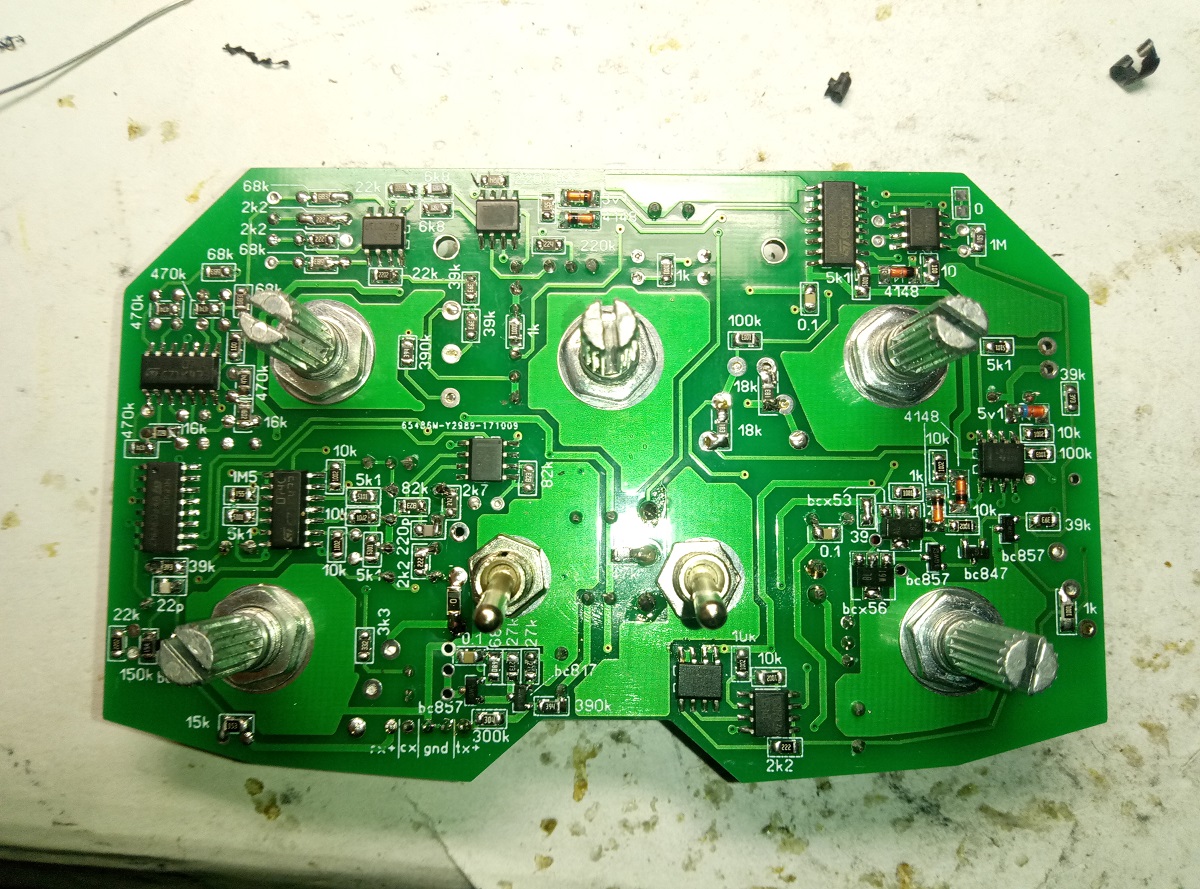

ID:	352049Kind time of the day, friends! Tell me, what kind of tension should be in the points marked with arrows? I want to present my execution of the instrument-

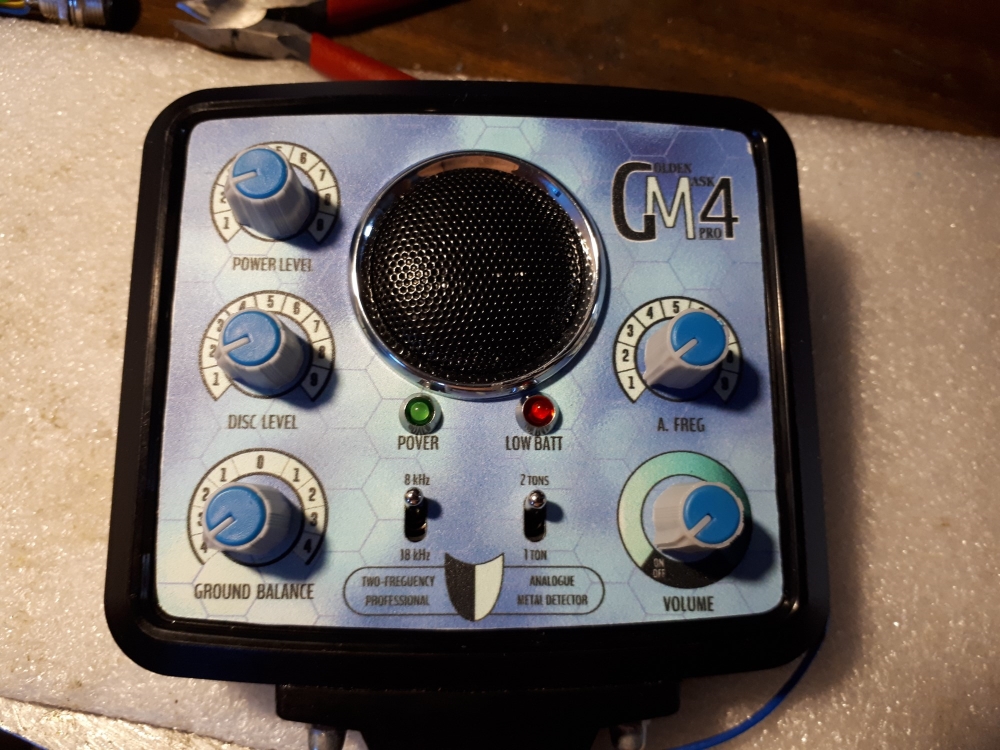

        Click image for larger version

Name:	20180531_183039.jpg.e95e8d3c3d8c9b3544ef5cce02de6c52.jpg
Views:	1
Size:	507.5 KB
ID:	352050

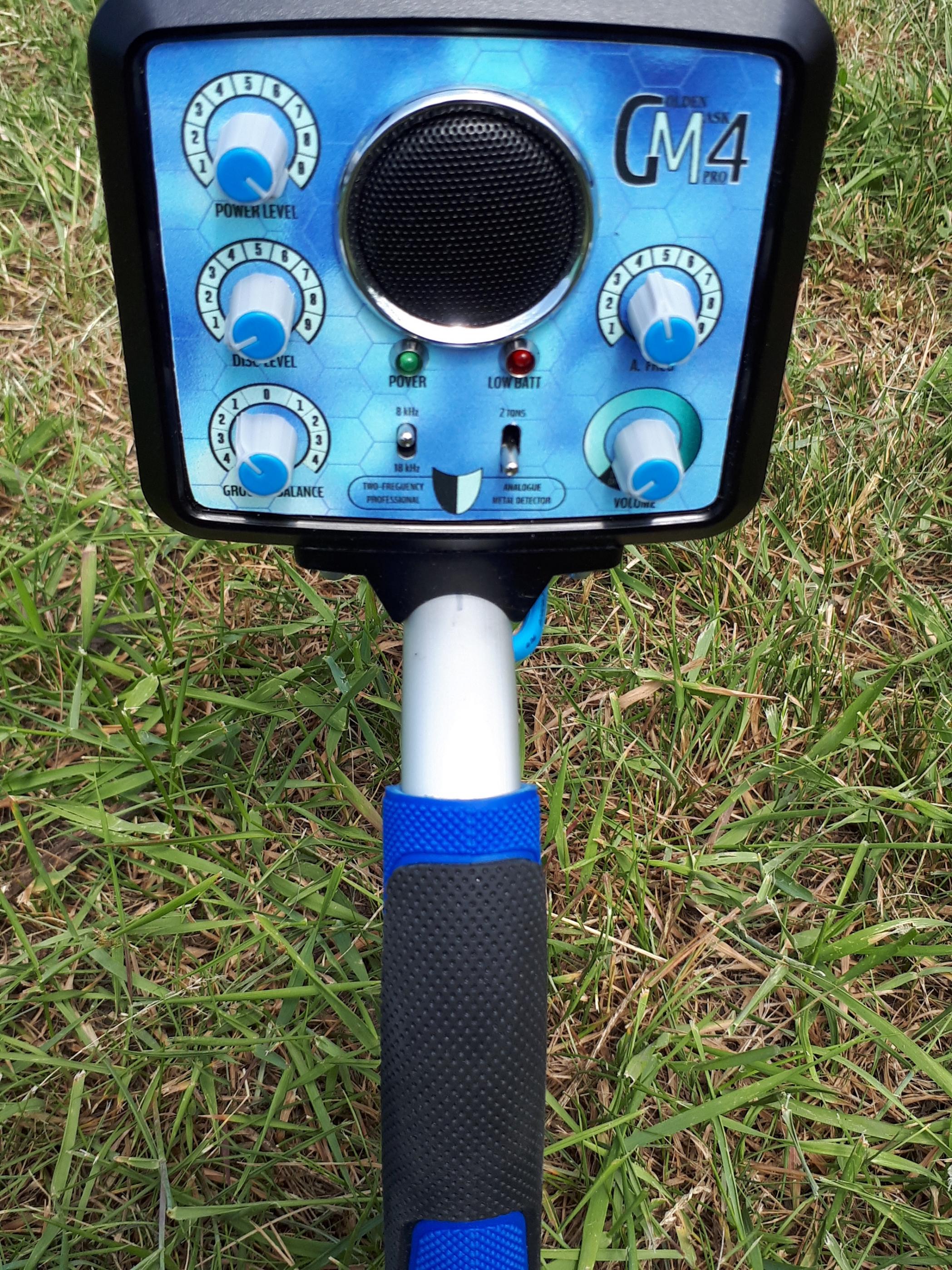

        Click image for larger version

Name:	20180531_190411.jpg.011fe63518aaefb4efac6b1c2fc1b762.jpg
Views:	1
Size:	606.5 KB
ID:	352051Click image for larger version

Name:	20180607_213245.thumb.jpg.96799081c54aa176170b633e4e11bbe2.jpg
Views:	1
Size:	222.8 KB
ID:	352052

        Comment


        • Click image for larger version

Name:	2mrftwp (1).jpg
Views:	1
Size:	29.0 KB
ID:	352058I apologize, I asked, but I did not lay out the scheme-

          Comment

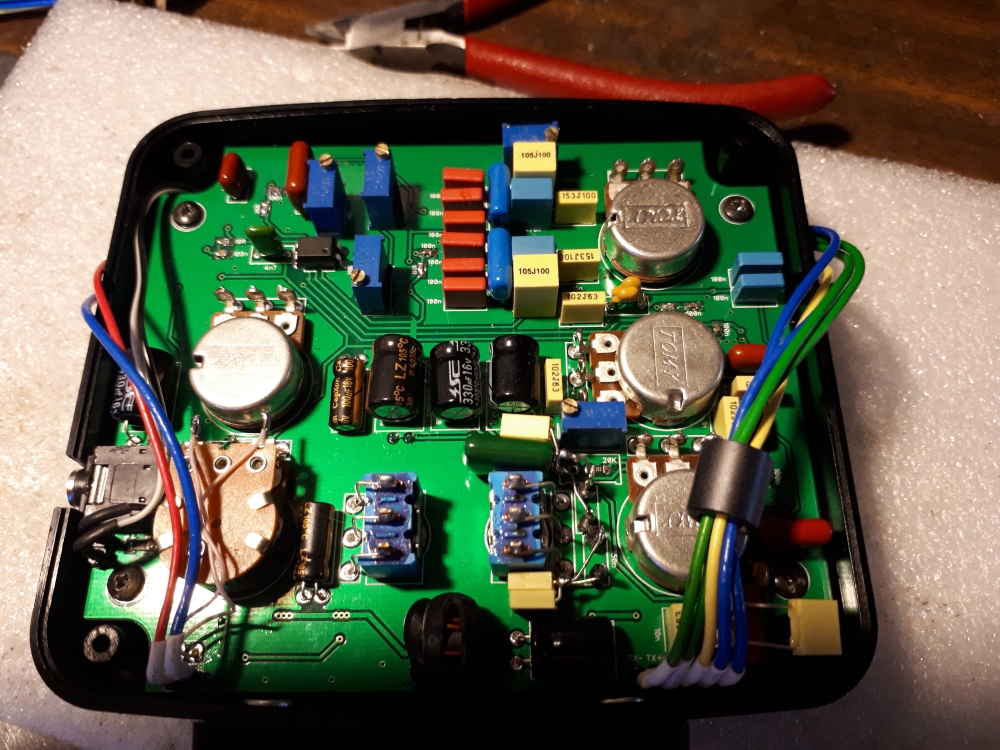

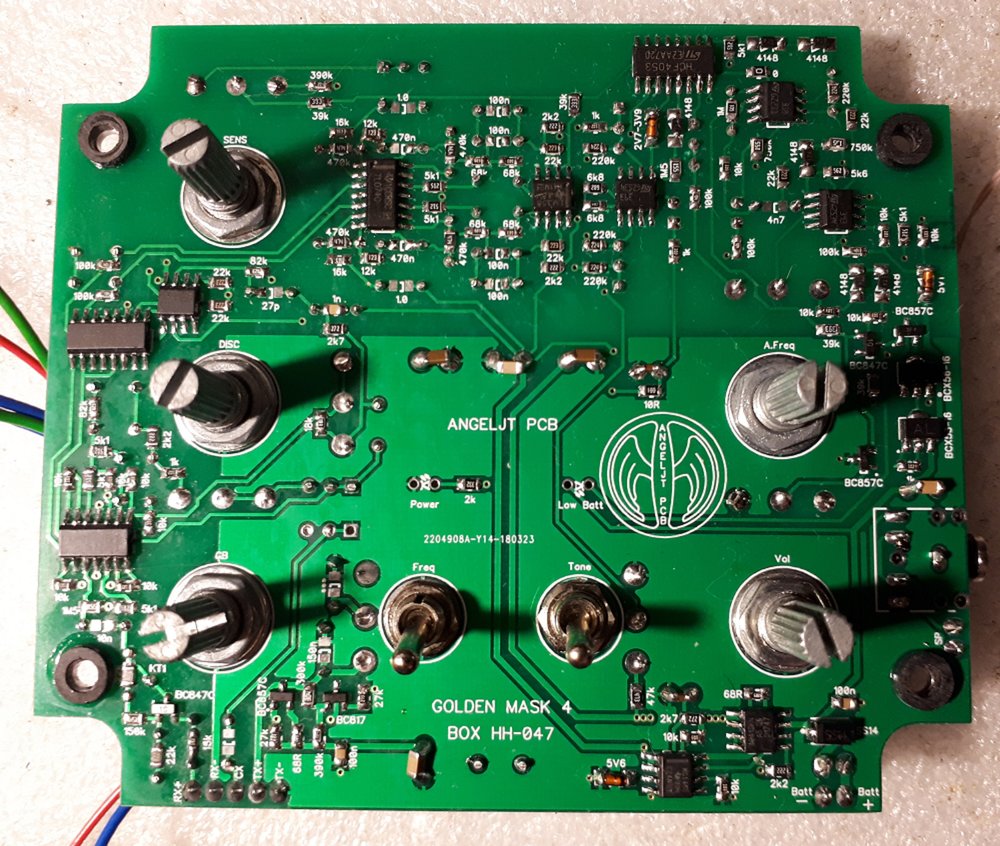

          • My board
            Click image for larger version

Name:	P71112-215441.jpg
Views:	1
Size:	595.0 KB
ID:	352063
            Click image for larger version

Name:	P71112-215500.jpg
Views:	1
Size:	554.3 KB
ID:	352064

            Comment


            • I agree, too, a beautiful board, one of ... but I'm interested in a specific question, WHAT IS VOLTAGE IN THESE POINTS, which are marked by arrows, when setting up the device. I'm interested, I can put the board file in Dip Trace format

              Comment


              • I do not think any of the forum will give you the files

                Comment


                • Originally posted by bandito View Post
                  I do not think any of the forum will give you the files
                  Keep your files, share the voltage!

                  Comment


                  • Originally posted by Hyena View Post
                    Keep your files, share the voltage!
                    The scheme uploaded to the forum and create it in LAY format
                    Voltage-12V
                    Last edited by bandito; 08-21-2018, 02:32 PM. Reason: ok

                    Comment


                    • Threshold

                      Found only this information from Ivconic: http://www.geotech1.com/forums/showt...064#post223064

                      R35= Basic treshold

                      R42= additional Treshold for 2-tone option, important at switching/biasing the optocoupler

                      Looks like some feeling-tuning will be necessary...

                      I know that I should offer PCB instead of answer, but I am not such capitalistic beast

                      Comment


                      • Simply easy
                        http://www.geotech1.com/forums/showt...434#post248434

                        Comment


                        • Dear friends, as you can see from the messages you do not accept mutual assistance and friendship. Human relations are welcome in us. Duplicated fee in Dip Trace format is absolutely FREE! Dear radio amateurs, collect the device for your pleasure. The solution of this board is BEST (on Tx instead of a constant resistor 27com put a multi-turn trimmer to set the correct shape of the sinusoid) !!! I use the Polish case HH-047 also publish a sticker in CorelDRAW format with cutting holes-ABSOLUTELY free ! Also publish files for printing body on HH-047 3D printer, ABSOLUTELY FREE !!! Good luck to assemble and set up!


                          I ask you to excuse me, I'm not good at computer hardware and I can not send advertised files, I will send them by e-mail to my friend from the Czech Republic and ask him to publish these files on this site

                          Comment


                          • Originally posted by nikko10 View Post
                            Dear friends, as you can see from the messages you do not accept mutual assistance and friendship. Human relations are welcome in us. Duplicated fee in Dip Trace format is absolutely FREE! Dear radio amateurs, collect the device for your pleasure. The solution of this board is BEST (on Tx instead of a constant resistor 27com put a multi-turn trimmer to set the correct shape of the sinusoid) !!! I use the Polish case HH-047 also publish a sticker in CorelDRAW format with cutting holes-ABSOLUTELY BES Plate! Also publish files for printing body on LV-047 3D printer, ABSOLUTELY FREE !!! Good luck to assemble and set up!

                            Dear friend, the scheme is uploaded here, draw it in the required format and share it FREE for everyone who wants

                            Comment


                            • I hope that my friend will soon publish the RAR archive and the monopoly on the production of printed circuit boards will be destroyed

                              Comment


                              • Originally posted by nikko10 View Post
                                I hope that my friend will soon publish the RAR archive and the monopoly on the production of printed circuit boards will be destroyed
                                We are waiting for you
                                You can make and donate them to be more complete
