Unknown Garrett Pro Pointer Issue

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

  • Unknown Garrett Pro Pointer Issue

    Hi Guys,

    I have been repairing Garrett Pro pointers for a while now and have come across many problems including the common ones, falsing, broken switches etc.

    I was recently sent a pro pointer that behaves differently. Upon switching it on it gives a buzz and a hum from the speaker.

    It does not detect any metals nearby, just makes that constanst buzz and hum.

    I have provided a video so you can understand a little better.
    !!BEFORE YOU ASK!! The buzzing and humming happens even when the coil is soldered on, it makes no difference.

    I have a HUNCH, and again i'm no expert. I beleive it may come down to the central 16 pin IC on the board.

    The writing on the chip is 263G 1566, googling this takes me to a russian metal detecting site similar to geotech1.

    I have no idea what this chip is nor can I find it on aliexpress or affiliates.


    My questions are :

    Is this the culprit to the default pointer?
    If so where can I find this integrated circuit?

    Has anybody else had this problem before,how can I fix it ?

    The only information I have on this pointer is that it may have taken on water.


    Any information you may give me would be greatly appreciated.


    Kind Regards

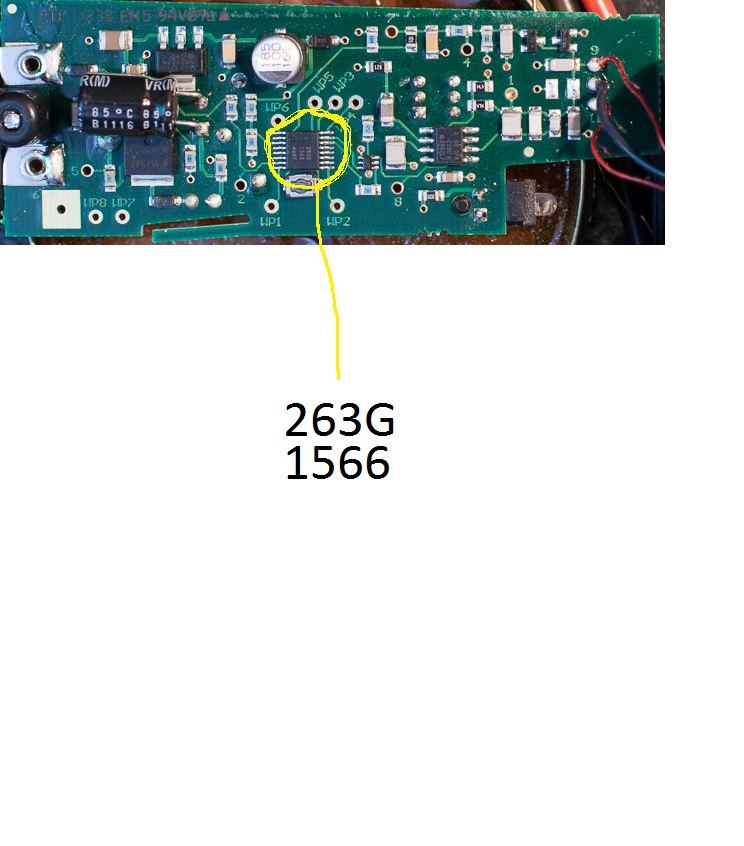

    MattClick image for larger version

Name:	Propointer PUCE.jpg
Views:	1
Size:	111.7 KB
ID:	370303

  • #2
    No doubt a micro, probably Atmel or PIC. Did you check power supplies?

    Comment


    • #3
      Yes I did, i'm no expert on them... Ive got an output of 4v on pin 4. You want all of them?

      Comment


      • #4
        I have no idea what the supplies should be, it's just where I would start in debugging. The "buzz & hum" sound indicative of a low supply.

        Comment


        • #5
          THD is fully analog, Pro is controller based. left of a schematic is same in both.

          Comment
