Has anyone built the DBP2010 pi detector?

[okantex]

Hi
1. paper must have smooth surface.you can not use normal photocopy paper.
you must use oilly paper or nylon transparent sheet which is used for photocopy machines.if you use thin nylon it will break up your printer.if you want to use this nylon ,I offer you to go to photocopy machine.
in printer you can use fax machine paper.but its shinny side.it will turn black while printing pcb but do not worry,it will work fine

2. no for ink-jet.because ink jet uses ink and ink makes reactive bonding with cellulose ,so it wont work .
you have to use (fine toner) lazerjet printer or photocopy machine (they use toner)

good luck

[Geo]

Hi. To Okantex. My results was 50% good. I used nylon transparent sheet from a photocopy machine. I press it with the iron for 2 min about (the pcb comes very hot) and when i take out the paper then the lines was not good, there was discontinuity. After it i clean the pcb and i put a common photocopy paper and press it with the iron. Same results. The lines had discontinuity. Who is the problem. How many time i must press the iron on pcb? I wait your answer to make some tests yet. I like it so i will make it perfect.
Now for Ivconic. 1. What paper are you using?
2. The pcb who sent me is not exactly the same with Jackdetect's.Can you send me the modifications because i will make your pcb who has thicker lines.

Best Regards

[okantex]

hi

hi
http://www.semis.demon.co.uk/PCB/PCB.html


http://members.tripod.com/AMN92/PC_B...abrication.htm

[okantex]

maybe this is better
http://max8888.orcon.net.nz/pcbs.htm

[Geo]

maybe this is better
http://max8888.orcon.net.nz/pcbs.htm

Hi Okantex. Thanks. I am afraid that i will make a lot of pcb for classic III Experiment with all adresses that you send at me ha.. ha.. But thanks very much.
Have a nice day

[okantex]

I made an hour ago .and almost perfect.I used asetat(nylon).there are some parts needs correction.

[Geo]

Thanks Okantex. I made the pcb and now i begin to solder the components. The pcb is about 95% ok (it has a little breaks but no problem). I made a lot of tries and the problem was at 2 points. !. Time at least 5 min as you said.
2.The photocopy is not so good as Laser printer. When i photocopy with full color ( to put more ink on pcb) then lines with little distance between them are jumpered. With less color the paper don't stick so good on pcb. I made one good pcb with photocopy but i am afraid that is time to buy a laser printer for the pcb (who hears my wife again ha ha ....)
Regards

[mikipn]

dbp2010 pi detector

If somebody need a schematic of dbp2010 pi detector,,I can give it to him,,I have corect schematic.

[electrodetect]

DBP2010

Hi,
Please send me the correct dbp2010 in my email address [email protected].
Best Regrads

[amtech2005]

Has anyone built the DBP2010 pi

Please send me the correct Schematic also. Eugene [email protected]

[Chris2]

DBP2010 PI detector

Hi,

can you post the the changes or the correct schematic into the forum? I think many of us want to see it and you don't need to
reply to so many schematic requests.

But you can send me the schematic too, if you don't want to post it into the forum. My email is [email protected].
I never build the detector yet, but here is a list of errors for the DBP2010 I found in the Internet. Have you found other errors?

The error list:

Main PCB
T4 & T5 (Collector & Emitter twisted by 180 degree)
R38 = 1 Ohm
R34 need to be optimized

Modul PCB
T3 (Collector & Emitter twisted by 180 degree)

Regards
Chris

[1843]

d

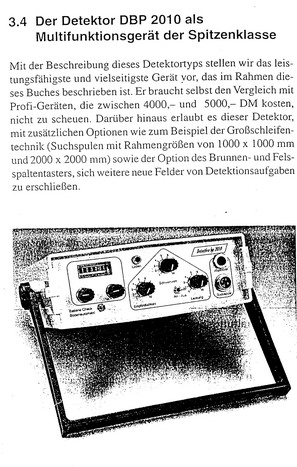

The dbp_2010.jpg is low quality.
Please send a high quality DBP2010 schematic to my Email:
[email protected]

Best regards.

[nelson]

dbp2010 pi detector

Hi, name here is Nelson and i ll like to accept your dbp2010 pi detector, files copy to try to buid it.
In advance many thanks
Nelson
My email is [email protected]

If somebody need a schematic of dbp2010 pi detector,,I can give it to him,,I have corect schematic.

[aft_72005]

Hi mikipn

please send me DBP 2010 correct schematic.

Many thanks .
My Email :[email protected]

[Unregistered]

dbp2010 waste time

Hi mikipn

please send me DBP 2010 correct schematic.

Many thanks .
My Email :[email protected]

i build it, respect all values, read some modif ; no good sound, sensibility and depth. XR1 or deltapulse better, good sound and sensibility and more easy to made... dbp2010 french forum is dead because some deception about performance...
