question on spectrum xlt mod

[detectoman]

anyone has the photo inside box circuit,of spectrum xlt? i purchase one of these detector, and the conections are disconected in the box and display, please help me, i nedd photos right of conections inside detector, the box and the panel display

yo he comprado un detector spectrum xlt, creo que es el modelo e, el que trae el arco iris en la caja, tengo un problema, viene con las conexiones desconectadas y sueltas, o sea de los cables, tanto en la caja de circuitos,o sea el conector de muchos pins, que sale hacia el panel superior en que esta el display, y quizas tambien tenga cambiados las dos conexiones sueltas en los circuitos del panel del display,o sea dos cablecitos unoque va hacia el switch y otro que se conecta a la placa, cual es la posiciones correctas? si alguno de ustedes tiene un detector xlt que me pueda mostrar en foto su interior, para yo saber de que maneras son las correctas para conectar esos cables sueltos

gracias de antemano
thanks very much
jose detectoman

[detectoman]

hello, frends, i nedd see the inside conections of detector spectrum xlt, if anyone have one, please send me these photo,at this panel, of circuit box and the panel display
for conections, conectors positions of cable
regards
detectoman, hamers vendor

[detectoman]

on spectrum xlt

is this the right conection? or not?

best regards

detectoman

[rumensat]

detectoman, please can you upload clear pictures of pc board - two sides?
i have never seen XLT inside.

[kt315]

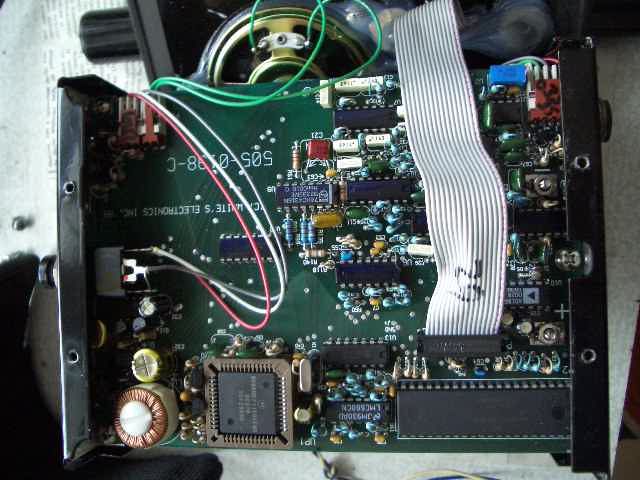

compare. 1-st wire is RED COLORED on the cable and accordingly 1-st pin is MARKED by [].

[detectoman]

many thanks kt315

thank kt315 you very much the photo thar offers is very clear, i was confused, understand then yours samples are the correct position, ok thanks, really in this form i conected i but was not safe
brother kt315 I want to request other favor to you, I I need also photo circuits and connections of display, because I want to see as they are connected the long cables, excuses all the annoyances

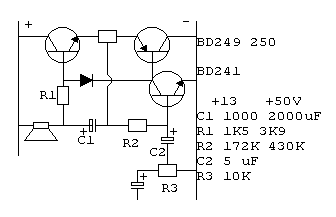

i send to yours for detector, one little circuit of booster sound, i encountrer in internet
apologies for my english

detectoman thanks thanks thanks

[detectoman]

hello my friends, hahahaaha excuseme, i need photo inside panel of display of spectrum xlt i need see conections, i have one dubt of possible interchange of wires cable on switch of gatillo, because the imagen display traces, is only at medium, help me please, brothers of aficcion

best regards detectoman

[detectoman]

jajajaja i need help, i not like burn the circuit, is very much value jejejeej, please get photo of conectiones display spectrum laralarala fiuuuuuuuuuuuuu
till tomorrow
hey kt 315 where is you
detectoman

[kt315]

wait a beer from you!

[detectoman]

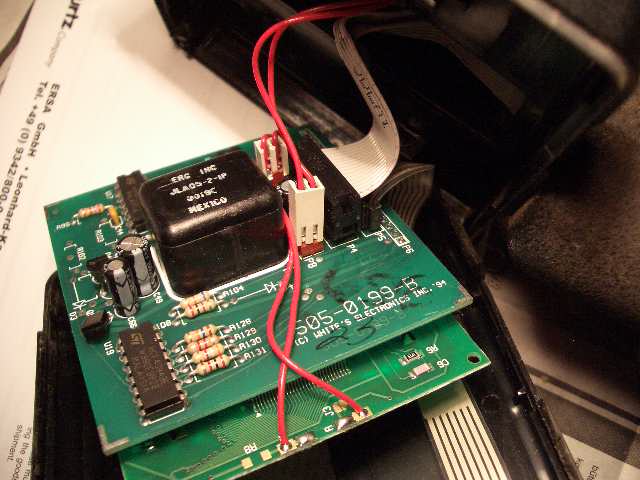

ok okeyyyyyyyyy my very good friend kt315 very fine, fiuuuuuuuuuuu hurra for you,these is how i like, very good picture mm yea, you is one photograph man expert thanks very much, i go at repair quickly my detector,
here was the fault in those two interchanged connections thanks
best regards and hope

zzzzzzzzzzz jajajaa

detectoman mexico

[detectoman]

the beer is for you in ocasion, how we go out one treasure jejejejejee
one six pack of colds beers in gold

detectoman

[Sean_Goddard]

V.IMPORTANT

If my memory serves me the RED wire is on PIN 1 on the PCB and the OPPOSITE END on the display board. Best check the pictures (thanks KT315) CAREFULLY or you WILL blow up the display module. I did it on the first XLT I repaired for a customer, but thankfully, Whites repaired it for me FOC.

WHITES rule for customer service!!

[detectoman]

thanks, for you assistance and support, my detector is in goodhands

best regards my friends

detectoman

[GTK]

This board does not look like my old XLT. Is it for E-Series or just new revision of the old one? KT315 please write down the two motorola mcu names, it is important for me

[kt315]

it is not my xlt pcb. i keep it taken from a forum.

http://i16.tinypic.com/29ffdxz.jpg
