OP07 replaces lm308

[Nandor]

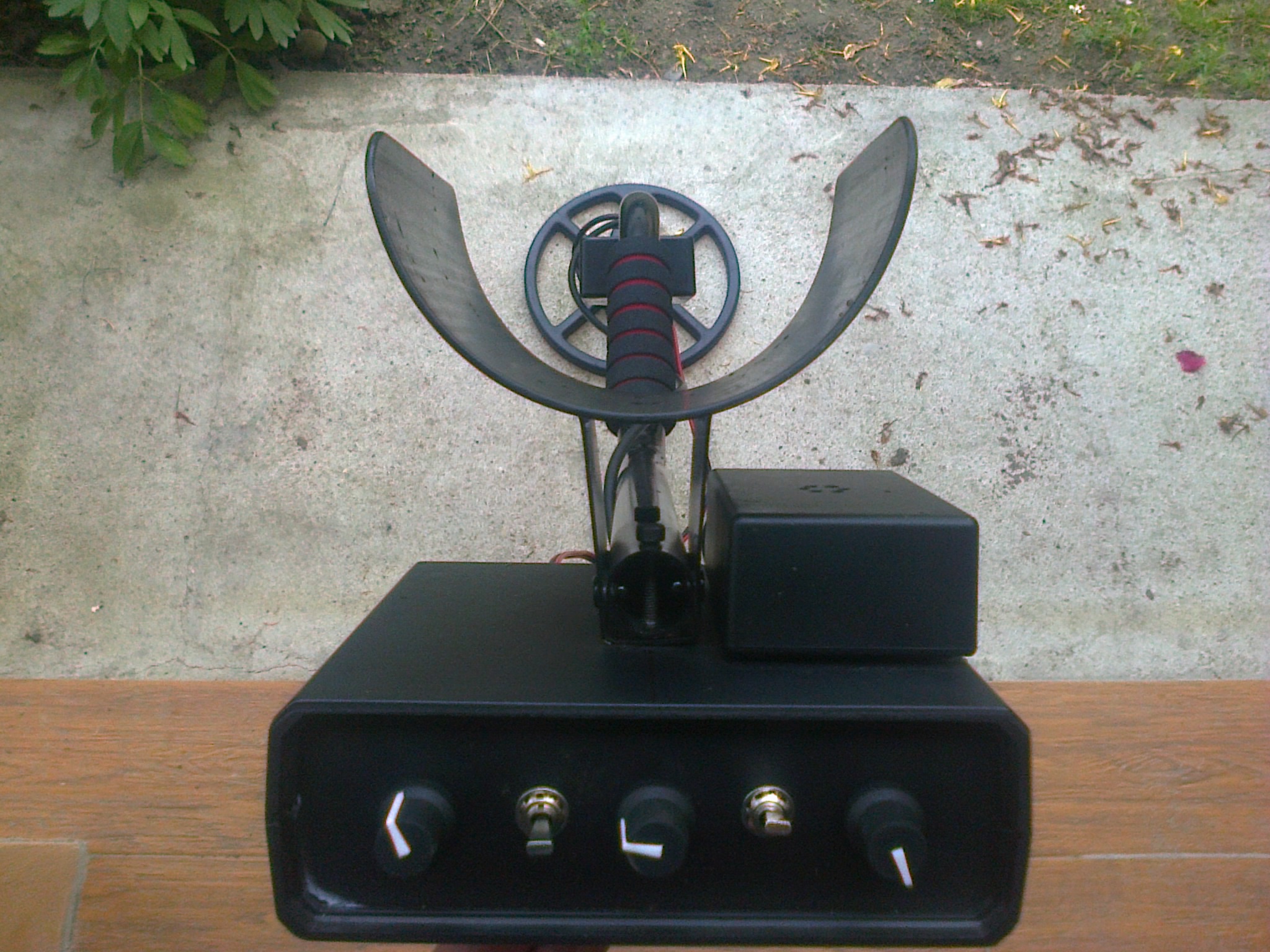

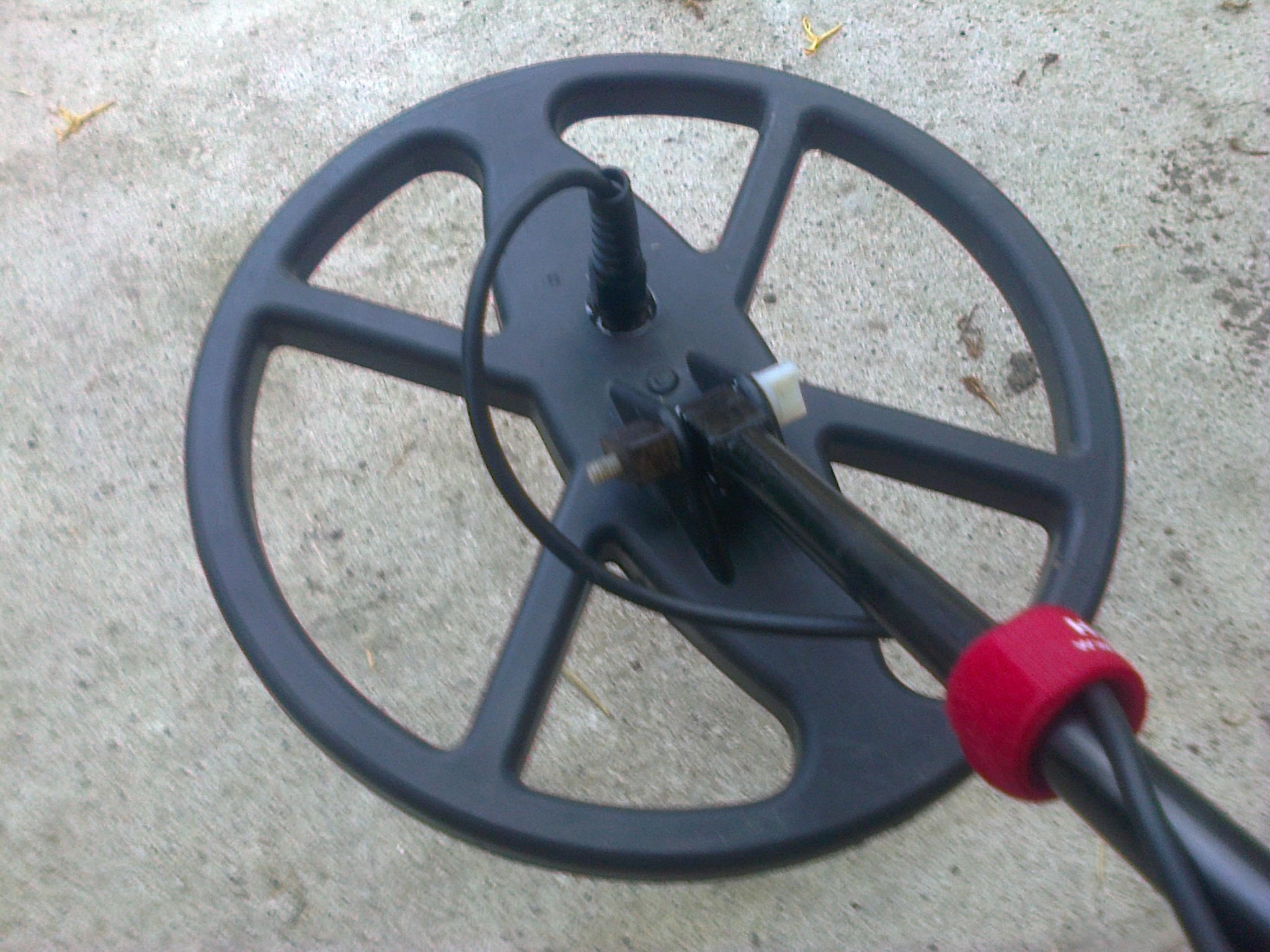

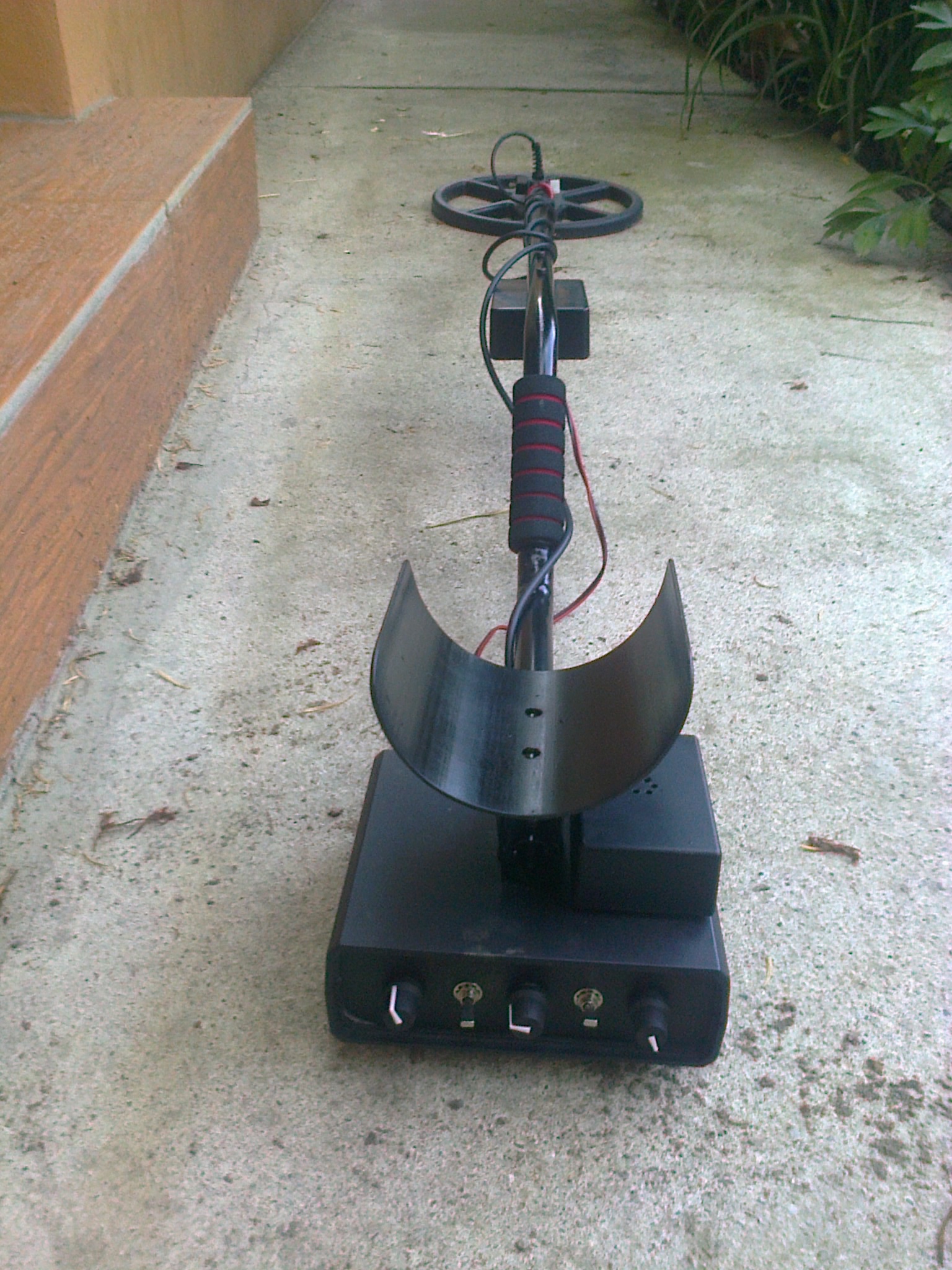

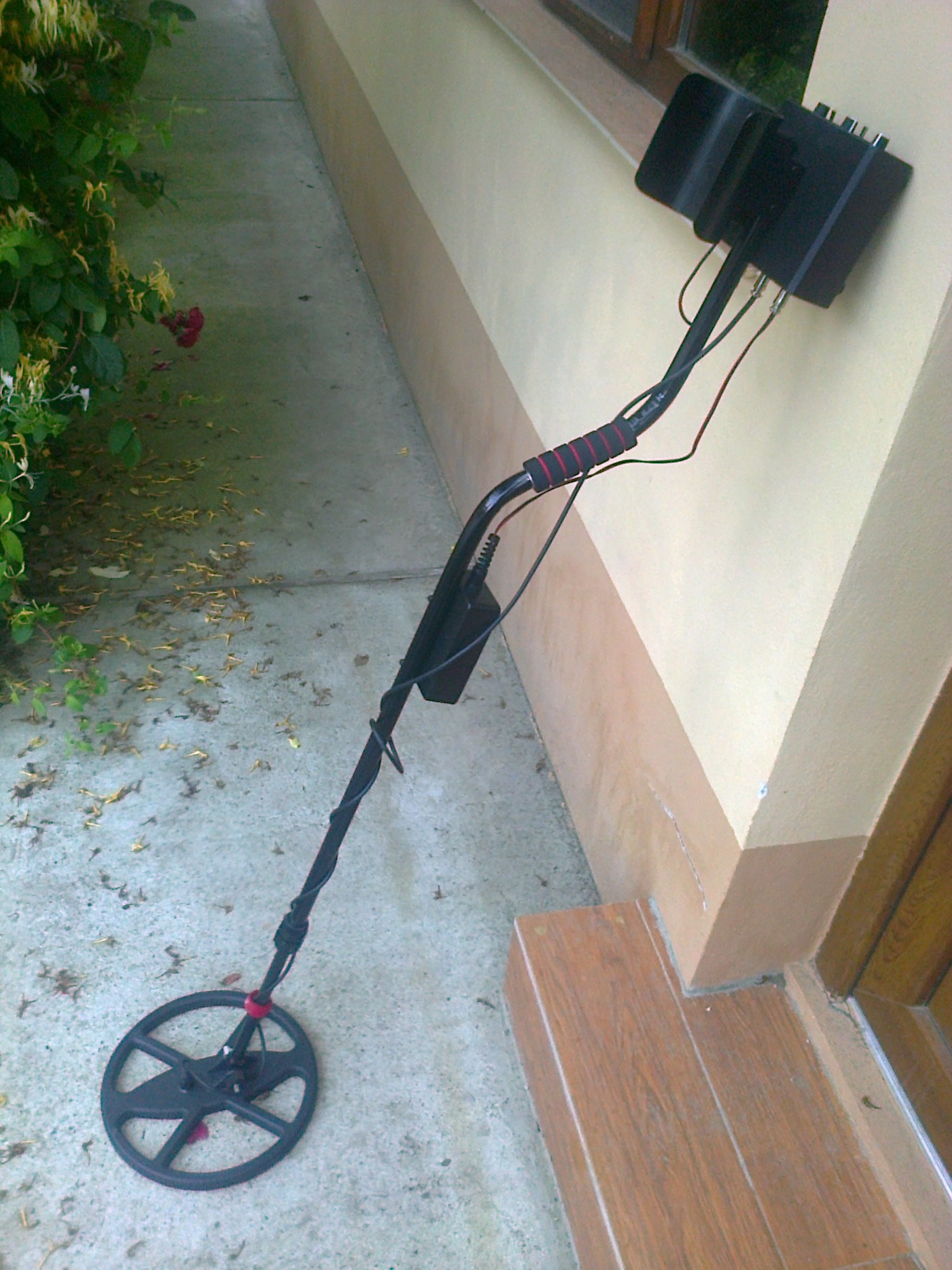

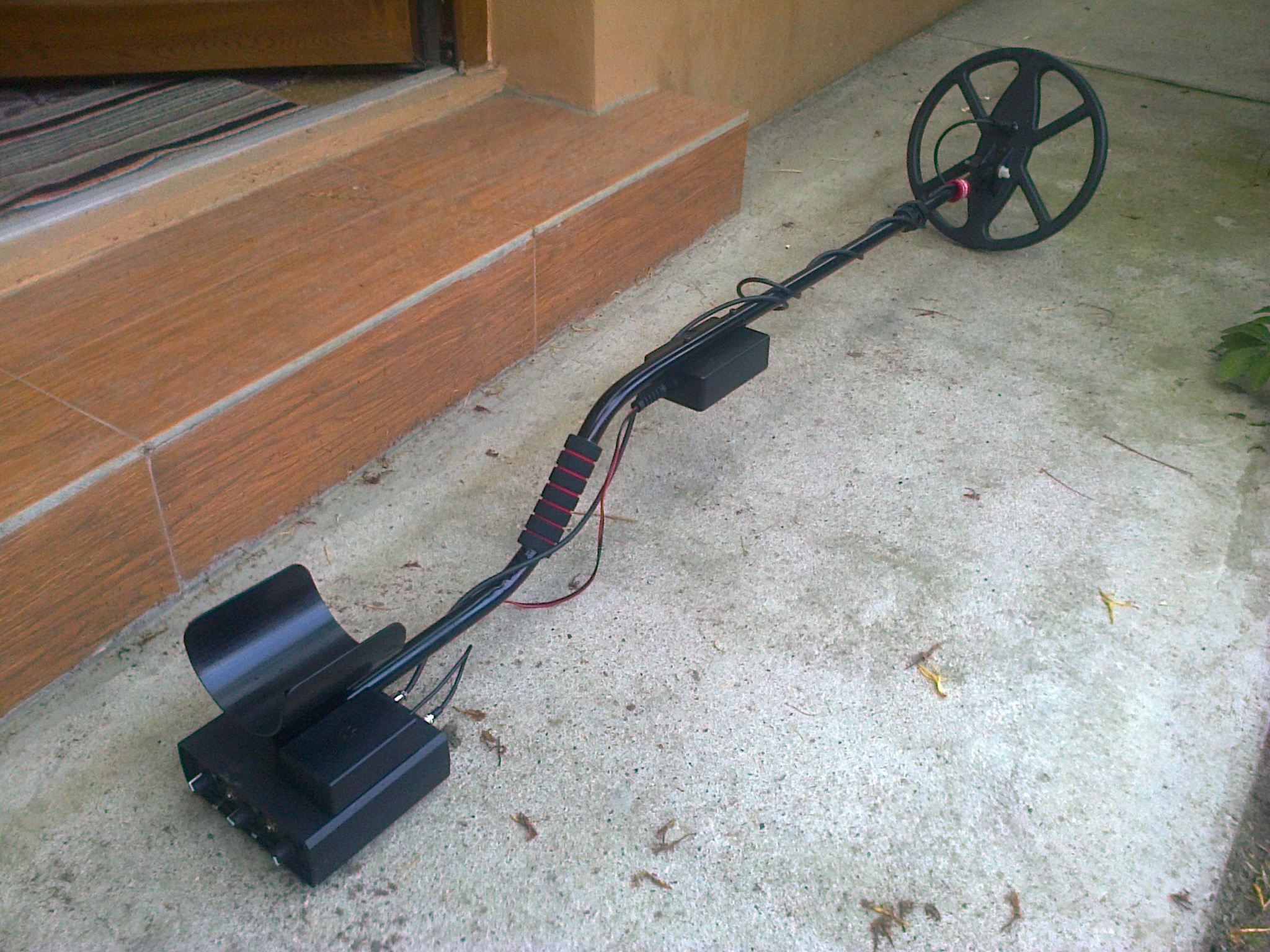

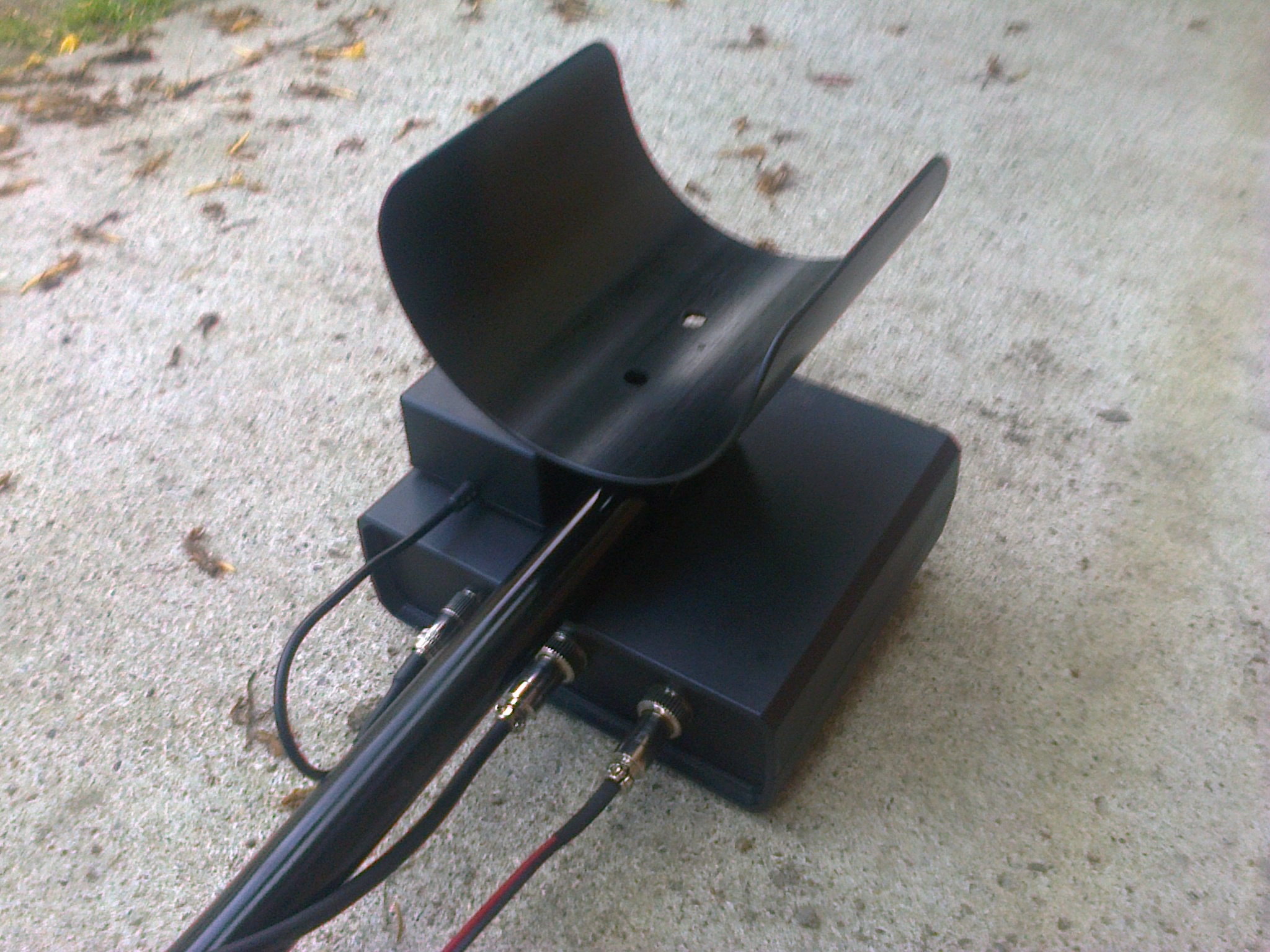

Hello guys I have finally finished making my TGSL it's working pretty good. Thanks for the help!

[Borisimo]

Hello everyone,

Is there any reason why step by step testing is not so useful on this build?

From what I read here most people seem to build the board and then test it (whereas on the MPP builds testing after each step is advised).

Thanks.

[Qiaozhi]

Hello everyone,

Is there any reason why step by step testing is not so useful on this build?

From what I read here most people seem to build the board and then test it (whereas on the MPP builds testing after each step is advised).

Thanks.

If you're building a new project, it is highly recommended that you take a step-by-step approach. This applies to all projects, and is good engineering practice.
Simply populating the whole board (and hoping it will work first time) is a recipe for disaster.
Obviously, once you've successfully built one copy and fully understand how it works, then it's possible to take a faster approach ... as long as you know what you're doing.
If you read the Hammerhead article, you will notice that the same advice is given there, as well as in the MPP Build Document.

[Borisimo]

Qiaozhi, thanks for you reply,

Is this the best thread to ask for verifciation and advice on TGSL EDU builds?

Boris

[Qiaozhi]

Qiaozhi, thanks for you reply,

Is this the best thread to ask for verifciation and advice on TGSL EDU builds?

Boris

A better place to ask questions is here -> Silver Sabre / Bandido / TGSL

[CDI]

I maked smd tgsl board to fit my case, but there is a problem which i can't solve alone.
Burned TL081 from left side of LM7808.
I dont know what is wrong.
Can somebody give me a hand?

[CDI]

Updated version, some errors fixed, but, still not working.

[württemberger]

Please post the Schematic of your Board.

[CDI]

Please post the Schematic of your Board.

Schematic is same version from ivconic version 3.0
I just retraced lines from pdf placement.pdf

[medj]

Tesoro 2.TIF
There is a line in the circuit
I ask you fix error
I want to ask of making circle tells me you work well
2 When you print the circle must come upturned
I've re-drawn layered to Ayut
Tell me about effectiveness
Thank brother MEDJ

[dbanner]

Is the tgsl edu PCB from silverdog or some other layout. Also, is there a ready made search coil available that can be substituted instead of making one. The most precarious part of this project is making and setting up the search coils.

[CDI]

Is the tgsl edu PCB from silverdog or some other layout. Also, is there a ready made search coil available that can be substituted instead of making one. The most precarious part of this project is making and setting up the search coils.

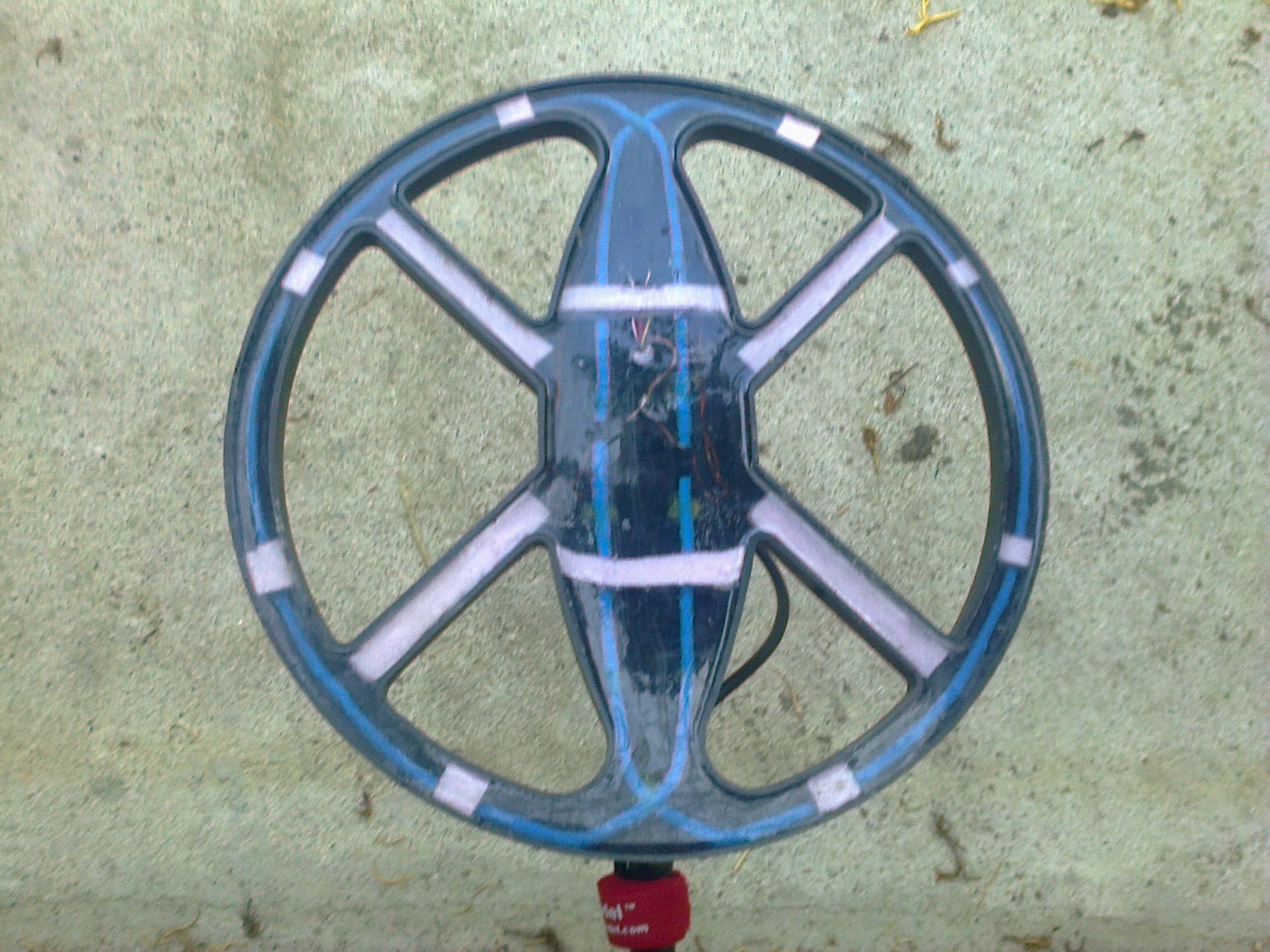

Edu board is from member Eduardo1979, he redesigned board a little bit. For coil, any 5 pin Tesoro coil should work, DeLeon, Cortes, Bandido, Silver Sabre and SilverUmax, Golden Sabre, Eldorado etc.
Do not use 4 pin coil's, they are not suitable for TGSL.
Regards

[EdgarLopes]

Do u guys advice use edu or the other v3 board? I have read só many changes on this project
1resistance
1 capacitator
Someone say to remove 2 diods and only use one
And few other... any doc with that info or its better to read the 240 Pages?

[Qiaozhi]

Do u guys advice use edu or the other v3 board? I have read só many changes on this project
1resistance
1 capacitator
Someone say to remove 2 diods and only use one
And few other... any doc with that info or its better to read the 240 Pages?

Or you could just read this -> TGSL - Complete Details
