Garrett Walk-Through

[ivconic]

I just got Garrett Walk-Through metal detector without "doors", only machine. It is working. Right now i amtrying to discover which model it is?

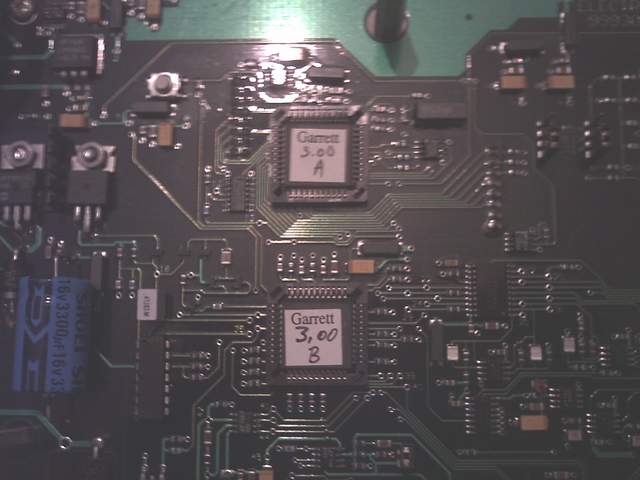

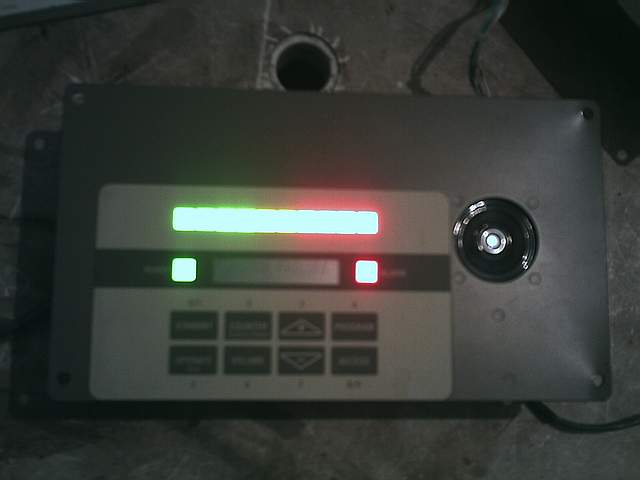

Only standard labels on it.It is uPc controlled, LCD, soft buttons....Sheesh!

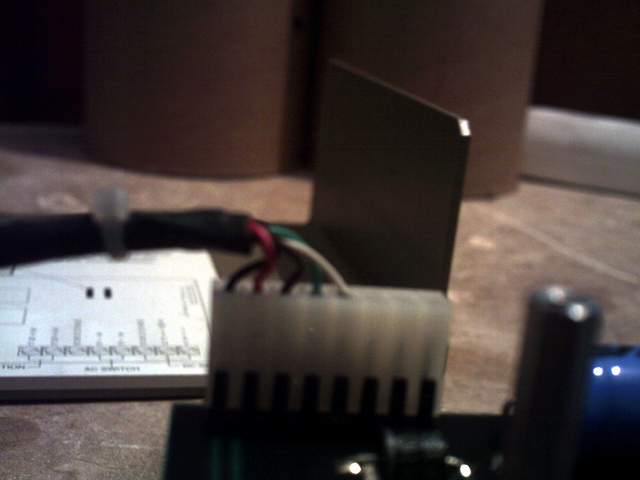

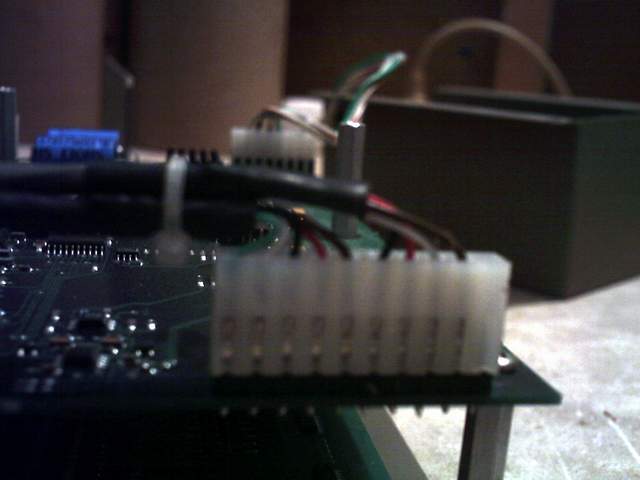

There are connectors for coils located in "doors". To many cables there!?
I was wandering if any chance to discover what and how many coils it is using. Wanna try to make some testing coils for it. Huge job!
When switched ON, it is working.Some test procedure is done..sound..than says ".....failure.." on LCD. I guess it is cose coils are missing.
I will prepare some photos.
Any experiences with this kind?
Any datas on coils?
Or.....i can only scrap it, at the end?

[ivconic]

Not sure yet what could be this model?

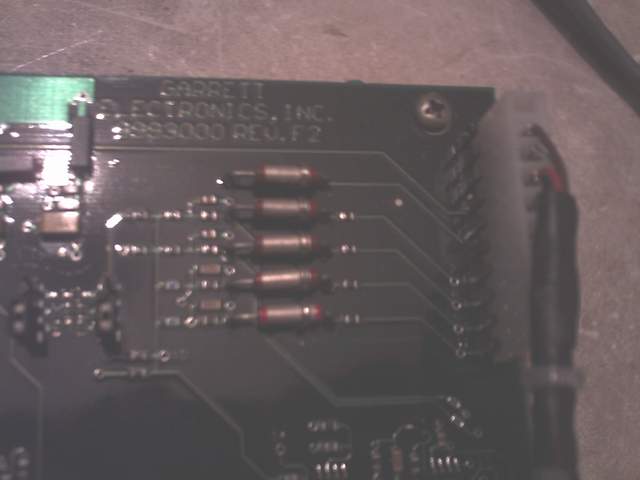

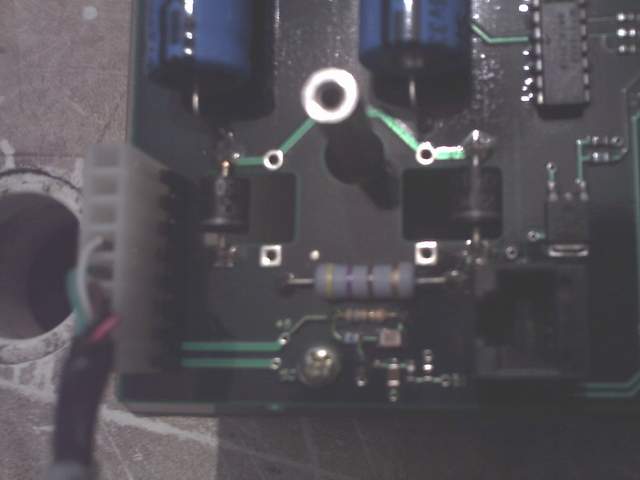

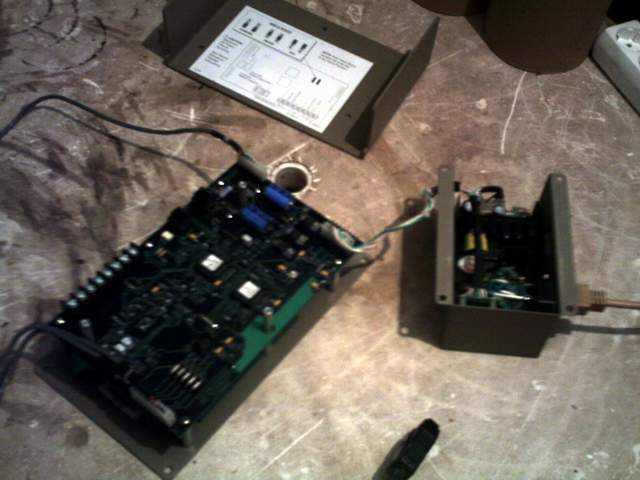

Some photos...

[ivconic]

System when switched ON performs check sequence.Do everything and than when should be ready alert "System Failure" on LCD. Most probably cose coils are not attached.
So...only thing left is to make coils....piece of cake! Like hell!
Anybody, more familliar with this?

[ivconic]

Wasted words and time here....

[Unregistered]

Walkthrough

It looks like a CS5000 to me, still current

[Carl-NC]

Sorry, just saw this... yes, looks like a CS model, probably 5000.

[ivconic]

Thanks, still wandering about coil configuration. Any hint?
