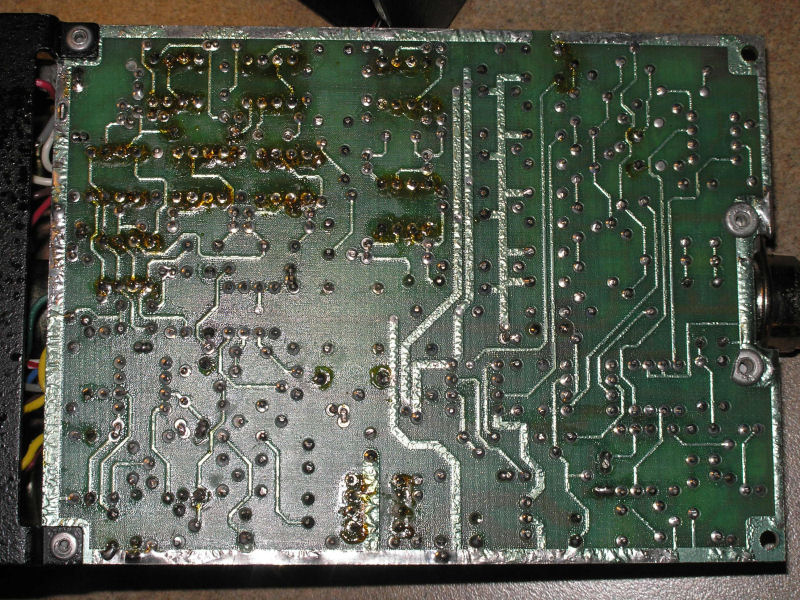

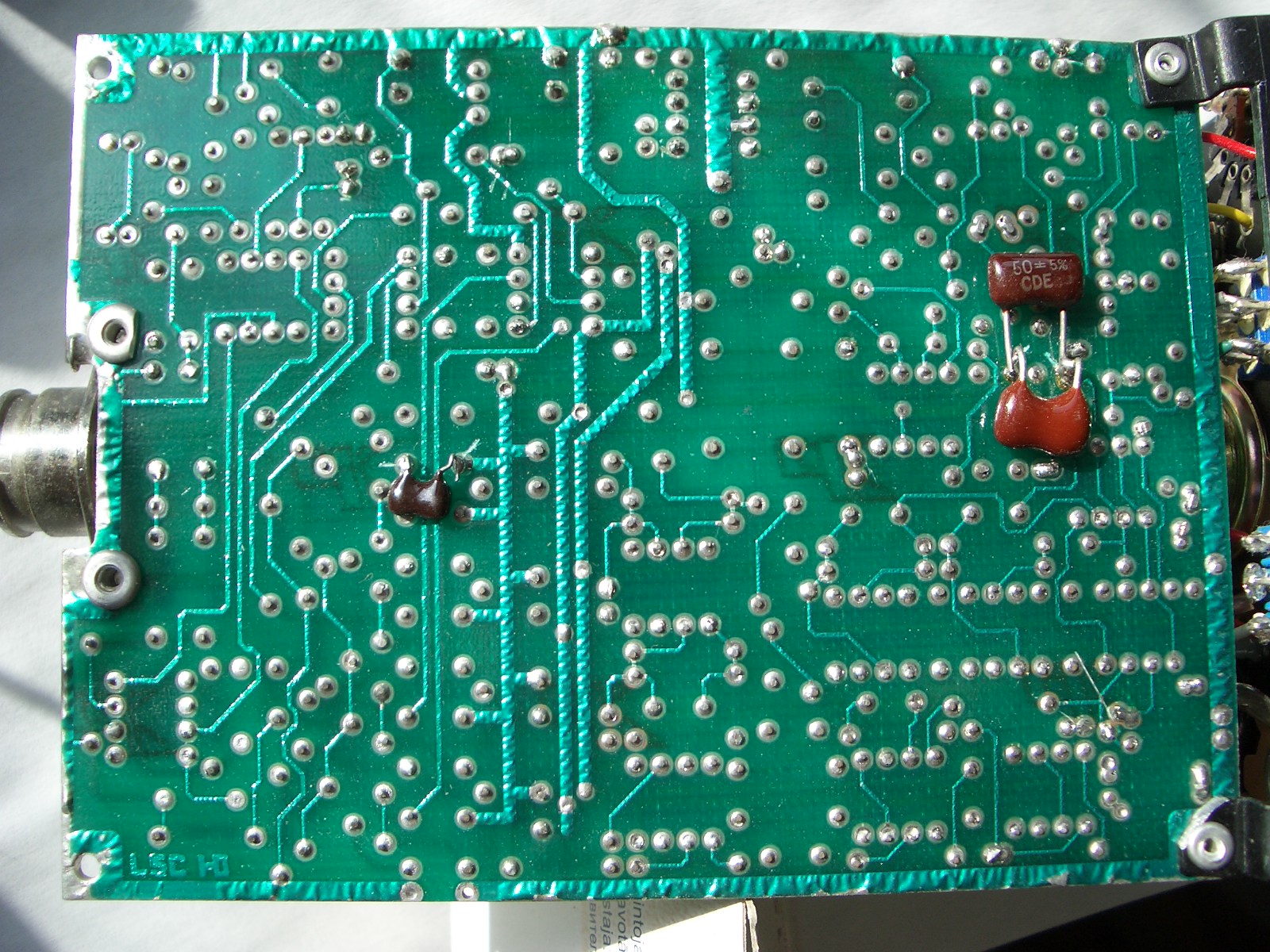

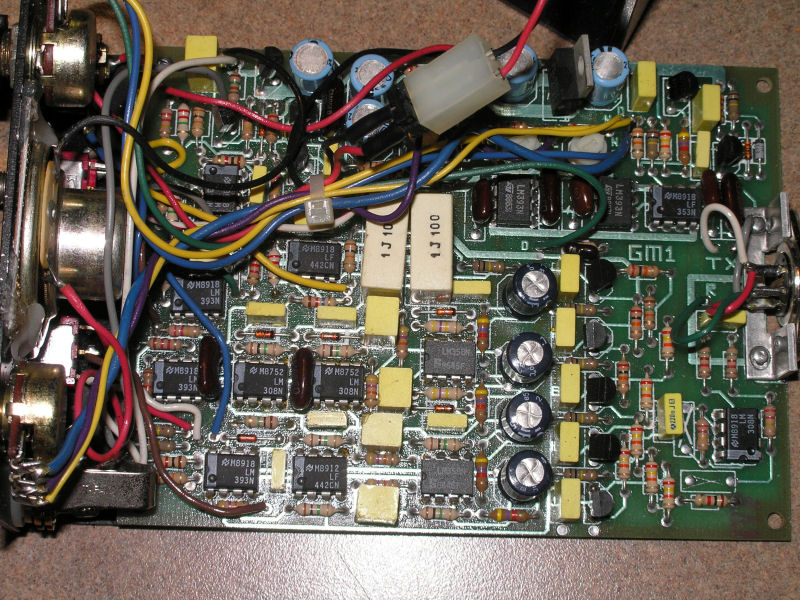

    Here are some pics of the PCB my King Cobra. They may be useful to someone. The schematic has already been posted.

    Merc
    Attached Files

  • #2
    Merc,

    was the PCB been repaired by your? I mean these soldering tracks on ICs. your PCB maybe has not a some capacitors.
    Attached Files

    Comment


    • #3
      I did not make any repairs. I just bought it recently. Possibly different revision?

      Merc

      Comment


      • #4
        I do not see differences between mine and yours. yours is another PCBs' series of, IMO. my detector box has not a serial number.

        Comment


        • #5
          Does anyone happen to know the manufacturer or where to purchase the coil connector of the King Cobra?

          Merc

          Comment


          • #6
            Originally posted by Merc View Post
            Does anyone happen to know the manufacturer or where to purchase the coil connector of the King Cobra?

            Merc
            If it uses the same connector as the Tesoro that it looks like, it may be Switchcraft SL175 microphone connector. No promise.
            Mouser stocks it.

            Switchcraft will send you a catalog and maybe a sample if you ask them. If you ask me their spec sheet and catalog is absurdly difficult to understand and so you are fully justified in having them send you a sample rather than your spending money and getting the wrong part delivered.

            Comment


            • #7

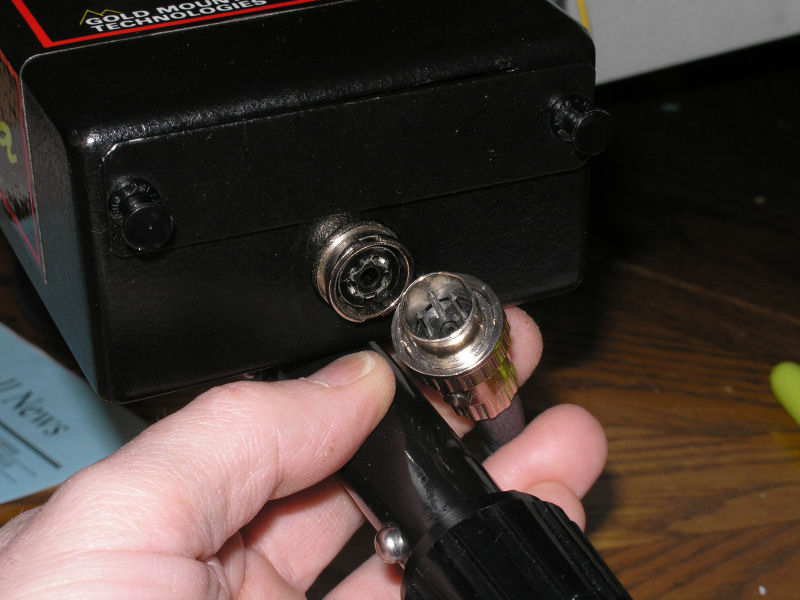

              Here is a picture of the King Cobra coil connector. It is definately not the same as the Tesoro coil connector. I have not been able to find any markings on the connector to identify it.

              Merc
              Attached Files

              Comment


              • #8
                I know this connectors. This is product german firm PREH. Very high quality. Look http://www.prehkeytec.com/din-steckverbinder.html?&L=1
                Mrand

                Comment


                • #9
                  connectors

                  http://www1.conrad.nl/scripts/wgate/zcop_nl3/~flNlc3Npb249UDkwX05MX0IyQzpDX0FHQVRFMTI6MDAwMC4wM TVlLjliM2JjOWRiJn5odHRwX2NvbnRlbnRfY2hhcnNldD1pc28 tODg1OS0xJn5TdGF0ZT0zNDU1NzkzODkw====?~template=PC AT_AREA_S_BROWSE&mfhelp=&p_selected_area=%24ROOT&p _selected_area_fh=&perform_special_action=&glb_use r_js=Y&shop=NL2&vgl_artikel_in_index=&product_show _id=&p_page_to_display=DirektSearch&~cookies=1&zhm mh_lfo=&zhmmh_area_kz=02&s_haupt_kategorie=&p_sear chstring=&p_searchstring_artnr=737054&p_searchstri ng_manufac_artnr=&p_search_category=alle&fh_direct call=&r3_matn=&insert_kz=&gvlon=&area_s_url=&brand =&amount=&new_item_quantity=&area_url=&direkt_aufr iss_area=&p_countdown=&p_80=&p_80_category=&p_80_a rticle=&p_next_template_after_login=&mindestbestel lwert=&login=&password=&bpemail=&bpid=&url=&show_w k=&use_search=3&p_back_template=&template=&kat_sav e=&updatestr=&vgl_artikel_in_vgl=&titel=&darstelle r=&regisseur=&anbieter=&genre=&fsk=&jahr=&jahr2=&d vd_error=X&dvd_empty_error=X&dvd_year_error=&call_ dvd=&kna_news=&p_status_scenario=&documentselector =&aktiv=&gewinnspiel=&p_load_area=$ROOT&p_artikelb ilder_mode=&p_sortopt=&page=&p_catalog_max_results =20




                  Grt Nakky

                  Comment


                  • #10
                    Thanks Mrand and nakky! That looks like the exact connector. I knew someone here would know.

                    Thanks a lot!!

                    Merc

                    Comment


                    • #11
                      connector

                      old c scope coil jack looks identical to the one on mine clubman 3 the 1220b and others

                      Comment


                      • #12

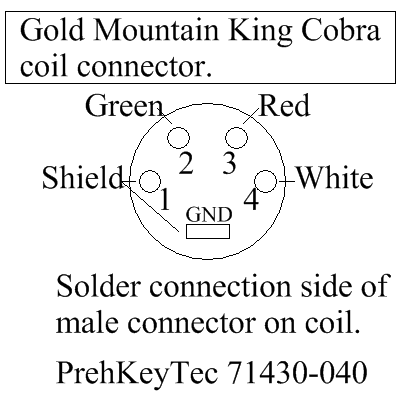

                        King Cobra connector pinouts. Just in case someone needs them later.

                        Merc
                        Attached Files

                        Comment


                        • #13
                          Originally posted by Merc View Post
                          Here are some pics of the PCB my King Cobra. They may be useful to someone. The schematic has already been posted.
                          Merc
                          Hi Merc,
                          Sorry for going slightly off-topic - Has anyone built this detector? I can't seem to find the schematics for King Cobra.
                          Please help!

                          Comment


                          • #14
                            you see a line above here on page... up your eye... find word SEARCH... click on it...

                            good luck

                            Comment


                            • #15
                              Originally posted by kt315 View Post
                              you see a line above here on page... up your eye... find word SEARCH... click on it...

                              good luck
                              Hi kt315,
                              Thanks for the tip! I had already searched for it but all I found were schematics for Cobra II.

                              Comment
