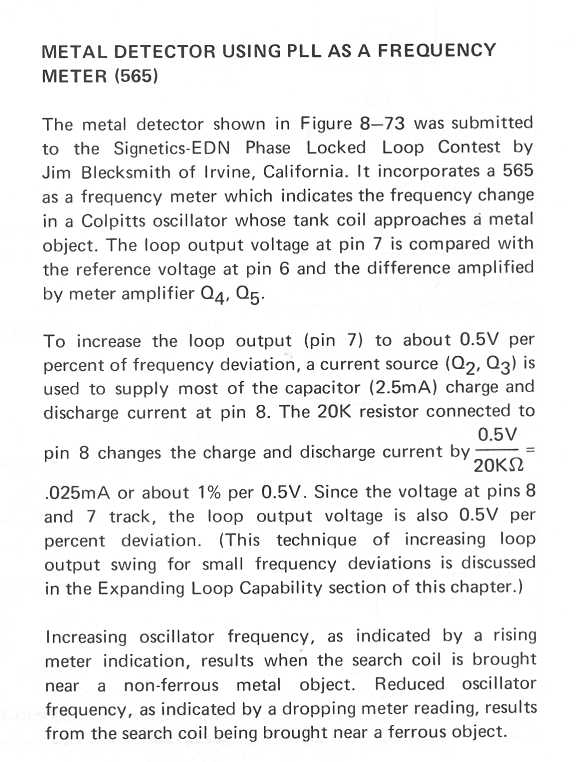

I spent ALOT of time with my scope trying to figure out why this PLL detector didn't work. Yeah the meter worked and stood at attention just waiting for ANY phase change to make it move, but alas, it waited in vain! Oh well, we all gave our best shot I think.
I made one too on a breadboard and I could not get any sensitivity from it at all. I tried to vary the internal osc. over a wide area but there was no change. I would have expected that there should be a capacitor across the coil so that it would have a resonance point. Maybe the one Eric posted is better because it looks more like a tradional BFO with two osc. and then you measure the phase difference. Has anybody tried that one yet ?. It could be interesting to combine with a PI unit and have a relay to switch the same coil between the PI and the BFO circuit so you could discriminate when something was found with the PI part.
hi! it looks that pin 3 go somewhere.the
info from national semi (lm565)also pin 5
go to pin 4 and coil.the data looks like pin
3 go to 1k to 10k hooked to grd.I do not
try it else.good luck!
Try playing with pin 9 of the 565, leave it idle or better connect it to +V with about 100 kOhm.
Maybe the coil will not detect many things but you will see on your scope a nice 2 to 3kHz sawtooh at pin 9 and a rectangular at pin 2.
I have no "scientific" explanation !
