  • #16

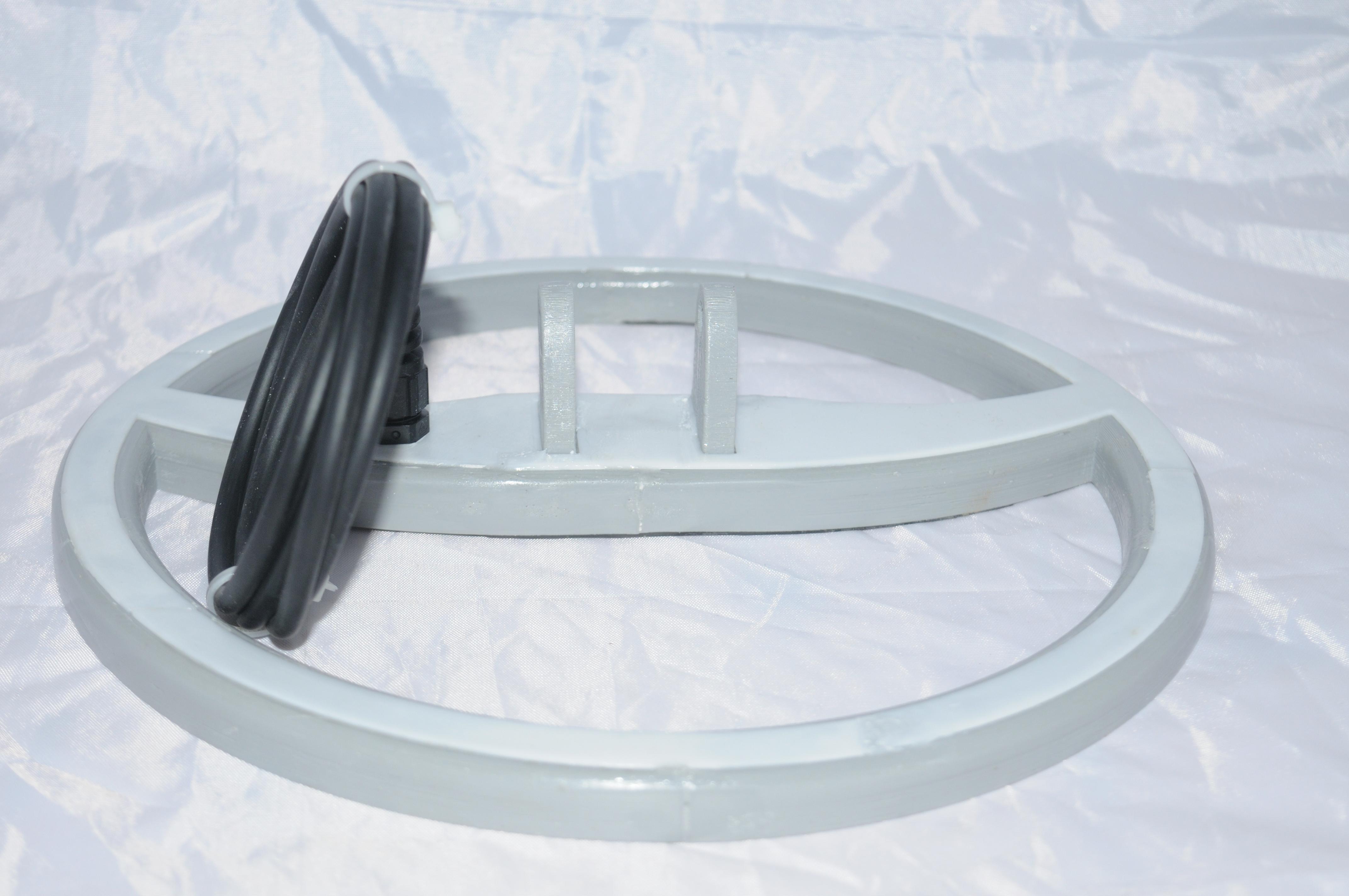

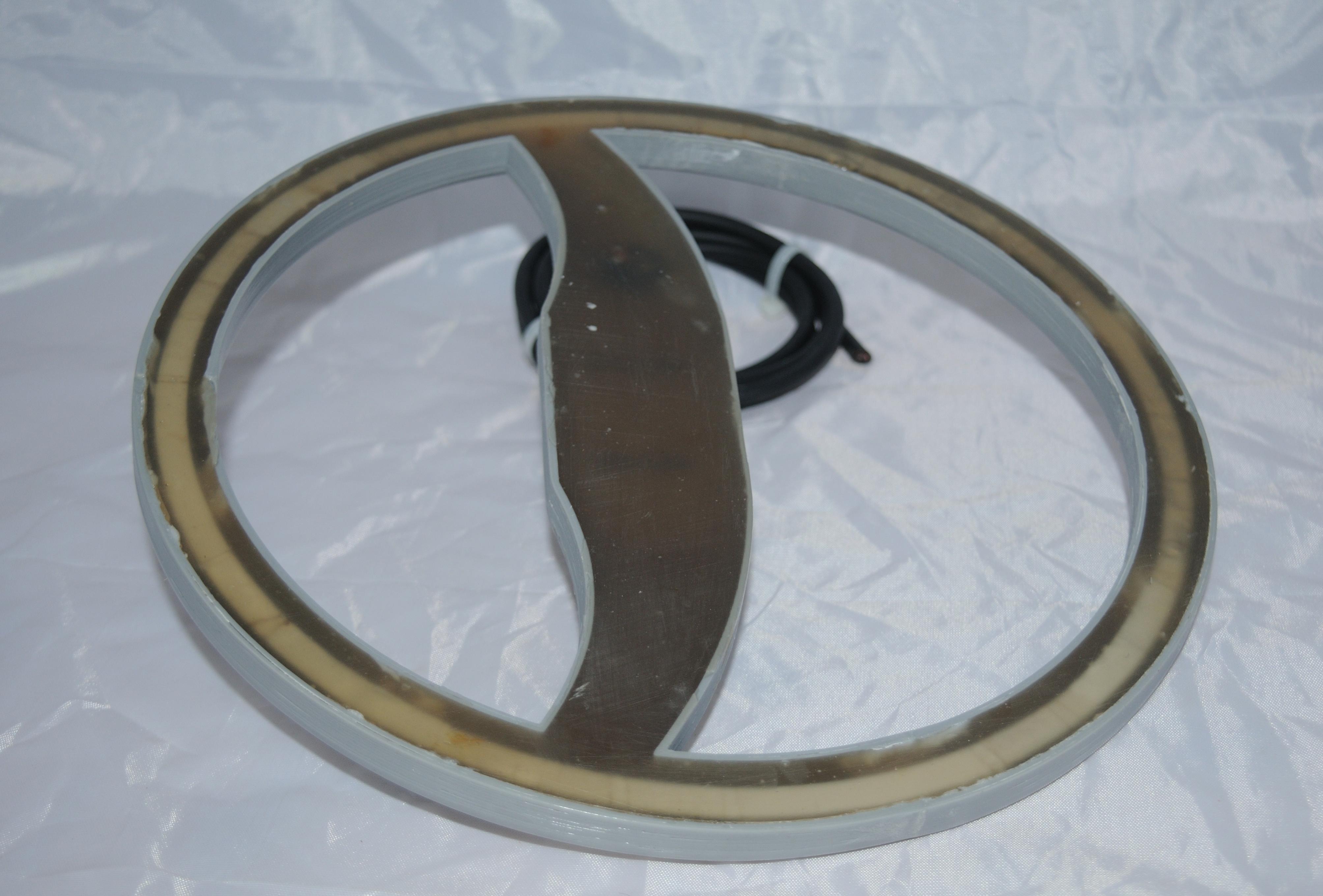

    Give me a few days to get all the files together, and ill upload STL files for a 6 8 10 and 12 inch coil that most can print on a 200x200 build plate, You ll need to print in abs so you can put all the parts together with acetone and sand it down and wipe with acetone to make it look good, they art only for mono loops though. here a few sample photos of the coils nearly or in some cases finished.

    Click image for larger version

Name:	MJH_3044_004.jpg
Views:	1
Size:	481.3 KB
ID:	359043 6 inch coil almost finished in that photo
    Click image for larger version

Name:	MJH_3047_006.jpg
Views:	1
Size:	470.3 KB
ID:	359044 Click image for larger version

Name:	MJH_3038_005.jpg
Views:	1
Size:	597.6 KB
ID:	359045 8 inch almost finished in those photos
    Click image for larger version

Name:	MJH_1174_00001.jpg
Views:	1
Size:	602.9 KB
ID:	359046 Click image for larger version

Name:	MJH_1181_00005.jpg
Views:	1
Size:	646.3 KB

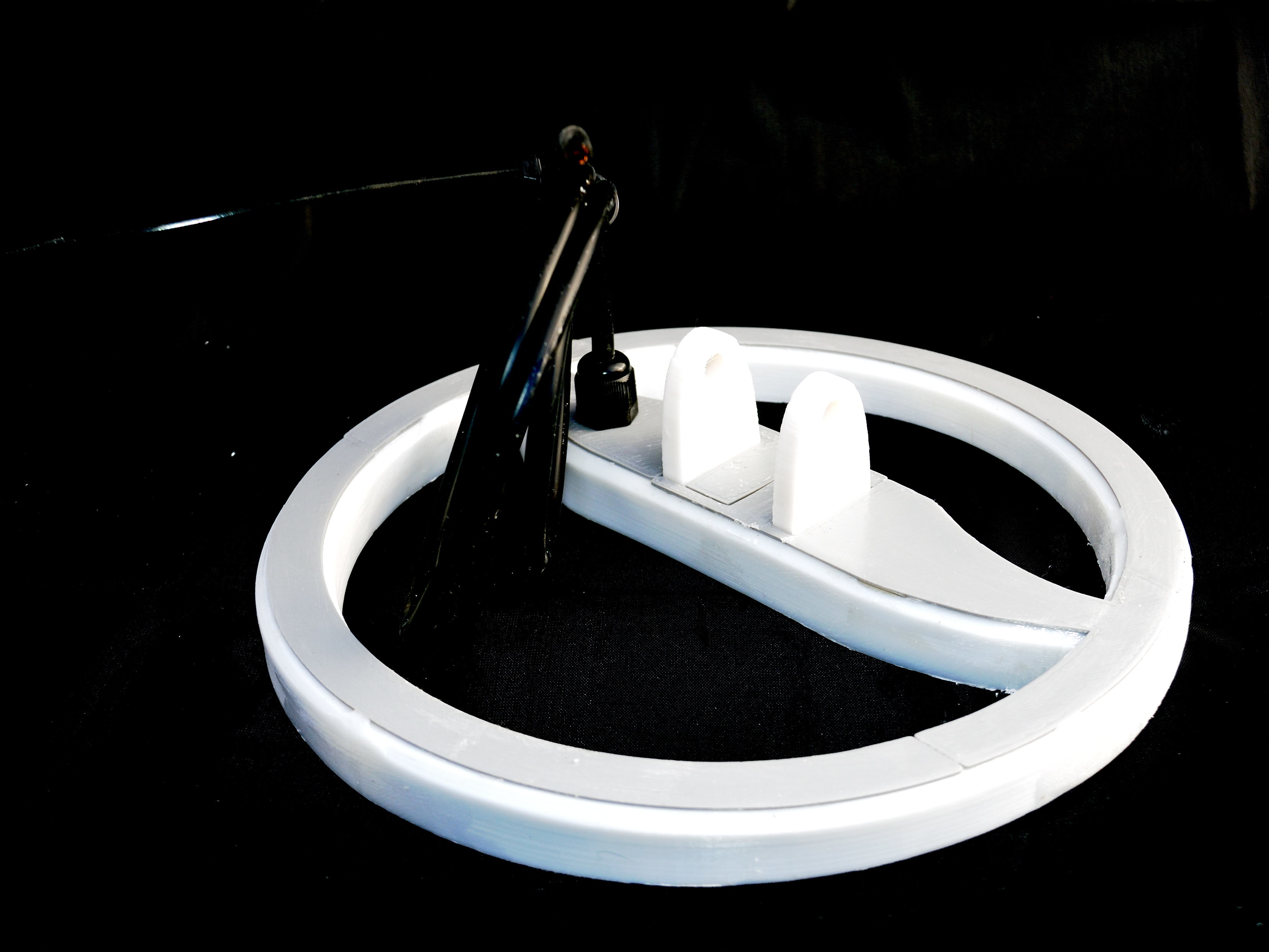

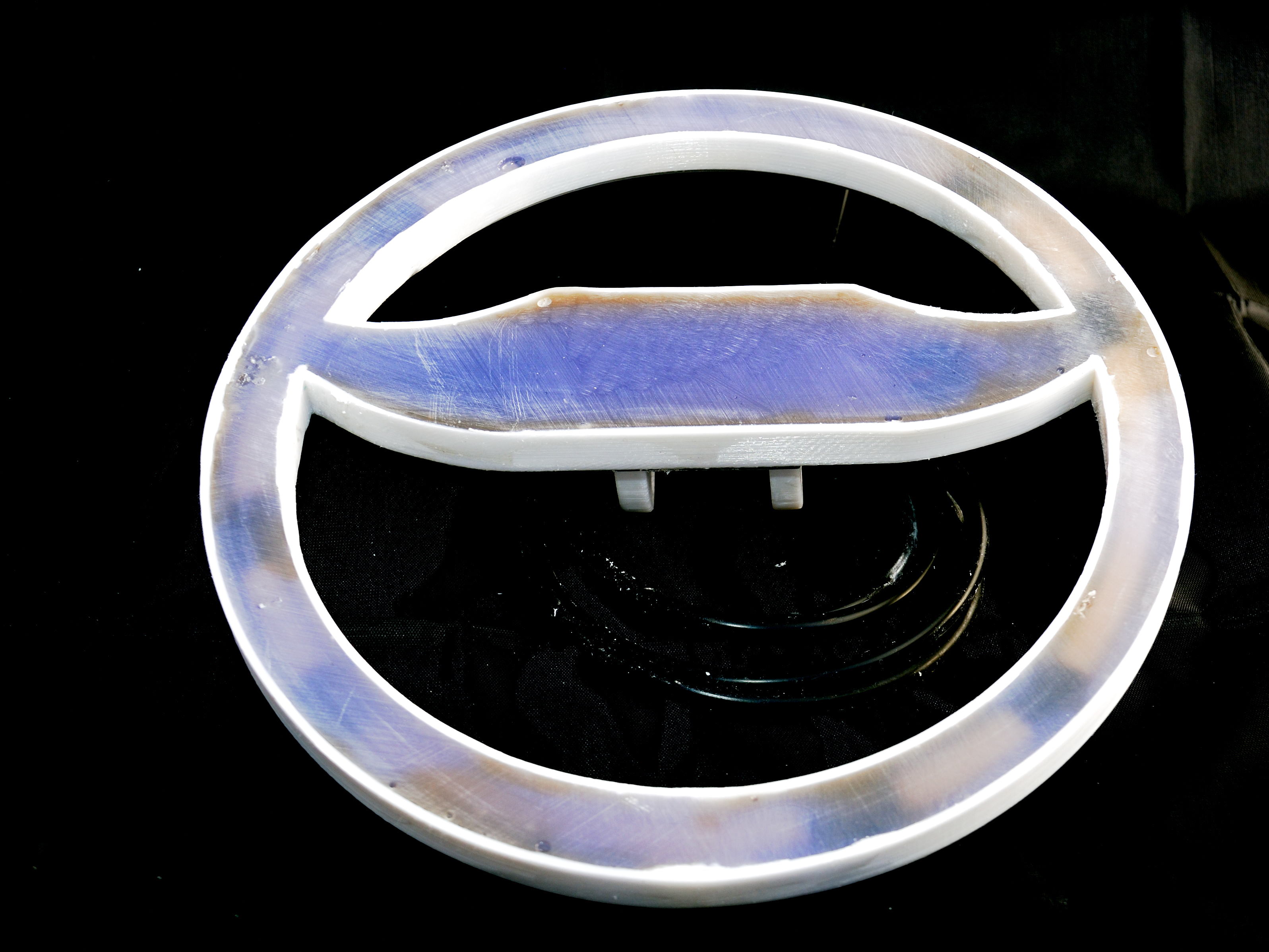

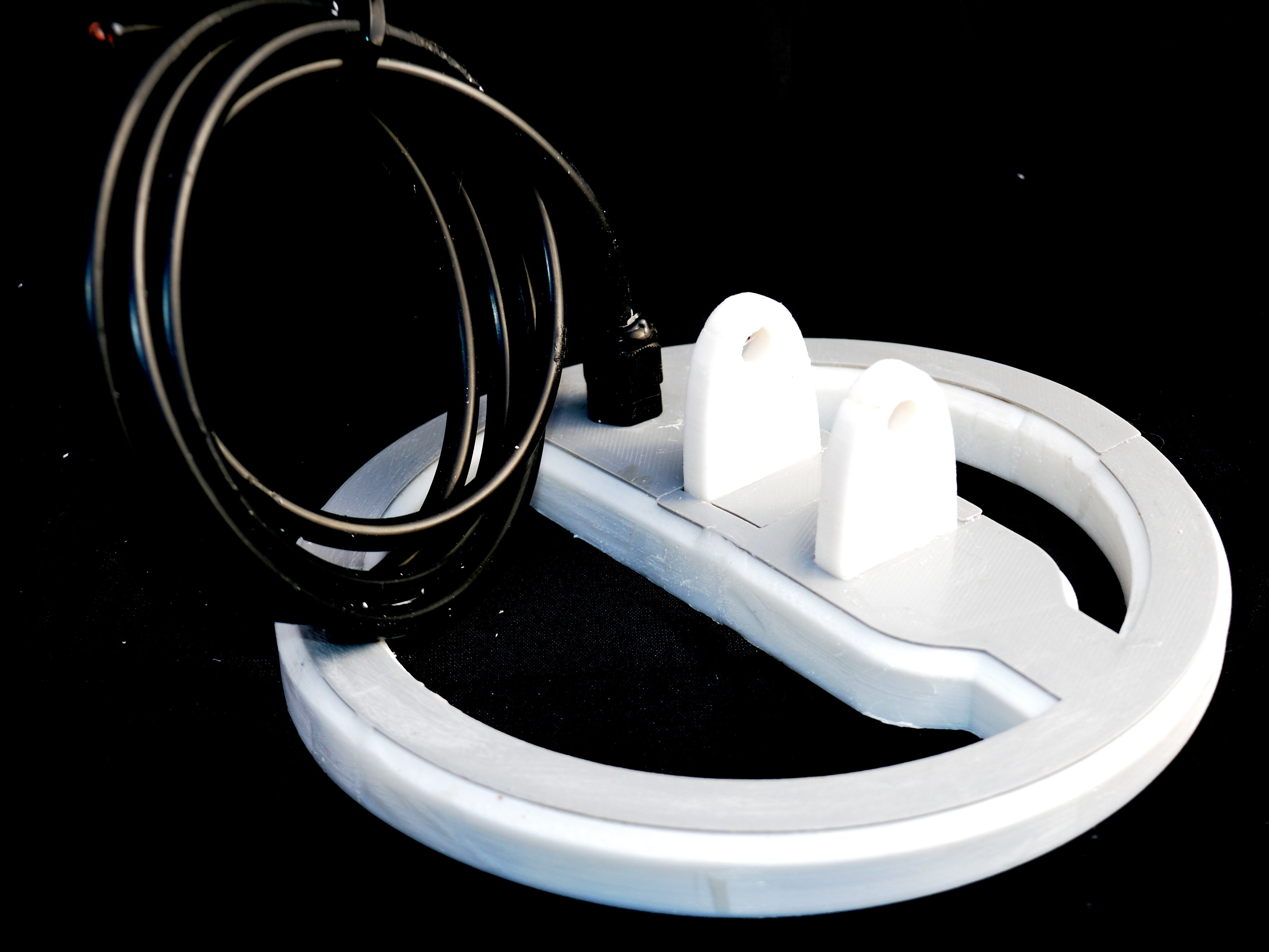

ID:	359047 10 inch
    Click image for larger version

Name:	fix 22 April 19_001_01.jpg
Views:	1
Size:	224.7 KB

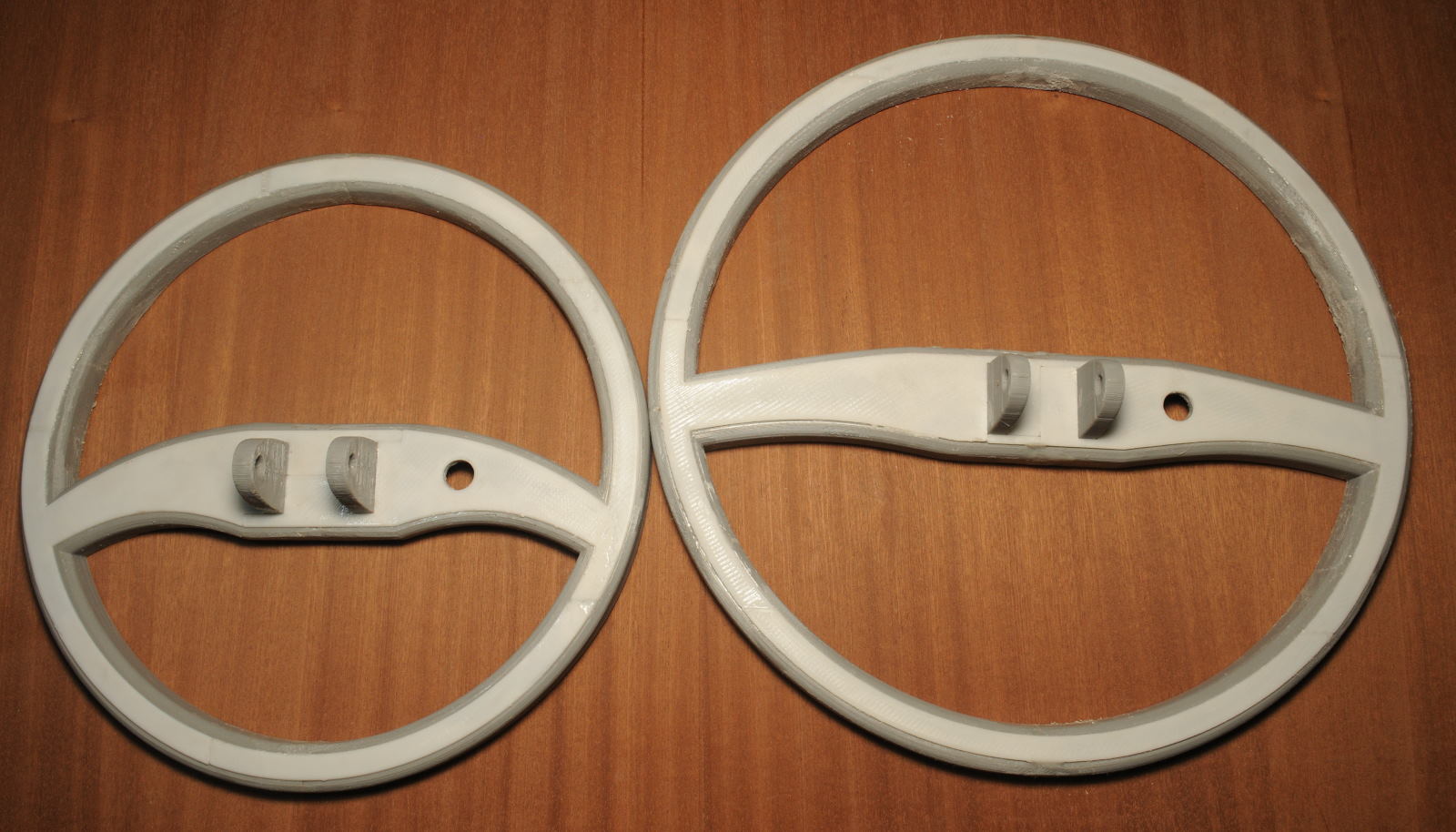

ID:	359048 a ten inch and a 12 inch that i had started to put together.
    Click image for larger version

Name:	10inch coil v8.jpg
Views:	2
Size:	67.8 KB

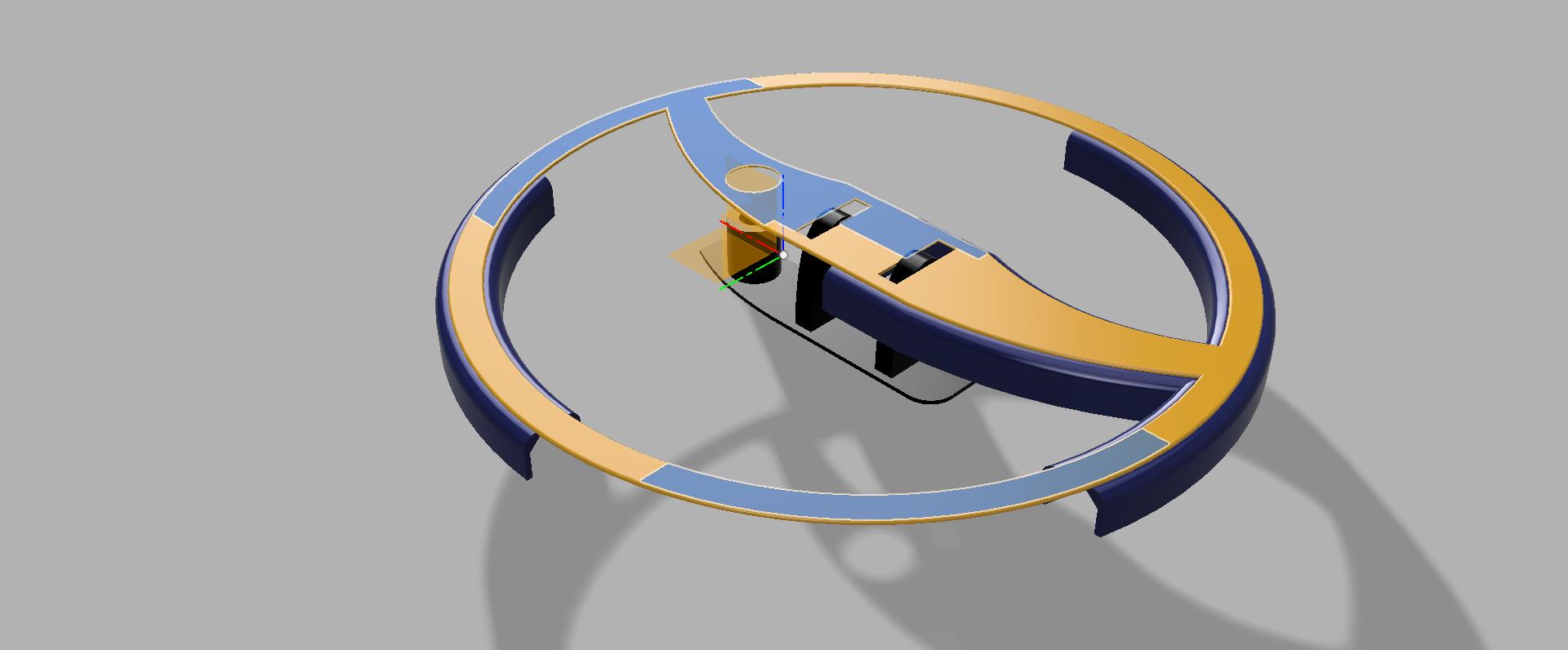

ID:	359049 how they get assembled more or less

    Comment


    • #17
      Shaft Connector

      sleeve 3.zipsleeve 1.ziparm 1.zipnew block 1.zip

      Here are the various parts for a shaft connector. The small clip on the block attaches to the hinge pin on the arm. I used a cut off nail for the pin.
      I have sent them as sketches so that you can easily manipulate them to suit your own requirements

      Comment


      • #18
        Originally posted by MartinB View Post
        [ATTACH]54437[/ATTACH][ATTACH]54436[/ATTACH][ATTACH]54434[/ATTACH][ATTACH]54435[/ATTACH]

        Here are the various parts for a shaft connector. The small clip on the block attaches to the hinge pin on the arm. I used a cut off nail for the pin.
        I have sent them as sketches so that you can easily manipulate them to suit your own requirements

        can you put all as stl files in one zip container? thx

        Comment


        • #19
          Hello to everyone
          Is there a GR 2018 box stl file?
          Yours truly

          Comment


          • #20
            3D Hybrid Mixed

            Hello there
            is an excerpt.
            https://s7.dosya.tc/server19/uguy9i/...LLLLL.rar.html
            regards

            Comment


            • #21
              Originally posted by gurdal View Post
              Wow. That is a fantastic amount of work.

              Comment


              • #22
                Gurdal thank you very much for the files, greatly appreciated.
                Indeed that's a fantastic amount of work.

                Comment


                • #23
                  Originally posted by bernte_one View Post
                  can you put all as stl files in one zip container? thx
                  Hi bernte_one
                  Zip file will be uploaded shortly

                  Comment


                  • #24
                    Shaft Connector

                    Hi bernte_one
                    This connector is for joining a 21mm OD carbon fibre tube to a 24mm OD carbon fibre tube to make them telescopic.
                    If any one has a better solution please post.
                    Attached Files

                    Comment


                    • #25
                      Shaft Connector STL File

                      And here it is in STL format.
                      Attached Files

                      Comment


                      • #26
                        Hi
                        I'm looking for the GR 2018 box stl file.
                        If you have it in your archive, can you share it.
                        thank you

                        Comment


                        • #27
                          Hello ivica master,
                          Any possibility to share a 3d stl project for felezjo pi?
                          it looked so beautiful.

                          regards

                          Comment


                          • #28
                            a plate for make spider coil stl?

                            thanks

                            Comment


                            • #29
                              Ears for coil

                              Ear for coil
                              Attached Files

                              Comment


                              • #30
                                Originally posted by Op04 View Post
                                Ear for coil
                                A bit bulky and too much metal.

                                Comment
