TGSL SMD

[BKY1337]

I found a version of tgsl in the internet called Tgsl s51kq

I search for a sprint layout file of it.

[dbanner]

This one? I think I have sprint layout. Will look for it.

[dbanner]

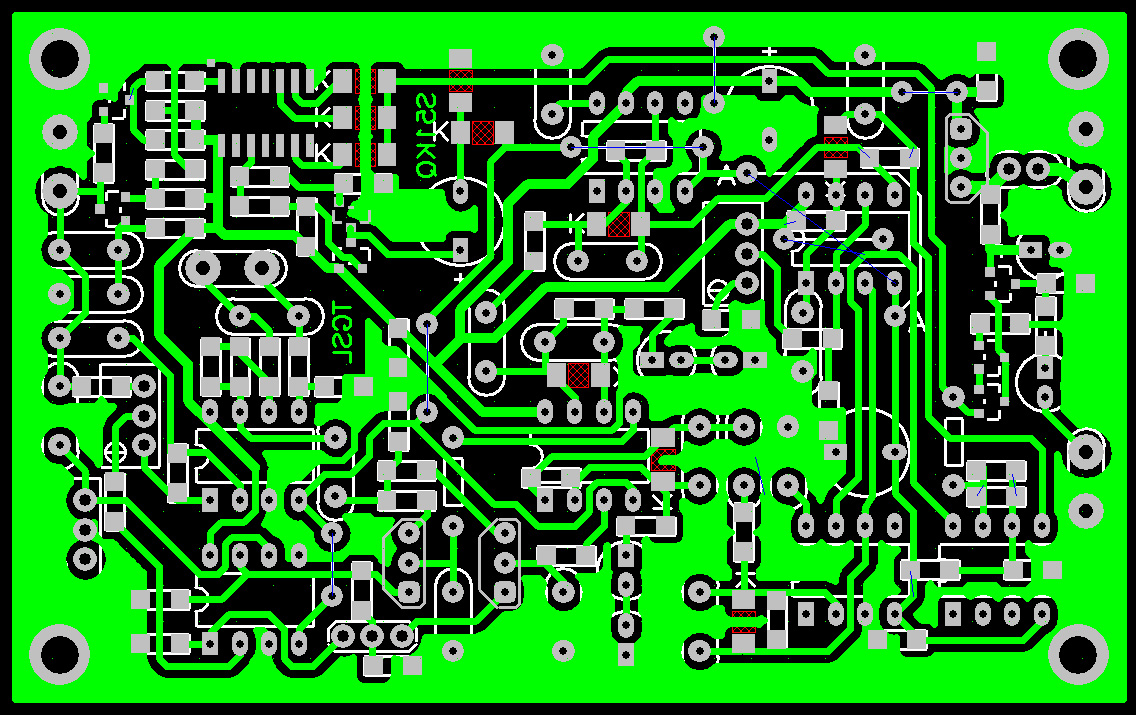

Is this the layout you want?

[ripsdevala]

Any cross reference for cd4024?, cant find the smd type at local store

[kt315]

74HC4024

[ripsdevala]

Thanks KT, but nothing found here, i think i should modified the layout.

[BKY1337]

Is this the layout you want?

Yes, thanks. Any small smd layout will work, i only want to use my TGSL EDU coil.
IGSL maybe too.

[kt315]

https://www.ebay.com/itm/2-x-CD4024-...8AAOxyRHdRzEbN

[dbanner]

http://lea.hamradio.si/~s51kq/photo_...ects_/TGSL-KQ/

[BKY1337]

I already know this site , i found it there. But unfortunately without .lay file.

I think the small version from you is the best choice for me.
But im not sure if i can make it with toner transfer.

I have a russian version too which is slightly bigger than yours and without smd 4024.
I found it here in the forum.

[dbanner]

yes you can use toner transfer https://youtu.be/haqP8xhsYas

[dbanner]

I tried this method with the backing paper suggested and it peels right off. It works great with tiny tracks.

[BKY1337]

Thanks

[BKY1337]

Can somebody make gerber files from TGSL smdv1?
It's the one from dbanner post #3.

[BKY1337]

And which SMD size is this? I measure 2,8mm from pad middle to pad middle.
