Classic DeltaPulse in new SMD revision

[Emersonpaz]

Excellent job congratulations post videos I am curious about your performance
What is the manufacturer of this friend LF357N? I ask because I recently bought the LF347 and it came with the same symbol.

[surfdetector]

Excellent job congratulations post videos I am curious about your performance
What is the manufacturer of this friend LF357N? I ask because I recently bought the LF347 and it came with the same symbol.

It looks like National Semiconductor

[bernte_one]

@StarShina

possible to send one pcb to germany, or the pcb design files?

[portmone]

[QUOTE = StarShina; 288642] Платы готовы.
Начинаю сборку. [/ QUOTE]

День добрый!
Интересует Ваша плата и возможность ее заказать (не нашел как здесь писать личное сообщение).
Также интересно как прошли испытания и монтаж в корпус, как организовали питание.
Спасибо.

[Qiaozhi]

[QUOTE = StarShina; 288642] Платы готовы.
Начинаю сборку. [/ QUOTE]

День добрый!
Интересует Ваша плата и возможность ее заказать (не нашел как здесь писать личное сообщение).
Также интересно как прошли испытания и монтаж в корпус, как организовали питание.
Спасибо.

Please read the forum rules -> Basic Rules of the Forums
and make your posts in English.

[Dean Sarelius]

Hi Starshina,
I like the look of your SMD PCB just wondering if it is 2 or 4 layer and if it is 4 layer what is your stackup..?

[TufaN]

PCBs are ready.
I'm starting the assembling.

I wonder. This smd version worked and how efficient is it. can you make a video?

[GeoMax]

SMD version is nice... but nothing for the DIY community. I am sure the majority of the forum members will have problems to deal with SMD soldering. SMD is something for commercial manufacturing only.

[Carl-NC]

SMD is not difficult if you stay with the larger package sizes. 0805 passives and SOIC/SOT23 are quite easy to solder and require only a moderately decent soldering iron. I routinely go down to 0402 and MSOP/TSSOP/QFP sizes, and in an emergency will even attempt DFN/QFN, but for these smallest sizes you need a really good soldering iron, a heat gun, and a microscope. StarShinas board designs look very DIY-friendly.

[kt315]

starshina is a rank in russian/soviet army. not so big, but big like soldier high one. not officer consist.
odna schirokaja lychka we say. on a pic.

[ArchibaldSTM]

For starshina ... Why show off your photos and show off your device if you don't share files for assembly? Do you think we are very interested in all this?

[ArchibaldSTM]

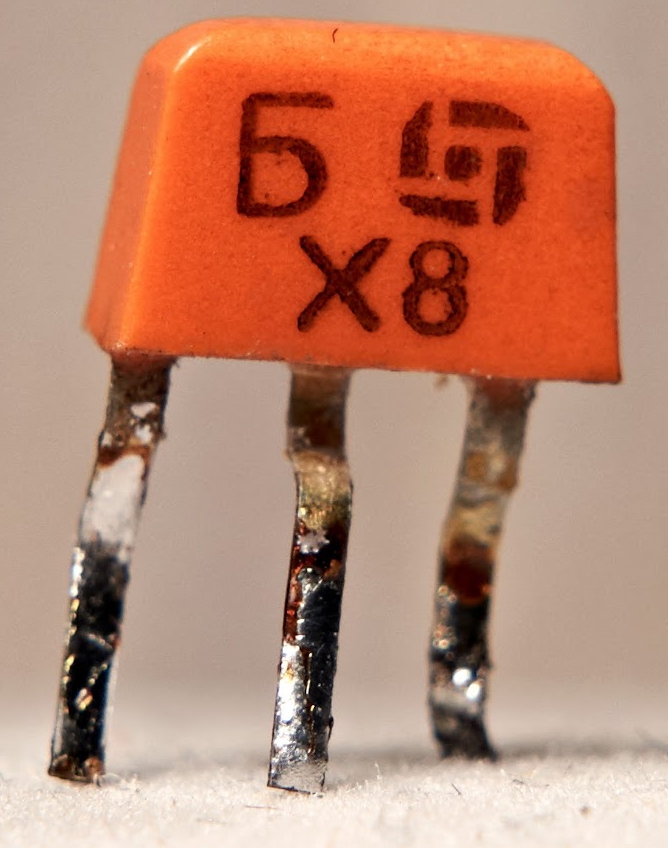

KT 315 is a low-power silicon high-frequency bipolar n-p-n transistor, produced in the USSR since 1968 and produced in Russia to this day.

[kt315]

ahaha! now everybody knows kt315. and maybe you will tell us american analogue?

[Toros]

http://radio-hobby.org/modules/analog/%D0%BA%D1%82315

[ivconic]

Whoever had misfortune to try to repair this thing; knows about KT315 and many other russian bijous!

It is fed up with those transistors, never works alright, from a very start, fresh from a store it is not working alright at all.
Probably the very worst tv i have ever tried to repair... back in my old radio-tv days...
